A Type 1 and Type 2 diabetes Venn diagram illustrates overlapping features (hyperglycemia, microvascular damage risk, polydipsia) while contrasting distinct pathophysiologies: absolute insulin deficiency from autoimmune pancreatic beta-cell destruction (Type 1) versus peripheral insulin resistance with progressive secretory defect (Type 2) and variable metabolic syndrome configurations.
📌 Key Takeaways
- Type 1 domain specifies >80-90% pancreatic beta-cell destruction driven by GAD65/IA-2 autoantibodies.
- Type 2 domain highlights insulin resistance alongside fasting plasma C-peptide levels >1.0 nmol/L.
- Overlapping center section details shared diagnostics including HbA1c >= 6.5% and polyuria/polydipsia symptoms.
- LADA (Latent Autoimmune Diabetes in Adults) is the most frequent point of diagnostic overlap confusion.
- Serum autoantibody panels and C-peptide quantification differentiate ambiguous clinical configurations.
Mapping endocrine metabolic disorders requires a precise, system-level visual framework to differentiate between distinct physiological failure modes. A type 1 and type 2 diabetes venn diagram serves as a critical diagnostic schematic, organizing clinical parameters into mutually exclusive and overlapping operational sectors. While both conditions terminate in systemic glucose dysregulation, their underlying etiology, biomarker profiles, and cellular mechanisms diverge significantly. Utilizing this comparative schematic enables clinicians, researchers, and medical system technicians to systematically evaluate pancreatic beta-cell functionality, autoimmune involvement, peripheral receptor sensitivity, and shared microvascular risk parameters.
Structural Breakdown of the Type 1 and Type 2 Diabetes Venn Diagram

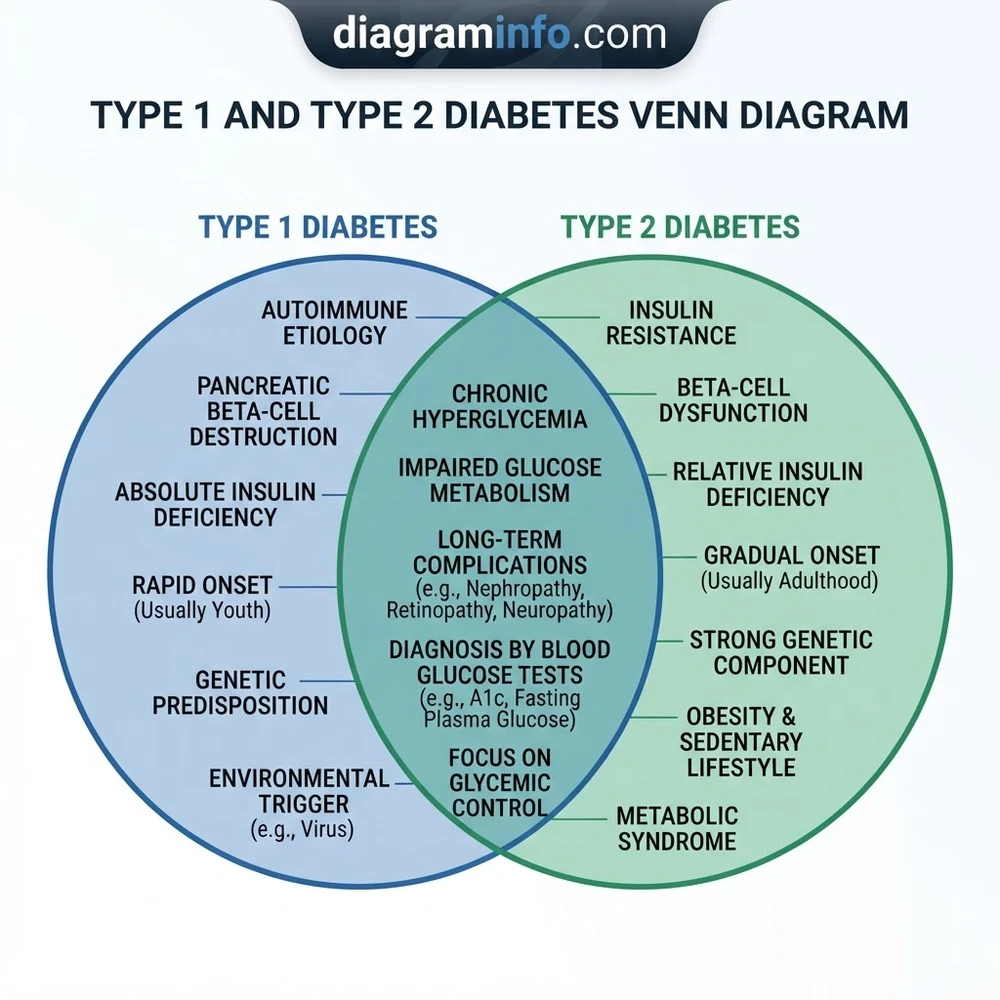

The layout of a comprehensive metabolic blueprint is organized into three defined structural sectors: Sector A (Type 1 specific features), Sector B (Type 2 specific features), and Sector C (the central overlapping intersection). Analyzing this system configuration requires evaluating specific clinical biomarkers and physiological mechanisms across each component.
| System Component | Type 1 Specific (Sector A) | Overlapping Parameters (Sector C) | Type 2 Specific (Sector B) |
|---|---|---|---|
| Primary Etiology | Autoimmune T-cell mediated destruction of pancreatic β-cells | Chronic glycemic dysregulation and metabolic stress | Peripheral insulin resistance & progressive secretory defect |
| Diagnostic Biomarkers | Positive Anti-GAD65, IA-2A, ZnT8A, and ICA autoantibodies | FPG ≥126 mg/dL, HbA1c ≥6.5%, 2-hr OGTT ≥200 mg/dL | Elevated fasting insulin, dyslipidemia, high uric acid |
| C-Peptide Levels | Undetectable to severely diminished (<0.2 nmol/L) | Variable over disease duration; reflects endogenous yield | Normal or elevated (>1.1 nmol/L early); declines late stage |
| System Onset & Profile | Rapid onset, lean phenotype, acute DKA susceptibility | Risk of neuropathy, retinopathy, nephropathy, CAD | Insidious onset, strongly linked to adiposity/metabolic syndrome |
When cross-referencing patient labs against the type 1 and type 2 diabetes venn diagram schematic, C-peptide quantification serves as the definitive structural divider. Because proinsulin cleaves into equal parts insulin and C-peptide, C-peptide assay yields directly quantify functional β-cell mass independent of exogenous insulin administration.
Sector A highlights the autoimmune pathway, governed by genetic susceptibility loci on HLA-DR3 and HLA-DR4. Sector B details the metabolic pathway, driven by GLUT4 receptor down-regulation, hepatic gluconeogenesis disinhibition, and visceral adipocyte inflammatory cytokine release. Sector C integrates the common endpoint pathways: systemic microvascular degradation, oxidative stress, and endothelial dysfunction.
How to Analyze the Type 1 and Type 2 Diabetes Venn Diagram Schematic
To systematically evaluate a diagnostic profile using the type 1 and type 2 diabetes venn diagram, follow a structured decision-tree algorithm. This step-by-step diagnostic verification protocol ensures proper categorization based on etiology, cellular output, and receptor kinetics.
Step 1: Quantify Autoimmune Marker Status
Initiate diagnostic sequencing by running a serum autoantibody panel. Screen specifically for glutamic acid decarboxylase (GAD65), islet antigen-2 (IA-2), and zinc transporter 8 (ZnT8) antibodies. Positive antibody detection confirms cellular destruction via autoimmune response, mapping the profile strictly into Sector A of the blueprint layout.
Step 2: Measure Endogenous Secretion Yield
Assess beta-cell output under fasting conditions or via a standardized glucagon stimulation test. Cross-reference the resulting C-peptide concentration against physiological specifications:
Absolute Deficiency (Type 1): Serum C-peptide < 0.2 nmol/L (0.6 ng/mL).
Preserved/Hyper-Secretion (Type 2 Early/Mid Stage): Serum C-peptide > 0.6 nmol/L, often exceeding 1.2 nmol/L alongside compensatory hyperinsulinemia.
Diagnostic Gray Zone: C-peptide between 0.2 and 0.6 nmol/L requires clinical correlation with autoantibody titers.
Step 3: Evaluate Receptor Sensitivity and Metabolic Markers
Calculate the Homeostatic Model Assessment of Insulin Resistance (HOMA-IR) using fasting glucose and insulin values. A high HOMA-IR score (>2.5) combined with central adiposity, acanthosis nigricans, and altered lipid panels places the profile in Sector B. Reviewing the continuous glucose monitoring systems layout alongside baseline labs helps confirm glucose variability trends.
Step 4: Confirm Shared Endpoint Pathologies
Map non-differentiating markers into Sector C. Measure glycated hemoglobin (HbA1c), urine albumin-to-creatinine ratio (uACR), and estimated glomerular filtration rate (eGFR). Regardless of etiology, persistent blood glucose elevation above physiological thresholds drives identical microvascular damage cascades, requiring standard organ-protection protocols.
Diagnostic Troubleshooting for Misclassified Metabolic System Layouts
System misclassification occurs frequently when clinical presentations overlap or deviate from standard age and body mass specifications. When mapping a complex patient presentation on the type 1 and type 2 diabetes venn diagram, review these common diagnostic anomalies and system configuration errors.
Misdiagnosing Type 1 or LADA as Type 2 diabetes and withholding exogenous insulin can result in severe metabolic collapse, acute diabetic ketoacidosis (DKA), and rapidly accelerating systemic organ stress. Always run autoantibody panels when adult patients fail oral glycemic agents.
Latent Autoimmune Diabetes in Adults (LADA / Type 1.5)
LADA presents initially with a clinical overview resembling Type 2 diabetes due to adult onset and modest initial response to oral agents. However, positive GAD65 antibodies and progressive autoimmune destruction lead to secondary failure of non-insulin therapies within 12 to 36 months. On the schematic, LADA acts as a bridge between Sector A and Sector B.
Double Diabetes (Hybrid Configuration)
As obesity prevalence rises, individuals with underlying Type 1 diabetes (Sector A) may develop peripheral insulin resistance (Sector B) due to weight gain and physical inactivity. This dual-pathology configuration requires addressing both autoimmune absolute insulin lack and peripheral receptor down-regulation simultaneously.
Ketosis-Prone Type 2 Diabetes (Flatbush Diabetes)
Patients present with acute diabetic ketoacidosis and severe β-cell blunting characteristic of Type 1, but test autoantibody-negative. Following acute insulin stabilization, β-cell function recovers, allowing long-term glycemic maintenance on oral agents alone—placing them firmly in Sector B despite the initial Type 1 appearance. Reference the diabetic ketoacidosis diagnostic protocol for stabilization guidelines.
Type 1 and Type 2 Diabetes Venn Diagram Frequently Asked Questions
What primary component differentiates Type 1 from Type 2 on the diagram structure?
The primary differentiating component is etiology: Type 1 is driven by an autoimmune destruction of pancreatic beta-cells leading to absolute insulin deficiency, whereas Type 2 is driven by peripheral insulin resistance combined with a progressive, non-autoimmune secretory defect. Autoantibody presence is the definitive molecular marker separating the two main circular sectors.
How does C-peptide measurement define placement on the schematic overview?
C-peptide is a byproduct of endogenous insulin synthesis. Low or undetectable C-peptide levels (<0.2 nmol/L) place the diagnostic profile in Sector A (Type 1), indicating minimal to no beta-cell function. Normal or elevated C-peptide levels point toward Sector B (Type 2), signaling intact insulin production paired with target tissue resistance.
Where does Latent Autoimmune Diabetes in Adults (LADA) fit within this layout?
LADA occupies a transitional position between Sector A and Sector B, often termed Type 1.5. It shares the autoimmune antibody markers and eventual beta-cell failure of Type 1 (Sector A), but initially exhibits the adult-age presentation and gradual onset characteristic of Type 2 (Sector B).
Can a patient present with diagnostic features in both circular sectors simultaneously?
Yes. This configuration is clinically known as “double diabetes” or hybrid diabetes. It occurs when a patient with autoimmune Type 1 diabetes develops peripheral insulin resistance secondary to obesity, metabolic syndrome, or long-term high-dose exogenous insulin exposure, effectively combining parameters from both Sector A and Sector B.
Which clinical symptoms reside strictly in the central overlapping section?
The central overlapping section (Sector C) contains symptoms resulting directly from chronic hyperglycemia, independent of cause. These include polyuria, polydipsia, unexplained weight loss, elevated HbA1c, elevated fasting glucose, and long-term risks for microvascular (retinopathy, nephropathy, neuropathy) and macrovascular complications. You can consult our insulin receptor signaling blueprint for deeper cellular pathway mapping.
Step-by-Step Guide to Understanding the Type 1 And Type 2 Diabetes Venn Diagram
Identify – Review the primary disease domains represented on the left and right circles of the diagram.
Locate – Isolate specific physiological markers such as pancreatic autoantibodies or insulin resistance indicators.
Reference – Cross-examine patient laboratory values against the values defined in the diagram structure.
Connect/Route – Map observed clinical symptoms to either the unique outer zones or the central shared region.
Verify – Confirm diagnostic placement by checking C-peptide concentration levels against the etiology path.
Troubleshoot – Re-evaluate diagnostic classification if clinical markers conflict with standard region definitions.
