Gibbs System: How to Read a Ternary Phase Diagram 2026 Guide
To read a ternary phase diagram, locate the 3-component vertices (A, B, C representing 100% pure elements). Follow constant-composition grid lines perpendicular or parallel to the sides opposite each vertex to determine weight percentages. Draw tie lines within 2-phase regions and use the lever rule along tie lines to calculate phase proportions.
📌 Key Takeaways
- Vertices represent 100 wt% pure component (A, B, C), while opposite binary edges represent 0 wt% of that component.
- Grid lines parallel to an edge indicate constant weight percentage of the opposite apex component in 10% increments.
- Tie lines in 2-phase regions must remain isothermal and isobaric (typically fixed at 1 atm standard pressure).
- Misinterpreting grid axis directions is the most common plotting mistake when reading 3-component configuration points.
- Use automated metallurgical software like Thermo-Calc for complex 4+ component systems beyond standard manual ternary analysis.
Evaluating three-component alloy systems, such as automotive aluminum-silicon-magnesium engine blocks or stainless steel formulations, requires analyzing complex chemical interactions across varying temperatures. A ternary phase diagram provides a three-dimensional thermodynamic representation projected onto a two-dimensional triangular layout. Mastering how to read a ternary phase diagram enables automotive engineers, metallurgists, and equipment designers to determine liquidus surfaces, predict phase transformations, and optimize microstructures for high-stress applications. This guide breaks down the geometric schematic, coordinate reading methods, and tie-line calculations needed to evaluate multi-component alloy equilibrium accurately.
How to Read a Ternary Phase Diagram: Core Component Overview

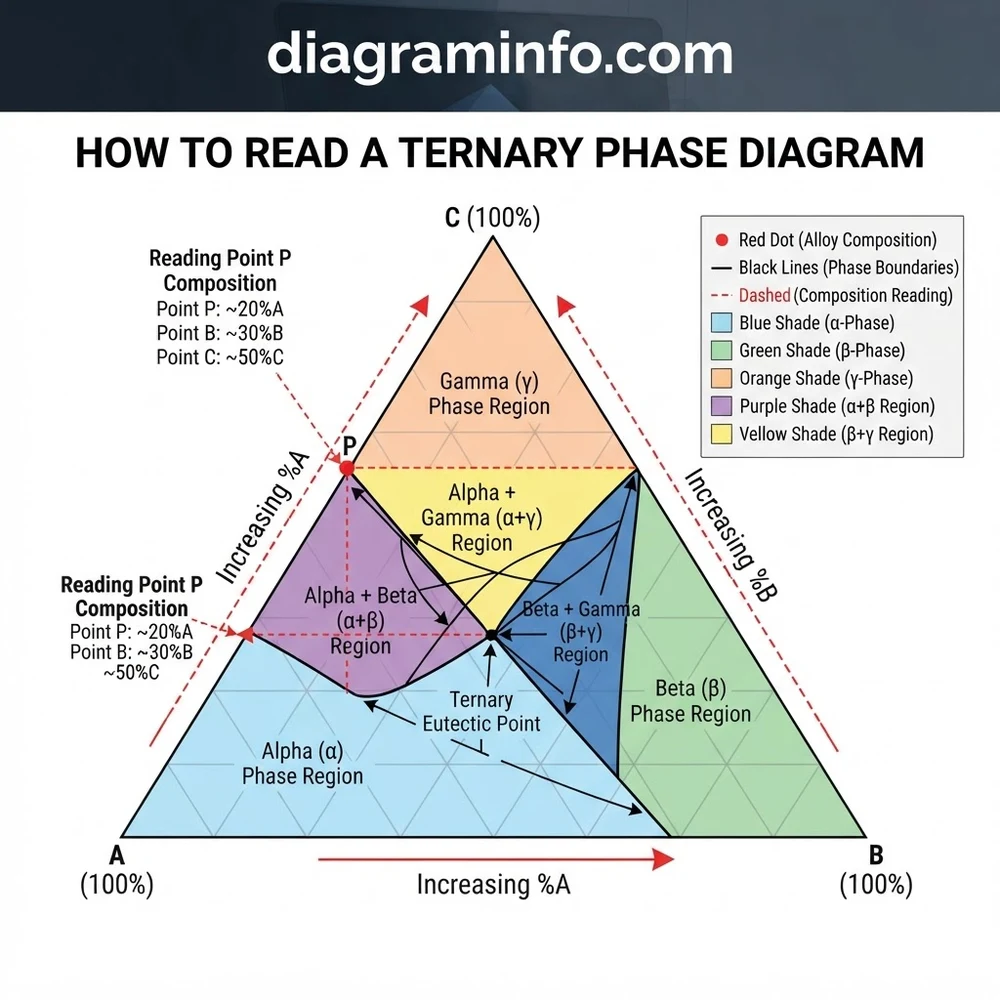

A ternary phase diagram uses an equilateral triangle schematic—known as a Gibbs triangle—as its base geometry. Each corner of the triangle represents a pure component (100 wt% A, B, or C). The three outer edges represent binary system configurations between pairs of elements (A-B, B-C, and C-A). Internal coordinates plot combinations of all three elements simultaneously.
Recommended Best Deal Products
To successfully analyze the phase diagram schematic, you must identify three structural features:
Equilateral Grid Structure and Concentration Coordinates
The internal grid consists of parallel concentration lines running perpendicular to the three binary bases. Concentration scales increase from 0% at the edge opposite a pure vertex to 100% at the vertex itself. According to standard metallurgical convention, reading a component’s weight fraction requires measuring along lines parallel to the edge opposite that component’s corner.
Isothermal Sections and Liquidus Surface Schematics
Because full ternary system representations are three-dimensional prisms with temperature as the vertical axis, technical references present them as two-dimensional isothermal sections (constant temperature slices) or liquidus projections. Liquidus projections plot thermal contours (isotherms) down the liquidus surface, showing primary crystallization fields separated by monotectic, eutectic, or peritectic boundary lines.
Phase Boundaries and Invariant Reaction Configurations
Within the layout, single-phase, two-phase, and three-phase regions coexist. Single-phase areas are fields, two-phase areas are crossed by tie-lines, and three-phase areas are defined by tie-triangles. Phase balance within these boundaries is governed by fundamental thermodynamic principles established in standard binary phase diagrams.
| Diagram Feature | Geometric Layout | Metallurgical Function |
|---|---|---|
| Apex (Vertex) | Corner Point | 100% pure single element concentration |
| Binary Boundary | Outer Triangle Edges | Two-component equilibrium transitions |
| Isothermal Contour | Internal Curved Lines | Constant melting/solidification temperature lines |
| Tie-Triangle | Three-sided Internal Field | Three-phase equilibrium at a fixed temperature |
How to Read a Ternary Phase Diagram: Step-by-Step Procedure
Accurately reading composition points and phase equilibria requires systematic drafting techniques. Follow this structured process when evaluating an isothermal section or liquidus surface configuration.
Analysis Requirements, Tools, and Safety Precautions
Ensure you have the proper measurement tools and specifications ready before beginning diagram interpolation.
Estimated Time: 15–20 minutes per compositional point
Required Tools: Fine-tip mechanical pencil (0.5mm), drafting straightedge/ruler, 60-degree triangular rule, scientific calculator, OEM thermodynamic reference tables.
Safety Precautions: When applying ternary calculations to physical foundry casting or heat treatment operations, ensure furnace controls are calibrated to verified chemical specs. Overshooting composition windows can cause hot tearing or explosive liquid metal spattering during casting.
Execution Steps for Determining Alloy Phase Balance
Step 1: Identify the pure component vertices
Orient the Gibbs triangle diagram so that the primary component (e.g., Fe in a steel alloy blueprint, or Al in an engine block alloy schematic) is located at the top apex. Confirm whether the concentration grid is scaled in weight percentage (wt%) or atomic percentage (at%).
Step 2: Plot the alloy compositional coordinate
Locate your specified target alloy percentages (e.g., 70% A, 20% B, 10% C):
- Locate 70% on the A-axis grid (line running parallel to the base opposite vertex A).
- Locate 20% on the B-axis grid (line parallel to the edge opposite vertex B).
- Find the precise intersection point of these two concentration grid lines. Verify that the remaining value matches 10% on the C-axis.
Step 3: Determine local equilibrium phases
Identify the region where your plotted coordinate resides at the given temperature cut. If the point falls inside a single-phase field (such as primary liquid or solid solution α), the alloy is fully homogeneous at equilibrium.
Step 4: Draw tie-lines for two-phase regions
If the coordinate falls within a two-phase field, construct or locate the explicit tie-line passing through your alloy point. The endpoints of the tie-line intersecting the single-phase field boundaries reveal the exact chemical compositions of the two coexisting phases.
Step 5: Apply the lever rule for quantitative phase fractions
To calculate the mass fraction of each present phase, apply the inverse lever rule along the tie-line vector. Measure the total length of the tie-line ($L_{total}$) and the segment lengths from the alloy point to each phase endpoint ($L_{\alpha}$ and $L_{\beta}$):
Mass Fraction Calculation: The weight fraction of Phase α is calculated as $W_{\alpha} = \frac{L_{\beta}}{L_{total}}$, where $L_{\beta}$ is the distance from the target point to the opposite phase boundary on the tie-line schematic.
Step 6: Evaluate three-phase invariant regions
If the plotted point falls inside a tie-triangle, three phases coexist at that specific temperature. The composition of each phase corresponds to the three corners of the tie-triangle. Calculate the individual phase amounts using a center-of-gravity barycentric calculation based on the point’s relative position within the triangle.
Troubleshooting Layout Errors and Structural Misinterpretations
Misinterpreting phase boundary configurations leads to catastrophic errors in component mechanical properties and incorrect heat treatment schedules. Avoid these common analytical mistakes when navigating ternary diagrams:
Coordinate Reading Errors and Axis Misalignment
The most frequent operational error is reading concentration lines along axes that are perpendicular to the outer edge, similar to Cartesian coordinates. Ternary systems use isometric grids. Always follow lines parallel to the base edge opposite the vertex of interest.
Do not attempt to read tie-lines arbitrarily across two-phase fields. Tie-lines in ternary isothermal sections are rarely parallel to the outer binary edges. You must use experimentally verified or thermodynamically calculated (CALPHAD) tie-line direction vectors provided on OEM engineering prints.
Tie-Line Misapplication in Multi-Phase System Layouts
Engineers often attempt to draw straight tie-lines inside three-phase tie-triangles. Inside a three-phase region, tie-lines do not exist as single vectors; instead, the overall composition splits into three distinct fixed-composition phases defined strictly by the vertices of the tie-triangle. Position within the triangle dictates relative phase abundance, not individual phase composition.
Another critical oversight involves ignoring non-equilibrium solidification conditions. Equilibrium ternary diagrams assume infinite diffusion rates. Under rapid cooling conditions typical of automotive casting or welding operations, dynamic path shifts occur. Cross-reference equilibrium predictions with non-equilibrium Scheil solidification curves before finalizing alloy specifications.
Ternary Phase Diagram System FAQs
How does Gibbs’ Phase Rule apply to a ternary system blueprint?
Gibbs’ Phase Rule is defined as $F = C – \Phi + P$, where $C$ is the number of components (3 for ternary systems), $\Phi$ is the number of coexisting phases, $P$ is pressure, and $F$ represents degrees of freedom. Assuming constant atmospheric pressure ($P=1$), the formula simplifies to $F = 4 – \Phi$. A single-phase region ($\Phi = 1$) has 3 degrees of freedom (temperature and two concentration variables). A four-phase invariant reaction ($\Phi = 4$) leaves 0 degrees of freedom, occurring at a precise temperature and fixed composition point, similar to a classic eutectic point analysis.
What is the difference between isothermal sections and vertical isopleths?
An isothermal section is a horizontal slice taken at a constant temperature across the 3D prism schematic, showing equilibrium phases for all compositional variations at that specific temperature. A vertical section (isopleth) is a vertical slice cut through the prism along a line of fixed component ratios. Isopleths show phase transitions over a temperature range, but tie-lines cannot be used directly on isopleths to calculate phase compositions because the coexisting phases usually lie outside the plane of the section.
How do you calculate phase fractions using ternary tie-triangles?
When an alloy composition falls within a three-phase tie-triangle at temperature $T$, apply the barycentric lever rule (center-of-mass balance). Construct lines from each vertex of the tie-triangle through the overall alloy coordinate to the opposite triangle edge. The ratio of the line segments determines the relative weight percentage of each of the three coexisting phases.
Why do liquidus projection schematics display directional arrows?
Directional arrows along the boundary lines (univariant curves) on a liquidus projection indicate falling temperature pathways. These vectors show the thermal direction of liquid composition evolution as solidification progresses down thermal valleys toward invariant reaction points, such as ternary eutectics or peritectics.
