The Ford Ranger automatic shift linkage diagram details the mechanical connection between the steering column shift lever and the transmission manual lever. Key components include the shift control cable, column shifter bracket secured by T30 Torx bolts, retaining clips, and plastic bushings. It guides proper cable adjustment in Park to prevent shifting misalignment.
📌 Key Takeaways
- The lower steering column shift tube bracket is secured by two T30 Torx bolts that commonly loosen and cause sloppy gear selection.
- Worn nylon linkage bushings at the transmission manual lever cause excessive shifter play and gear misalignment.
- Proper cable adjustment must be performed with both the shift selector lever and transmission range switch locked in Park.
- Stretched or frayed shift cables require full assembly replacement rather than bushing replacement to maintain alignment.
- DIY replacement of linkage bushings takes under an hour, but internal transmission manual shaft binding requires professional repair.
Understanding the mechanical and electromechanical layout of the Ford Ranger automatic shift linkage system is essential for diagnosing sloppy gear selection, failure to crank in Park, or incorrect gear indicator alignment. Whether servicing the 4R44E, 4R55E, 5R55E, or 4R70W automatic transmission platforms commonly found across model years, the linkage translates steering column selector movement into precise manual valve indexing inside the valve body. This technical guide outlines the structural components, schematic routing, adjustment specifications, and diagnostic procedures utilizing OEM reference standards.

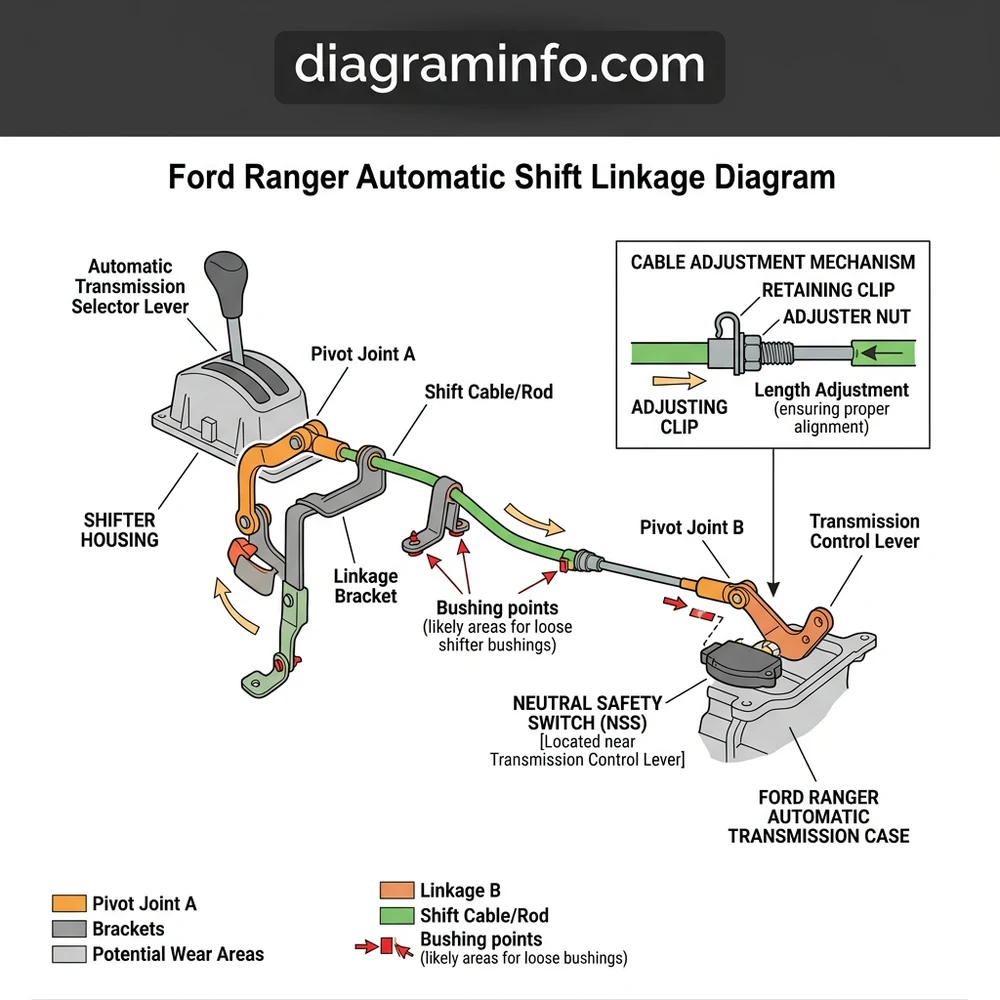

Ford Ranger Automatic Shift Linkage Diagram: Structural Layout and Components
The automatic shift linkage on a Ford Ranger consists of a dual-stage kinetic transfer configuration. The upper assembly is mounted inside the steering column housing, while the lower assembly extends through the engine compartment cowl down to the driver-side transmission case. Below is a detailed component breakdown of the entire physical layout:
Recommended Best Deal Products
- Steering Column Shift Tube & Plunger Assembly: Located inside the upper steering column, this hollow cast-aluminum tube rotates when the driver pulls the gear selector stalk. It houses an internal actuator plunger that interacts with the ignition park-lock interlock solenoid.
- Shift Tube Clamp Brackets & Bushings: Two semi-circular plastic split bushings hold the shift tube to the main steering column structure. These are secured by two rear-facing T30 Torx bolts.
- Shift Cable Select Lever (Column Base): A stamped steel lever attached to the lower base of the shift tube. It converts rotational motion into linear pull/push force on the upper eyelet of the shift cable.
- Primary Shift Cable Assembly: A steel inner push-pull cable housed within a steel-reinforced nylon conduit. It features an integrated firewall grommet, an under-dash routing bracket, and an adjustable locking body near the transmission mounting bracket.
- Transmission Cable Bracket: A heavy-gauge steel bracket bolted directly to the transmission bellhousing or case flange, securing the outer cable sleeve in a fixed position.
- Manual Control Lever: Located on the exterior left side of the transmission case, this lever attaches directly to the internal manual shaft, which connects to the valve body manual valve and park pawl rod.
- Digital Transmission Range (TR) Sensor: Mounted coaxially around the manual shaft behind the outer control lever. It detects selector position to send neutral safety switch signals to the Powertrain Control Module (PCM) and control backup lamp illumination.
For related electrical schematics, consult our technical guide on the Ford 4R55E Transmission Wiring Schematic to cross-reference circuit paths for the range sensor and shift solenoids.
| Component Reference | Fastener / Spec Metric | Factory Torque Value | OEM Service Part Ref |
|---|---|---|---|
| Shift Tube Clamp T30 Bolts | M6 x 1.0 Thread | 7–9 lb-ft (9.5–12 Nm) | F57Z-7212-A |
| Manual Lever Retaining Nut | M10 x 1.5 Flange Nut | 30–40 lb-ft (41–54 Nm) | E7TZ-7B415-A |
| TR Sensor Retaining Bolts | M6 x 1.0 Hex Flange | 7–9 lb-ft (9.5–12 Nm) | F1DZ-7A247-AA |
| Shift Cable Bracket Screws | M8 x 1.25 Bolts | 15–20 lb-ft (20–27 Nm) | F57Z-7B229-A |
Maximum allowable axial endplay in the steering column shift tube assembly is 0.030 inches (0.76 mm). Excess radial clearance indicates worn plastic split bushings, requiring replacement to restore precise shift indexing across PRND21 detents.

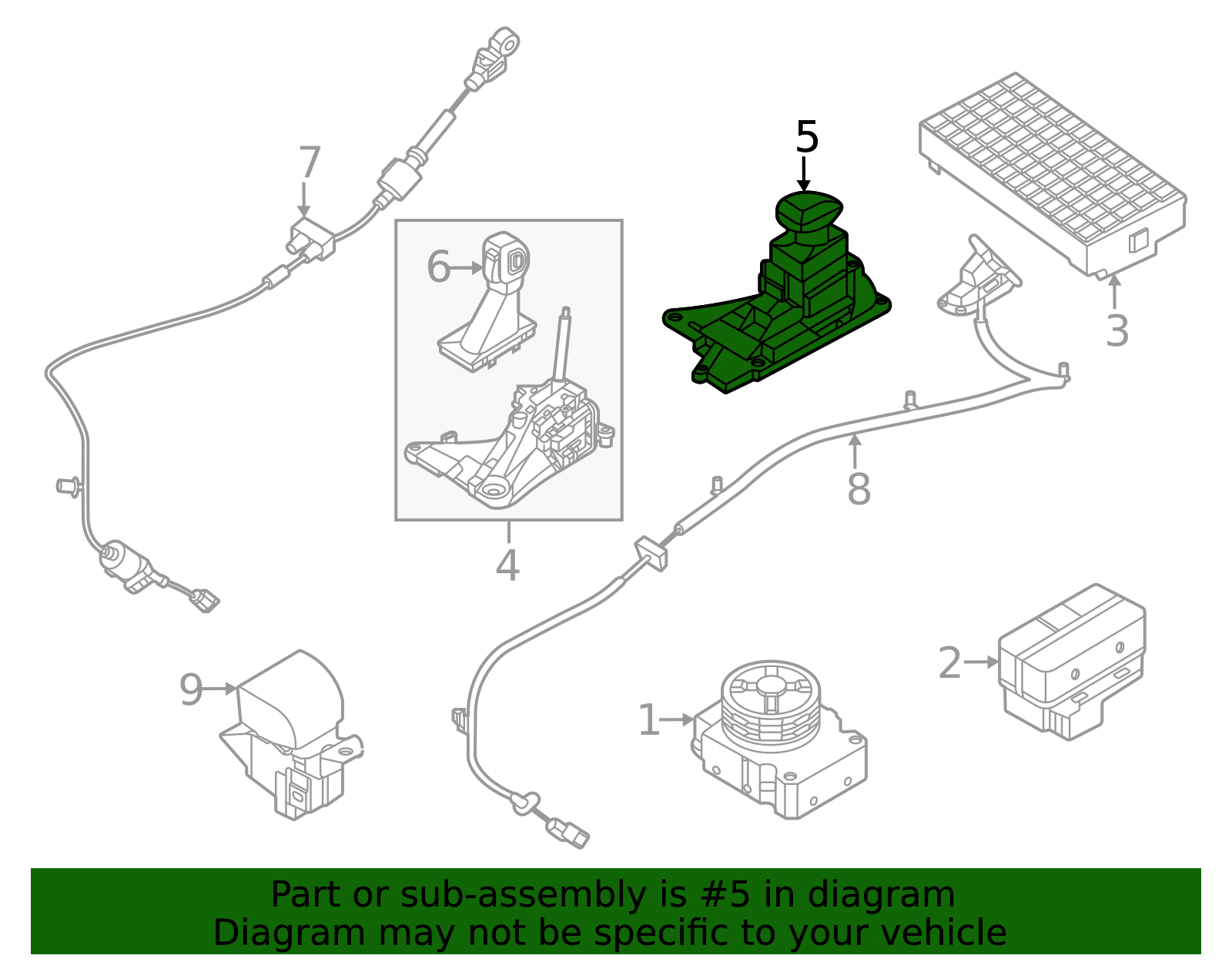

How to Interpret the Ford Ranger Automatic Shift Linkage System Blueprint
Understanding the mechanical blueprint of the Ford Ranger shift system requires tracing force transfer from the cabin selector to the internal transmission detent plate. The architecture operates through a push-pull mechanism where mechanical travel at the column must precisely match the rotational arc of the manual shaft.
Tracing the Steering Column Shift Tube to Cable Interconnect
The top of the automatic shift linkage diagram illustrates the steering column housing. When you shift out of Park, the shift lever rotates the shift tube. The lever arm attached to the base of the shift tube moves downward, pushing the inner core of the control cable. If you are experiencing excessive slop before the cable moves, examine the lower column mount area; two T30 Torx screws located on the bottom of the column frequently back out, causing slop in the entire mechanism.
Step-by-Step Shift Cable Alignment Procedure
If the gear indicator needle fails to align with the PRNDL letters or the engine will only start in Neutral, perform a full cable re-calibration using this OEM specification sequence:
Recommended Best Deal Products
- Place the vehicle on level ground, set the parking brake, and place wheel chocks on both front and rear tires.
- Inside the cab, move the gear shift selector lever directly into the Drive (D) detent.
- Raise the vehicle on a hoist or axle stands to access the transmission linkage bracket on the left side of the transmission.
- Locate the shift cable adjustment lock body. Unlock the slider mechanism by pushing the white locking tab outward (or unclipping the plastic locking button, depending on model year).
- Move the manual control lever on the side of the transmission manually into the Drive position. Count detents from full forward (Park): Park -> Reverse -> Neutral -> Drive (3 clicks backward from Park).
- With both the cabin selector and transmission manual lever set precisely in Drive, push the cable locking tab back inward until it snaps firmly into place, locking the inner cable core to the adjuster end link.
- Lower the vehicle, test key-on gear selection, and verify that the starter energizes only in Park and Neutral positions.
If your instrument cluster gear indicator (PRNDL needle) remains misaligned after setting cable tension, adjust the red indicator thumbwheel pulley located under the steering column shroud near the knee bolster. Do not attempt to correct needle position by misaligning the transmission shift cable.
For further column disassemblies, refer to our comprehensive guide on Ford Column Shift Tube Replacement Procedures.
Troubleshooting Failures in the Ford Ranger Automatic Shift Linkage Schematic
Over extended operating cycles, vibration and plastic degradation introduce mechanical play into the linkage layout. Diagnosing issues requires isolating column components, cable stretch, or range sensor miscalibration.
Disconnecting the shift cable from the manual control lever underneath the vehicle disengages the mechanical Park lock. Always chock all wheels securely before working on the linkage system to prevent vehicle roll-away.
Symptom 1: Loose Gear Selector Lever with Excessive Free Play
A loose, wobbly gear stalk on the column that struggles to engage Park or 1st gear is almost always caused by loose T30 Torx holding screws at the base of the shift tube, or disintegrated plastic shift tube bushings. Inspect the bottom rear of the column under the dash. Torque the two T30 Torx fasteners to 8 lb-ft using blue threadlocker (Loctite 242) to prevent recurring looseness.
Symptom 2: No-Crank Condition in Park or Neutral
When key rotation yields no starter engagement in Park, but starting succeeds in Neutral (or vice-versa), the Digital TR sensor is out of alignment relative to the shift cable detents. Verify the following sensor resistance pinouts across the harness connector using a digital multimeter:
- Park Position Circuit: Continuity should exist between pins 1 and 2 on the TR sensor when the manual shaft is locked in the Park detent.
- Neutral Position Circuit: Continuity switches to pins 3 and 4 when moved to Neutral.
- Adjustment Fix: Loosen the two M6 TR sensor mounting bolts, insert alignment tool T93P-70010-A into the sensor alignment slots, align the rotor mark, and retighten bolts to 8 lb-ft.
To inspect the full electronic control structure, review the Digital Transmission Range (TR) Sensor Calibration Guide.
Symptom 3: Cable Grommet Pop-off and Total Shift Loss
The lower eyelet of the shift cable uses a molded rubber bushing to press onto the ball-stud of the manual lever arm. Age, heat, and ATF exposure cause this rubber eyelet to soften and disintegrate, causing the cable to fall off the transmission lever entirely. When this occurs, the gear stalk inside the vehicle moves freely without shifting gears. While complete cable replacement is recommended, press-in brass or polyurethane aftermarket replacement bushings can restore secure attachment without removing the main conduit from the firewall.
Ford Ranger Automatic Shift Linkage System FAQ
What are the symptoms of a failed Ford Ranger shift cable bushing?
Common symptoms include a gear lever that moves freely without changing transmission gears, an inability to shift into or out of Park, and the transmission remaining stuck in gear regardless of shifter position. Underneath the vehicle, the shift cable eyelet will be disconnected and hanging loose near the transmission manual control lever on the driver’s side.
How do I tighten loose steering column shift tube bolts in a Ford Ranger?
Gain access under the driver’s side dashboard by removing the lower knee bolster panel and metal reinforcement plate. Look up at the bottom rear of the steering column to locate two gold-colored brackets holding the shift tube. Use a T30 Torx bit attached to a ratchet extension to tighten both bolts to 7–9 lb-ft. Applying blue medium-strength threadlocker is highly recommended to prevent future loosening from column vibration.
Can a misaligned shift linkage prevent the vehicle from starting?
Yes. The powertrain control module (PCM) and starter relay depend on position signals from the Digital Transmission Range (TR) sensor mounted on the transmission manual shaft. If the shift cable is stretched or misaligned, the selector lever may show “Park” inside the cabin while the internal transmission manual valve remains partially in Reverse or between detents. In this condition, the neutral safety switch circuit remains open, completely disabling the starter circuit.
What is the difference between column-shift and floor-shift linkage configurations on the Ford Ranger?
Column-shift models route a single long push-pull shift cable from an upper column lever down through the engine bay bulkhead to the transmission manual lever. Floor-shift configurations (found on select FX4 or Level II packages) feature a floor console shifter assembly that routes the control cable directly down through the transmission tunnel floorboard, utilizing a shorter cable path with a different mounting bracket structure and shifter detent lock mechanism.
How do I test the Digital Transmission Range (TR) sensor with a multimeter?
Disconnect the TR sensor harness connector at the transmission. Set your digital multimeter to ohms (Ω) measure mode. Probes should read near 0 ohms (continuity) across the starter interrupt pins only when the manual lever is firmly resting in the Park or Neutral detents. If resistance reads high or infinite (>10k Ω) while the lever is in Park, loosen the sensor flange bolts and rotate the sensor housing until zero resistance is achieved, or replace the sensor if internal contact tracks are carbonized.
