Hayward Salt Water Pool System Diagram: 2026 Setup
A salt water pool system diagram places the salt cell last on the return line, downstream from the pump, filter, and heater. PVC piping routes water through a 2-inch bypass loop with a check valve separating the heater to prevent chemical backflow. The flow switch mounts directly before the cell.
📌 Key Takeaways
- Maintain a minimum 12-inch straight PVC run before the flow switch for accurate flow sensing.
- Plumb the salt cell as the final component on the pool return line before water re-enters the pool.
- Install a corrosion-resistant check valve between heater outlet and chlorinator cell to block chemical backflow.
- Target standard salt levels at 3,200 PPM; cell failure typically triggers flow error lights or zero chlorine output.
- DIY plumbing installation uses schedule 40 PVC, but primary control panel power requires certified electrical work.
Modern residential and commercial salt water chlorination loops require precise hydraulic engineering to ensure optimal chlorine generation, balanced pressure, and compliant waste disposal. Interpreting a comprehensive salt water pool system diagram enables field technicians and pool engineers to map fluid dynamics from the suction line to the electrolytic cell. Proper installation prevents cell scaling, backpressure spikes, and electrical faults across 120V/240V control circuits. This technical guide breaks down every plumbing component, flow sequence, and troubleshooting procedure needed to maintain a high-efficiency salt water chlorination circuit built with standard Schedule 40 PVC assemblies.
Salt Water Pool System Diagram: Complete Component Identification
Every equipment pad layout detailed in a salt water pool system diagram follows a strict sequence to protect upstream electronics and heating elements. According to OEM specifications, salt chlorine generators (SCG) transform sodium chloride (NaCl) dissolved in pool water (typically 3,000 to 4,000 PPM) into free chlorine via electrolysis. The primary loop consists of heavy-duty Schedule 40 PVC or Schedule 80 PVC piping, designed to withstand continuous hydraulic pressures up to 50 PSI.
Recommended Best Deal Products
| Component Name | Technical Specification | Primary Function |
|---|---|---|
| Electrolytic Salt Cell | 24V DC operational power, Ruthenium-coated titanium plates | Converts dissolved salt into hypochlorous acid via electrolysis. |
| Flow Switch Assembly | 20 GPM minimum activation, dry-contact mechanical paddle | Prevents cell energization during zero or low-flow conditions. |
| Check Valve | 2-inch corrosion-resistant Hastelloy spring check valve | Prevents high-concentration chlorine backflow into gas heaters. |
| Pad Waste Drain Assembly | 2-inch DWV PVC with integrated P-trap and AAV valve | Handles backwash, acid-wash cell rinsing, and pad drainage. |
Salt Chlorine Generator Cell and Flow Switch Electronics
The electrolytic cell is installed inline using threaded slip joint union nut fittings, allowing quick removal for cell acid-washing. Upstream of the titanium blades lies the mechanical flow switch. The switch utilizes a physical paddle connected to a magnetic reed relay wired directly to the salt generator control panel via a 2-wire low-voltage signal cable. If flow drops below 20–25 GPM, the circuit opens, immediately cutting the 24V DC drive voltage to the cell plates to prevent explosive hydrogen gas buildup.
Auxiliary Pad Wastewater Drainage Assembly
Equipment pads frequently feature an auxiliary waste line for cell maintenance cleaning, filter backwashing, or utility sink discharge. This drainage assembly includes a 2-inch PVC tailpiece connected directly to a deep-seal P-trap to block sewer gas backflow. Where traditional vent pipe extensions through the roof structure are impractical, a mechanical Air Admittance Valve (AAV valve) is installed at the top of the local vent riser to prevent siphonage during high-volume discharge. In specialized pool house maintenance rooms equipped with utility sinks or disposal units, a heavy-duty continuous-waste tailpiece links the fixture directly to the main drain assembly.
Always maintain a minimum 12-inch straight pipe run directly upstream of the salt cell flow switch to minimize fluid turbulence and prevent erratic reed switch bouncing. All PVC joints must be assembled using NSF-PW certified primer and medium-bodied grey PVC solvent cement rated for pressure piping.

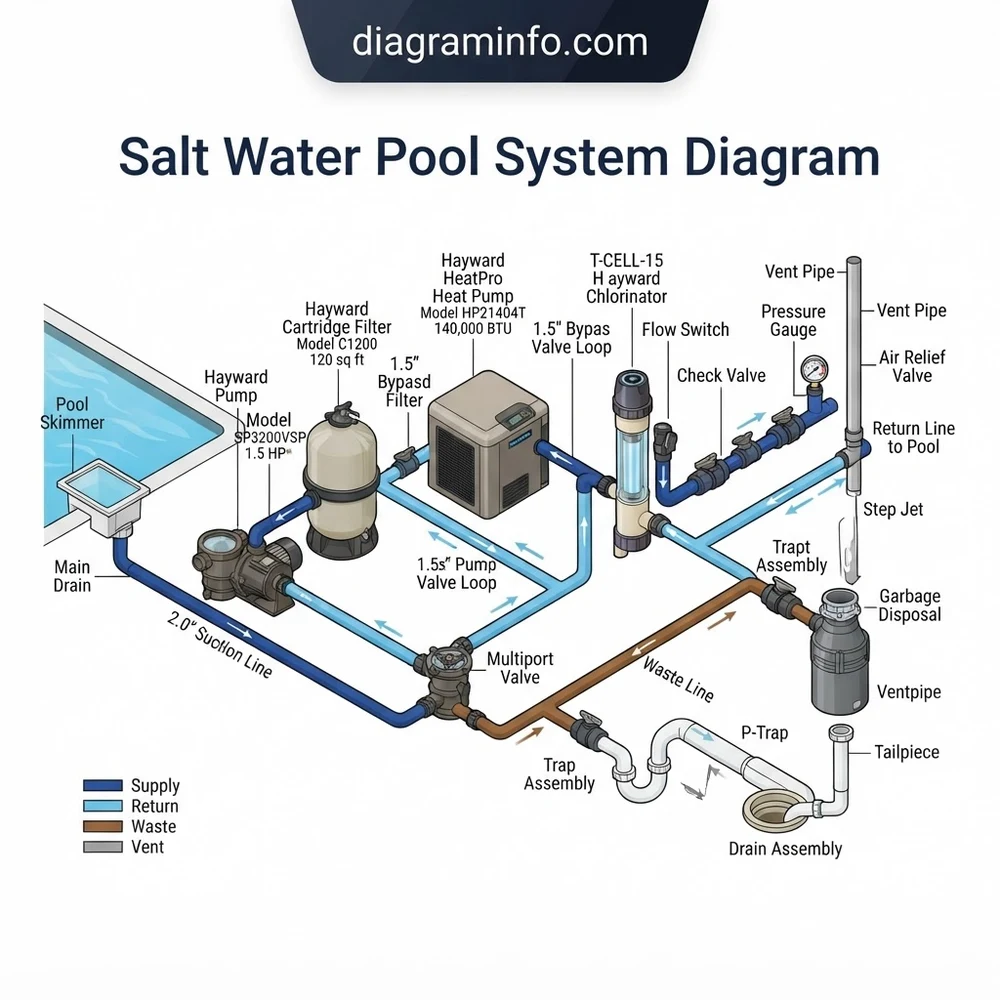

Tracing Hydraulic Flow in the Salt Water Pool System Schematic
Understanding fluid progression across a salt water pool system diagram requires following water from the intake suction point to the pressurized return jets. Any restriction or incorrect component ordering severely reduces cell lifespan and compromises chemical sanitization efficiency.
1. Suction Side Hydraulics and Pump Intake
Water enters the circuit from the pool skimmers and main drain assembly through dual 2-inch or 2.5-inch Schedule 40 PVC suction pipes. These lines converge at a 3-way diverter valve manifold positioned before the pump intake. A variable-speed pump draws water into its strainer pot, elevating pressure to drive the fluid through the filtration circuit. For detailed electrical connections of variable-speed drives, cross-reference our guide on variable speed pump wiring diagrams.
Recommended Best Deal Products
2. Filtration, Heating, and Chemical Protection Isolation
From the pump discharge outlet, pressurized water enters the primary sand or cartridge filter at 15 to 30 PSI. Clean water exits the filter port and flows into the pool heater manifold. To prevent highly concentrated hyper-chlorinated water from migrating backward into the heater exchanger during pump shutdown, a Hastelloy spring-loaded check valve must be installed on the PVC pipe immediately downstream of the heater exit port, prior to entering the salt chlorine cell loop. For complete manifold valve bypass setups, review our pool heater plumbing bypass guide.
3. Electrolytic Chlorination and Waste Discharge Piping
Water reaches the salt cell loop as the final line item on the pressure side manifold. Electrolysis splits dissolved salt (NaCl) and water ($H_2O$) into hypochlorous acid (HOCl) and sodium hydroxide (NaOH). The chlorinated water exits the cell and streams directly back to the pool return inlets. During cell maintenance routines, technicians flush the unit into a dedicated pad drain assembly using a threaded slip joint adapter attached to a drain tailpiece. This pad drain relies on an integrated P-trap and an AAV valve to discharge waste safely into municipal sanitary connections without siphon failure.
Never install an inline salt generator cell upstream of a pool heater, solar heating collector, or delicate copper heat exchanger. Chlorine concentration inside the cell during low-flow states can exceed 100 PPM, causing rapid chemical corrosion and premature heat exchanger tube failure.
Troubleshooting Salt Water Pool Plumbing and Electrolytic Cell Faults
System failures on a salt water equipment pad stem from either electrical faults within the electrolytic cell control box or hydraulic bottlenecks across the pipe manifold. Isolating issues systematically preserves key components and minimizes downtime.
Diagnosing Low-Flow Alarms and Cavitation Issues
When the control panel displays a “No Flow” LED indicator, first verify that the variable speed pump is operating above the flow switch minimum threshold (typically 1,800–2,200 RPM depending on head loss). Check for air bubbles visible under the pump strainer lid, which indicates a suction-side vacuum leak on a threaded male adapter or diverter valve O-ring. Inspect the physical paddle inside the flow switch union; debris or localized calcification can bind the paddle mechanism in the open position.
Resolving Scale Accumulation and Reverse Polarity Defects
Heavy white scaling (calcium carbonate buildup) inside the titanium blade grid increases electrical resistance, driving cell current (Amperage) down while triggering a “Low Salt” fault even when salinity test strips verify 3,500 PPM NaCl. Perform a manual cell cleaning using a 4:1 water-to-muriatic acid solution. Soak the cell interior for 10–15 minutes until effervescence stops. If scale returns within two weeks, inspect the control board’s auto-reversing polarity relay, which is designed to shed scale automatically every 3 to 6 hours of continuous operation.
Fixing Equipment Pad Waste Assembly Backups
If acid wash effluent or backwash water overflows the pad drain assembly, the stoppage usually exists within the 2-inch P-trap loop or utility waste tailpiece. Standard maintenance includes removing the slip joint union on the drain tailpiece and clearing mineral deposits or debris. If localized utility sinks (sometimes sharing line drains with equipment shed garbage disposal units or rinse basins) emit foul odor, verify that the AAV valve diaphragm moves freely and is not stuck closed, preventing proper pipe venting.
When testing salt cell power supply outputs at the transformer terminal block, line voltage across the primary legs should measure 120V AC or 240V AC (+/- 10%), while DC output terminals feeding the cell cable should measure 18V DC to 26V DC under active load conditions. For complete multi-meter diagnostic charts, see our backwash valve maintenance manual.
Salt Water Pool System Diagram Frequently Asked Questions
Where should the salt cell be positioned relative to the heater on the plumbing schematic?
The salt generator cell must always be installed as the absolute last piece of equipment on the return plumbing line before the water branches out to pool return jets or in-floor cleaning systems. It must be positioned downstream of filters, gas or heat pump heaters, solar loops, and chemical injection points. A corrosion-resistant spring check valve must be installed between the heater outlet and the salt cell inlet to stop concentrated chlorine gas back-siphoning during pump shutdowns.
Why is an Air Admittance Valve (AAV valve) required on the pad drain assembly?
An Air Admittance Valve (AAV valve) is installed on the drain assembly vent pipe riser when the equipment pad waste plumbing cannot easily tie into a main roof stack vent. During high-volume backwashing or rapid tank draining, water surging through the vertical 2-inch PVC pipe creates a negative pressure vacuum. The AAV valve opens under negative pressure to admit room air, breaking the siphon and preserving the water seal inside the P-trap without allowing sewer gas to escape into the pad enclosure.
How do slip joint fittings and Schedule 40 PVC differ in pool equipment installation?
Schedule 40 PVC pipe and pressure fittings are permanently joined using solvent primer and cement, creating a rigid fused joint rated for continuous high system pressure. Slip joint unions and threaded union nut connections, by contrast, use heavy elastomeric O-rings compressed against a flat mating shoulder. Slip joint unions allow field technicians to disconnect the salt cell, pump, or filter valves for winterization or servicing without cutting structural PVC pipe lines.
What electrical voltage and flow switch wiring configuration does a salt cell require?
Most commercial and residential salt chlorine generator control enclosures accept a primary supply voltage of either 120V AC or 240V AC, wired directly to the main load center pump timer relay so that the generator only energizes when the circulation pump runs. The electrolytic cell itself operates on low-voltage direct current (18V to 28V DC). The magnetic flow switch connects to a dedicated 2-pin low-voltage terminal on the logic board, operating as a simple normally-open dry contact that closes only under active hydraulic pressure.
Can an equipment pad sink or garbage disposal tie into the salt cell waste line?
Yes, auxiliary utility sinks or pad maintenance disposal units can share a common 2-inch DWV PVC waste line, provided the connection occurs downstream of an isolated continuous-waste tailpiece assembly. The fixture drain must feature its own P-trap and be vented via an elevated AAV valve or dedicated vent pipe to handle acidic cell wash discharge and waste solids without siphoning or backing up into adjacent pad equipment fittings.
Step-by-Step Guide to Understanding the Salt Water Pool System Diagram
Identify – Identify all return line plumbing components, power enclosure locations, and water flow direction arrows.
Locate – Locate the return line pipe exiting the pool heater or filter output manifold.
Reference – Reference the salt water pool system diagram to verify cell orientation and required 12-inch straight pipe allowance.
Connect/Route – Route 2-inch PVC through a bypass assembly, glue chlorinator union tailpiece connections, and wire flow switch to control board.
Verify – Verify water tight plumbing joints, correct flow switch directional arrow alignment, and steady 24V DC power to salt cell.
Troubleshoot – Troubleshoot warning indicators on the control board by inspecting cell plates for calcium scale or verifying water flow rate.
