4-Pin 12V RGB LED Strip Wiring Diagram: 2026 Setup
A 12V RGB LED strip wiring diagram utilizes a 4-pin arrangement featuring one shared +12V power wire (hot wire, often black or white) and three color-coded ground wire terminals (Red, Green, Blue). Connect the +12V power supply to the controller’s V+ pin, matching R, G, and B outputs to ensure correct color rendering.
📌 Key Takeaways
- 12V analog RGB strips use common-anode wiring (+12V shared hot wire, grounded R/G/B channels)
- Standard pin assignment consists of four pins spaced at 2.54mm intervals (+12V, R, G, B)
- Maximum recommended continuous strip length without power injection is 16.4 feet (5 meters)
- Crossing the +12V line with any ground wire will instantly blow controller MOSFETs or inline fuses
- DIY soldering offers lower resistance than snap connectors for high-vibration or marine environments
Integrating solid-state accent lighting into custom automotive interiors, marine dashboards, or heavy equipment cabs requires a clear understanding of low-voltage DC circuitry. A standard 12v rgb led strip wiring diagram outlines the precise power distribution pathways, pin assignments, and control signals required to run multi-color LED modules safely. Unlike simple two-wire single-color strips, standard analog 4-pin 12V RGB strips utilize a common anode architecture, where a positive supply voltage is shared across all diodes while discrete grounded color channels regulate color mixing. Incorrect pinout alignment or undersized wiring can lead to severe voltage drops, thermal degradation, color shifting, or blown fuses in equipment electrical systems.

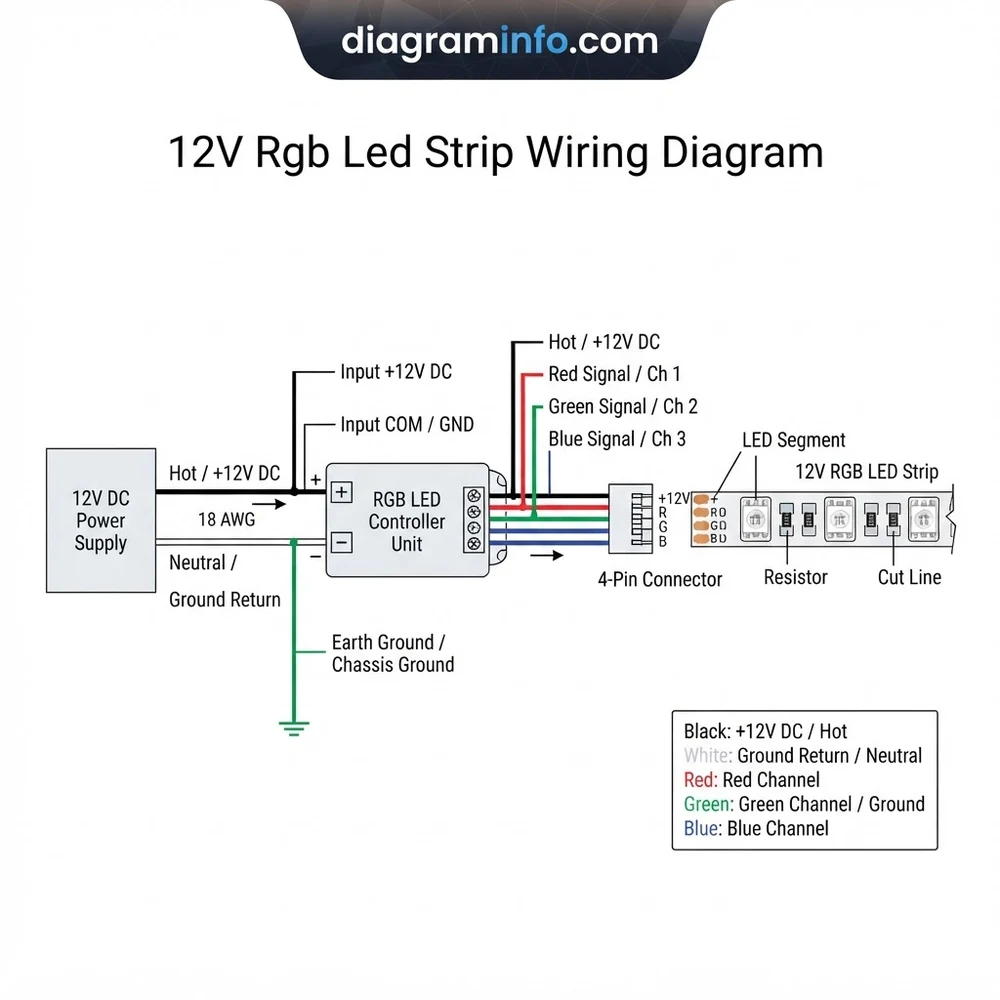

Understanding Your 12V RGB LED Strip Wiring Diagram
To correctly interpret a 12v rgb led strip wiring diagram, technicians must first understand the fundamental operating principles of 4-pin analog flexible light strips. The vast majority of 12V RGB LED strips manufactured for automotive and industrial applications use surface-mount device (SMD) chips, such as SMD 5050 or SMD 2835 LEDs. These chips feature three distinct light-emitting diodes—Red, Green, and Blue—housed within a single package.
Recommended Best Deal Products
In a standard common anode configuration, the continuous positive trace delivers 12V DC power to the positive terminal (+12V) of every LED package along the strip. The three remaining channels operate on pulse-width modulation (PWM) low-side switching. When the external RGB controller demands a specific color, it pulses the negative return path (ground wire) for that specific channel. For example, to generate magenta light, the controller simultaneously closes the circuit on the Red and Blue channels while keeping the Green channel open.
Power distribution in 12V systems differs significantly from 5V addressable strips or 24V commercial lighting setups. Because 12V systems operate on higher voltage relative to 5V strips, current draw per meter is lower for equivalent wattage, reducing thermal stress on copper PCB traces. However, because vehicle electrical systems fluctuate between 12.0V DC (engine off) and 14.4V DC (alternator charging), proper isolation, inline fusing, and voltage regulation are vital to maintain LED longevity and prevent driver IC failure. Utilizing dedicated 12V DC power distribution blocks helps stabilize circuit loads across complex vehicle accessory builds.
Pin Assignments and Standard Wire Color Code Reference
Identifying the correct pin assignment before making permanent soldered or terminal block solderless connections is critical. Connecting the positive +12V supply to a ground channel terminal can permanently destroy the MOSFET switches inside the RGB controller. Standard 4-pin ribbon cable harness assemblies follow specific color coding conventions, though aftermarket harnesses occasionally vary.
| Wire Color | Function | Pin / Terminal ID | Notes & Circuit Specs |
|---|---|---|---|
| Black (or White) | +12V DC Hot Wire (Common Anode) | +12V / V+ | Carries full system load; must be fused continuously at power source. |
| Red | Red Channel Switched Return Path | R | Switched ground managed by controller PWM MOSFET. |
| Green | Green Channel Switched Return Path | G | Switched ground managed by controller PWM MOSFET. |
| Blue | Blue Channel Switched Return Path | B | Switched ground managed by controller PWM MOSFET. |
Standard 5050 RGB 12V LED strips draw approximately 1.2 Amps (14.4 Watts) per meter at full white load (+12V, R, G, and B fully active). Always reference manufacturer specs for exact current draw per foot or meter before selecting system wiring gauge.
When wiring European automotive equipment or industrial control cabinets, wire color codes may differ from commercial off-the-shelf LED harnesses. In industrial setups, brown may be used for +12V DC power, while blue acts as a common circuit return. However, within dedicated 4-pin RGB strips, the board terminals are clearly printed with silk-screen labels reading +12V (or V+), R, G, and B. Always prioritize printed PCB copper pad labels over wire insulation color when terminating connections into a terminal block or soldering direct wire leads.
Recommended Best Deal Products
Complete Guide to 12V RGB LED Strip Wiring Diagram Hookups
Executing a reliable, weather-resistant installation according to the 12v rgb led strip wiring diagram requires strict sequence management and proper terminal assembly tools. Follow these step-by-step procedures for equipment and vehicle installations.
Step 1: Isolated Power Source Preparation and Fusing
Disconnect the primary vehicle battery ground wire or lock out the DC power panel before making any electrical splices. Locate a 12V DC power feed—either directly from an auxiliary fuse panel, ignition-switched relay terminal, or battery bus bar. Install an inline blade fuse holder within 7 inches of the power tap. Insert an appropriately rated fuse (typically 5A to 10A depending on total strip length) to safeguard the circuit against downstream short circuits.
Step 2: RGB Controller Input Power Connection
Connect the incoming 12V DC hot wire (positive) to the positive input terminal (+12V / DC+) on the RGB controller unit. Connect a heavy-duty chassis ground wire or continuous battery return lead to the negative input terminal (GND / DC-) on the controller. Unlike AC power configurations where a neutral wire carries return current, low-voltage automotive DC systems use direct negative earth ground pathways back to the battery negative post.
Step 3: Controller-to-Strip Pin Assignment and Terminal Block Wiring
Strip 1/4 inch of insulation off each wire lead of the 4-conductor RGB cable. Strip wire ends must be lightly twisted and tinned with solder if inserting into screw-type terminal blocks to prevent stray strands from bridging adjacent terminals. Secure each conductor to its corresponding output connection:
- Connect the Black wire to the controller terminal labeled +12V or V+.
- Connect the Red wire to the controller terminal labeled R.
- Connect the Green wire to the controller terminal labeled G.
- Connect the Blue wire to the controller terminal labeled B.
Do not apply power if solder pads or terminal block screw heads touch metallic chassis surfaces. Uninsulated 12V LED copper solder pads mounted directly to bare metal equipment frames will create a dead short, causing immediate controller failure or melted wiring.
Step 4: LED Strip Copper Pad Attachment and Sealing
If connecting to cut segments of flexible LED strip, solder the 4-conductor cable directly to the copper contacts using a 60W soldering iron set to approximately 350°C (660°F). Apply heat to the copper pad for no more than 2 to 3 seconds to avoid lifting the pad off the flexible PCB trace. Apply dual-wall adhesive-lined heat shrink tubing over the solder joint to provide strain relief and protect the physical pin assignment against moisture, dust, and vibration in harsh operating environments.
Step 5: Circuit Continuity Testing and Operation
Reconnect the vehicle power supply or battery ground wire. Turn on the RGB controller interface (RF remote, Bluetooth app, or manual dial) and test individual color output modes (Red only, Green only, Blue only). If color output does not match the command selected on the interface, recheck terminal block connections for swapped ground channels.
Managing Voltage Drop, AWG Wire Gauge, and Fuse Ratings
One of the most common engineering oversights in DC lighting installations is failure to calculate line loss and voltage drop across long wire runs. When 12V DC power travels through copper conductor wire, electrical resistance inherently causes a gradual reduction in voltage. If terminal voltage at the start of an RGB strip drops below 11.0V DC, LEDs suffer reduced output intensity, thermal imbalance, and noticeable color shift (where blue LEDs dim or turn off prematurely due to higher forward voltage requirements).
Voltage drop can be calculated using the formula: V_drop = (2 × L × I × R) / 1000, where L is one-way conductor length in feet, I is current load in Amps, and R is copper conductor resistance in ohms per 1000 feet. Aim for less than a 3% total voltage drop across the circuit.
Selecting the correct wire gauge (AWG) prevents current bottlenecking between the power distribution block, the controller, and the LED strip layout. Refer to manufacturer specifications or standard electrical tables to select the ideal gauge based on current draw and length:
- 22 AWG Conductor: Suitable for short lead runs under 6 feet carrying less than 3 Amps total load. Common on factory-attached 4-pin pigtails.
- 20 AWG Conductor: Ideal for mid-length runs up to 12 feet carrying up to 5 Amps total load. Excellent balance of flexibility and current capacity.
- 18 AWG Conductor: Required for main feed lines powering multiple strip segments or long feeder runs up to 25 feet carrying up to 10 Amps load.
- 16 AWG Conductor: Mandatory for primary +12V hot wire feed lines connecting the main fuse panel to high-power RGB controllers powering over 10 meters of continuous lighting.
For installations requiring extended runs exceeding 5 meters (16.4 feet), power must be injected in parallel using an RGB signal amplifier or separate heavy-gauge power feeds wired directly to secondary terminal block inputs. Serial daisy-chaining beyond 5 meters forces excessive current through thin copper PCB traces, leading to trace burnout and uneven illumination. Reviewing our comprehensive automotive relay wiring guide provides further insight into managing high-amp secondary power feeds via switching relays.
Correcting Common 12V RGB LED Wiring Errors and Short Circuits
When troubleshooting malfunctioning RGB lighting installations, system faults typically originate from incorrect pin assignment alignment, improper grounding, or solder pad shorts. Use these diagnostic procedures to isolate and rectify common failures.
1. Color Swap or Mismatched RGB Controller Output
Symptom: Pressing “Red” on the controller illuminates the strip in Green, or select colors produce unexpected hues.
Root Cause: The grounded signal channels (R, G, B) are crossed at the controller terminal block or solder pad joint.
Fix: Power down the system. Inspect terminal block markings. Ensure the wire connected to terminal R attaches directly to copper pad R on the strip. Swap misplaced channel wires into their correct pin assignments.
2. Pinkish Dimming at the Tail End of LED Strips
Symptom: The beginning of the LED strip displays bright, clean white, but the end turns pink, red, or dull yellow.
Root Cause: Severe voltage drop across thin internal PCB traces. Blue and green LEDs require higher forward operational voltage (~3.0-3.2V per diode) than red LEDs (~1.8-2.0V per diode). As voltage falls off, blue and green fade first, leaving only red active.
Fix: Run a parallel 18 AWG wire pair from the main controller V+ and ground terminals to inject power directly to the far end of the strip assembly.
3. Blown Primary Fuse Upon Power Activation
Symptom: The inline blade fuse instantly opens as soon as power is supplied.
Root Cause: Direct short circuit between the primary +12V hot wire and the chassis ground wire, or a solder bridge shorting the +12V pad directly to an adjacent R, G, or B return trace.
Fix: Disconnect the LED strip from the controller. Test the controller power input leads with a digital multimeter in continuity mode. Check solder joints under magnification for solder bridges spanning adjacent copper pads.
4. Total System Inoperation (No LED Output)
Symptom: Controller receives power (LED indicator on), but no output occurs on any lighting channel.
Root Cause: Reversed polarity on controller DC input terminals, or open circuit on the primary +12V feed line leading into the LED strip.
Fix: Verify presence of 12V DC across the controller input screw terminals using a multimeter. Ensure positive probe reads positive voltage relative to chassis ground, confirming correct DC supply polarity.
Frequently Asked Questions
What is the difference between common anode and common cathode 12V RGB LED strips?
In a common anode 12V RGB LED strip, all individual LEDs share a single positive (+12V DC) continuous wire, while the individual Red, Green, and Blue channels are switched on the negative (ground) side by the controller. In a common cathode strip, all LEDs share a common ground wire, while positive voltage is switched to individual color pins. Over 95% of standard commercial 12V analog RGB strips use common anode architecture.
How do I prevent voltage drop on 12V RGB LED strip runs longer than 5 meters?
To eliminate voltage drop on longer installations, avoid connecting LED strips in continuous series beyond 5 meters (16.4 feet). Instead, wire additional strips in parallel by running secondary 18 AWG power feeder cables from the main controller to the start of each additional 5-meter segment, or integrate an inline 12V RGB signal amplifier powered directly from the primary DC supply panel.
Can I wire a 12V RGB LED strip directly to an automotive switch without a controller?
Yes, you can operate a 12V RGB strip without an electronic controller by wiring single-pole toggle switches to ground specific color channels. Connect the +12V positive hot wire lead directly to a fused 12V DC power source, and connect individual ground wires (R, G, or B) through switches back to chassis ground. Closing the switch on a specific channel completes the ground path, illuminating that specific color.
What size inline fuse should be installed on a 12V RGB LED power supply feed?
Fuse size depends entirely on total amperage draw. Standard 5050 RGB LED strips draw approximately 1.2 Amps per meter at full white power. Multiply total length in meters by 1.2 to calculate total current draw, then select an inline fuse sized 20% to 25% higher than total continuous load. For example, a 5-meter strip draws ~6 Amps; install a standard 7.5A or 10A inline blade fuse.
How do neutral wire concepts apply to low-voltage 12V DC LED systems?
Neutral wire terms strictly belong to AC (alternating current) electrical systems. In low-voltage 12V DC automotive and equipment systems, circuits consist exclusively of a positive (+12V hot wire) feed and a negative (ground wire) return path. Never connect DC ground leads to AC neutral wires in hybrid power systems without isolated power conversion equipment, as detailed in our custom LED controller programming and power isolation specs.
Step-by-Step Guide to Understanding the 12V Rgb Led Strip Wiring Diagram
Identify – Locate the +12V, R, G, and B markings printed on the copper solder pads of the strip.
Locate – Position the 12V DC power supply, RGB controller, and light strip in accessible mounting zones.
Reference – Consult the wire color code chart to match controller terminals (V+, R, G, B) to strip pads.
Connect/Route – Strip and solder or clamp the 4-conductor wire onto the corresponding pin assignment points.
Verify – Apply 12V power and cycle through single-color modes (Red, Green, Blue) to confirm correct channel mapping.
Troubleshoot – Inspect solder joints for shorts or voltage drop if individual colors fail to illuminate.
