Nitrogen Atom Lewis Dot Diagram for N: 2026 Component Guide
The Lewis dot diagram for N represents a nitrogen atom’s five valence electrons ($2s^2 2p^3$). The elemental symbol ‘N’ is centered with five dots placed around its four sides: one pair of dots sharing a side (lone pair) and three single dots placed on the remaining sides.
📌 Key Takeaways
- Nitrogen contains 5 valence electrons ($2s^2 2p^3$) corresponding to Group 15 on the periodic table.
- The standard structure features 1 lone pair of non-bonding electrons and 3 unpaired single dots.
- Nitrogen has a normal covalent valence of 3 to fulfill the octet rule requirement of 8 electrons.
- The most common mistake is pairing electrons prematurely before occupying all 4 primary coordinates.
- Correct layout analysis is essential for predicting ammonia ($NH_3$) and molecular nitrogen ($N_2$) geometry.
Understanding the atomic structure and valence electron configuration of elemental nitrogen is crucial when analyzing modern combustion chemistry, exhaust gas recirculation (EGR) systems, and Selective Catalytic Reduction (SCR) control loops. The lewis dot diagram for n provides a clear graphical overview of nitrogen’s five valence electrons, illustrating how atomic nitrogen bonds to form stable diatomic nitrogen (N2), nitrogen oxides (NOx), and ammonia (NH3). Technicians, engineers, and diagnostic specialists rely on these fundamental electron layout schematics to evaluate sensor cell reactions, fuel-air mixture behavior, and high-temperature emission chemistry in modern diesel and high-performance equipment engines.
Atomic Component Breakdown of the Lewis Dot Diagram for N
To accurately interpret the lewis dot diagram for n, one must first examine the atomic configuration of nitrogen on the periodic table. Nitrogen is positioned in Group 15 (pnictogends, historically designated as Group V-A) with an atomic number of 7. This location signifies that a neutral nitrogen atom possesses seven total electrons distributed across two energy levels: two core electrons occupying the inner 1s orbital and five valence electrons populating the outermost shell (2s2 2p3).

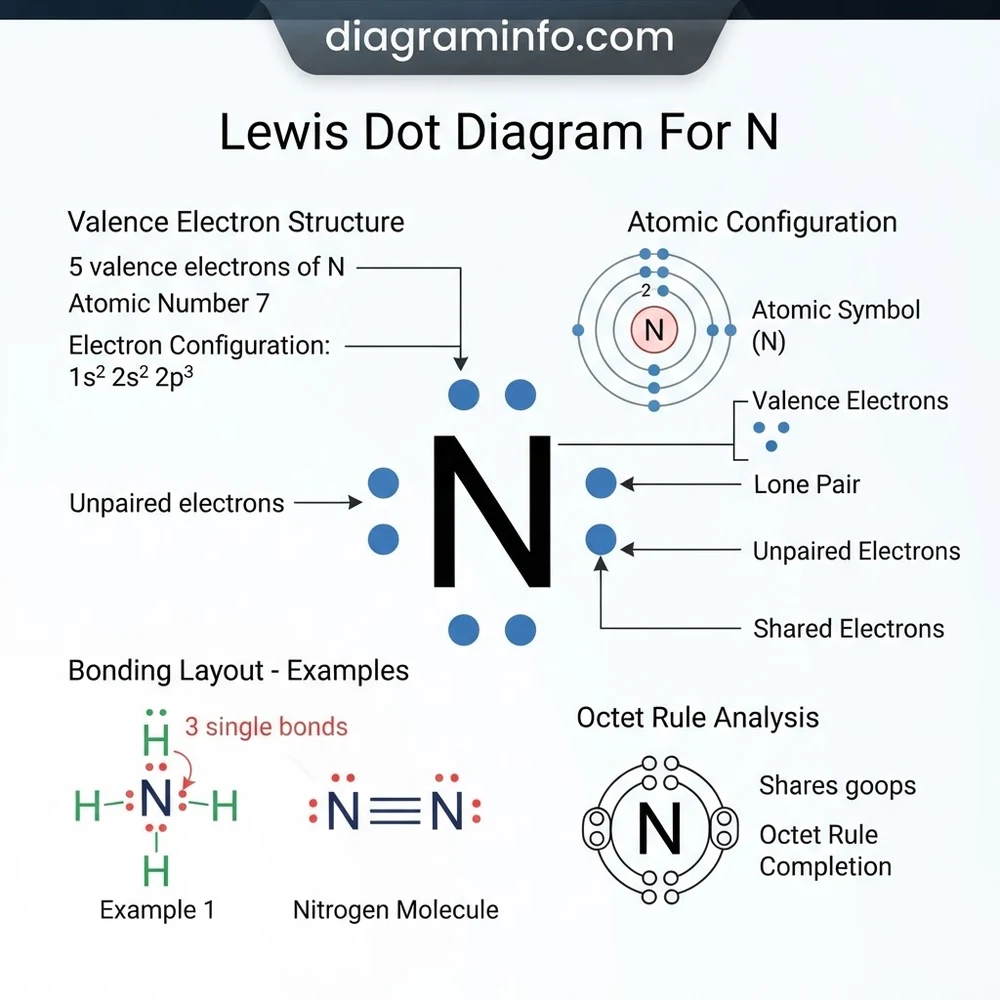

In a standard Lewis dot structure representation, inner-shell core electrons are omitted, focusing entirely on the outer valence electrons responsible for chemical reactivity and covalent bond formation. The schematic component layout for elemental nitrogen comprises:
- Central Chemical Symbol (N): Represents the nitrogen nucleus containing 7 protons and 7 neutrons, alongside the two non-reactive inner-core electrons (1s2).
- Unpaired Electrons (3 Single Dots): Positioned on three distinct sides of the atomic symbol. These unpaired 2p orbital electrons represent available binding sites capable of forming covalent bonds.
- Lone Pair Electrons (1 Paired Set): Located on the fourth side of the atomic symbol. This pair represents the filled 2s orbital, consisting of two non-bonding valence electrons that influence molecular geometry and polar reactivity.
According to OEM specs and physical chemistry standards, elemental nitrogen requires three additional electrons to satisfy the stable octet rule (8 valence electrons). When two individual nitrogen atoms combine, they share their three unpaired electrons, creating a powerful triple covalent bond (:N≡N:). This diatomic molecular configuration exhibits a remarkably high bond dissociation energy of 945 kJ/mol. This structural stability explains why ambient N2 gas remains inert under standard atmospheric conditions but reacts violently under high combustion chamber pressures and elevated engine temperatures exceeding 1,370°C (2,500°F).
Step-by-Step Blueprint for Drawing the Lewis Dot Diagram for N
Constructing an precise lewis dot diagram for n requires following systematic electron-placement rules derived from quantum mechanics principles, specifically Hund’s Rule and Pauli’s Exclusion Principle. Whether calculating pure elemental nitrogen or complex exhaust molecules, adhere to the following sequence:
1. Identify Total Valence Electrons
Reference the periodic table column for nitrogen. Group 15 elements consistently contribute 5 valence electrons. For neutral single-atom nitrogen, your target electron count is exactly 5.
2. Position the Elemental Symbol
Place the uppercase letter “N” in the center of your work plane. Imagine a square bounding box surrounding the letter, providing four distinct quadrants (North, East, South, West) for dot placement.
3. Distribute Single Electrons First
Place one dot in each of the four cardinal quadrants surrounding the “N” symbol before pairing any dots. Place dot 1 at the top, dot 2 to the right, dot 3 at the bottom, and dot 4 to the left. This represents the three degenerate 2p subshells and one half-filled orbital state.
4. Complete the Fifth Valence Dot
Assign the fifth remaining electron to any one of the four quadrants to create a single lone pair. The final layout yields one side with a pair of dots and three sides with single dots. The physical orientation of the lone pair (whether top, side, or bottom) does not alter the underlying chemical blueprint.
When expanding this process to diatomic nitrogen (N2), line up two N atoms with their unpaired dots facing each other. Combine the six total unpaired dots to form three shared electron pairs (a triple bond) between the nuclei, leaving each atom with one non-bonding lone pair on its outer perimeter.
5. Verify Octet and Formal Charge Parameters
Calculate the formal charge to ensure structural validity. Formal Charge = (Valence Electrons) – (Non-bonding Electrons) – 0.5*(Shared Bonding Electrons). For a neutral N atom with 2 non-bonding electrons and 6 shared electrons in N2: 5 – 2 – 3 = 0. A formal charge of zero confirms the structure is electrochemically stable.
Industrial System Configuration and Real-World Application of Nitrogen Bonding
The electronic structure illustrated by the lewis dot diagram for n directly governs how emission control components and gas sensors operate across industrial equipment and automotive powertrains. The three primary areas where nitrogen valence behavior dictates mechanical system performance include:
Wideband Exhaust NOx Sensors
Modern commercial vehicle diesel engines rely on multi-chamber zirconia (ZrO2) ceramic NOx sensors (such as Continental/NGK 5WK9 series) positioned before and after the SCR catalyst. The sensor operates by pumping oxygen out of an internal cavity and using a catalytic platinum electrode to decompose nitric oxide (NO) and nitrogen dioxide (NO2) back into elemental N2 and O2. The breakdown of nitrogen-oxygen bonds forces electron transfers across the ceramic substrate, generating a microampere pumping current proportional to raw NOx concentration. Diagnosing sensor performance requires evaluating this electrochemical decomposition process, which is influenced by wideband oxygen sensor calibration protocols.
Selective Catalytic Reduction (SCR) and Ammonia Reactions
In Diesel Exhaust Fluid (DEF) dosing systems, liquid urea ((NH2)2CO) is injected into hot exhaust gases, hydrolyzing into ammonia gas (NH3). Looking at the Lewis structure of ammonia, the central nitrogen atom shares three single bonds with hydrogen atoms while retaining one electron lone pair. This lone pair makes NH3 a strong Lewis base, allowing it to adsorb onto copper-zeolite or iron-zeolite active catalyst sites inside the SCR brick. The catalytic reaction breaks the N-H bonds and reacts with incoming NOx molecules to produce harmless N2 gas and water vapor (H2O).
Incorrect DEF dosing or compromised catalyst substrate temperatures (below 200°C) prevent full breakdown of ammonia’s molecular bonds, causing “ammonia slip” or ammonium bisulfate crystallization. This leads to SCR catalyst face plugging and incorrect NOx sensor feedback loop trimming.
Exhaust Gas Recirculation (EGR) Thermal Control
High peak combustion temperatures exceed the activation threshold required to break the strong triple bond of ambient atmospheric N2 shown in its Lewis structure. When split, atomic nitrogen rapidly reacts with free oxygen radicals to form thermal NO and NO2. Implementing EGR routes inert exhaust gas back into the intake charge, diluting oxygen density and lowering peak flame temperatures below 1,370°C. This prevents the initial cleavage of the N2 triple bond, stopping NOx formation at the molecular level. Troubleshooting poor combustion performance often requires performing complete EGR valve flow rate diagnostics.
Diagnostic Overview and Troubleshooting for Nitrogen Sensor Faults
When diagnostic trouble codes (DTCs) related to nitrogen reduction systems trigger on heavy equipment or passenger vehicles, understanding the underlying sensor hardware schematic and electrical parameters is necessary to isolate root causes efficiently.
Common Diagnostic Trouble Codes (DTCs) Related to NOx Control
- P2200 / P2201: NOx Sensor Circuit Performance (Bank 1 Sensor 1) — Indicates internal sensing chamber circuit failure or erratic pump current generation during gas dissociation.
- P220E: NOx Sensor Heater Control Circuit Range/Performance — Points to degraded ceramic internal heating element resistance.
- P20EE: SCR NOx Catalyst Efficiency Below Threshold (Bank 1) — Occurs when post-catalyst NOx concentrations remain elevated, often caused by poisoned catalytic conversion sites or compromised DEF injector duty-cycle testing parameters.
Diagnostic Step 1: Physical and Electrical Sensor Checks
Inspect the harness connector of the smart NOx sensor module. Disconnect the 4-pin or 5-pin Deutsch/Costal connector and verify supply voltage and CAN bus communication integrity using a Digital Multimeter (DMM) and an oscilloscope.
| Pin Designation | Expected Wire Signal / Function | Reference Specification Range |
|---|---|---|
| Pin 1 (BAT+) | Main Unswitched / Fused Power Supply | 11.8V – 14.2V DC |
| Pin 2 (GND) | Chassis / Module Ground Return | < 0.2 Ohms to Ground |
| Pin 3 (CAN-H) | J1939 / High-Speed CAN Data High | 2.5V – 3.5V (Dominant State) |
| Pin 4 (CAN-L) | J1939 / High-Speed CAN Data Low | 1.5V – 2.5V (Dominant State) |
Diagnostic Step 2: Sensing Cell Heater Resistance Testing
NOx sensors must operate at extreme internal ceramic temperatures (700°C to 800°C) to allow complete dissociation of nitrogen oxide molecules. With the sensor fully disconnected and cooled to an ambient room temperature of 20°C (68°F), measure internal heater resistance across the dedicated heater pins using an ohmmeter.
- Standard Specification: Nominal heater element cold resistance must measure between 2.0 Ω and 4.5 Ω.
- Fault Indication: Resistance readings below 1.5 Ω indicate an internal shorted heater trace; readings above 10.0 Ω or infinite resistance (OL) indicate an open circuit, requiring full sensor probe assembly replacement.
Physical Layout and Technical Specifications for Nitrogen Compounds
The chemical behavior, valence distribution, and physical properties of nitrogen change dramatically depending on its bonding configuration. The table below outlines key technical parameters for elemental nitrogen and its primary industrial compound variants.
| Chemical Molecule | Lewis Dot Configuration Description | Bond Type / Energy | System Function / Impact |
|---|---|---|---|
| Atomic Nitrogen (N) | 5 total dots (1 lone pair, 3 single unpaired dots) | Unbonded free radical state | High reactivity intermediate during combustion |
| Diatomic Nitrogen (N2) | Two N atoms sharing 3 pairs of dots (triple bond) + 2 lone pairs | Triple Covalent (945 kJ/mol) | Inert carrier gas in atmosphere and pneumatic systems |
| Nitric Oxide (NO) | 11 valence electrons (odd-electron free radical structure) | Double Bond + Resonance (631 kJ/mol) | Primary raw byproduct (>90%) of engine combustion |
| Nitrogen Dioxide (NO2) | 17 valence electrons bent layout with single unpaired electron | Covalent / Resonance Structures | Corrosive gas measured by downstream exhaust sensors |
| Ammonia (NH3) | Central N with 1 lone pair, single-bonded to 3 H atoms | 3 Single Polar Covalent Bonds | Active reductant agent in diesel SCR catalytic converters |
Smart NOx Sensor Operating Parameters: Module Supply Voltage: 9.0V–16.0V DC; Peak Heater Current: 8.5 Amps (during warm-up dew-point phase); Steady-State Operating Current: 1.8 Amps to 2.4 Amps; Operating Thermal Threshold: 750°C (1382°F) internal ceramic temperature; Communication Protocol: SAE J1939 CAN Bus (250 kbps or 500 kbps baud rate).
Lewis Dot Diagram for N Frequently Asked Questions
How many dots are in the Lewis dot diagram for N?
The lewis dot diagram for n contains exactly 5 dots. These dots represent the five valence electrons located in nitrogen’s outermost electron shell (n=2 shell). The dots are configured as one pair (a non-bonding lone pair representing the 2s orbital) and three individual, unpaired dots (representing the three half-filled 2p orbitals available for bond formation).
Why does diatomic nitrogen (N2) form a triple bond in its Lewis structure?
A single nitrogen atom possesses 5 valence electrons and requires 3 additional electrons to complete its outer shell and fulfill the octet rule (8 electrons). When two nitrogen atoms bond to form N2, each atom contributes its 3 unpaired valence electrons to share between them. This results in 6 shared bonding electrons (3 covalent pairs forming a triple bond) and 2 non-bonding lone pairs (1 on each atom), giving both nitrogen atoms a stable octet configuration.
How does the lone pair in nitrogen’s Lewis structure affect chemical reactivity?
The non-bonding lone pair of valence electrons in nitrogen creates localized negative charge density, making nitrogen compounds act as Lewis bases (electron donors). In automotive exhaust control, this electron layout allows molecules like ammonia (NH3) to donate their lone pair to transition metal catalysts (such as iron or copper zeolites) inside the SCR catalyst, creating temporary complex bonds that facilitate the breakdown of hazardous NOx emissions into harmless nitrogen gas.
What is the formal charge of nitrogen in its neutral Lewis dot configuration?
The formal charge of nitrogen in a correctly drawn neutral Lewis structure is zero. Calculated using the standard formula: Formal Charge = Valence Electrons (5) – Unshared Electrons (2) – Half of Shared Electrons (3) = 0. A formal charge of zero indicates that the electron layout is in its most stable electrochemically neutral configuration.
Why is high energy required to break nitrogen bonds during combustion?
As illustrated in the diatomic lewis dot diagram for n, two bonded nitrogen atoms are joined by a triple covalent bond. This triple bond is exceptionally strong, requiring a massive bond dissociation energy of 945 kilojoules per mole to break. In internal combustion engines, this high energy threshold is only reached at extreme peak flame temperatures exceeding 1,370°C (2,500°F), causing N2 to dissociate and combine with free oxygen to form thermal NOx pollution.
