74LS73 T Flip Flop Timing Diagram: Component Breakdown 2026
A T flip flop timing diagram illustrates output state Q transitions relative to the clock signal and toggle input T. When T=1, Q toggles state on the active clock edge. When T=0, Q holds its current value. Timing accounts for propagation delays (tPLH/tPHL), setup time, and hold time configurations.
📌 Key Takeaways
- Propagation delays typically range between 10ns and 25ns for standard 74LS logic series ICs.
- The toggle input (T) dictates state inversion on either the rising or falling clock edge structure.
- Requires stable VCC power layout (+5V DC for TTL) with decoupling capacitors to prevent glitching.
- Metastability occurs if setup time (ts) or hold time (th) limits are violated during state switching.
- Logic analyzers or multi-channel digital oscilloscopes are necessary to accurately trace timing logic.
The toggle flip-flop (T flip-flop) serves as a fundamental building block in digital logic design, embedded automotive electronic control units (ECUs), industrial automation equipment, and frequency synthesis circuits. Whether utilized as a frequency divider in crank angle sensor signal conditioning or as a binary ripple counter in power management modules, reading a timing diagram is essential for troubleshooting and signal integrity analysis. Examining a t flip flop timing diagram enables electrical engineers, equipment technicians, and diagnostic specialists to evaluate signal edge alignments, state transitions, propagation delays, and setup-and-hold limits under real-world operating conditions. This guide breaks down signal behavior, schematic architecture, step-by-step waveform tracking, and field diagnostic strategies.
Deconstructing the T Flip Flop Circuit Layout and Component Structure
To interpret waveform relationships accurately, you must understand the internal architecture and interface terminals of the T flip-flop IC. A standard single-bit T flip-flop logic element consists of an edge-triggered storage cell that toggles its output state ($Q$) on every active clock edge whenever the toggle input ($T$) is driven logic HIGH. If $T$ is driven logic LOW, the output holds its current state regardless of clock activity. The mathematical transition state is defined by the characteristic equation $Q_{next} = T \oplus Q$.
Recommended Best Deal Products
Core Terminal Interface and Signal Properties
Commercial microchips (such as the 74HC73 dual JK flip-flop tied in toggle configuration or automotive-grade logic ICs like the Texas Instruments SN74LVC1G3157) expose five key signal connections:
- Toggle Input ($T$): The control line determining whether the flip-flop maintains state ($T=0$) or invert state ($T=1$) upon clock arrival.
- Clock Input ($CLK$ / $CP$): The edge-trigger source. Depending on internal logic construction, transitions trigger on either the positive rising edge ($\uparrow$) or negative falling edge ($\downarrow$).
- Primary Output ($Q$): Represents the current logic state of the storage cell (0V to $V_{CC}$).
- Inverted Output ($\bar{Q}$): The complementary logic state, strictly inverse to $Q$.
- Asynchronous Clear/Preset ($\bar{CLR}$ / $\bar{PRE}$): Active-low override inputs used to force $Q$ to 0 or 1 instantly, bypassing clock pulses during power-up initializations.
| Terminal Pin | Logic Signal Type | Active State | Voltage Threshold (5V CMOS) | Function in Schematic |
|---|---|---|---|---|
| Toggle ($T$) | Control Input | High ($V_{IH}$) | > 3.15 V | Enables output state inversion on CLK transition |
| Clock ($CLK$) | Synchronization Input | Rising / Falling Edge | $V_{IL} < 1.35\text{V}, V_{IH} > 3.15\text{V}$ | Triggers latching mechanism |
| Clear ($\bar{CLR}$) | Asynchronous Reset | Low ($V_{IL}$) | < 1.35 V | Forces $Q = 0$ immediately |
| Output ($Q$) | State Output | High / Low | $V_{OH} > 4.4\text{V}, V_{OL} < 0.1\text{V}$ | Drives downstream logic or actuators |
Internal Gated Logic and Gate-Level Blueprint Configuration
Unlike basic set-reset latches, an edge-triggered T flip-flop relies on an internal master-slave steering arrangement or a gated D flip-flop configuration with an XOR feedback loop. In the XOR-D structure, the input to an edge-triggered D flip-flop is fed by an XOR gate receiving both the $T$ line and $Q$ output line ($D = T \oplus Q$). When diagnosing board-level circuits, reviewing the digital logic gate schematics provides insight into how gate propagation delays contribute to the total physical transition time of the device.
How to Analyze a T Flip Flop Timing Diagram Step-by-Step

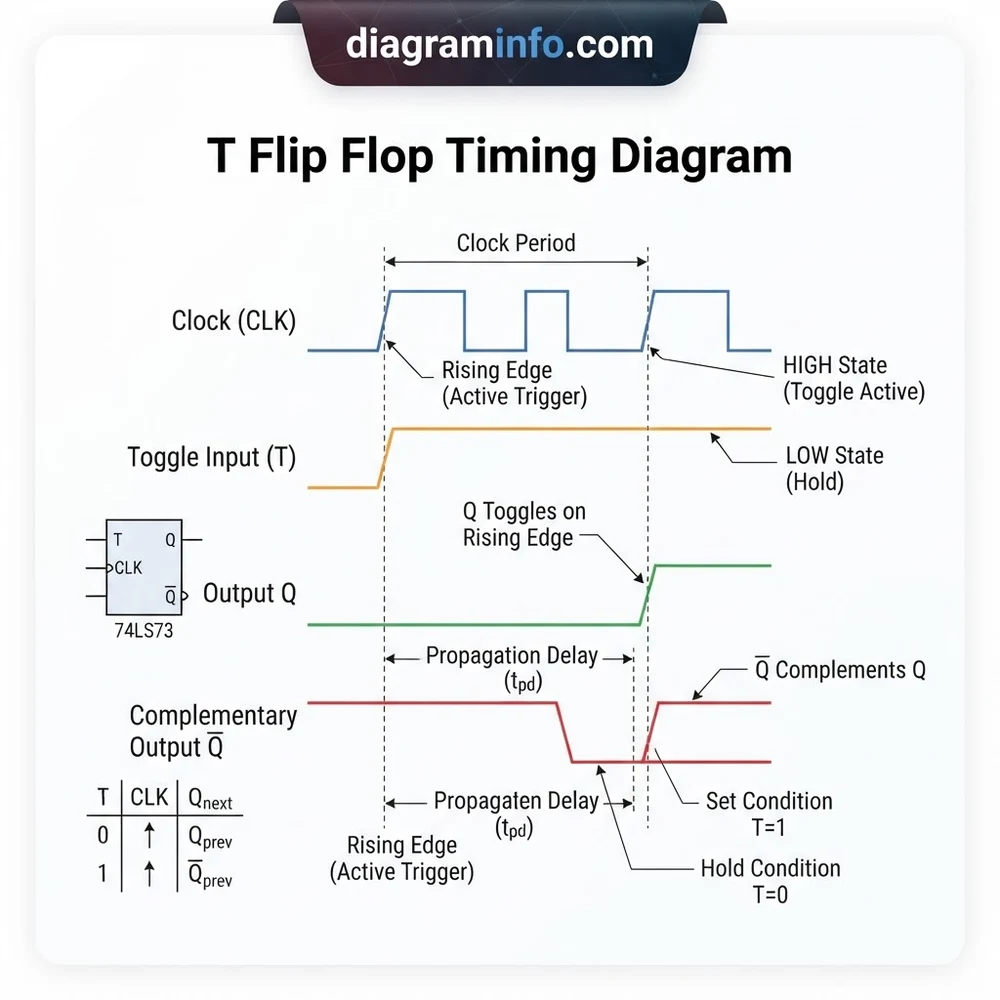

Analyzing a t flip flop timing diagram requires evaluating horizontal time alignment across multiple square-wave traces. Follow this systematic approach to track signal paths and output predictions accurately during system design or oscilloscope signal verification.
Step 1: Identify the Active Clock Edge Triggering Convention
Examine the $CLK$ trace in the timing diagram. Check the component symbol for a small dynamic indicator triangle (designating rising-edge sensitivity) or a triangle combined with an inversion bubble (designating falling-edge sensitivity). Locate every active edge on the horizontal timeline by drawing vertical reference lines down through all signal channels ($CLK$, $T$, $Q$, $\bar{Q}$). Output transitions occur exclusively at these vertical reference points, unless overridden by asynchronous inputs.
Step 2: Determine the Toggle Control Signal ($T$) State Before the Clock Transition
Scan the signal level on the $T$ channel immediately preceding the active clock edge. To prevent metastability, the signal on line $T$ must remain stable for a minimum duration known as setup time ($t_{su}$) prior to the clock edge, and hold constant for the hold time ($t_h$) following the edge. According to OEM semiconductor specification sheets (e.g., NXP 74HC series), standard setup times range from 3 ns to 12 ns depending on ambient temperature and supply voltage ($V_{CC}$).
Recommended Best Deal Products
When evaluating high-speed automotive communication lines or sensor interfaces, line capacitance can round off pulse edges. Always verify setup time ($t_{su}$) from the point where signal $T$ crosses $V_{IH}$ (70% of $V_{CC}$) rather than the initial voltage slope baseline.
Step 3: Plot Output State Transition ($Q$) and Propagation Delay ($t_{PD}$)
Evaluate the logical operation using the current state of $Q$ and input $T$:
- If $T = 0$ at the active edge: $Q$ remains unchanged ($Q_{next} = Q$).
- If $T = 1$ at the active edge: $Q$ toggles to its complement ($Q_{next} = \bar{Q}$).
Shift the plotted output edge to the right of the vertical clock reference line by a time delta equal to the propagation delay ($t_{PLH}$ or $t_{PHL}$). In automotive engine control modules operating under 5V nominal logic, typical propagation delay between $CLK$ transition and output $Q$ settling spans 15 ns to 35 ns.
For continuous divide-by-two timing applications where $T$ is tied permanently HIGH ($V_{CC}$), output signal frequency ($f_{Q}$) is precisely $f_{Q} = \frac{1}{2} f_{CLK}$. The output pulse width ($t_{w(out)}$) equals the full period ($T_{CLK}$) of the incoming clock source.
Step 4: Incorporate Asynchronous Reset and Set Pulse Effects
Inspect the asynchronous override traces ($\bar{CLR}$ and $\bar{PRE}$). If $\bar{CLR}$ drops to logic LOW ($0\text{V}$), $Q$ immediately transitions to logic LOW regardless of $CLK$ or $T$ logic levels. Note that asynchronous resets do not wait for an active clock edge. On the timing diagram, this is represented by an instant state transition tied directly to the falling edge of the $\bar{CLR}$ signal pulse.
Diagnosing T Flip Flop Timing Diagram Anomalies in Control Systems
Discrepancies between theoretical timing diagrams and observed oscilloscope traces indicate underlying hardware failures, EMI coupling, or power supply degradation. In automotive ECUs and automated assembly machinery, timing faults can trigger missing pulse faults, speed reading anomalies, or micro-controller bus communication resets.
Addressing Setup Time ($t_{su}$) and Hold Time ($t_h$) Violations
If input signal $T$ changes state within the restricted setup/hold time window surrounding the clock transition, the flip-flop internal latch enters a metastable state. During metastability, output $Q$ hovers at an indeterminate voltage level between $V_{IL}$ and $V_{IH}$ before randomly settling to 0 or 1. On a digital storage oscilloscope (DSO), this appears as signal ringing, stepped voltage plateaus, or delayed state transitions exceeding specified $t_{PD}$ limits.
Metastability in safety-critical automated equipment can cause intermittent logic execution. Always measure $T$-input transition points relative to $CLK$ using high-bandwidth oscilloscope probes (> 200 MHz) with ground springs to avoid ground lead inductance loading.
Systematic Diagnosis of Circuit Anomalies
When field signals deviate from the blueprint timing layout, perform the following troubleshooting workflow:
- Measure Supply Rail Quality: Verify $V_{CC}$ decoupling. Voltage drop below nominal limits slows internal switching logic, effectively increasing propagation delay ($t_{PD}$) beyond timing diagram specifications. Ensure ceramic bypass capacitors (typically 0.1 µF in parallel with 10 µF tantalum) are installed close to IC power pins.
- Inspect Clock Signal Slew Rate: Slow clock transitions ($t_r, t_f > 500\text{ ns}$) permit input noise to trigger multiple clock edges on a single pulse. This causes the T flip-flop to toggle twice rapidly, making output $Q$ appear unresponsive or chaotic on the timing trace.
- Analyze Asynchronous Lines for Ground Bounce: Transient noise spikes on unshielded reset lines ($\bar{CLR}$) driving below $V_{IL}$ (1.35V) cause sudden unexpected clears. Check internal pull-up resistor integrity and ensure harness shielding ground straps maintain low impedance (< 0.1 $\Omega$).
For modular logic systems incorporating dual-function chips, referring to JK flip-flop timing diagrams helps clarify operational differences when inputs $J$ and $K$ are shorted together to emulate $T$-mode behavior.
Frequently Asked Questions About the T Flip Flop Timing Diagram Blueprint
What does a T flip flop timing diagram display during a continuous high T input?
When input $T$ is tied continuously HIGH ($V_{CC}$), the timing diagram shows output $Q$ toggling its state on every active clock edge. This results in a symmetrical output square wave with a frequency exactly half that of the input clock signal ($f_{out} = \frac{f_{clk}}{2}$). This layout is commonly used in digital counters and automotive speed-sensor frequency scaling circuits.
How do positive-edge and negative-edge triggers differ in a T flip flop schematic?
In a positive-edge triggered timing diagram, state transitions occur precisely on the low-to-high voltage transition ($0\text{V} \rightarrow 5\text{V}$) of the clock wave. In a negative-edge triggered configuration, output state transitions occur on the high-to-low clock voltage transition ($5\text{V} \rightarrow 0\text{V}$). The schematic symbol indicates negative-edge triggering via a small inversion bubble at the clock input terminal.
Why is the output pulse delayed slightly after the clock edge in a practical timing diagram?
The delay seen on oscilloscope traces and detailed timing diagrams represents propagation delay ($t_{PD}$). Propagation delay is the physical time required for internal transistors to alter conduction states and charge terminal node capacitance. Manufacturer specs define separate delay metrics for low-to-high ($t_{PLH}$) and high-to-low ($t_{PHL}$) output transitions, usually ranging between 10 ns and 40 ns.
How do setup time and hold time affect signal waveforms on an oscilloscope?
Setup time ($t_{su}$) is the mandatory duration signal $T$ must remain stable before the clock edge arrives, while hold time ($t_h$) is the required duration $T$ must stay constant after the clock edge. Violating these timing windows causes signal instability, ringing, or erratic state changes on the oscilloscope trace, often forcing the circuit into metastability.
Can a JK flip-flop be used as a T flip-flop in automotive equipment control circuits?
Yes, a standard JK flip-flop operates as a T flip-flop when terminals $J$ and $K$ are tied together to form a single toggle control line. In this setup, driving both $J$ and $K$ HIGH causes the device to toggle on active clock edges, matching the precise timing characteristics and output behavior mapped in a classic toggle flip-flop blueprint. For deeper insights into frequency division applications, explore automotive ECU frequency dividers.
