3 Wire Blower Motor Wiring Diagram: 2026 Connection Guide
A 3 wire blower motor wiring diagram typically features a black hot wire for high speed, a red hot wire for low/medium speed, and a white neutral wire (or black ground wire in 12V automotive setups). Power routes from the selector switch or resistor block directly to the motor leads to control fan speeds safely.
📌 Key Takeaways
- 120V HVAC 3-wire blower motors use 14 AWG wire, while 12V automotive setups rely on 12-14 AWG rated for up to 25 amps.
- The wire color code standard typically uses black for high speed (hot wire), red for low speed (hot wire), and white for neutral wire or common ground.
- Always disconnect power and verify 0V with a multimeter prior to handling pin assignment leads to avoid electrical shock or board damage.
- Reversing the hot wire and neutral wire or shorting speed terminals directly causes blown fuses, resistor failure, or thermal overload tripping.
- DIY replacement is standard for modular wiring harness setups, but control board or furnace integration issues require a licensed technician.
Proper wiring of a 3 wire blower motor requires precise identification of pin assignments, conductor wire gauge, and line voltage integrity. Whether servicing an automotive climate control system, commercial refrigeration unit, heavy equipment cab heater, or residential HVAC system, understanding the underlying circuit schematic is essential for reliable operation. These units typically utilize a three-conductor harness comprising a dedicated hot wire (or primary DC power line), a ground wire (or neutral wire in AC circuits), and a speed selection tap or pulse-width modulation (PWM) control signal line. Following an verified wiring schematic ensures proper rotation direction, prevents thermal overload, and protects sensitive solid-state control modules from current spikes.

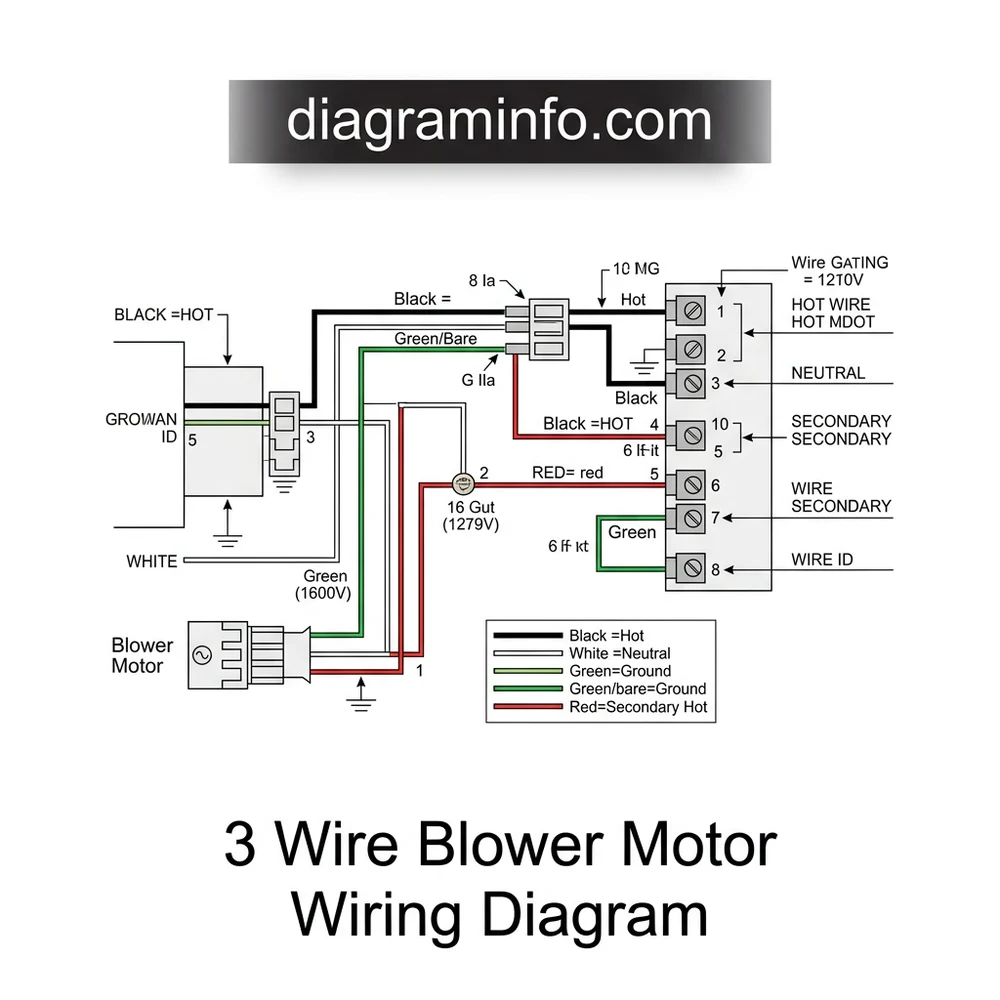

3 Wire Blower Motor Wiring Diagram Pin Assignment and Wire Color Code
Manufacturer wire color conventions vary across automotive applications (12V/24V DC systems) and equipment HVAC installations (120V/240V AC systems). When analyzing a 3 wire blower motor wiring diagram, technicians must verify terminal pin assignments using continuity and resistance checks rather than relying solely on insulation color. However, standardized color coding provides a reliable baseline for initial circuit tracing and terminal block connection.
Recommended Best Deal Products
| Wire Color (Standard) | Circuit Function | Pin/Terminal Identification | Electrical Specifications |
|---|---|---|---|
| Red / Orange | Hot Wire (Primary Power / High Speed) | Terminal 1 / Line (L1) / Batt (+) | 12V DC or 120V AC, 10–25 Amps (12 AWG minimum) |
| Black / White | Ground Wire or Neutral Wire | Terminal 2 / Common (COM) / Ground | 0V potential, low-impedance path back to source |
| Blue / Yellow | Low/Medium Speed Tap or PWM Signal | Terminal 3 / Aux / Speed Pin | Resistive drop supply or 5V–12V PWM signal line |
| Green / Bare Copper | Chassis Equipment Ground (AC Systems) | Frame Screw / Lug Terminal | Earth ground connection for safety protection |
In DC permanent magnet motors, Terminal 1 supplies full battery voltage for maximum RPM, while Terminal 3 routes current through an external resistor block to reduce voltage for low-speed operation. In electronically commutated (ECM) or brushless DC motors, Terminal 1 acts as constant unswitched hot power, Terminal 2 provides full-time ground, and Terminal 3 accepts a low-current pulse-width modulation (PWM) signal from the HVAC control head to vary motor velocity dynamically.
Voltage Drops, Wire Gauge Selection, and Terminal Block Specs
Selecting the correct conductor wire gauge is critical when installing or rewiring a high-draw 3 wire blower motor. Blower motors are inductive loads that generate high inrush currents upon initial startup, often drawing up to 250% of their continuous running amperage. Excessive voltage drop across undersized conductors leads to winding overheating, premature bearing wear, and nuisance circuit breaker tripping.
• Continuous Current Load: 12 to 22 Amperes DC (or 3.5 to 8.0 Amperes AC)
• Recommended Wire Gauge: 12 AWG stranded copper for runs under 10 feet; 10 AWG for runs exceeding 10 feet
• Insulation Rating: Cross-linked Polyethylene (TXL/GXL) rated for 125°C (257°F) minimum in automotive engine/HVAC compartments
• Terminal Block Contact Rating: Heavy-duty screw or blade terminal blocks rated for minimum 30A continuous at 300V AC/DC
• Maximum Allowable Voltage Drop: 3% total drop across line hot wire and ground return path
When routing wires through a junction box or environmental barrier, secure connections using a ceramic or phenolic screw-terminal block. Open-frame terminal strips should be enclosed in a dust- and moisture-resistant junction box. Ensure all crimp terminals are installed using a ratchet-action crimper to prevent resistive heating at pin interfaces. Loose pin connections increase circuit resistance, inducing high heat that degrades housing connectors and causes intermittent fan drops under load.
Step-by-Step 3 Wire Blower Motor Wiring Diagram Installation Guide
Follow this precise step-by-step procedure to connect a replacement 3 wire blower motor to your electrical system. Before starting, confirm that supply power is isolated and that you have a multimeter capable of measuring DC/AC voltage, continuous current, and resistance in ohms.
Step 1: Isolate Electrical Power and Prepare the Terminal Block
Disconnect the negative battery cable in automotive systems, or lock out and tag out the main circuit breaker in equipment/HVAC systems. Inspect the mounting location and mount a high-amperage terminal block adjacent to the motor housing if direct plug-and-play wiring harnesses are not utilized. Clean all mounting surfaces to establish a clean metal-to-metal contact point for chassis ground wire bonding.
Step 2: Identify and Terminate the Ground Wire or Neutral Wire
Locate the ground wire or neutral wire coming from the main power harness (typically black or white). Strip 3/8 inch of insulation, crimp an appropriately sized ring terminal, and secure it to Terminal 2 of the terminal block or directly to the motor’s dedicated ground stud. Verify zero resistance (less than 0.2 ohms) between the motor housing ground terminal and the chassis ground using a multimeter set to low ohms.
Never disconnect the motor ground wire while the hot wire is energized. Disconnecting ground under load causes an inductive voltage spike that can instantly destroy sensitive solid-state HVAC control boards or PWM control modules connected to the speed pin.
Step 3: Wire the Main Hot Power Line and Fuse Protection
Route the primary hot wire (typically red or orange) from the fused relay output or power distribution center directly to Terminal 1 on the blower motor terminal block. According to OEM engineering guidelines, an inline fuse or thermal circuit breaker must be installed within 18 inches of the power source. Use an ATC/MAXI blade fuse (DC) or dedicated single-pole circuit breaker (AC) rated matching motor full-load nameplate amperage plus 25% safety margin (typically 20A–30A rating).
Step 4: Connect Speed Control or PWM Signal Wire
Connect Terminal 3 (typically blue or yellow) to the speed selector switch, resistor block output terminal, or HVAC module control output wire. On traditional multi-speed motors, this wire carries reduced voltage when low speeds are selected. On smart ECM blower motors, route this wire directly to the control module’s digital frequency/PWM signal terminal, shielding it away from high-voltage AC lines or ignition wires to prevent EMI interference.
When inserting pin terminals into plastic molex connectors, ensure the locking tab fully engages with an audible click. Pull gently back on each wire lead to confirm pin retention force. Loose pins within multi-pin terminal connectors cause intermittent speed dropping and thermal melting.
Step 5: Perform Circuit Continuity and Functional Testing
Re-energize the main circuit or reconnect the battery. Set your multimeter to DC or AC voltage mode as applicable. Measure voltage across Terminal 1 (Hot) and Terminal 2 (Ground/Neutral) while cycling through the HVAC control panel settings. Voltage readings should reflect system nominal supply voltage (12.6V DC or 120V AC). Cycle through low, medium, and high speeds to confirm that current flows smoothly without drawing excessive amperage or tripping thermal cutouts.
Understanding 3 Wire Blower Motor Speeds, Relays, and Resistors
To successfully integrate a 3 wire motor into a larger climate control system, technicians must understand how different motor architectures manipulate voltage to vary fan speed. Three-wire configurations operate under one of three distinct design methods depending on equipment manufacture date and duty rating.
1. Resistive Voltage Drop Configurations
In classical heavy equipment and automotive heater circuits, the 3 wire blower motor works in tandem with a multi-position selector switch and a series-connected resistor pack. High speed routes full system voltage directly through a high-amperage relay to the motor’s primary hot wire terminal. Low speed routes power through a ceramic resistor block before entering the motor’s secondary wire pin assignment, stepping down operating voltage and reducing rotational speed proportionally. Technicians diagnosing low-speed failures can reference our technical guide on automotive blower motor resistor schematics for detailed multi-stage bench testing procedures.
2. Tapped-Winding PSC Motor Circuits
In single-phase AC equipment (such as residential or commercial air handlers), a 3 wire permanent split capacitor (PSC) motor uses tapped primary stator windings to alter internal pole counts or magnetic flux strength. High speed activates the main winding tap, while low speed powers a secondary high-resistance winding tap via the control relay. The common terminal serves as the neutral wire, while an external run capacitor stays connected across separate auxiliary leads. For extended control relay wiring procedures, consult our guide covering relay socket wiring diagrams.
3. Brushless DC (BLDC) and ECM PWM Configurations
Modern vehicles and high-efficiency HVAC equipment use electronically commutated motors. In this setup, the 3 wire harness consists of heavy-gauge constant battery power (+12V), continuous chassis ground, and a light-gauge signal wire carrying a pulse-width modulated (PWM) square wave signal. Changing the duty cycle percentage (from 10% to 90%) sent down the signal wire alters motor output speed without requiring energy-wasting series resistors. Detailed waveform analysis can be referenced in our technical article on HVAC control module diagnostic guides.
Troubleshooting 3 Wire Blower Motor Wiring Diagram Errors
Wiring errors during motor replacement or circuit repair cause immediate component failure, erratic fan speeds, or blown system fuses. Below are the most common wiring mistakes encountered in field service, alongside diagnostic procedures and mechanical solutions.
1. Reversed Polarity Connection (Hot Wire vs. Ground Wire Swapped)
Swapping the primary hot wire with the ground wire or neutral wire on traditional permanent magnet DC motors causes the motor to run in reverse rotation. Air flow through the scroll housing drops by up to 80%, resulting in poor defrost performance or frozen evaporator coils. On BLDC/ECM units, reversing polarity across the main power leads will immediately destroy internal power transistors within the motor control end-cap.
Fix: Verify polarity using a multimeter before plugging in harness connectors. Red/Orange must trace back to the positive side of the supply circuit; Black/White must terminate directly to chassis ground or neutral bus bars.
2. Undersized Conductor Wire Gauge and Excessive Voltage Drop
Replacing factory wiring with standard 16 AWG or 18 AWG primary wire causes excessive electrical resistance under continuous high-amperage operation. Wire insulation becomes brittle, burns, and induces high thermal resistance, causing the blower motor to drop RPMs after 10 to 15 minutes of operation.
Fix: Replace undersized conductors with minimum 12 AWG cross-linked polyethylene wire. Ensure terminal blocks and crimp lug eyelets are rated for minimum 30 Amp current loads.
3. Open Chassis Ground or Floating Neutral Connection
An incomplete or high-resistance ground path prevents current from completing its circuit back to the battery or line transformer. Motor shaft movement will be non-existent, or cause low-voltage back-feeding through control module signal pins, potentially corrupting HVAC control signals.
Fix: Perform a voltage drop test. Connect multimeter positive probe to motor ground pin and negative probe to battery negative post. Turn blower switch ON. If reading exceeds 0.3V DC, clean, wire-brush, and re-torque chassis ground ring terminals to solid metal frame points.
4. Multimeter Diagnostic Resistance Specifications
To verify motor winding health using a digital multimeter set to ohms (Ω), measure resistance across all terminal combinations with motor harness completely disconnected:
- Terminal 1 (Hot) to Terminal 2 (Ground/Neutral): Expect 0.5 Ω to 4.0 Ω (Normal primary winding resistance). An “OL” reading indicates an open internal thermal fuse or burned winding.
- Terminal 3 (Speed Pin) to Terminal 2 (Ground/Neutral): Expect higher resistance than Terminal 1 (typically 2.0 Ω to 12.0 Ω depending on speed tap).
- Terminal 1, 2, or 3 to Metal Shaft / Housing: Expect infinite resistance (“OL”). Any measurable continuity to the metal housing indicates an internal ground fault short circuit requiring motor replacement.
3 Wire Blower Motor Wiring Diagram FAQs and Technical Solutions
How do I identify the hot wire, neutral wire, and speed wire on an unlabeled 3 wire blower motor?
Disconnect all power and use a digital multimeter set to resistance (ohms). Measure resistance between each pair of leads. The two leads yielding the highest resistance reading represent the series path across the main motor winding and auxiliary speed winding. The remaining lead is the common connection (ground wire or neutral wire). Next, measure from the common lead to each of the remaining leads: the lead showing lowest resistance is the high-speed hot wire, while the lead with higher resistance is the low-speed wire.
Can I bypass the speed wire and run a 3 wire blower motor continuously at full speed?
Yes. If you wish to run a 3 wire blower motor at maximum velocity permanently, connect the primary ground wire or neutral wire to Terminal 2, and connect your switched 12V DC or 120V AC fused power line directly to Terminal 1 (High Speed Hot Wire). Leave Terminal 3 disconnected and insulated with heat-shrink tubing to prevent accidental shorting against the vehicle frame or HVAC housing.
What causes a replacement 3 wire blower motor to blow fuses immediately upon turn-on?
Blower motors blow fuses instantly due to direct short circuits to ground, locked rotor amperage draw, or incorrect wiring pin assignments. Swapping the hot wire and ground wire leads directly creates a low-resistance path to ground, immediately tripping protective fuses or breakers. Additionally, check for mechanical binding of the squirrel-cage fan wheel against the shroud, which traps the armature and causes locked-rotor current draw exceeding fuse limits.
Is a run capacitor required when connecting an AC 3 wire blower motor to a terminal block?
Permanent Split Capacitor (PSC) 3 wire AC blower motors require a properly rated run capacitor (typically 5µF to 15µF rated at 370V/440V AC) to create the phase shift necessary for starting torque. If the motor features separate external capacitor leads, connect the capacitor across those leads. If the capacitor is integrated into internal motor housing circuits, only the 3 main leads (Hot, Neutral, Speed) require external termination at the terminal block.
Why does my 3 wire blower motor operate on high speed but refuse to run on low or medium speed?
When high speed functions correctly but secondary speeds are dead, the motor itself is usually functional. The failure originates in an open blower motor resistor pack, a burned low-speed relay contact, or a severed lead on Terminal 3. Inspect the resistor block for open thermal cutouts or physical corrosion, and test for voltage at Terminal 3 while the speed switch is set to low position.
