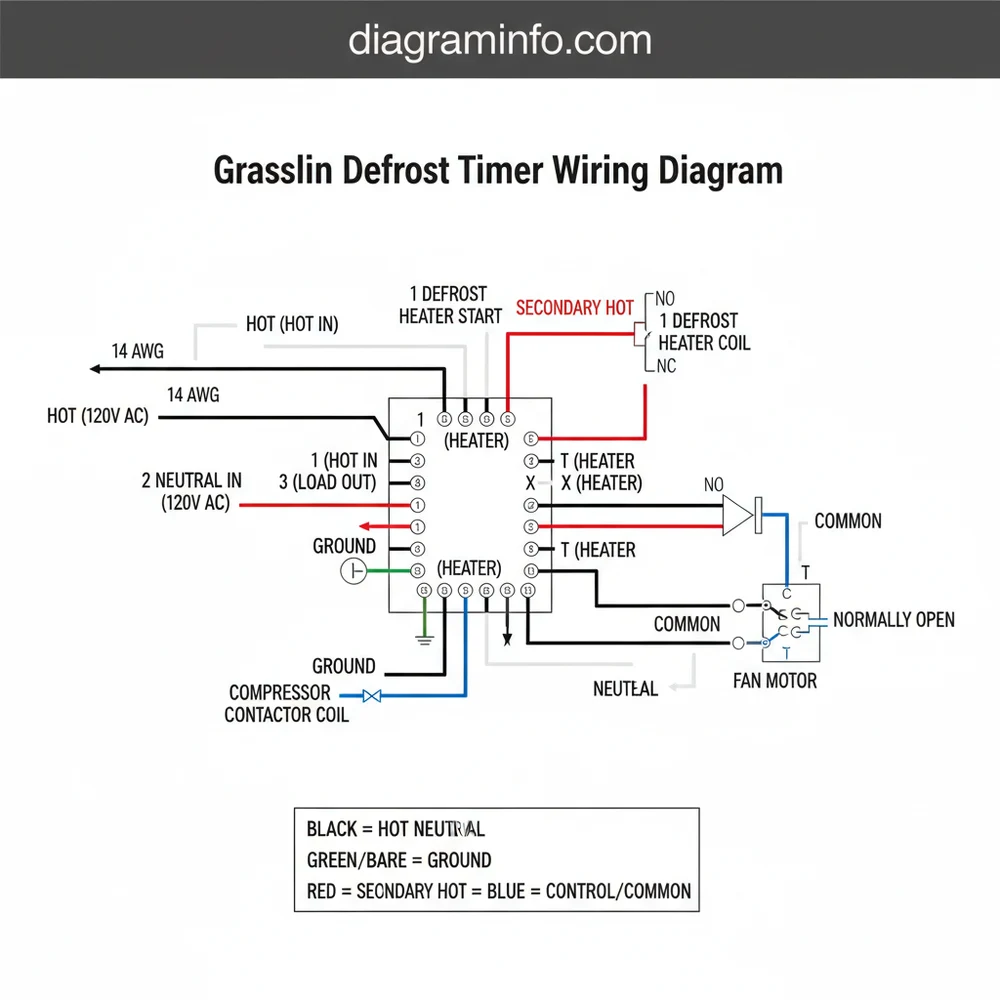

Grasslin Defrost Timer Wiring Diagram: 2026 Pinout Guide
A Grasslin defrost timer wiring diagram requires connecting the incoming hot wire to Terminal 1 and the neutral wire (or Line 2) to Terminal 2 to power the timer motor. Terminal 3 powers the refrigeration/compressor circuit (Normally Closed), while Terminal 4 triggers the defrost heater (Normally Open). Ensure the ground wire attaches to the metal housing screw.
📌 Key Takeaways
- Terminals 1 and 2 supply standard clock motor power rated for 120V or 208/240V operation up to 40A resistive load.
- Terminal 3 functions as Normally Closed (NC) for cooling, while Terminal 4 serves as Normally Open (NO) for defrost heaters.
- Always verify switch position DIP switches or internal jumpers before applying line voltage to prevent internal coil burnout.
- Reversing the hot wire and neutral wire load connections can cause continuous defrost mode or trip the primary breaker.
- Basic line-voltage wiring can be done DIY by trained technicians, but commercial 208V/240V multi-phase systems require certified HVAC/R experts.
Commercial refrigeration systems rely on precise control timing to eliminate ice buildup on evaporator coils without over-temperature cycling. Reading and applying a grasslin defrost timer wiring diagram correctly ensures your refrigeration system alternates flawlessly between the cooling phase and the defrost cycle. Grasslin controls, such as the widely specified DTAV40, DT72, and G8000 series, use robust mechanical switches combined with electronic or synchronous drive motors capable of handling up to 40 amps of resistive load. Connecting these controls requires precise alignment of line voltage, switch commons, compressor contactors, and electric defrost heaters across the unit terminal block.
Recommended Best Deal Products
Grasslin DTAV40 series modules feature auto-voltage switching technology that automatically detects supply voltage between 120V AC and 240V AC without requiring manual jumper adjustments on the clock motor pins. However, field wiring connections to load switch terminals must still match the connected load requirements outlined in the OEM equipment manual.
Grasslin Defrost Timer Pin Assignment and Terminal Block Layout
To interpret a grasslin defrost timer wiring diagram, technicians must understand the standard numbering system of the internal switch matrix. Most commercial Grasslin units feature a five-terminal heavy-duty block equipped with screw-clamp terminals. The internal drive motor drives a mechanical cam that flips single-pole double-throw (SPDT) or double-pole double-throw (DPDT) contact sets at programmed time pin intervals.
- Terminal 1 (Clock Motor Input / L1): Accepts the primary incoming hot wire or Line 1 power fed to the internal timer clock motor. On universal models, this pin feeds auto-voltage sensing electronics.
- Terminal 2 (Clock Motor Neutral / L2): Accepts the system neutral wire for 120V AC installations, or the second hot wire (L2) for 208V/240V AC circuits. This completes the circuit required to continuous-run the clock motor.
- Terminal 3 (Switch Common / Pole 1): Serves as the high-amperage power input for the internal load switch contacts. In standard single-power-source installations, a factory or field jumper wire connects Terminal 1 to Terminal 3.
- Terminal 4 (Normally Closed / NC Contact): Connects directly to the refrigeration circuit (liquid line solenoid valve, compressor contactor coil, or evaporator fan relay). Power flows through Pin 4 during standard cooling operation.
- Terminal 5 (Normally Open / NO Contact): Connects to the defrost circuit (electric defrost heater elements or hot-gas bypass solenoid). Power shifts to Pin 5 only when the timer initiates a programmed defrost cycle.
- Ground Terminal / Chassis Lug: Dedicated grounding screw configured to accept a green or bare copper equipment ground wire, providing continuous bonding to the enclosure chassis.
Terminal Block Torque Rating: Tighten terminal screws to 20 in-lbs (2.2 Nm). Terminals accept wire gauges ranging from 14 AWG to 8 AWG solid or stranded copper conductors rated for at least 75°C (167°F).
Grasslin Defrost Timer Wire Color Code and Terminal Block Specifications
Standardized wire color selection simplifies circuit tracing and prevents miswiring during panel retrofits. When referencing a grasslin defrost timer wiring diagram, always adhere to NEC standards for conductor color coding alongside OEM equipment manufacturer color conventions. If you are integrating this system with existing control panels, cross-reference your wiring with our commercial refrigeration wiring schematics guide for standard field layouts.
| Wire Color Code | Circuit Function | Pin Assignment | Gauge & Voltage Notes |
|---|---|---|---|
| Black | Line 1 Supply (Hot Wire) | Terminal 1 & Terminal 3 | 12 AWG / 10 AWG, 120V/208V/240V AC |
| White | Neutral Wire (120V) / Line 2 | Terminal 2 | 12 AWG / 10 AWG, 0V (Neutral) or 120V (L2) |
| Red | Line 2 (208/240V AC Leg) | Terminal 2 (240V mode) | 12 AWG / 10 AWG, 120V to Ground / 240V L1-L2 |
| Yellow / Blue | Refrigeration Load (NC) | Terminal 4 | 12 AWG, Feeds Compressor/Fan Control |
| Brown / Orange | Defrost Heater Load (NO) | Terminal 5 | 10 AWG / 8 AWG, Feeds Electric Heaters |
| Green / Bare | Equipment Ground Wire | Chassis Lug | 12 AWG / 10 AWG, Safety Grounding |
When selecting wire gauge for the defrost load connected to Terminal 5, calculate total heating element wattage. A standard 4000-watt electric defrost heater operating at 208V AC draws approximately 19.2 amps. NEC standards require continuous heating loads to be de-rated to 80% of conductor capacity. Therefore, circuits drawing over 16 amps continuous load require 10 AWG copper conductors rated for at least 30 amps.
Voltage Configuration and Line Circuitry in Grasslin Defrost Controls
Operating voltage management is critical when following a grasslin defrost timer wiring diagram. Commercial walk-in freezers utilize either a single-source electrical feed (where timer motor and heating loads share a single line voltage supply) or dual-source electrical feeds (where control voltage is 120V AC while defrost heaters operate on a separate 208/240V AC three-phase supply).
On single-voltage source setups, Terminal 1 (clock motor hot wire) must be connected via an insulated jumper wire directly to Terminal 3 (switch common terminal block). This allows incoming line power to simultaneously operate the clock mechanism and pass through the switch contacts to downstream loads.
High Voltage Hazard: Disconnect all line power sources before removing terminal cover plates or making wiring adjustments. Dual-power source systems may contain isolated 120V AC control voltage AND separate 208V/240V AC power feeds within the same enclosure enclosure box. Test all line terminals with a calibrated voltmeter prior to service.
Legacy mechanical Grasslin timers (such as older G8000 configurations) required placing a voltage jumper clip on designated pins to select between 120V and 240V operation. Modern electronic DTAV40 models feature dynamic auto-voltage detection. Applying 120V AC across Terminals 1 and 2 powers the internal clock without manual selection, and applying 240V AC across the same pins automatically adjusts internal drive current without damage.
Step-by-Step Connection Guide for Grasslin Defrost Timer Installations
Follow this systematic procedure to complete installation using the grasslin defrost timer wiring diagram. Ensure all electrical lockouts are applied prior to removing existing control wiring.
- Isolate Electrical Power and Prepare Panel Enclosure: Shut off main circuit breakers powering both the condensing unit and the indoor evaporator unit. Verify zero voltage potential across line terminals using a digital multimeter set to AC Volts. Remove the protective front enclosure shield to access the timer module terminal block.
- Connect Safety Ground Wire: Terminate the green or bare copper ground wire directly onto the chassis grounding lug located on the bottom corner of the Grasslin metallic backplate. Secure the terminal screw firmly to establish frame continuity.
- Wire Clock Motor Power Terminals (Pin 1 and Pin 2): Run the main incoming line supply hot wire (Black) to Terminal 1. Run the system neutral wire (White, for 120V installations) or Line 2 hot wire (Red, for 240V installations) to Terminal 2. Strip conductor ends approximately 3/8 inch, insert completely into screw clamp slots, and torque screw terminals to 20 in-lbs.
- Install Switch Common Jumper (Pin 1 to Pin 3): In standard single-source applications, construct a jumper wire using 12 AWG or 10 AWG THHN copper wire. Strip both ends and connect one end to Terminal 1 along with the main hot wire, and attach the opposite end directly to Terminal 3 (Common Switch Pole). If using isolated dual power sources, omit this jumper and land the dedicated load feed hot wire directly on Terminal 3.
- Connect Refrigeration Cycle Load (Pin 4 NC): Terminate the compressor control wire or liquid line solenoid valve wire (Yellow or Blue wire) onto Terminal 4. During standard non-defrost operation, internal switch contact 3-4 remains closed, delivering continuous voltage to maintain cooling. For systems utilizing fan delay switches, cross-reference our walk-in freezer defrost termination thermostats guide to verify temperature fan control wiring.
- Connect Defrost Heater Circuit Load (Pin 5 NO): Terminate the electric defrost heater conductor or hot-gas bypass solenoid coil wire (Brown or Orange wire) onto Terminal 5. During a scheduled defrost interval, internal switch contact 3-4 opens (stopping refrigeration) and switch contact 3-5 closes, delivering line voltage to heat the evaporator coil. If utilizing a remote temperature termination switch, wire the defrost termination thermostat in series between Terminal 5 and the heater contactor coil.
- Verify Mechanical Trippers and Conduct Operational Testing: Insert mechanical push pins or set digital program interval times on the Grasslin timer dial. Restore system power. Rotate the manual advance dial clockwise until the switch clicks into defrost mode. Verify line voltage transfers from Terminal 4 to Terminal 5. Rotate dial further until the cycle resets to cooling mode, confirming voltage returns to Terminal 4.
Common Grasslin Defrost Timer Wiring Diagram Mistakes and Troubleshooting
Wiring errors during defrost timer installation lead to system failure, product spoilage, or compressor failure. Below are primary field wiring mistakes and diagnostic steps to resolve them.
Mistake 1: Transposing Terminal 4 and Terminal 5 Connections
Connecting the compressor contactor to Terminal 5 and the defrost heater to Terminal 4 completely reverses system logic. The compressor will run during programmed defrost cycles, while electric resistance heaters energize during the cooling phase. This causes rapid coil icing, severe high-head pressure trips, and eventual compressor damage.
Fix: Disconnect power and check continuity. With the timer in standard cooling mode (outside defrost pins), Terminal 3 must have zero resistance (0 ohms) to Terminal 4, and infinite resistance (Open) to Terminal 5.
Mistake 2: Missing Common Jumper Between Terminal 1 and Terminal 3
Technicians often supply power to Terminals 1 and 2 (clock motor) but forget to jumper line voltage over to Terminal 3 (switch common). In this state, the clock runs and ticks normally, but no voltage passes to the compressor or defrost heater loads, leaving the entire refrigeration unit non-functional.
Fix: Check voltage between Terminal 3 and Neutral (Terminal 2). If voltage reads zero while Terminal 1 reads 120V/240V AC, install a 12 AWG jumper wire between Terminal 1 and Terminal 3.
Mistake 3: Omitting Defrost Termination Thermostat Series Wiring
Connecting electric defrost heaters directly to Terminal 5 without a defrost termination thermostat (Klixon switch) forces heaters to stay energized for the full duration of the mechanical timer pin setting (typically 30 to 45 minutes). This overheats the evaporator box, causing high box temperatures and severe thermal stress on expansion valves.
Fix: Route the hot wire output from Terminal 5 through the bimetallic defrost termination thermostat before connecting to the heater contactor coil. The termination thermostat opens at approximately 55°F (13°C) coil temperature, terminating defrost early while the timer finishes its safety delay period.
Mistake 4: Loose Terminal Connections Causing Thermal Terminal Melt-down
Failing to torque terminal block screws to spec creates high electrical resistance under 20A to 30A heater loads. This causes localized overheating, melting the plastic Grasslin housing and scorching connected wire insulation.
Fix: Trim scorched wire back to clean bare copper. Torque all terminal screws to exactly 20 in-lbs using a calibrated torque screwdriver. For additional control troubleshooting tips, check out our comprehensive HVAC/R contactor and relay wiring guides.
Grasslin Defrost Timer Wiring Diagram FAQs for Commercial Refrigeration
How do I jumper Terminal 1 to Terminal 3 on a Grasslin DTAV40?
To jumper Terminal 1 to Terminal 3, strip a 2-inch piece of 12 AWG insulated copper wire on both ends. Insert one end into Terminal 1 alongside your incoming main line hot wire (L1) and clamp the screw securely down. Insert the opposite end into Terminal 3 (Switch Common) and tighten the terminal screw. This routes incoming line power directly to the internal switch contacts.
What wire gauge is required for a 40-amp Grasslin defrost control terminal block?
While control terminals accept 14 AWG to 8 AWG wire, the correct wire gauge depends on total load amperage. Circuits carrying up to 15 amps require 14 AWG copper wire. Circuits drawing up to 20 amps require 12 AWG copper wire. Heavy electric defrost loads drawing up to 30 amps (30A resistive rating maximum for many Grasslin controls) require 10 AWG copper wire rated for 75°C insulation minimum.
Why is my compressor running during the defrost cycle?
If your compressor runs during defrost, the output loads on Terminals 4 and 5 are transposed, or the internal SPDT contact set has suffered contact welding due to an electrical short circuit. Verify that the compressor control wire is attached to Terminal 4 (NC) and the defrost heater wire is attached to Terminal 5 (NO). Measure voltage at Terminal 4 while the timer is manually advanced into defrost; if voltage remains present on Terminal 4, replace the defective timer module.
How do I test voltage across terminals 1, 2, 4, and 5 using a multimeter?
Set your digital multimeter to AC Volts. Place the black meter probe on Terminal 2 (Neutral or L2). Place the red probe on Terminal 1 to verify supply voltage to the clock motor (should read 120V or 208/240V AC). Next, touch the red probe to Terminal 4 in standard cooling mode; it should read line voltage. Manually advance the timer pin wheel into defrost; Terminal 4 should drop to 0V AC and Terminal 5 should now display full line voltage.
What is the difference between synchronous drive and quartz drive Grasslin timer models?
Synchronous drive models (such as the DTAV40) rely on stable 50/60 Hz AC grid line frequency to keep accurate mechanical time. If line power drops out, the timer stops ticking and loses real-time alignment. Quartz drive models (designated with an “Q” prefix or suffix, like DT72Q) contain an internal battery backup that keeps the clock mechanism running for up to 7 days during power outages, preventing program drift.
