Japanese Maple Tree Root System Diagram: 2026 Layout
A Japanese maple tree root system consists of a compact, non-invasive layout dominated by shallow lateral roots spreading 12 to 24 inches beneath the soil surface. Lacking a central taproot, the structure relies on fine feeder roots expanding horizontally slightly beyond the canopy’s drip line for nutrient absorption and moisture anchorage.
📌 Key Takeaways
- Shallow depth configuration: 80% of feeder roots reside within the top 12 inches of soil.
- Absence of a deep taproot; structural stability relies on wide horizontal lateral roots.
- Maintain a 2 to 3-inch organic mulch layer while keeping the root flare exposed.
- Girdling roots wrapped around the trunk flare are the leading cause of crown decline.
- Consult an arborist before cutting any structural roots exceeding 2 inches in diameter.

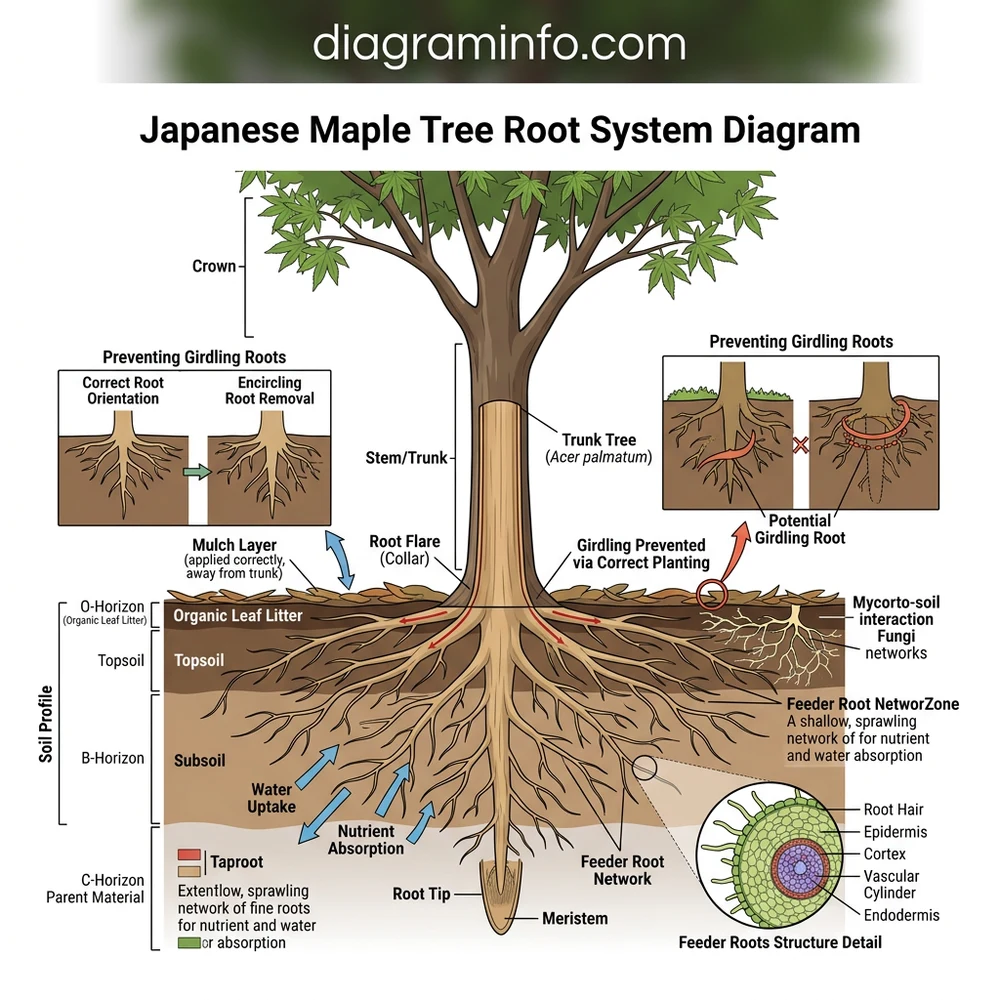

Understanding the subterranean architecture of Acer palmatum requires analyzing a precise structural schematic of its root zone. Unlike deep-taproot hardwood species, Japanese maples feature a non-invasive, shallow, highly branched root configuration optimized for topsoil surface gas exchange and lateral nutrient absorption. Correctly interpreting a Japanese maple tree root system diagram is essential for site civil planning, heavy machinery navigation within the Root Protection Zone (RPZ), hardscape installation, and diagnosing root-plate instability. This technical guide examines structural root components, lateral distribution layouts, subterranean depth profiles, and diagnostic protocols based on ANSI A300 arboricultural standards.
Japanese Maple Tree Root System Diagram: Structural Component Breakdown
An accurate anatomical overview of the Acer palmatum underground network reveals three distinct zones of structural and physiological development. Analyzing this component architecture allows arborists and civil engineers to determine structural load limits and critical root boundary lines.
Recommended Best Deal Products
Primary Structural Transport Roots (Root Flare & Buttress)
At the base of the trunk lies the root flare (trunk collar), where vertical bark tissue transitions into horizontal root anatomy. In a standard blueprint, primary structural roots originate directly from this flare, tapering rapidly within the first 12 to 24 inches (30 to 60 cm) of radial distance. These primary buttress roots average 2 to 6 inches (5 to 15 cm) in diameter on mature specimens. They act as mechanical anchors that transfer sway loads from the canopy directly into the surrounding soil matrix. Unlike taproot-dominant trees, Japanese maples rarely produce a central vertical taproot beyond the juvenile sapling stage; instead, primary structural roots branch laterally into a heart-shaped structural matrix.
Lateral Anchorage and Secondary Skeletal Network
Extending outward from the primary transport roots is the secondary skeletal system. These roots radiate horizontally, maintaining a depth profile between 6 and 18 inches below the soil surface. They branch dichotomously at regular intervals, establishing a wide radial network that provides tensile resistance against windthrow forces. In a detailed schematic, secondary roots feature a lower taper ratio than primary roots but maintain structural integrity over significant horizontal distances, often extending beyond the outer boundary of the drip-line.
Fibrous Absorptive Root Zone and Mycorrhizal Interface
The outermost and most shallow component of the schematic consists of the feeder root network. Accounting for over 80% of the total root surface area, these non-woody, microscopic roots measure less than 2 millimeters in diameter. Located almost exclusively in the upper 2 to 10 inches (5 to 25 cm) of soil where oxygen concentration is highest, fibrous roots form symbiotic associations with endomycorrhizal fungi (Glomeromycota). This mycorrhizal interface increases the effective absorption area for water and immobilizes mineral nutrients such as phosphorus and nitrogen.
• Vertical Root Depth: 80–90% of total root biomass resides within the top 12–18 inches (30–45 cm) of soil.
• Horizontal Radial Spread: 1.5× to 3.0× the radius of the canopy drip-line.
• Maximum Root Flare Taper: Primary roots taper by 50% diameter within 18 inches of trunk circumference.
• Critical Root Zone (CRZ) Formula: 1 foot of CRZ radius per 1 inch of Trunk Diameter at Breast Height (DBH).
Subterranean Architectural Layout and Depth Profile Blueprint
To safely execute civil earthworks or site grading around established cultivars, operators must reference the spatial configuration and density distribution across underground horizons. The subterranean layout is primarily governed by oxygen availability, soil bulk density, and soil moisture gradients.
Recommended Best Deal Products
Upper Soil Horizon Stratification (0–12 Inches Depth)
In the top 12 inches of the soil profile, atmospheric gas diffusion rates are highest. The schematic layout demonstrates that the majority of fine absorptive roots and secondary structural branch roots inhabit this upper zone. Soil compaction in this layer drastically reduces pore space, starving the root system of oxygen ($O_2$) and causing rapid tip necrosis in fine roots.
Sub-Surface Anchorage Zone (12–24 Inches Depth)
Below 12 inches, root density drops significantly. This lower zone houses sinker roots—vertical extensions off secondary lateral roots—which anchor the root plate deeper into soil strata and pull deep soil moisture during prolonged drought conditions. In heavy clay soils with high resistance to penetration, sinker roots may fail to develop, resulting in an exceptionally flat root system susceptible to windthrow.
| Horizon Depth (Inches) | Root Type Density | Primary Mechanical Function | Critical Bulk Density Limit |
|---|---|---|---|
| 0 to 6 in (0–15 cm) | High (Fibrous Feeder Roots) | Nutrient & Water Absorption, Respiration | > 1.40 g/cm³ (Clay) / > 1.60 g/cm³ (Sand) |
| 6 to 12 in (15–30 cm) | Moderate-High (Secondary Skeletal) | Lateral Tension Anchor & Conduction | > 1.45 g/cm³ (Clay) / > 1.65 g/cm³ (Sand) |
| 12 to 24 in (30–60 cm) | Low (Primary Sinker / Structural) | Vertical Shear Resistance & Mass Stabilization | > 1.55 g/cm³ (Clay) / > 1.75 g/cm³ (Sand) |
| 24+ in (60+ cm) | Negligible (< 2% of total mass) | Deep Hydration Sourcing (Drought Response) | Hardpan Barrier Zone |
According to research on urban soil mechanics, soil bulk densities exceeding 1.45 g/cm³ in clay loam soils restrict root elongation rates by over 75%. When performing heavy equipment operations near Japanese maples, temporary ground protection matting must be used to keep soil penetrometer readings below 200 PSI within the Root Protection Zone. Cross-reference site plans with the Root Protection Zone Excavation Guidelines for structural clearance calculations.
How to Read and Apply a Japanese Maple Tree Root System Diagram in Construction
When engineering hardscapes, foundations, or utility trenches near mature Japanese maples, field personnel must translate two-dimensional diagram overlays into real-world protective boundaries on site layouts.
Step 1: Calculate the Critical Root Zone (CRZ) and Root Protection Zone (RPZ)
Start by measuring the tree’s Trunk Diameter at Breast Height (DBH) in inches at 4.5 feet above grade. Calculate the radial protection radius using the standard arboricultural multiplier:
$$CRZ_{\text{radius (ft)}} = DBH_{\text{(inches)}} \times 1.25$$
For example, a Japanese maple with a 10-inch DBH requires a minimum unexcavated radius of 12.5 feet from the trunk center. Mark this radius on your site layout map as the absolute non-encroachment boundary.
Step 2: Map the Structural Root Flare against Utility Corridors
Superimpose the root blueprint onto civil utility plans. If a trenching line cuts through the CRZ, standard mechanical excavation with backhoes or mini-excavators will sever structural roots, inducing canopy dieback or catastrophic overturning. Any utility work passing through the inner 50% of the CRZ must utilize pneumatic air-spading or directional micro-tunneling beneath the 24-inch depth plane.
Step 3: Establish Ground Protection Protocols for Equipment Navigation
Equipment driving over the shallow root layout causes immediate crushing of delicate vascular cambium layers in secondary roots. When machinery must enter the outer RPZ, apply temporary ground protection according to site layout specifications: place a geotextile fabric layer overlaid with 4 to 6 inches of coarse wood chips and topped with 3/4-inch steel road plates or composite crane mats.
Severing even a single 2-inch structural root within 3 feet of the trunk flare removes up to 25% of the tree’s active absorptive root surface area and compromises structural wind resistance. Never perform open-cut trenching within the Critical Root Zone without an on-site certified arborist evaluation. Refer to the Soil Shear Strength and Compaction Reference manual before placing track equipment inside the drip-line.
Diagnosing Japanese Maple Root System Configuration Failures
Physical disruptions or poor nursery cultivation practices can severely alter the expected natural root schematic, leading to system failure. Mechanics, arborists, and equipment operators should evaluate the following structural anomalies during site assessments.
Girdling Root Encirclement and Stem Compression
Girdling roots occur when secondary roots grow in a circular fashion around the trunk base rather than radiating outward. As both the stem and girdling root expand, the root chokes the vascular tissue (xylem and phloem) at the root flare. On a schematic, this appears as an abrupt flattening of the trunk base instead of a normal flare taper. Symptoms include canopy chlorosis, early autumn leaf color drop, and localized crown dieback. Root excavation using compressed air tools is required to expose and surgically cut girdling roots before complete stem strangulation occurs.
Anoxic Root Rot and Pathogenic Decay Patterns
In poorly drained soils or areas over-irrigated by runoff systems, standing water reduces soil oxygen to near-zero levels. This creates anoxic conditions that favor water mold pathogens like Phytophthora and Pythium spp. Pathogen invasion causes soft rot in fine absorptive roots, progressing inward toward primary buttress roots. Field diagnostics reveal sloughing root bark (cortex separation), dark brown or black vascular discoloration, and a complete absence of fine feeder roots along the outer perimeter of the root system schematic.
Trenching Shear Disturbance and Root-Plate Instability
When excavation machinery shears through primary lateral roots, the symmetry of the structural anchor is destroyed. The tree loses tensile support on the side of the cut, making it highly vulnerable to failure toward the opposite side during high-wind events. Soil mechanics models indicate that shearing roots larger than 1.5 inches in diameter within 5 feet of the trunk flare reduces overall root-plate overturning resistance by up to 40%.
Japanese Maple Tree Root System Diagram Technical FAQs
How deep does the structural root system of a Japanese maple extend in standard soil schematics?
In standard, non-compacted soil conditions, 80% to 90% of a Japanese maple’s root system is concentrated in the top 12 to 18 inches (30 to 45 cm) of soil. Sinker roots may penetrate up to 24 to 36 inches deep in loose, well-drained sandy loam soils, but rarely extend deeper due to lower soil oxygen levels and higher soil bulk density at lower depths.
What is the recommended Critical Root Zone (CRZ) radius multiplier on a blueprint?
The standard industry guideline for calculating the CRZ radius of an Acer palmatum is 1.25 feet per 1 inch of trunk DBH (Diameter at Breast Height). For sensitive or aged specimens, increase this safety factor to 1.5 feet per 1 inch of DBH to protect fine absorptive roots located beyond the canopy drip-line.
How do girdling roots alter the standard radial layout diagram of Acer palmatum?
Girdling roots disrupt the standard radial geometry by wrapping tightly around the trunk base or main lateral roots. Instead of spreading outward like spokes on a wheel, girdling roots form concentric rings within the inner 12 to 24 inches of the root flare, causing vascular constriction, flattened trunk morphology, and localized sapwood decay.
Can dynamic hydro-excavation be safely used to expose roots along the diagram layout?
Yes, dynamic hydro-excavation or air-spading (pneumatic excavation) at pressures between 90 and 100 PSI allows technicians to expose root architecture for inspection without severing or stripping the protective bark tissue of primary and secondary roots. Hydro-excavation is recommended when mapping utility crossings inside the Root Protection Zone.
What impact does high soil bulk density have on root system lateral architecture?
Soil bulk density values exceeding 1.45 g/cm³ in fine-textured clay soils halt fine root elongation. High density forces the root system into ultra-shallow horizontal growth patterns immediately beneath the organic mulch layer (top 2 to 4 inches), significantly increasing the tree’s susceptibility to drought stress, mechanical surface injury, and winter frost-heaving.
Step-by-Step Guide to Understanding the Japanese Maple Tree Root System Diagram
Identify – Locate the trunk root flare at the base of the Japanese maple stem.
Locate – Measure outward from the trunk base to the drip line boundary.
Reference – Consult the root diagram to identify shallow 12-inch active root zones.
Connect/Route – Gently excavate upper soil to inspect lateral roots for encircling girdles.
Verify – Ensure proper soil aeration and apply a 2 to 3-inch layer of organic mulch.
Troubleshoot – Sever circling girdling roots cleanly using sanitized bypass hand pruners.
