3-Bed Concrete Floor Plumbing Diagram for House on Slab 2026
A slab plumbing layout routes 3-inch or 4-inch Schedule 40 PVC main waste lines at a minimum 1/4-inch per foot slope beneath the aggregate base. Kitchen branch lines connect tailpiece and garbage disposal units through a 2-inch drain assembly, properly vented via an upstream vent pipe, terminating in a below-grade P-trap before the slab pour.
📌 Key Takeaways
- Maintain a strict 1/4-inch per foot downward slope on all 3-inch and 4-inch under-slab PVC waste lines.
- Ensure 2-inch minimum pipe sizing for kitchen branch lines handling garbage disposal and tailpiece connections.
- Solvent-weld all Schedule 40 PVC fittings and hold a 5 PSI air pressure test before pouring concrete.
- Improper bedding compaction causes pipe bellies, leading to frequent under-slab blockages.
- Under-slab plumbing rough-ins require local building permits and official inspection prior to backfill.
Designing and roughing in a DWV (Drain-Waste-Vent) system for slab-on-grade construction leaves zero margin for positioning errors. Unlike wood-framed joist subfloors where piping remains accessible from below after framing, plumbing routed beneath a poured concrete monolithic or stem-wall foundation requires exact execution prior to pouring. Understanding a concrete floor plumbing diagram for house on slab allows master plumbers, structural engineers, and field contractors to properly size Schedule 40 PVC branches, maintain critical pipe pitch, and position vertical stub-outs precisely within structural wall plates. This technical guide breaks down schematic symbols, sub-grade positioning specifications, and fixture assembly connections to ensure code compliance and optimal hydraulic flow.
Concrete Floor Plumbing Diagram for House on Slab Sub-Grade Component Identification

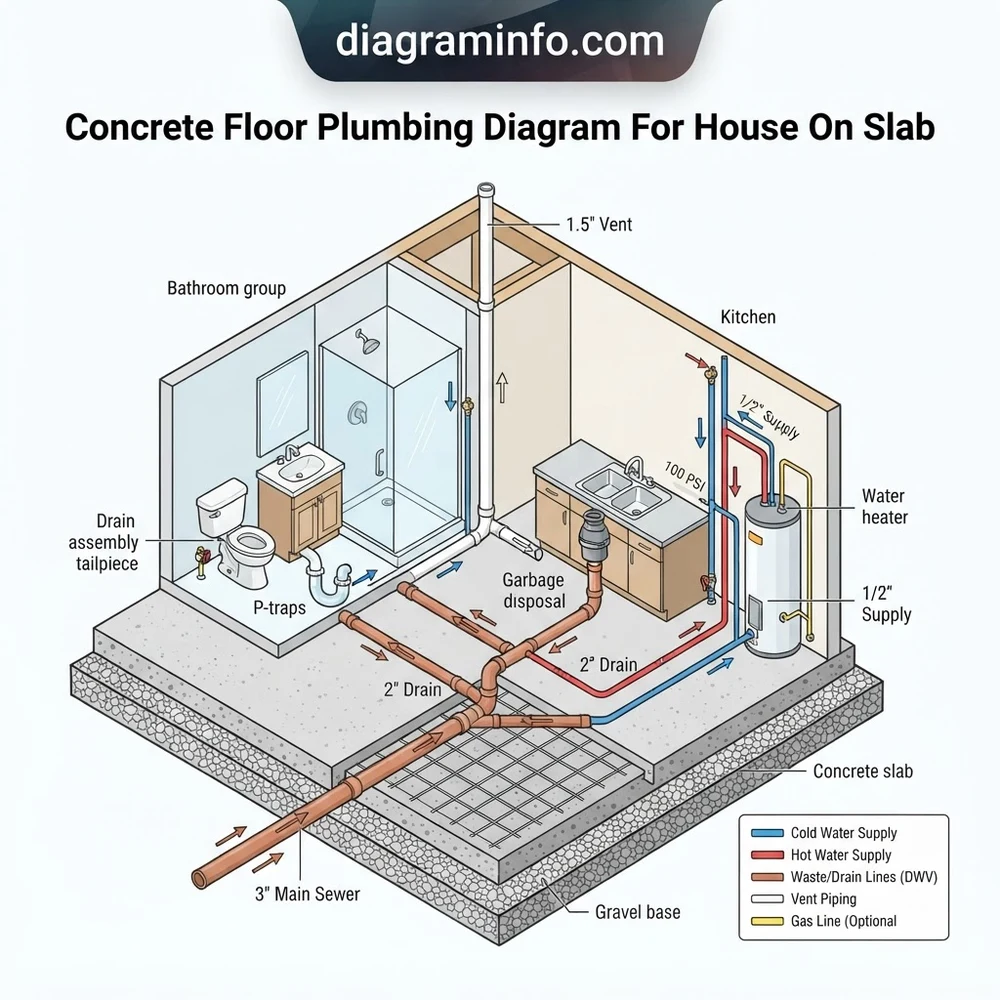

As shown in the diagram above, slab plumbing relies on a dual-zone architecture: sub-grade direct-burial piping and above-slab rough-in trim components. Beneath the concrete slab, solid core Schedule 40 PVC pipe (conforming to ASTM D2665 standards) forms the primary building drain and waste branch network. The main building drain transitions through the foundation footing via protective closed-cell polyethylene foam sleeving to accommodate foundation settling and concrete curing stress.
Recommended Best Deal Products
Sub-grade lines connect to vertically rising stub-outs for water closets, kitchen sinks, and shower drains. Above slab, the fixture drain assembly bridges the gap between the concrete penetration and the fixture trim. For kitchen installations, the tailpiece descends vertically from the basket strainer, connecting directly to the garbage disposal discharge elbow or dual-sink baffle tee. The entire assembly secures via threaded slip joint connections with rubber or EPDM bevel washers.
Every sub-slab branch must tie into an atmospheric vent pipe or approved venting device to preserve the hydraulic trap seal. The P-trap holds standing water to create a gas-tight seal against sewer gas migration. In structural slab layouts where traditional wet venting through top plates is geographically unfeasible, an Air Admittance Valve (AAV valve) conforming to ASSE 1051 is specified as an engineered mechanical vent alternative.
According to IPC Section 702, all underground building drains must utilize Schedule 40 PVC solid-core pipe joined with heavy-duty PVC primer and solvent cement (ASTM D2564). DWV short-radius elbows (90-degree street tees) are prohibited in underground horizontal-to-horizontal directional changes; only long-sweep 1/4 bends or combination 1/8 bends with wyes are acceptable.
| Fixture Type | Min. Pipe Diameter (PVC) | Required Slope Grade | Trap Seal Depth |
|---|---|---|---|
| Water Closet (Toilet) | 3″ or 4″ Schedule 40 | 1/4″ per foot (2%) | Integrated (2″ – 4″) |
| Kitchen Sink & Garbage Disposal | 2″ Sub-Slab (1.5″ Arm) | 1/4″ per foot (2%) | 2″ min / 4″ max |
| Shower / Wet Bad Drain | 2″ Schedule 40 | 1/4″ per foot (2%) | 2″ min / 4″ max |
| Main Underground Trunk Line | 4″ Schedule 40 PVC | 1/8″ to 1/4″ per foot | N/A (Main Branch) |
Reading the Concrete Floor Plumbing Diagram for House on Slab Step by Step
Interpreting a sub-grade mechanical schematic requires tracing waste lines sequentially from individual fixture rough-ins downstream to the main sewer line exit point, while cross-referencing structural grid dimensions.
Tracing the Main Building Drain and Branch Network
Start by locating the 4-inch main building drain exit point on the perimeter footing or grade beam on the plumbing layout. Follow the main trunk back into the interior slab footprint. Observe the wye branches reducing to 2-inch and 3-inch pipe sizes. As indicated in the schematic, manufacturers specify long-turn wyes and 45-degree elbows at all underground branch intersections to minimize flow turbulence and prevent solids accumulation. Verify that all 2-inch and 3-inch lines maintain a constant slope of 1/4-inch per linear foot (2% pitch) toward the main sewer tap.
Never place poured concrete directly onto bare underground PVC pipe. Pipes must be set on a minimum 4-inch bed of compacted pea gravel or clean washed sand (ASTM C33 grade). Mechanical soil tamping directly over unprotected PVC can distort pipe ovality and create negative slope bellies.
Verifying Stub-Out Offsets and Wall Framing Centerlines
Correlate wall framing markers with fixture stub-out penetrations. Water closet flange centers must measure exactly 12 inches from the finished drywall face (typically 12.5 inches from rough 2×4 framing). Kitchen drain stub-outs rising through the slab must hit within the middle third of the 2×6 plumbing wall cavity. Wrap all vertical PVC penetrations with 1/4-inch closed-cell foam wrap before pouring to isolate thermal pipe movement from rigid concrete contact.
Integrating Venting Systems and AAV Valve Connections
Trace the dry vent paths on the schematic upwards from the waste arms. Standard code dictates that dry vent lines must rise vertically at least 6 inches above the flood rim of the highest serviced fixture before offsetting horizontally. When installing an AAV valve under a kitchen sink assembly, position the valve vertically at least 4 inches above the top of the horizontal trap arm and ensure it remains accessible for future mechanical diaphragm servicing.
Troubleshooting Slab Drainage Systems and Drain Assembly Failures
Underground and in-slab plumbing defects present severe challenges because post-pour access requires destructive trenching. Precise field diagnostics prevent unnecessary structural remediation.
Correcting Sub-Slab Slope Flat Spots and Bellies
Improper pipe bedding prior to concrete placement causes section sagging (bellies), leading to standing water, grease dropout, and chronic line blockages.
Diagnostic Procedure: Run a sewer push-camera with an integrated 512Hz sonde transmitter through the cleanout. Measure liquid depth on camera screen; standing water deeper than 1/2-inch indicates a pipe belly.
Targeted Repair: Locate the sonde position above the slab using a locator receiver. Mark the exact slab coordinate. Review standard subsurface slab concrete cutting methods to saw-cut a trench minimal in size, re-grade the sub-base, replace the sagged section, and re-pour high-strength 4000 PSI concrete.
Before pouring concrete over any sub-slab plumbing installation, perform a 10-foot water column test according to IPC Section 312. Cap all branch openings, fill the system with water to a height of 10 feet above the highest point, and observe static water levels for 15 minutes to verify zero joint leakage under pressure.
Resolving Sewer Methane Odors and Trap Seal Siphonage
Sewer gas odors inside a slab-on-grade structure point to dry P-traps, unsealed slip joint washers, or failed venting.
AAV Diaphragm Failure: Check the internal rubber seal of the mechanical AAV valve under the sink. Debris accumulation or severe negative pressure spikes can warp the silicone membrane, allowing gases to leak into cabinet interiors. Replace the valve capsule.
Induced Siphonage: If discharging a washing machine or toilet pulls water out of adjacent shower P-traps, the sub-slab wet vent is undersized or choked. Calculate total Drainage Fixture Units (DFUs) against IPC Table 710.1(2). Installing a downstream accessible backwater valve assembly or adding a secondary mechanical vent upper branch can eliminate vacuum siphoning.
* Foundation Drain Interconnection: Ensure sub-slab DWV piping is strictly separated from exterior foundation drainage protocols to prevent ground runoff from backing up into underground waste trunks.
Concrete Floor Plumbing Diagram for House on Slab Technical FAQ
What pipe material is required beneath concrete slab foundations?
Schedule 40 PVC or ABS solid-core pipe conforming to ASTM D2665 or ASTM D2661 is required for residential slab construction. In non-combustible commercial structures or heavy structural footings, hubless Cast Iron Soil Pipe (CISP) utilizing heavy-duty 4-bolt stainless steel couplings is mandated to withstand heavy shear loads.
How do you protect PVC pipe embedded in poured concrete?
All PVC pipes rising vertically through concrete slabs must be wrapped with closed-cell polyethylene foam sleeve insulation (minimum 1/4-inch wall thickness). This cushioning layer isolates the pipe from shear stress caused by concrete expansion, structural settling, and chemical reactions during cement hydration.
Can an AAV valve be fully enclosed inside a sealed wall cavity?
No. IPC Section 918.8 specifies that Air Admittance Valves must be located in an accessible space that allows atmospheric air to enter the valve intake. If installed inside a wall chase, you must install a louvered access panel providing a minimum of 1 square inch of open air vent space per DFU rating.
How deep should plumbing lines be buried beneath a concrete floor slab?
Underground DWV lines beneath slab-on-grade foundations must be buried deep enough to provide at least 4 inches of compacted aggregate bedding underneath and 12 inches of compacted backfill cover over the crown of the pipe before installing the 6-mil vapor barrier and pouring the top concrete slab.
Step-by-Step Guide to Understanding the Concrete Floor Plumbing Diagram For House On Slab
Identify – Map all main waste outlets, vent pipe stacks, cleanouts, and drain assembly stub-out positions on the gravel sub-base.
Locate – Dig trenches from the farthest fixture stub-out to the main sewer exit, maintaining a minimum 1/4-inch per foot fall.
Reference – Consult the concrete floor plumbing diagram for house on slab to confirm 45-degree wye branch connections and fitting types.
Connect/Route – Solvent-weld Schedule 40 PVC runs, placing the P-trap for floor drains and stubbing up lines for the sink tailpiece and garbage disposal.
Verify – Cap all stub-outs and run a 5 PSI air test or water head pressure check for 15 minutes to confirm zero joint leaks.
Troubleshoot – Bed lines with gravel and backfill evenly to eliminate sags or pipe movement before pouring the concrete slab.
