12V Universal Fuel Pump Relay Wiring Diagram: Troubleshooting & Repair 2026
A typical fuel pump relay circuit involves power from the fuse block (pin 30), a ground activated by the ECU (pin 85), ignition power (pin 86), and an output to the fuel pump (pin 87). Diagnose by checking for 12V at pin 86 and 30, and continuity to ground at pin 85 when activated.
📌 Key Takeaways
- The fuel pump relay typically uses a 4-pin configuration (30, 85, 86, 87) with a 12V supply, controlled by the ECU.
- Identify relay pin 30 for battery power, pin 86 for ignition power, pin 85 for ECU control ground, and pin 87 for the fuel pump output.
- Always disconnect the battery before servicing the fuel pump circuit to prevent shorts or accidental activation, and ensure all connections handle 15-20A current.
- The most common failure point is corrosion on relay terminals or an internal relay coil failure, leading to a no-start condition.
- While basic relay testing is DIY, complex ECU-related diagnostic issues or persistent no-starts should prompt professional automotive technician consultation.
This technical article provides an in-depth analysis of the switch fuel pump relay wiring diagram for a common heavy-duty industrial diesel engine, typical in commercial vehicles and stationary equipment applications. It details the intricate electrical pathways, component interconnections, and operational principles that govern fuel delivery. This diagram serves as a foundational reference for technicians, outlining the critical role of the fuel pump relay in controlling power to the electric fuel pump, thereby ensuring consistent fuel supply to the engine’s injection system. Understanding these connections is paramount for accurate diagnosis and effective repair of fuel system electrical faults.

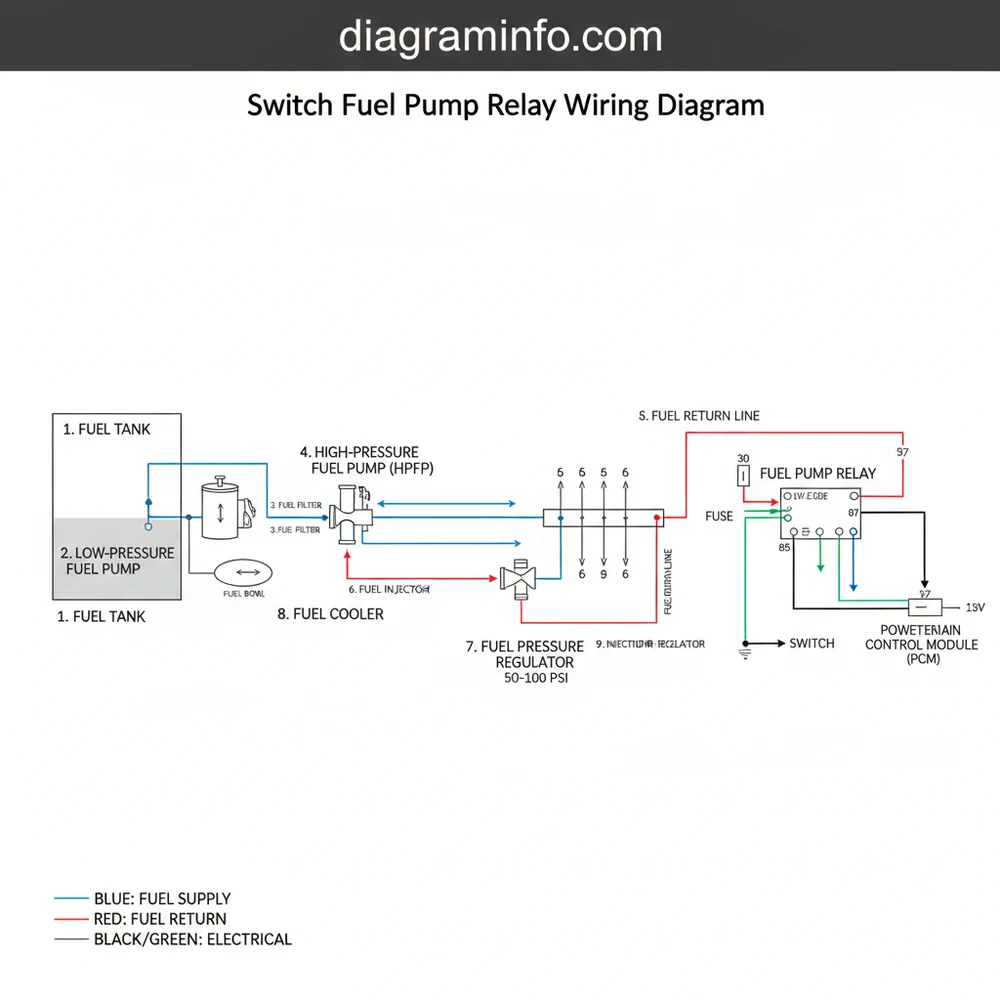

Figure 1: Simplified Fuel Pump Relay Wiring Diagram for a Heavy-Duty Diesel Engine
FUEL SYSTEM COMPONENTS BREAKDOWN
The efficient operation of any heavy-duty diesel engine hinges on a robust and meticulously wired fuel system. Below is a breakdown of the key components relevant to the switch fuel pump relay wiring diagram, outlining their function and typical electrical connections:
1. Electric Fuel Pump (Lift Pump/Transfer Pump): This component, often mounted in the fuel tank or on the frame rail, is responsible for drawing fuel from the tank and delivering it under low pressure to the engine-mounted fuel system. Its wiring typically consists of two heavy-gauge wires: a positive power feed (often Red or Red/White) from the fuel pump relay and a ground wire (often Black or Black/Green) connected to the chassis. Older systems might use a primer pump for initial fuel system bleeding, but electric pumps often integrate this function.
2. Fuel Pump Relay: The central focus of our diagram, this electromagnetic switch controls the high-current circuit of the fuel pump using a low-current signal from the Engine Control Unit (ECU) or ignition switch. Standard Bosch-style relays utilize four or five terminals:
- Terminal 30: Constant 12V or 24V supply (large gauge Red wire) from the battery, protected by a fuse.
- Terminal 87: Switched 12V or 24V output (large gauge Red/White or Red/Blue wire) to the fuel pump.
- Terminal 85: Coil ground (small gauge Black or Black/Green wire), often switched by the ECU.
- Terminal 86: Coil positive (small gauge Yellow/Black or Red/Yellow wire) from the ignition switch or ECU’s switched power output.
Understanding these pin designations is critical for diagnosing fuel pump relay faults.
3. Engine Control Unit (ECU/ECM): The “brain” of the engine, the ECU monitors various sensors and sends a control signal to activate the fuel pump relay. This signal is typically a ground input to Terminal 85 of the relay’s coil, or a 12V/24V output to Terminal 86, depending on the relay’s configuration (N.O. or N.C. and control type). The ECU also manages the timing and duration of fuel pump operation, including initial “prime” cycles.
4. Fuel Filter/Water Separator: Positioned upstream of the high-pressure system, this component removes contaminants and water from the fuel, protecting the delicate fuel injection components. While not directly wired into the relay circuit, its integrity affects fuel flow and can indirectly cause fuel pump over-current conditions if severely restricted.
5. High Pressure Fuel Pump (HPFP): Integral to modern common rail diesel systems, the HPFP receives low-pressure fuel from the electric lift pump and pressurizes it to extreme levels (e.g., 20,000-30,000 psi) for injection. The HPFP itself is typically mechanically driven by the engine and does not have direct electrical wiring from the fuel pump relay. However, it often incorporates an injection pressure regulator (IMV/MPROP) which is electrically controlled by the ECU to manage fuel rail pressure.
6. Fuel Bowl: Commonly found in older diesel systems or as part of primary filtration, the fuel bowl houses the primary fuel filter and often includes a drain for water separation. It’s a critical point for visual inspection of fuel quality and for bleeding air from the system. Some systems may include a fuel heater within the fuel bowl to prevent waxing in cold conditions.
7. Fuel Heater: Electrically powered, the fuel heater prevents diesel fuel from gelling or waxing in extremely cold temperatures. Its wiring is separate from the fuel pump relay but is often controlled by a thermostatic switch or the ECU, drawing power from the main electrical system. It ensures the fuel pump can effectively draw fuel through the system.
8. Fuel Cooler: In high-performance or modern diesel engines, excess heat generated by the HPFP or returning hot fuel from the injectors can be detrimental. A fuel cooler lowers the temperature of the returning fuel before it re-enters the tank, preventing premature component wear and maintaining fuel density. Its operation is typically passive or involves a coolant-to-fuel heat exchanger, thus having no direct electrical connection to the fuel pump relay.
9. Fuel Return Line: This line carries excess fuel (not used by the engine) and fuel that has bypassed the injection system back to the fuel tank. While not an electrical component, its proper function is crucial for system operation, preventing over-pressurization and ensuring the fuel pump operates efficiently.
COMMON FAILURE POINTS & SYMPTOMS
Diagnosing fuel system issues, especially those related to the fuel pump and its control circuit, requires a systematic approach. Here are common failure points, their associated symptoms, and initial diagnostic steps:
-
Fuel Pump Relay (Electrical Failure):
- Symptom: Engine cranks but does not start; no audible “prime” hum from the fuel pump when the ignition is switched on; intermittent starting.
- Diagnosis:
- Check for 12V/24V at Terminal 30 (constant power) and Terminal 86 (switched power from ignition/ECU) of the relay socket.
- Verify ground at Terminal 85 (switched by ECU).
- Inspect relay for burnt terminals or signs of overheating.
- Perform a “click test” by applying 12V/24V to Terminals 85 and 86 to verify the internal switch activates.
- Use a multimeter to check continuity between Terminal 30 and 87 when the relay is energized.
-
Electric Fuel Pump (Motor Failure):
- Symptom: Engine cranks but no start; audible hum from pump is weak, intermittent, or absent; engine starts briefly then stalls; engine sputters under load; low fuel pressure diagnosis.
- Diagnosis:
- Verify proper voltage (12V/24V) and ground at the fuel pump connector during the prime cycle and while cranking.
- If voltage is present but the pump doesn’t run, check pump current draw (should be within manufacturer specifications, e.g., 5-10 amps for a typical lift pump).
- Measure fuel pressure at the output of the pump or filter housing. Compare to OEM specifications (e.g., 5-15 psi for a lift pump).
-
Wiring Harness Issues (Open/Short Circuit):
- Symptom: Intermittent fuel pump operation; blown fuses; no power to the fuel pump or relay.
- Diagnosis:
- Visually inspect the fuel pump and relay wiring for chafing, corrosion, or damage, especially near frame rails, connectors, and heat sources.
- Perform voltage drop tests across the power and ground circuits to identify high resistance points.
- Use a continuity tester or multimeter to check for open circuits (high resistance) or short circuits (near zero resistance to ground or positive).
- Pay close attention to main power feed (e.g., Red or Red/White) and ground (e.g., Black or Black/Green) wires.
-
ECU/ECM Fuel Pump Control Circuit Failure:
- Symptom: Fuel pump relay does not energize; no diagnostic trouble codes (DTCs) related to the fuel pump circuit, even when other components test good.
- Diagnosis:
- Verify the ECU is receiving key-on and crank signals.
- Check for the control signal (ground or 12V/24V) from the ECU to the fuel pump relay coil (Terminal 85 or 86) during the prime cycle and while cranking using a test light or multimeter.
- If no signal is present and all other inputs to the ECU are correct, this may indicate an internal ECU fault or a software issue.
-
Blown Fuse (Fuel Pump Circuit):
- Symptom: Complete loss of fuel pump function; no prime hum; engine cranks but no start.
- Diagnosis:
- Visually inspect the fuel pump fuse, typically located in the main fuse box or a dedicated power distribution center.
- Use a multimeter to check for continuity across the fuse.
- If the fuse is repeatedly blowing, investigate for a short circuit in the fuel pump or its wiring, or an excessive current draw by the pump itself.
REPAIR & REPLACEMENT STEPS: FUEL PUMP RELAY AND CIRCUIT DIAGNOSIS
Addressing issues within the switch fuel pump relay wiring diagram requires methodical diagnostic and repair procedures. This section outlines a common repair for a non-functional fuel pump attributed to its electrical circuit.
Always disconnect the battery negative terminal before performing any electrical repairs to prevent accidental short circuits or system damage. Ensure the fuel system is depressurized, if applicable, to avoid fuel spray and fire hazards. Wear appropriate personal protective equipment (PPE) including safety glasses and gloves.
-
Preliminary Checks and System Overview:
Before diving into wiring, obtain the specific OEM service manual and wiring diagram for your vehicle’s year and engine code. Locate the fuel pump relay, usually found in a fuse/relay box under the hood or in the engine compartment. Identify the relevant fuse for the fuel pump circuit. Visually inspect the wiring around the relay and fuel pump for obvious damage, corrosion, or loose connections. Note the wire colors and terminal numbers as depicted in your specific wiring diagram.
-
Verify Power Supply to Relay (Terminal 30 & 86):
- With the ignition OFF, connect your multimeter’s negative lead to a known good chassis ground.
- Carefully probe Terminal 30 (the constant battery feed) of the relay socket. You should read battery voltage (e.g., 12.6V or 25.2V). If not, trace back to the fuse and battery connection.
- Turn the ignition to the “RUN” position (do not start the engine). Probe Terminal 86 (the ignition-switched power to the relay coil). You should again read battery voltage. If no voltage, check the ignition switch, associated fuses, and wiring to the ECU if the ECU controls this feed.
-
Test Relay Coil Control (Terminal 85):
- Keep the ignition in “RUN.” Your multimeter negative lead remains on chassis ground.
- Probe Terminal 85 (the ground control wire from the ECU).
- On initial key-on (the “prime” cycle), you should momentarily see a ground signal (near 0V if the ECU switches ground) or a momentary drop from battery voltage (if the ECU pulls it to ground). While cranking, this signal should be continuous. If the ECU switches positive, you should see battery voltage.
- If there is no signal, consult the OEM diagnostic procedure for the ECU’s fuel pump control circuit.
-
Bypass Test for Fuel Pump Activation:
If all previous tests show correct power and control signals to the relay, the relay itself or the pump’s power circuit could be at fault.
- Remove the fuel pump relay.
- Using a fused jumper wire (rated for at least 15-20 amps), connect Terminal 30 (constant power) directly to Terminal 87 (fuel pump output) in the relay socket.
- Listen for the fuel pump to hum. If it activates, the fuel pump and its wiring to the relay are likely functional, indicating a faulty relay or a problem with the relay’s control circuit.
-
Test Output to Fuel Pump (Terminal 87):
If the relay passes the click test and is confirmed good, but the pump still doesn’t run, the issue lies between the relay and the pump.
- Reinstall the relay. Perform the bypass test to confirm the relay socket itself is good.
- With the relay installed and ignition on (or during cranking), backprobe Terminal 87 (power out to pump). You should see battery voltage.
- If voltage is present at 87 but the pump isn’t running (and the bypass test confirmed the pump works), proceed to inspect the wiring from the relay to the fuel pump connector. This could involve checking for an open circuit, high resistance, or a poor connection at the pump.
-
Repair or Replace Components:
- Faulty Relay: Replace the fuel pump relay with an OEM equivalent or a high-quality aftermarket component (e.g., OEM Part No. XXXXX, or aftermarket equivalent meeting ISO 7588 standards).
- Wiring Issues: Repair any damaged wiring using appropriate gauge wire, solder connections (not crimps for critical circuits), and heat-shrink tubing. Ensure robust grounding points for the fuel pump and relay.
- Faulty Fuel Pump: If the pump does not activate even with direct power, it requires replacement. Follow OEM procedures for fuel pump replacement, including proper sealing and bleeding of the fuel system.
-
Verification and Testing:
After any repair, reconnect the battery, clear any stored DTCs, and perform functional tests. Listen for the fuel pump prime cycle, start the engine, and check for proper fuel pressure and absence of leaks. Verify that the fuel pump operates continuously as required.
Typical Fuel Pump Relay Coil Resistance: 60-100 Ohms. Contact Resistance: Less than 0.1 Ohms. Expected Voltage Drop across energised relay contacts: Less than 0.1V. Torque specification for battery cable terminals: 10-12 Nm.
FAQ
What is the function of the fuel pump relay in the wiring diagram?
The fuel pump relay acts as an electrical switch that allows a low-current signal from the Engine Control Unit (ECU) or ignition system to control the high-current circuit required to power the electric fuel pump. This prevents excessive current from flowing through sensitive control modules and ensures the fuel pump receives a stable, robust power supply, crucial for maintaining optimal fuel pressure and flow to the engine.
How can I test if my fuel pump relay is bad?
You can test a fuel pump relay by first checking for constant battery voltage at Terminal 30 and switched voltage at Terminal 86 of the relay socket. Next, verify the control signal (ground or voltage) at Terminal 85 from the ECU. If these are present, remove the relay and perform a “click test” by applying 12V/24V directly to terminals 85 and 86; you should hear an audible click. Then, use a multimeter to check for continuity between Terminals 30 and 87 when the relay is energized. If any of these tests fail, the relay is likely faulty.
What does it mean if my fuel pump fuse keeps blowing?
A repeatedly blowing fuel pump fuse typically indicates an over-current condition in the fuel pump circuit. This can be caused by a short circuit in the wiring between the fuse box, relay, and the fuel pump itself. Alternatively, the fuel pump motor could be drawing excessive current due to an internal fault, impending failure, or being forced to work against an obstruction (e.g., severely clogged fuel filter, restricted fuel return line). Thoroughly inspect the wiring for chafing and test the fuel pump’s current draw to isolate the cause.
Can a bad ground connection affect fuel pump operation?
Absolutely. A poor or corroded ground connection for the fuel pump or the fuel pump relay’s control circuit can severely impede its operation. A high resistance ground will result in a significant voltage drop across the circuit, reducing the effective voltage supplied to the fuel pump. This can lead to a weak or non-functional pump, causing insufficient fuel pressure, poor engine performance, or a complete no-start condition. Always ensure clean, tight, and corrosion-free ground points for all fuel system electrical components.
Are fuel pump relay wiring diagrams consistent across different heavy-duty equipment?
While the fundamental principles of a relay (control side, load side) remain consistent, the specific wire colors, terminal identification (though Bosch-style relays often use 30, 87, 85, 86), fuse locations, and ECU control strategies can vary significantly between different manufacturers, engine models, and even model years. It is critical to always consult the specific OEM wiring diagram and service manual for the equipment you are working on to ensure accurate diagnosis and repair, as assumptions can lead to incorrect troubleshooting or component damage.
Step-by-Step Guide to Understanding the 12V Universal Fuel Pump Relay Wiring Diagram: Troubleshooting & Repair 2026
Identify – Locate the fuel pump relay and relevant fuses in your vehicle’s fuse box or under-hood power distribution center.
Locate – Reference the vehicle’s wiring diagram to identify the specific pins (e.g., 30, 85, 86, 87) and wire colors for the fuel pump relay circuit.
Reference – Use a multimeter to check for continuity of the fuel pump fuse and verify battery voltage at the relay’s power input (pin 30) and ignition input (pin 86).
Connect/Route – With the ignition on, check for the ECU’s ground signal at the relay’s control pin (pin 85) to confirm the ECU is commanding the fuel pump.
Verify – If all inputs are correct, jumper power to the fuel pump output pin (pin 87) to directly test if the fuel pump activates, listening for its hum.
Troubleshoot – If the pump activates, replace the relay. If not, inspect the wiring from pin 87 to the pump, and check for proper fuel return line pressure.
Frequently Asked Questions
What are the main components of the switch fuel pump relay wiring diagram?
The switch fuel pump relay wiring diagram typically includes the fuel pump relay itself, a fuse (often 15-25A), the fuel pump motor, the Engine Control Unit (ECU) providing the control signal, and various power and ground wires. It often connects to the fuel return line and high-pressure fuel pump (HPFP) system.
What are symptoms of a failing switch fuel pump relay wiring diagram pump?
Symptoms of a failing fuel pump (controlled by the relay wiring) include difficulty starting, a complete no-start condition, engine sputtering or stalling, loss of power during acceleration, and sometimes a whining noise from the fuel tank area. These indicate insufficient fuel delivery to the engine.
How do I diagnose a problem in the switch fuel pump relay circuit?
Diagnose by checking for power at the relay’s input terminals (pin 30, 86) with a multimeter. Next, verify the ECU’s ground signal at the control terminal (pin 85) when the ignition is on. If inputs are good but no output to pin 87, the relay is likely faulty. Also, check associated fuses.
What is the fuel pressure spec for a typical fuel system using a switch fuel pump relay?
Typical fuel pressure specifications vary greatly by vehicle and fuel system type. For gasoline engines, direct injection (HPFP) systems can range from 400-2000 PSI, while port injection is usually 35-60 PSI. Diesels, especially with a high pressure fuel pump, can exceed 20,000 PSI. Always consult your vehicle’s service manual.
How long does a typical fuel pump last in a system with a switch fuel pump relay?
A well-maintained fuel pump, part of a system with a functioning relay, typically lasts between 100,000 to 150,000 miles. Factors like consistently driving on a low fuel tank (which can overheat the pump) or contaminated fuel can significantly shorten its lifespan, leading to premature failure.
Can I replace the switch fuel pump relay or fuel filter myself?
Replacing the fuel pump relay is often a straightforward DIY task, usually just a pull-and-plug operation after locating it in the fuse box. Replacing the fuel filter can also be DIY, but requires depressurizing the fuel system and dealing with fuel lines, which demands caution to prevent leaks, especially near the fuel bowl on some diesels.
