Jeep 4.7L Vacuum Line Diagram: Proper Routing 2026
The Jeep 4.7L vacuum system integrates lines for PCV, brake booster, EGR, and EVAP purge. Key routing involves connecting the brake booster to manifold vacuum, PCV to specific manifold ports, and EVAP purge valve to the canister and manifold, often using color-coded or size-specific hoses for proper function.
📌 Key Takeaways
- The PCV valve on the 4.7L typically connects to the passenger-side valve cover and then to a specific intake manifold vacuum port.
- The brake booster vacuum line is usually the largest diameter hose, connecting directly to the intake manifold, often incorporating a one-way check valve.
- EGR vacuum lines (if present on your specific 4.7L variant) are crucial for emissions control, requiring precise routing to the EGR valve for proper operation.
- A common failure point is cracked or brittle vacuum hoses, especially near heat sources or sharp bends, leading to drivability issues and engine codes.
- For persistent or multiple vacuum-related issues after initial DIY inspection, professional diagnosis using a smoke machine is highly recommended to pinpoint elusive leaks.
The vacuum system on your Jeep’s 4.7L V8 engine (found in models like the Grand Cherokee WJ/WK or Commander XK) is a critical network responsible for actuating various engine, emissions, and accessory components. Far from merely operating the power brakes, this intricate system utilizes intake manifold vacuum to control vital functions such as crankcase ventilation, fuel vapor recovery, and even HVAC blend doors. Understanding the routing and function of each vacuum line is paramount for accurate diagnostics and maintaining peak vehicle performance and emission compliance.
While this guide focuses on the 4.7L V8, vacuum system configurations can exhibit minor variations based on vehicle year, specific model (e.g., Grand Cherokee vs. Commander), and regional emissions standards. Always consult the factory service manual (FSM) for your exact vehicle’s year, make, and model to cross-reference component locations and vacuum routing. This article serves as a comprehensive conceptual and practical guide.

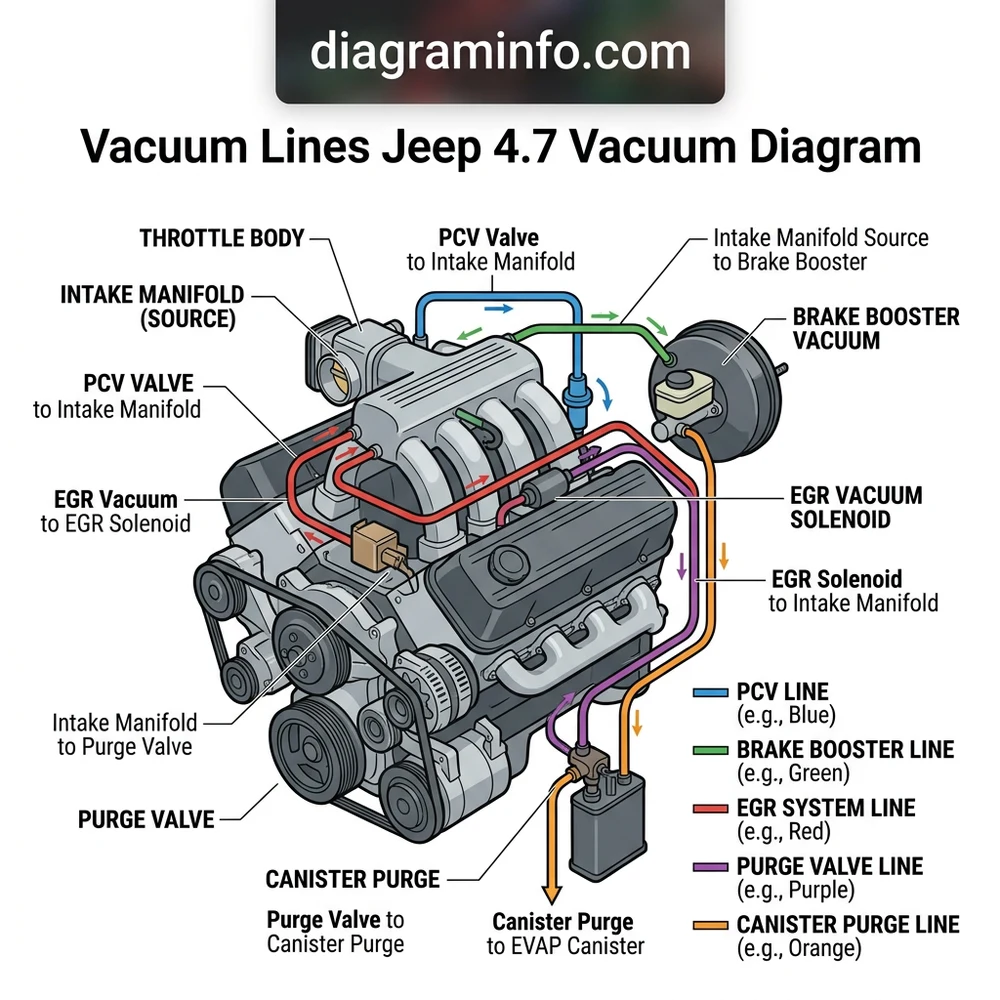

Please insert your Jeep 4.7L V8 vacuum diagram here. Ensure it clearly labels all vacuum ports, lines, valves, and connected components such as the PCV valve, brake booster, EVAP canister purge solenoid, and any vacuum reservoirs.
VACUUM LINE COLOR & ROUTING TABLE
The following table outlines common vacuum line routings and their functions within the Jeep 4.7L V8 system. Note that actual line colors can degrade or be universally black; the “Line Color” column here is illustrative for tracing purposes. Always follow the physical routing on your vehicle, referring to the diagram above, for precise identification.
| Line Color (Illustrative) | Routing From → To | Function |
|---|---|---|
| Black (Large Diameter) | Intake Manifold → Brake Booster | Provides significant vacuum for power brake assist. Often includes a one-way check valve near the booster. |
| Green (Medium Diameter) | Intake Manifold Vacuum Port (rear) → PCV Valve → Passenger Side Valve Cover | Draws crankcase vapors into the intake manifold for combustion, preventing sludge buildup and reducing emissions. The PCV valve regulates flow. |
| Blue (Small Diameter) | Intake Manifold Vacuum Port → Canister Purge Solenoid (CPS) → EVAP Canister | Controlled by the PCM, the purge valve opens to draw fuel vapors from the EVAP canister into the intake manifold for combustion. Essential for emissions control. |
| White (Small Diameter) | Intake Manifold Vacuum Port → HVAC Vacuum Reservoir → HVAC Control Head/Actuators | Supplies vacuum to operate the blend doors and mode actuators within the HVAC system (e.g., defrost, vent, floor). A check valve typically maintains reservoir vacuum. |
| Red (Small Diameter) | Intake Manifold Vacuum Port (via check valve) → Cruise Control Servo | Provides vacuum to the cruise control servo for throttle actuation when cruise control is engaged. A check valve helps maintain consistent vacuum. |
| Yellow (Small Diameter) | Intake Manifold Vacuum Port → MAP Sensor | Directly samples manifold absolute pressure (MAP) for the MAP sensor, which provides crucial data to the PCM for fuel delivery and ignition timing calculations. |
COMMON VACUUM LEAK SYMPTOMS
Identifying a vacuum leak early can prevent more significant engine damage or performance degradation. On your Jeep 4.7L, symptoms often manifest in a variety of ways due to the widespread impact of vacuum on engine operation and accessories.
You might experience a rough or erratic idle, which is a classic indicator. The engine’s idle RPM may fluctuate significantly, or it might stumble and feel like it’s trying to stall, particularly when coming to a stop. This occurs because unmetered air entering the intake manifold via the leak disrupts the air-fuel mixture, leaning it out. This lean condition can trigger diagnostic trouble codes (DTCs) such as P0171 (System Too Lean, Bank 1) and P0174 (System Too Lean, Bank 2). You may also notice an audible hissing sound coming from the engine bay, especially when the engine is running.
Beyond engine performance, vacuum leaks can affect auxiliary systems. A compromised brake booster vacuum line or a faulty check valve in that circuit can result in a hard brake pedal requiring excessive force to stop the vehicle. Similarly, if the vacuum supply to the HVAC system is compromised, you might observe HVAC controls failing to direct airflow correctly (e.g., stuck on defrost or not switching modes). Cruise control, which relies on a vacuum servo, might also fail to engage or disengage improperly. A persistent misfire, especially under load, can also be attributed to a severe vacuum leak, as cylinder-specific air-fuel ratios become unmanageable. Poor fuel economy and a noticeable reduction in engine power under acceleration are also common. Locating these leaks often requires careful inspection and specific diagnostic techniques, detailed in the following section.
When diagnosing vacuum leaks using flammable sprays (e.g., carburetor cleaner, propane), exercise extreme caution. Ensure adequate ventilation, have a fire extinguisher readily available, and avoid spraying directly onto hot exhaust components or ignition sources. Incorrect application can lead to engine damage or fire.
DIAGNOSIS & REPAIR STEPS
Effectively diagnosing and repairing vacuum leaks on your Jeep 4.7L V8 requires a systematic approach. Follow these steps to pinpoint and resolve issues:
1. Thorough Visual Inspection: Begin with a meticulous visual check of all vacuum lines, especially those identified in the diagram above. Look for cracked, brittle, melted, or disconnected hoses. Pay close attention to elbows, T-fittings, and areas where lines rub against engine components or sharp edges. Inspect the PCV valve and its grommet for degradation, as well as the brake booster line and its one-way check valve. Confirm all vacuum port caps on the intake manifold are present and intact.
2. Vacuum Gauge Test: Connect a vacuum gauge to a reliable, direct intake manifold vacuum source (e.g., the large port feeding the brake booster, or a dedicated diagnostic port if available).
Start the engine and allow it to reach operating temperature.
A healthy 4.7L engine should display a steady reading between 17-22 inches Hg (Mercury) at idle.
Fluctuations or consistently low readings indicate a potential leak, incorrect timing, or other engine issues. Consult a resource on interpreting vacuum gauge readings for detailed analysis (e.g., our Vacuum Gauge Interpretation Guide).
Snap the throttle open and closed; the needle should drop sharply then rise briefly above the idle vacuum level before settling.
3. Smoke Test Procedure: This is arguably the most effective method for locating elusive leaks.
Utilize a professional automotive smoke machine. Introduce smoke into the vacuum system, typically via a vacuum port on the intake manifold or the EVAP system.
As smoke fills the system, it will visibly escape from any cracks, holes, or loose connections.
Inspect all lines, fittings, the PCV valve, the brake booster diaphragm (smoke exiting the brake pedal area or booster itself), and the canister purge system components. Pay attention to the intake manifold gaskets and injector O-rings.
4. Propane/Carb Cleaner Method (Use with extreme caution): With the engine idling, carefully spray short bursts of unlit propane or carburetor cleaner around suspected leak areas. If the engine RPM temporarily increases, you’ve located a leak. This method relies on the engine “sucking in” the flammable substance and momentarily burning it, enriching the mixture.
Avoid spraying on hot exhaust manifolds.
This method is less precise than a smoke test and carries inherent risks.
5. Component Specific Checks:
PCV Valve: Remove it and shake; you should hear a rattle. If not, it’s likely stuck. Test with vacuum; it should hold.
Check Valves: Test one-way check valves (e.g., in the brake booster line or cruise control line) by applying vacuum from one side. Air should flow freely in one direction and be completely blocked in the other.
Vacuum Solenoids (e.g., Canister Purge): Test for proper electrical operation and for internal leaks using a vacuum pump. When de-energized, the purge valve should hold vacuum; when energized, it should open.
Brake Booster: With the engine off, pump the brakes several times until the pedal is firm. Start the engine; the pedal should drop slightly as vacuum assists. If not, suspect the booster or its supply line.
6. Repair and Verification:
Replace brittle or damaged vacuum lines with high-quality, automotive-grade vacuum hose of the correct diameter. Manufacturer specs indicate using reinforced silicone or EPDM rubber for longevity.
Secure connections with appropriate hose clamps where specified, especially on larger lines like the brake booster.
Replace faulty PCV valves, check valves, and vacuum solenoids with OEM or equivalent parts.
* After repairs, clear any stored DTCs and perform another vacuum gauge test to confirm a steady, high reading. Road test the vehicle to ensure symptoms are resolved and no new codes appear. For advanced EVAP diagnostics, refer to our comprehensive guide on EVAP System Diagnostics.
FAQ
What is the typical intake manifold vacuum reading for a healthy Jeep 4.7L engine?
A healthy Jeep 4.7L engine, at normal operating temperature and idle (approximately 650-750 RPM), should typically exhibit a steady intake manifold vacuum reading between 17 and 22 inches of Mercury (in Hg). Readings significantly lower than this range, or a needle that fluctuates rapidly, are indicative of potential engine problems, with vacuum leaks being a common culprit. High altitude conditions will naturally result in slightly lower readings, so always consider environmental factors.
How does a check valve impact the vacuum system, specifically on the 4.7L?
A check valve is a one-way valve designed to maintain vacuum in specific components even when the intake manifold vacuum fluctuates or drops (e.g., during wide-open throttle acceleration). On the 4.7L, you’ll commonly find a check valve in the brake booster vacuum line and the cruise control vacuum line. For the brake booster, it ensures power assist is available for several brake applications even if the engine stalls. For cruise control, it helps maintain consistent vacuum to the servo, preventing disengagement during throttle changes. A faulty check valve can lead to intermittent brake assist or non-functional cruise control.
Can a vacuum leak directly cause specific OBD-II codes on a 4.7L?
Absolutely. One of the most common OBD-II codes triggered by a vacuum leak on a Jeep 4.7L is P0171 (System Too Lean, Bank 1) and/or P0174 (System Too Lean, Bank 2). These codes indicate that the engine’s oxygen sensors are detecting too much oxygen in the exhaust, meaning the air-fuel mixture is excessively lean. This condition is frequently caused by unmetered air entering the intake manifold through a vacuum leak. Other related codes might include misfire codes (P030X) or EVAP system codes if the leak is within the purge system. For detailed information on these codes, refer to our OBD-II Code Database.
What are the best materials for replacing vacuum lines on a Jeep 4.7L?
When replacing vacuum lines on your 4.7L, always opt for high-quality, automotive-grade hoses. EPDM (Ethylene Propylene Diene Monomer) rubber hoses are a common OEM standard, offering excellent resistance to heat, ozone, and engine fluids. For superior durability and flexibility, especially in high-heat areas or for critical connections, reinforced silicone vacuum hose is an excellent upgrade. Ensure the inner diameter matches the original lines precisely to prevent leaks. Avoid generic PVC or non-automotive hoses, as they can quickly degrade under engine conditions.
Are there significant year-to-year variations in the 4.7L vacuum system across different Jeep models?
While the core vacuum system components (PCV, brake booster, EVAP purge) remain largely consistent on the 4.7L V8 across its various applications (e.g., Grand Cherokee WJ/WK, Commander XK), minor variations can exist. For instance, early WJ models might have slightly different routing or fewer vacuum-actuated accessories than later WK models, which often integrate more electronic controls. Emissions equipment variations due to regional standards can also subtly alter vacuum line configurations. Always refer to the specific model year’s factory service manual or the under-hood vacuum diagram for your exact vehicle to confirm routing and component specifics.
Step-by-Step Guide to Understanding the Jeep 4.7L Vacuum Line Diagram: Proper Routing 2026
Identify – Locate the main vacuum manifold port or supply line on the Jeep 4.7L intake manifold, typically the primary source of engine vacuum.
Locate – Trace each individual vacuum line from the main manifold connection to its respective component: brake booster, PCV valve, EGR valve (if equipped), purge valve, and any other vacuum-actuated devices.
Reference – Compare the actual vacuum line routing, including hose colors and diameters, against a factory service manual’s vacuum lines jeep 4.7 vacuum diagram to ensure correct connections and pathing.
Connect/Route – Ensure all vacuum hoses are securely attached, free from kinks, chafing, or contact with hot engine components. Use appropriate clamps or zip ties for strain relief and secure fitment.
Verify – Perform a vacuum test by connecting a vacuum gauge to a direct manifold vacuum port. A steady reading between 17-21 in. Hg (at sea level, idle) typically indicates a healthy, leak-free system.
Troubleshoot – If the vacuum gauge reading is low, erratic, or symptoms persist, perform a smoke test or use a listening device to pinpoint vacuum leaks. Replace any brittle, cracked, or disconnected lines and retest the system.
Frequently Asked Questions
What are the symptoms of a vacuum leak in vacuum lines jeep 4.7 vacuum diagram?
Common symptoms include a rough or high idle, stalling, poor fuel economy, engine misfires, and a “check engine” light with lean codes (P0171, P0174). You might also hear a distinct hissing sound from the engine bay. These issues stem from unmetered air entering the engine, disrupting the air-fuel ratio within the vacuum lines jeep 4.7 vacuum diagram system.
How do I find a vacuum leak in vacuum lines jeep 4.7 vacuum diagram?
Begin by visually inspecting all hoses for cracks, disconnections, or damage. Use a smoke machine to introduce smoke into the system, observing for plumes escaping from leaks. Alternatively, spray carb cleaner or unlit propane around suspected areas; a noticeable change in engine RPM or idle quality indicates a leak within the vacuum lines jeep 4.7 vacuum diagram.
What color are the vacuum lines on vacuum lines jeep 4.7 vacuum diagram?
While a universal color code is not standard for all Jeep 4.7L vacuum lines, most factory lines are black or dark grey. Some specialized systems, like EVAP or HVAC controls, might use color-coded lines (e.g., green for EVAP). Always refer to a precise vacuum lines jeep 4.7 vacuum diagram or the specific component for accurate routing and identification.
What does the vacuum lines jeep 4.7 vacuum diagram EVAP system do?
The EVAP system on the Jeep 4.7L prevents harmful fuel vapors from escaping into the atmosphere. It uses a purge valve to draw vapors from the charcoal canister into the engine’s intake manifold, where they are safely burned. A malfunctioning EVAP system, often due to faulty vacuum lines jeep 4.7 vacuum diagram components, can trigger a “check engine” light and emissions failures.
How do I replace vacuum lines on vacuum lines jeep 4.7 vacuum diagram?
Carefully document the routing of existing lines, perhaps with photos. Remove old, brittle hoses one by one, replacing them with new vacuum-rated hose of the correct diameter and length. Ensure all connections are tight and secure. Always double-check your work against a reliable vacuum lines jeep 4.7 vacuum diagram before starting the engine to prevent misrouting.
What tools do I need to diagnose vacuum lines jeep 4.7 vacuum diagram vacuum issues?
Essential tools include a vacuum gauge, a smoke machine (highly recommended for precise leak detection), carb cleaner or soapy water spray, and basic hand tools like pliers and cutters. A diagnostic scan tool capable of reading engine codes (e.g., P0171, P0174) is also invaluable for effectively troubleshooting vacuum lines jeep 4.7 vacuum diagram-related engine performance problems.
