12 Valve Cummins Fuel Line Diagram: Routing & Maintenance 2026

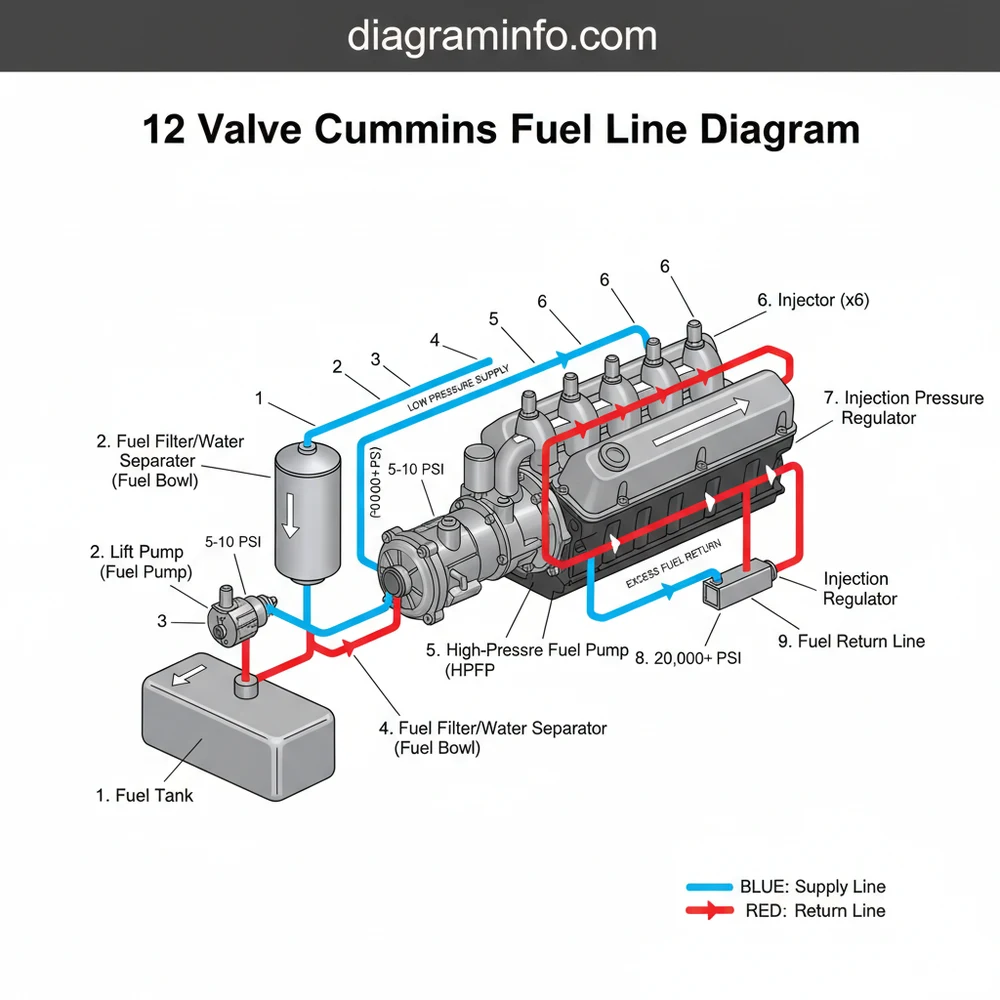

The 12 Valve Cummins fuel line diagram illustrates fuel flow from the tank, through the lift pump, fuel filter, and then to the P7100 injection pump (HPFP). High-pressure lines deliver fuel to injectors, with a fuel return line sending excess back to the tank. Critical components include the fuel bowl and injection pressure regulator.
📌 Key Takeaways
- Fuel pressure for the 12 Valve Cummins P7100 is typically 25-35 PSI at idle, crucial for injection pump longevity.
- Identifying the fuel return line and high pressure fuel pump (HPFP) lines is key for proper diagnostics.
- Always relieve fuel system pressure before disconnecting lines; torque fuel line fittings to manufacturer specifications (e.g., 20-25 ft-lbs).
- The most common failure point is deteriorated fuel lines causing air intrusion or the lift pump failing to maintain adequate injection pressure.
- Seek professional help for complex P7100 timing adjustments or persistent injection pressure regulator issues beyond basic fuel system component replacement.
Understanding the intricate fuel delivery system of the 12-valve Cummins engine is paramount for any technician or experienced owner. This comprehensive guide, centered around the 12 valve cummins fuel line diagram, meticulously details the components, operational flow, and common issues affecting these legendary engines, specifically models like the 5.9L B-series found in 1994-1998 Dodge Ram trucks. You will gain insight into the fuel’s journey from the tank through filtration, low-pressure delivery, the critical P7100 high-pressure injection pump, and finally, precise atomization at the injectors, along with the essential fuel return line pathways. This article provides the technical depth required to diagnose, repair, and maintain your 12V Cummins fuel system effectively.
FUEL SYSTEM COMPONENTS BREAKDOWN
The 12-valve Cummins fuel system is renowned for its mechanical simplicity and robustness, yet each component plays a critical role in ensuring optimal engine performance and longevity. Referencing the typical 12 valve cummins fuel line diagram, we trace the path and function of each key element:
- Fuel Tank & Pickup Assembly: The primary reservoir for diesel fuel. The pickup tube, often equipped with a strainer, draws fuel from the tank, initiating the flow. Maintaining a clean tank and ensuring the pickup is free from debris is crucial for preventing upstream contamination.
- Fuel Lines (Supply): Robust steel or reinforced rubber lines transport fuel from the tank to the front of the engine. These lines must withstand vibration, temperature fluctuations, and fuel pressure.
- Fuel Heater: Located typically near the fuel filter housing or integrated into the fuel bowl, the fuel heater prevents fuel gelling in cold weather. It warms the fuel before it reaches the filter, crucial for maintaining flow in frigid conditions.
- Mechanical Lift Pump (Low Pressure Fuel Pump): Mounted on the engine block and driven by the camshaft, this pump pulls fuel from the tank and pushes it towards the injection pump. It typically maintains fuel pressure in the 20-35 PSI range. A strong lift pump is fundamental for the P7100’s longevity.
- Fuel Bowl / Fuel Filter Housing: This assembly houses the primary fuel filter and often includes a water separator. The fuel bowl design allows for easy draining of accumulated water, which is heavier than diesel. Proper filtration removes contaminants before they reach sensitive downstream components.
- Primer Pump: Often integrated into the lift pump or filter housing, the primer pump is a manual hand lever or button used to purge air from the fuel system after maintenance, such as filter changes or running out of fuel.
- Fuel Filter (Primary): A spin-on or cartridge-style filter that removes particulates and water from the fuel, protecting the P7100 high pressure fuel pump and injectors.
- Overflow Valve: Situated on the return side of the P7100 injection pump, this critical valve maintains consistent fuel pressure within the injection pump’s gallery. It opens at a specific pressure (typically 14-16 PSI) to allow excess fuel and any trapped air to return to the tank via the fuel return line, preventing pressure spikes and ensuring proper pump lubrication.
- P7100 Injection Pump (HPFP – High Pressure Fuel Pump): The heart of the 12V Cummins fuel system. This mechanical, cam-driven pump is responsible for timing, metering, and generating the immense pressure (up to 20,000 PSI) required for fuel injection. While not a common rail HPFP, it is the high pressure fuel pump for this architecture. Its internal governor and AFC (Air-Fuel Control) regulate fuel delivery based on engine speed and boost pressure, acting as a mechanical injection pressure regulator. For in-depth information on its operation, refer to our article on P7100 Injection Pump Overhaul.
- High-Pressure Fuel Lines (Injector Lines): These are precisely bent, thick-walled steel tubes that connect the P7100 injection pump to each fuel injector. They must withstand extremely high pressures without expanding.
- Fuel Injectors: Mechanical, spring-loaded nozzles that spray atomized fuel directly into the combustion chambers. The P7100’s pressure opens them. Their precision ensures efficient combustion.
- Fuel Return Line: This line carries excess fuel (from the overflow valve) and any internal leakage from the injectors back to the fuel tank. It helps cool the injection pump and carries away any air bubbles that enter the system.
- Fuel Cooler: While not universally present on all 12-valve Cummins applications, some industrial or high-performance setups may incorporate a fuel cooler to dissipate heat from the returning fuel, especially in hot climates or under heavy load, ensuring optimal fuel density.
COMMON FAILURE POINTS & SYMPTOMS
Proactive diagnosis of fuel system issues on a 12-valve Cummins can prevent costly repairs. Here are common failure points, their symptoms, and initial diagnostic approaches:
- Mechanical Lift Pump:
- Symptoms: Low fuel pressure at the P7100, hard starting (especially when hot), lack of power under load, surging, stalling, or excessive smoke. A tell-tale sign can be fuel leaking from the weep hole or mounting gasket.
- Diagnosis: Install a fuel pressure gauge between the lift pump and the fuel filter. Expect 20-35 PSI at idle and above 15 PSI under load. A pressure drop below 10 PSI under load indicates a failing pump or restriction.
- Overflow Valve:
- Symptoms: Low fuel pressure at the P7100 (often 0-5 PSI even with a good lift pump), hard starting, prolonged cranking, poor idle quality, reduced power, or air entering the fuel return line.
- Diagnosis: Check fuel pressure at the banjo bolt on the P7100. If lift pump pressure is good but P7100 inlet pressure is low, the overflow valve is likely stuck open or has a broken spring. Replace with an OEM or high-quality aftermarket unit.
- Fuel Filter (Clogged/Dirty):
- Symptoms: Gradual loss of power, engine surging, black smoke under acceleration, difficulty starting, or engine stalling under load.
- Diagnosis: Change the fuel filter. If symptoms improve immediately, the old filter was restricted. Regular replacement is key.
- Air Intrusion into Fuel Lines:
- Symptoms: Hard starting, rough idle, engine stalling, inconsistent power, white smoke (especially at start-up). Air typically enters through loose fittings, cracked lines, or a leaking primer pump.
- Diagnosis: Inspect all fuel lines, banjo bolts, and the fuel bowl housing for leaks. Use a clear hose temporarily installed in the supply line to observe air bubbles. The fuel return line can also show signs of air if the overflow valve is not functioning correctly. For more on this, explore our guide on Diesel Fuel Air Elimination Strategies.
- Fuel Injectors:
- Symptoms: Excessive black or white smoke, rough idle, misfires, loss of power, increased fuel consumption, or unusual knocking sounds.
- Diagnosis: A cylinder contribution test or a professional injector pop test can identify faulty injectors. Visually inspect for fuel leaks around the injector hold-downs.
REPAIR & REPLACEMENT STEPS: MECHANICAL LIFT PUMP
The mechanical lift pump is a common failure item on 12-valve Cummins engines. Replacing it is a straightforward procedure that can restore proper fuel pressure and resolve many driveability issues. This procedure assumes you have access to the necessary tools and a basic understanding of automotive repair.
Always wear appropriate personal protective equipment (PPE), including safety glasses and gloves. Diesel fuel is flammable, and the fuel system operates under pressure. Ensure the engine is cool before starting work. Have a suitable drain pan ready to catch spilled fuel.
- Preparation & Safety:
- Park the vehicle on a level surface and engage the parking brake.
- Disconnect both negative battery cables to prevent accidental starting or electrical shorts.
- Locate the mechanical lift pump on the driver’s side of the engine block, below the injection pump.
- Relieve Fuel Pressure:
- While the 12-valve system is not as high-pressure as modern common rail, it’s good practice to depressurize. Loosen the fuel cap to release any tank pressure.
- Disconnect Fuel Lines:
- Place a drain pan beneath the lift pump.
- Using appropriate wrenches (typically 17mm and 19mm for banjo bolts), carefully loosen and remove the banjo bolts securing the fuel supply and return lines to the lift pump. Note their orientation.
- Remove the copper sealing washers. These must be replaced with new ones during reassembly.
- Remove Old Lift Pump:
- The lift pump is typically secured by two bolts (often 10mm or 12mm head). Remove these bolts.
- Gently pry the pump away from the engine block. Be mindful of the pushrod that actuates the pump; it may fall out. Retrieve it if it does. Inspect the pushrod for wear or damage.
- Remove the old gasket material from the engine block surface. Ensure the mating surface is clean and smooth for a proper seal.
- Install New Lift Pump:
- Apply a thin layer of clean engine oil to the new gasket (ensure it’s the correct type for your pump).
- Position the new gasket onto the pump or engine block.
- Insert the pushrod into the new pump, if it’s a separate component, ensuring it seats correctly. If the pushrod was retained in the block, ensure it’s properly seated.
- Carefully align the new lift pump with the mounting holes and the pushrod. The pushrod must correctly engage the pump’s lever. This may require rotating the engine slightly by hand (using the main crank bolt) to move the camshaft lobe.
- Install the two mounting bolts and hand-tighten them.
- Tighten Mounting Bolts & Reconnect Fuel Lines:
-
🔧 Specification
Torque the lift pump mounting bolts to 18 ft-lbs (24 Nm). For banjo bolts on fuel lines, torque to 18 ft-lbs (24 Nm) for 17mm head and 20 ft-lbs (27 Nm) for 19mm head. Always refer to your specific Cummins service manual for exact torque values.
- Reconnect the fuel lines using new copper sealing washers on both sides of each banjo fitting. Ensure the lines are correctly oriented and not cross-threaded.
-
- Prime the Fuel System:
- Open the bleed screw on the fuel bowl or fuel filter housing.
- Repeatedly actuate the primer pump handle (if equipped) until a steady stream of fuel (free of air bubbles) comes out of the bleed screw.
- Close the bleed screw. Continue priming a few more strokes.
- You may also need to slightly loosen the fuel lines at the injectors (one at a time) and crank the engine until fuel squirts out, then retighten. This is usually only necessary if the injection pump has been drained.
- Final Checks & Test Run:
- Reconnect the negative battery cables.
- Start the engine. It may crank longer than usual as the system pressurizes.
- Inspect all connections for leaks. Let the engine idle and then rev it slightly, checking for any drips or seepage.
- Monitor fuel pressure with a gauge if available, ensuring it’s within specifications (20-35 PSI idle, >15 PSI under load).
While a mechanical lift pump is standard, some owners opt for electric fuel pumps for improved reliability and consistent pressure, especially in performance applications. If considering an electric conversion, ensure you select a pump that delivers appropriate flow and pressure for the P7100 and integrates seamlessly with your existing fuel return line system. Our guide on Electric Fuel Pump Conversions for Diesel provides further detail.
FAQ
What is the proper fuel pressure for a 12V Cummins P7100 injection pump?
For a healthy 12-valve Cummins with a P7100, the ideal fuel pressure at the inlet of the injection pump should be between 20-35 PSI at idle. Under full load, it should not drop below 15 PSI. Pressures significantly outside this range (especially too low) can indicate a failing lift pump, a restricted fuel filter, or a faulty overflow valve.
How often should I replace the fuel filter on my 12V Cummins?
Manufacturer specifications typically recommend replacing the fuel filter every 15,000 miles or 12 months, whichever comes first. However, operating conditions, such as using questionable fuel quality or driving in dusty environments, may necessitate more frequent changes. Regular replacement is crucial to protect your P7100 and injectors. Consult our article on Diesel Fuel Filter Maintenance for best practices.
Can I run biodiesel in my 12V Cummins?
While 12-valve Cummins engines are generally more tolerant of biodiesel (up to B20) than newer common rail systems due to their mechanical injection pump and lack of sensitive electronics, caution is advised. Biodiesel can have a solvent effect, loosening deposits in older tanks and lines, potentially clogging filters. It also has different lubrication and cold-flow properties. Always monitor fuel filter life closely and be aware of potential issues in cold weather when using biodiesel blends.
What causes air in the fuel system of a 12V Cummins, and how do I remove it?
Air typically enters the 12V Cummins fuel system through loose or cracked fuel lines, faulty banjo bolt washers, a leaking primer pump, or a compromised fuel bowl seal. To remove air, first identify and fix the leak. Then, use the manual primer pump on the lift pump or filter housing until air-free fuel flows from the filter housing’s bleed screw. In severe cases, you may need to crack injector lines one at a time while cranking to purge air from the P7100 and injector lines.
How does the overflow valve affect 12V Cummins performance?
The overflow valve is critical for maintaining consistent fuel pressure within the P7100 injection pump. If it fails by sticking open or having a weak spring, it will result in low fuel pressure at the injection pump inlet. This can lead to hard starting (especially when hot), surging, poor throttle response, and overall reduced power. A properly functioning overflow valve ensures the P7100 receives adequate fuel pressure for optimal performance and longevity.
Step-by-Step Guide to Understanding the 12 Valve Cummins Fuel Line Diagram: Routing & Maintenance 2026
Identify – Locate the main fuel supply line originating from the fuel tank on the diagram and follow its path.
Locate – Pinpoint the lift pump, fuel filter/fuel bowl assembly, and the P7100 high pressure fuel pump (HPFP) on the diagram.
Reference – Trace the fuel flow from the HPFP through the high-pressure lines to each injector and identify the fuel return line back to the tank.
Connect/Route – Verify correct routing of all lines, paying attention to fuel return line pathways and the injection pressure regulator location and connections.
Verify – Check for proper component connection points, ensuring no cross-connections or missing seals, especially around the fuel bowl and filter housing.
Troubleshoot – Use the diagram to isolate potential leak points, restrictions, or component failures by following fuel flow during diagnosis of system issues.
Frequently Asked Questions
What are the main components of the 12 valve cummins fuel line diagram?
The 12 valve Cummins fuel system includes the fuel tank, lift pump, primary fuel filter/fuel bowl, P7100 injection pump (HPFP), high-pressure fuel lines to injectors, and a fuel return line. An injection pressure regulator, often called an overflow valve, controls pressure before the P7100.
What are symptoms of a failing 12 valve cummins fuel line diagram pump?
Symptoms of a failing lift pump (not the P7100 HPFP itself) include low fuel pressure (below 20 PSI), hard starting, loss of power, and stumbling under load. These issues starve the P7100, impacting overall engine performance. Air in the fuel system can also indicate a failing pump or compromised fuel lines.
How do I diagnose a fuel leak in 12 valve cummins fuel line diagram?
Diagnose a fuel leak by visually inspecting all fuel lines, fittings, and the fuel bowl for wet spots or drips, especially after running the engine. Pressurize the system with a hand primer (if equipped) and check connections. Pay close attention to the fuel return line connections and high-pressure line unions for seepage.
What is the fuel pressure spec for 12 valve cummins fuel line diagram?
For the 12 valve Cummins (P7100), the ideal fuel pressure delivered by the lift pump to the injection pump should be between 25-35 PSI at idle and maintain above 20 PSI under load. Pressures below 20 PSI indicate a weak lift pump, restriction, or faulty injection pressure regulator, potentially damaging the HPFP.
How long does 12 valve cummins fuel line diagram fuel pump last?
The 12 valve Cummins mechanical lift pump typically lasts 100,000 to 200,000 miles, but lifespan varies based on fuel quality and maintenance. The P7100 injection pump (HPFP) can last significantly longer, often over 500,000 miles, if consistently supplied with clean, adequate fuel pressure and without extended dry running.
Can I replace the 12 valve cummins fuel line diagram fuel filter myself?
Yes, replacing the 12 valve Cummins fuel filter (located in the fuel bowl) is a common DIY task. Ensure you have the correct filter, an oil filter wrench, and a drain pan. Always pre-fill the new filter with clean diesel fuel to aid priming and prevent air intrusion into the HPFP and P7100 system.
