Garage Door Opener Wiring Diagram: Easy Setup Guide
A garage door opener wiring diagram illustrates the connections between the motor head, wall console, and safety sensors. It details how the hot wire and neutral wire provide power, while low-voltage lines connect to the common terminal and traveler wire to trigger the opener and ensure safe, automated door movement.
📌 Key Takeaways
- Explains the electrical path from the power source to the motor and safety sensors.
- Identify the common terminal to ensure the wall button and sensors are correctly grounded.
- Always disconnect the power source before handling any hot wire or neutral wire connections.
- Use color-coded wires to distinguish between the traveler wire and the sensor lines.
- Use this diagram when installing a new opener or replacing a faulty wall station.
Understanding the specifics of a garage door opener wiring diagram is essential for any homeowner or DIY enthusiast looking to install, maintain, or troubleshoot their automated entry system. A garage door opener is a sophisticated piece of electromechanical equipment that relies on a precise sequence of electrical signals to operate safely and effectively. This guide provides a comprehensive breakdown of the typical wiring configuration, covering everything from high-voltage power inputs to low-voltage safety sensor loops. By following a detailed garage door opener wiring diagram, you can ensure that your system is grounded correctly, that the traveler wire connections are secure, and that the photo-eye sensors are aligned to prevent accidents. You will learn the specific color codes for wiring, how to identify terminal connections, and the best practices for managing wire gauge and voltage requirements.

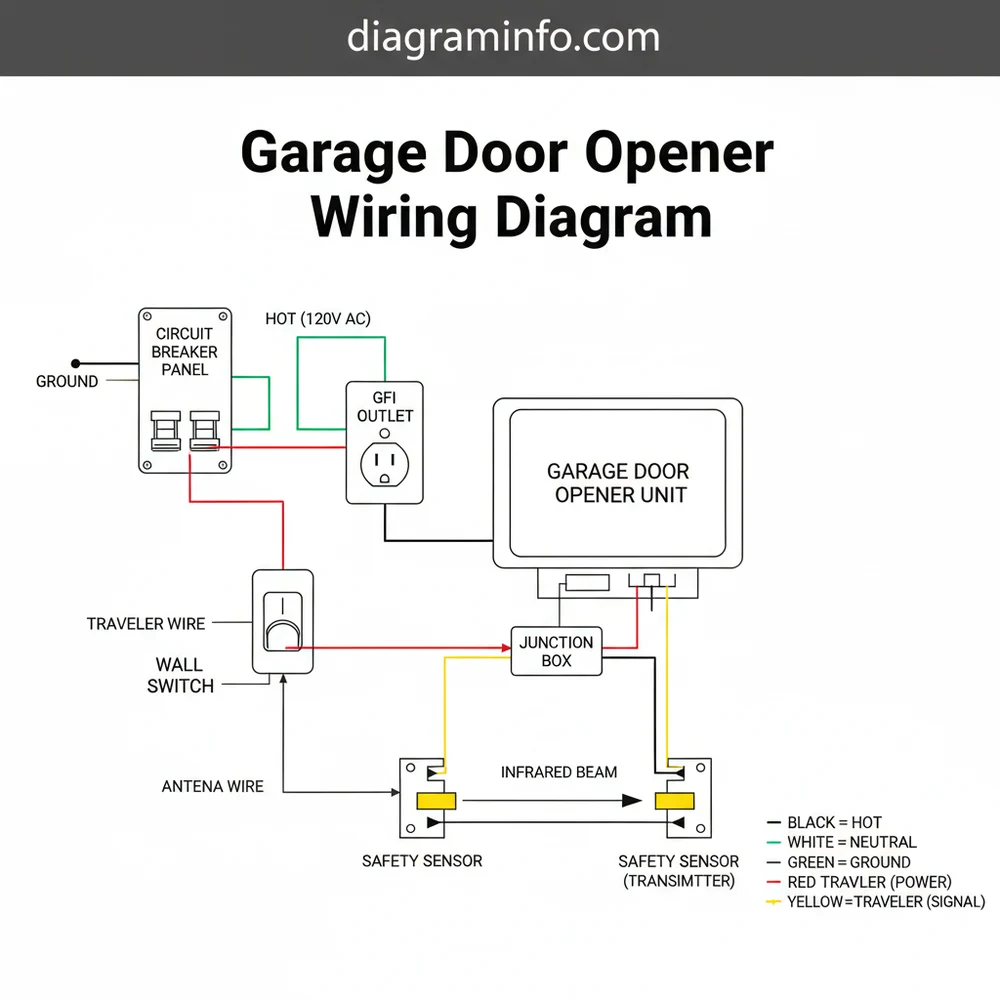

Detailed Breakdown of the Garage Door Opener Wiring Diagram
A comprehensive garage door opener wiring diagram serves as a logical map that connects the main motor unit to its various peripheral components. The diagram is generally divided into two distinct sections: the high-voltage AC power circuit and the low-voltage DC control circuit. The high-voltage side is responsible for powering the motor that lifts the heavy garage door, while the low-voltage side manages the user interface and safety mechanisms.
The primary component in the diagram is the motor head, which contains the logic board and the terminal strip. The terminal strip is where most of the user-serviceable wiring occurs. On a standard diagram, you will see connections for the wall-mounted control station and the safety reversing sensors (often called photo-eyes). Most modern systems use a two-wire configuration for these peripherals, but the specific terminal identification is crucial. The diagram will typically label these as “Common,” “Wall Control,” and “Sensors.”
Color coding is a vital aspect of the diagram. For the AC power supply, you will see a standard black hot wire, a white neutral wire, and a green or bare copper ground wire. For the control side, the wires are usually thinner gauge and color-coded white and red, or white and black. The diagram illustrates how these pairs must be connected to the corresponding terminals on the motor unit. In many systems, the common terminal acts as the return path for multiple low-voltage components, making it the most crowded point on the terminal strip.
Most garage door openers use “dry contact” or specific digital protocols over two wires. In a standard garage door opener wiring diagram, the ‘Common’ terminal is often shared between the wall button and the safety sensors to simplify the wiring harness.
To interpret a garage door opener wiring diagram correctly, one must understand the electrical specifications of the components involved. The power entering the motor unit is standard residential voltage, typically 120V AC. This power reaches the unit through a three-prong plug or a hardwired connection. Inside the unit, a transformer steps this voltage down to a safer 24V DC for the control circuit. This distinction is vital because mixing high-voltage and low-voltage wires can lead to catastrophic failure of the logic board.
The hot wire carries the current from the breaker panel to the unit, and it is traditionally connected to a brass screw or a black wire lead within the junction box. The neutral wire completes the circuit, returning the current to the source, and is connected to a silver screw or white lead. The ground wire is a safety feature designed to divert excess current in the event of a short circuit, preventing the metal chassis of the opener from becoming electrified.
For the control side, the gauge of the wire is usually 20 to 22 AWG (American Wire Gauge). Because the voltage is low, these wires do not require the heavy insulation found on AC power lines. However, the traveler wire—the wire that carries the signal from the wall button or sensors to the motor—must be handled with care to avoid interference. If the traveler wire is run too close to high-voltage lines, electromagnetic interference can cause the door to open or close unexpectedly.
- ✓ Hot Wire: Connects to the brass screw or black lead (120V AC).
- ✓ Neutral Wire: Connects to the silver screw or white lead (Return path).
- ✓ Ground Wire: Connects to the green screw or chassis (Safety).
- ✓ Common Terminal: The shared return point for all low-voltage peripheral devices.
- ✓ Traveler Wire: The signal carrier for the wall station and safety sensors.
Step-by-Step Guide to Wiring Your Garage Door Opener
Following a garage door opener wiring diagram requires a methodical approach to ensure every connection is tight and properly placed. Before beginning, ensure you have the necessary tools: wire strippers, a small flat-head screwdriver, a Phillips-head screwdriver, and insulated staples.
Always disconnect the power to the garage door opener before touching any internal wiring or terminal strips. Even low-voltage wires can cause a short that might damage the expensive logic board.
Step 1: Prepare the Motor Unit Terminals
Locate the terminal strip on the back or side of the motor unit. In your garage door opener wiring diagram, these terminals are usually numbered or color-coded. Use your wire strippers to remove about half an inch of insulation from the ends of your low-voltage wires. Twist the copper strands tightly to prevent fraying, which could cause a short circuit between adjacent terminals.
Step 2: Wire the Wall-Mounted Control Station
The wall station usually has two terminals. Connect one wire to each terminal. It generally does not matter which wire goes to which terminal on the button itself, as it is a simple switch. However, at the motor unit, you must follow the diagram. One wire will go to the designated “Wall Button” terminal, and the other will go to the “Common” terminal. If your wall station has a light or a digital display, polarity might matter; refer to the specific diagram for your model to identify the hot and common sides.
Step 3: Install and Wire the Safety Sensors
Safety sensors are located at the bottom of the door tracks, no more than six inches above the floor. Each sensor (the sender and the receiver) has a pair of wires. According to the standard wiring diagram, you should run these wires up the tracks and across the ceiling to the motor unit. Join the two white wires together and connect them to the common terminal. Join the two white/black striped wires together and connect them to the specific “Sensor” terminal.
Step 4: Secure the Wire Runs
Use insulated staples to secure the wires to the walls and ceiling. Avoid driving the staples too deep, as this can pinch the insulation and break the traveler wire inside, leading to intermittent operation. Ensure the wires are kept clear of all moving parts, including the door itself, the trolley, and the drive chain or belt.
Step 5: Connect the AC Power
If your unit is not a simple plug-in model, you will need to connect the house power to the opener’s internal junction box. Connect the black hot wire to the brass screw, the white neutral wire to the silver screw, and the green ground wire to the green grounding screw. Ensure all wire nuts are tight and wrapped with electrical tape for added security.
Step 6: Power Up and Test the System
Plug in the unit or turn on the circuit breaker. Check the safety sensors; the LEDs on both units should be glowing steadily. If they are blinking, the wiring is correct, but the sensors are misaligned. Test the wall button to ensure the door opens and closes. Finally, test the safety reversal system by placing an object in the path of the door to ensure the logic board correctly interprets the sensor signal.
Label your wires at the motor head using a piece of masking tape. Marking them as “Button,” “Sensor L,” and “Sensor R” will make troubleshooting significantly easier in the future if a wire ever comes loose.
Common Troubleshooting Issues and Wiring Solutions
Even with a perfect garage door opener wiring diagram, issues can arise during or after installation. One of the most common problems is the door refusing to close, which is often signaled by the opener lights flashing ten times. This usually indicates a problem in the safety sensor circuit. Check the traveler wire for each sensor; if there is a break or a loose connection at the common terminal, the system will assume there is an obstruction and fail to close.
Another frequent issue is the wall button failing to operate while the remote controls work perfectly. This points directly to a wiring fault between the motor and the wall station. Use a multimeter to check the voltage at the wall station terminals. If you aren’t seeing approximately 24V DC, there is likely a break in the hot wire or a loose connection at the motor head.
If the motor unit is completely unresponsive and shows no lights, the issue is likely on the high-voltage side. Check the connection to the brass screw and the neutral wire. Use a non-contact voltage tester to ensure power is reaching the unit. If the ground wire is not properly connected, some modern openers with sensitive electronics may refuse to boot up as a safety precaution.
Maintenance Tips and Best Practices
Maintaining the electrical integrity of your garage door opener is just as important as lubricating the tracks. Over time, the vibrations from the motor can loosen the screws on the terminal strip. It is a good practice to inspect these connections annually. Ensure the traveler wire for the sensors and wall button remains taut and that the insulation has not been compromised by pests or environmental wear.
When replacing components, always match the wire gauge recommended by the manufacturer. Using a wire that is too thin can result in a voltage drop, preventing the wall station from functioning correctly over long distances. Conversely, using a wire that is too thick may be difficult to secure under the small terminal screws.
In humid environments, copper wiring can oxidize, leading to increased resistance at the terminals. Applying a small amount of dielectric grease to the wire ends before inserting them into the common terminal can prevent corrosion and ensure a long-lasting connection.
Lastly, always keep a copy of your specific garage door opener wiring diagram tucked inside the motor head cover or taped to the wall nearby. Different brands use different terminal configurations—some might have the sensor terminal on the far left, while others put the common terminal in the center. Having the diagram readily available will save you immense frustration during future maintenance or when upgrading to a smart-home compatible wall station. By understanding the relationship between the hot wire, neutral wire, and the various control signals, you empower yourself to manage one of the most important mechanical systems in your home with confidence and safety.
