Navigating the intricacies of a residential solar panel wiring diagram for home is paramount for ensuring a safe, efficient, and compliant power generation system. This guide provides a detailed breakdown of the critical connections, wire specifications, and safety protocols essential for integrating photovoltaic (PV) modules into a domestic energy infrastructure. Understanding each component’s role and its precise wiring sequence, as depicted in the diagram, is fundamental for both system longevity and optimal performance. This technical overview is designed to furnish experienced technicians and advanced DIYers with the authoritative data required for meticulous installation and troubleshooting.

📤 Share

📌 Pinterest
📘 Facebook
🐦 Twitter
💬 WhatsApp
✉️ Email

💾 Download

WIRE COLOR REFERENCE TABLE

STEP-BY-STEP CONNECTION GUIDE

📤 Share

📌 Pinterest
📘 Facebook
🐦 Twitter
💬 WhatsApp
✉️ Email

💾 Download

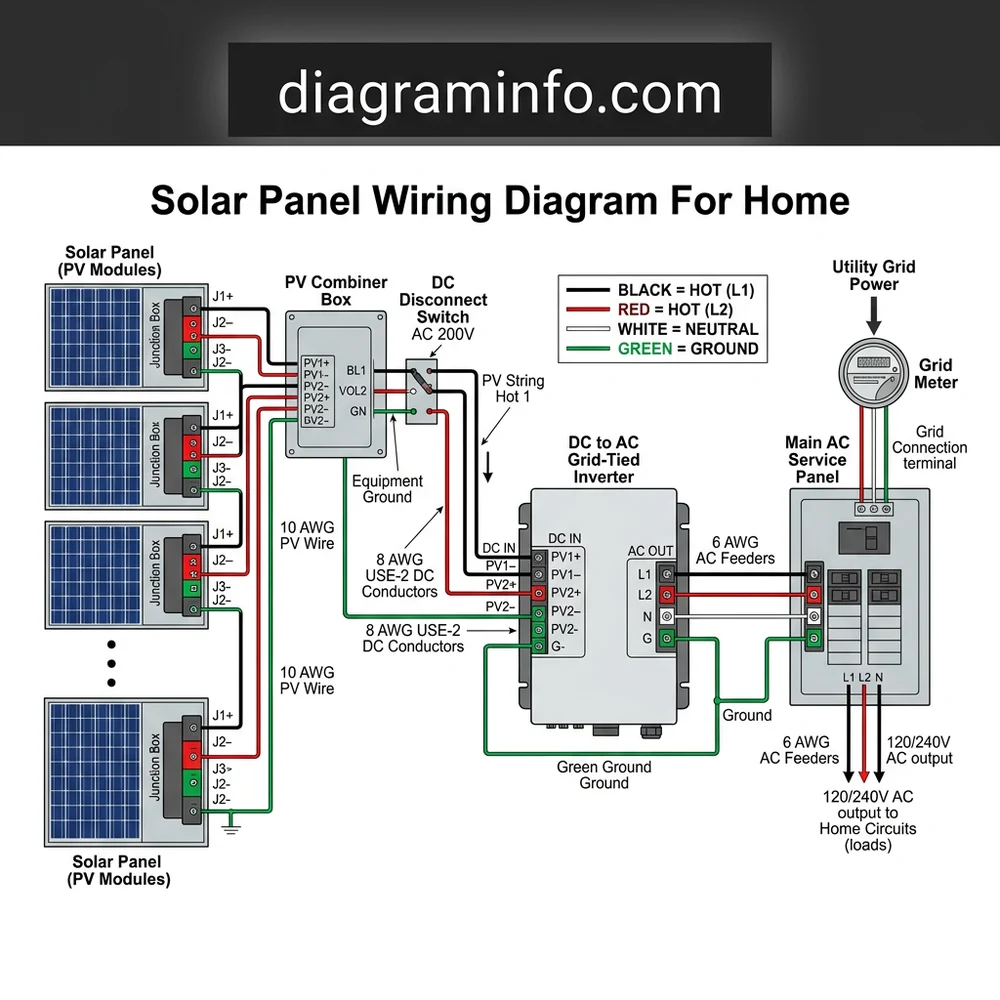

The proper installation of a solar panel system for your home necessitates strict adherence to a precise wiring sequence, ensuring both operational integrity and compliance with local electrical codes. Reference the provided solar panel wiring diagram for home throughout this process.

1. PV Module Series/Parallel Wiring (DC Side)

   Begin by connecting individual solar panels according to your system’s voltage and current requirements. For series connections, link the positive terminal of one module to the negative terminal of the next using MC4 connectors. For parallel connections, combine all positive terminals and all negative terminals. Ensure all connections are secure and weatherproof. According to UL 6703, MC4 connections must be properly crimped to prevent arc faults. The `wire color code` for positive is typically Red and negative is Black or Blue on PV cables. Confirm maximum system voltage does not exceed your inverter or charge controller limits.
2. PV Array to DC Disconnect

   Run the main PV array DC positive (Red) and negative (Black/Blue) cables from the combiner box or directly from the string(s) to the DC disconnect switch. This switch, typically rated for the system’s maximum DC `voltage` and current, provides a critical safety cutoff. Connect the appropriate `hot wire` (Red) to the designated positive input terminal and the `neutral wire` (Black/Blue, although technically negative for DC) to the negative input terminal of the DC disconnect. Ensure the `gauge` of these cables is adequate for the array’s maximum current output, as per NEC 690.8 calculations.

3. DC Disconnect to Charge Controller Input

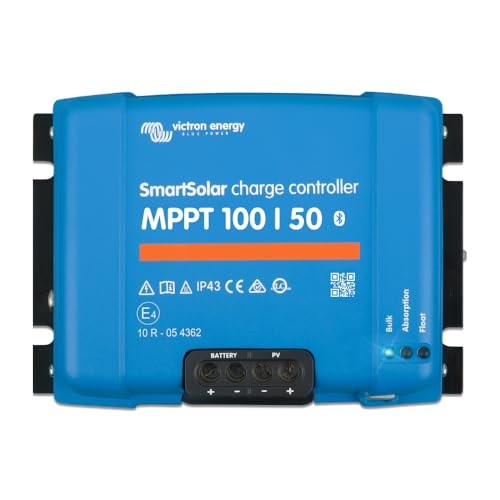

   From the output side of the DC disconnect, route the Red and Black/Blue DC cables to the `PV IN` `terminal block` on your charge controller. Most controllers clearly label these `pin assignment`s as PV+ and PV-. Confirm polarity rigorously. Manufacturer specifications, such as those from Outback Power or Victron Energy, typically require proper torque on these terminals to prevent resistance and overheating. A torque wrench set to the manufacturer’s specified ft-lbs or N-m is critical.
4. Charge Controller to Battery Bank

   Connect the charge controller’s `BATTERY` output terminals to your battery bank. Use appropriately sized battery cables (e.g., 2/0 AWG for higher current 48V systems, depending on battery bank amperage) to minimize voltage drop and safely carry charging/discharging currents. The Red cable connects to the battery bank’s positive terminal, and the Black cable connects to the negative. Ensure an inline DC-rated fuse or breaker is installed on the positive line, as close to the battery as possible, to protect against short circuits. Battery terminals are typically identified by embossed + and – symbols.

5. Battery Bank to Inverter DC Input

   Connect the battery bank to the inverter’s DC input terminals. Again, observe strict polarity: Red to inverter DC+, Black to inverter DC-. Install a main DC fuse or breaker (e.g., a Class T fuse or equivalent) on the positive cable, sized to protect the inverter and cables based on the inverter’s maximum DC input current. The `gauge` of these cables must meet the inverter’s input current requirements, often being the largest cables in the system. As an example, for a 4kW inverter operating at 48V DC, a common DC input current might be around 83A (4000W/48V), requiring cables like 2/0 AWG for short runs.

6. Inverter AC Output to AC Disconnect / Main Service Panel

   Connect the inverter’s AC output to an AC disconnect switch, and then to a dedicated breaker in your main service panel. Use appropriate AC wiring: Black for L1 `hot wire`, Red for L2 `hot wire` (for 240V split-phase systems), White/Grey for `neutral wire`, and Green/Green-Yellow for `ground wire`. Confirm `pin assignment`s on the inverter’s AC `terminal block`. The AC disconnect provides a safety isolation point for maintenance. Ensure the breaker in the main panel is correctly sized for the inverter’s AC output, typically 125% of the continuous output current, as per NEC 705.12(D)(2)(3).
7. System Grounding

   Establish a comprehensive grounding system. All metal frames of PV modules, mounting rails, combiner boxes, charge controller chassis, and inverter chassis must be bonded together and connected to a common `ground wire`. This `ground wire` (Green/Green-Yellow, typically 6 AWG or larger depending on array size) should then connect to the main service panel’s grounding busbar, ultimately tied to the home’s primary grounding electrode system. According to NEC 250, proper grounding is crucial for personal safety and equipment protection from surges and faults.

COMMON WIRING MISTAKES & TROUBLESHOOTING

Even experienced technicians can encounter subtle errors in a solar panel wiring diagram for home. Identifying and rectifying these common mistakes is crucial for system safety and optimal performance.

1. Reverse Polarity on DC Connections:

   Mistake: Connecting the positive (Red) DC output of PV modules or battery bank to a negative input (`pin assignment`) on the charge controller or inverter, or vice-versa. This is particularly prevalent during initial system setup.

   Consequence: Immediate damage to the charge controller or inverter, often resulting in component failure (e.g., blown fuses, smoked components) as sensitive electronics are exposed to incorrect voltage orientation. At best, the system will simply not operate.

   Fix: Always verify polarity with a multimeter before making final connections. Double-check the `wire color code` (Red for positive, Black/Blue for negative). If damage has occurred, the component likely needs replacement. Some modern charge controllers include reverse polarity protection, but relying on this is poor practice.

2. Incorrect Wire Gauge for Current Load:

   Mistake: Using undersized cabling (insufficient `gauge`) for the expected current, especially on the DC side from the PV array to the charge controller, or from the battery bank to the inverter.

   Consequence: Excessive voltage drop, leading to significant power loss and reduced system efficiency. More critically, undersized wires will overheat, posing a severe fire hazard. Manufacturer specifications, such as those detailed in UL 4703 for PV wire, strictly dictate minimum conductor sizes.

   Fix: Consult the National Electrical Code (NEC) tables (e.g., NEC Table 310.15(B)(16) for ampacity) and your equipment manufacturer’s specifications. Calculate wire `gauge` based on maximum current, circuit length, and acceptable voltage drop (typically <3%). Replace undersized wires with appropriate `gauge` cabling, ensuring proper termination at `terminal block`s.
3. Inadequate or Missing Grounding:

   Mistake: Failure to properly bond all metallic equipment frames, mounting structures, and enclosures to a comprehensive `ground wire` system, or an incorrectly sized `ground wire`.

   Consequence: This creates a dangerous condition where stray currents or fault conditions (e.g., lightning strikes, insulation breakdown) cannot safely dissipate. It significantly increases the risk of electric shock and can lead to equipment damage, and prevents overcurrent protection devices from tripping effectively.

   Fix: Ensure every metallic component and enclosure is bonded and connected to the main grounding busbar of the service panel using appropriately sized Green or Green-Yellow `ground wire`s. Inspect all grounding connections for tightness and continuity. Consult NEC Article 250 for detailed grounding requirements.

4. Loose Terminal Connections:

   Mistake: Wires not securely tightened into screw terminals on charge controllers, inverters, circuit breakers, or disconnects.

   Consequence: Loose connections create high resistance points. This leads to localized heating, which can melt insulation, damage components, cause intermittent operation, and potentially start fires. Over time, vibration and thermal expansion/contraction can exacerbate loose connections.

   Fix: Use a torque screwdriver or torque wrench to tighten all `terminal block` screws to the manufacturer’s specified values. Periodically re-check these connections, especially after the initial system commissioning and subsequent thermal cycling. Visually inspect for signs of discoloration or arcing.

FAQ

What is the typical lifespan for PV wiring in a home solar system?

According to industry standards and material specifications, PV wiring (e.g., UL 4703 rated PV wire) is designed for extreme outdoor conditions and typically has a lifespan exceeding 25 years. This longevity is dependent on proper installation, correct `gauge` selection, and protection from UV degradation and physical damage. Regular inspection for abrasion or cracking, particularly where wires are exposed or bend, is recommended to ensure system integrity.

How do I determine the correct wire gauge for my solar panels?

Determining the correct `gauge` for your solar panel wiring involves calculating the maximum current (I_max) for the circuit (typically 1.25 times the short-circuit current, Isc, per NEC 690.8) and considering the circuit length. You’ll then refer to ampacity tables (e.g., NEC Table 310.15(B)(16) or manufacturer data) and account for voltage drop to ensure it stays below 3%. For instance, a longer run at higher amperage will necessitate a thicker `gauge` to prevent energy loss and overheating. Specialized online calculators can aid in these complex calculations, often factoring in ambient temperature derating.

What are the differences between DC and AC ground wires in a solar system?

While both DC and AC systems utilize `ground wire`s (typically green or green/yellow) for safety, their immediate circuit functions differ. A DC `ground wire` connects exposed metal parts of DC components (panels, racks, controllers) to the earth, protecting against shock from insulation failures or lightning. An AC `ground wire` serves a similar protective role for AC equipment (inverter, wiring, outlets) and provides a safe path for fault current back to the main service panel, allowing circuit breakers to trip. Both ultimately tie into the same primary grounding electrode system of the home to establish an equipotential bond.

Why are fuses and circuit breakers essential in a solar panel wiring diagram for home?

Fuses and circuit breakers are critical overcurrent protection devices (OCPDs) that safeguard wiring and components from excessive current, preventing overheating and potential fires. On the DC side, they protect against short circuits from the PV array and battery bank. On the AC side, they protect the inverter and home’s electrical system from faults or overloads. Proper sizing and placement, as detailed in the diagram and according to NEC Articles 240 and 690, ensure that current is interrupted before damage occurs to wires, `terminal block`s, or appliances. This is especially vital given the high `voltage` and current capacities inherent in solar installations.
