Garage Door Sensor Wiring Diagram: Easy Setup Guide
A garage door sensor wiring diagram illustrates the low-voltage connection between photo-eye sensors and the motor unit. You typically connect the white wires to the common terminal and the striped wires to the sensor input. This completes the circuit, allowing the infrared beam to communicate with the opener logic board.
📌 Key Takeaways
- The diagram ensures the safety reversal system is correctly synchronized with the motor.
- The photo-eye sensors are the most critical components to identify and align.
- Always disconnect the opener from power before handling any internal wiring.
- Use insulated staples to secure the wire run without pinching the insulation.
- Use this diagram when installing a new opener or replacing faulty safety sensors.
If you have ever found yourself staring at a non-responsive garage door while the lights flash in a rhythmic warning, you understand the importance of a properly functioning safety system. The safety sensors, often referred to as photo-eye sensors, are the primary line of defense against property damage and personal injury. Understanding a garage door sensor wiring diagram is essential for any homeowner or DIY enthusiast looking to install, repair, or maintain their system. This guide provides a deep dive into the electrical architecture of these safety devices, detailing how low-voltage signals travel from the motor head to the infrared eyes at the base of your door tracks. By mastering these connections, you ensure that your door operates reliably and safely every time you press the remote.
Understanding the Garage Door Sensor Wiring Diagram

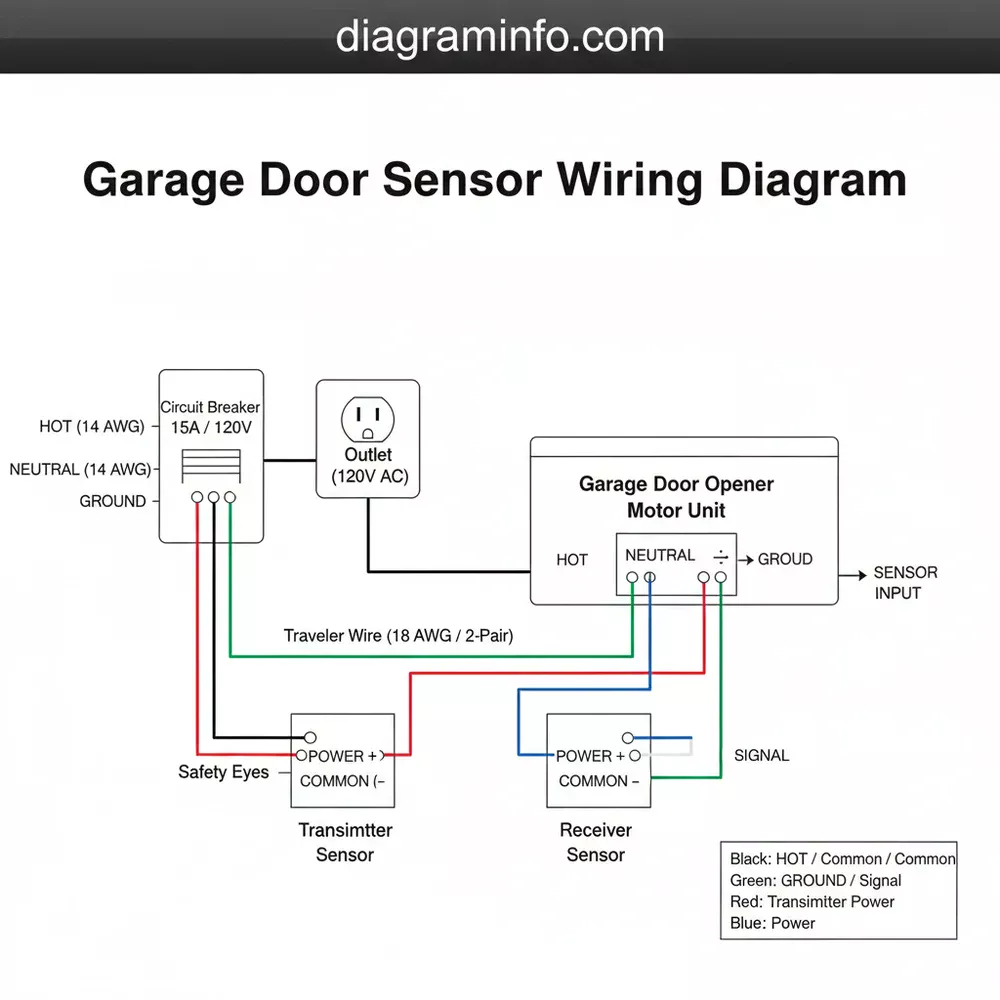

The electrical layout of a garage door safety system is designed around a low-voltage circuit that connects the main motor unit to two specific sensors: the sending eye and the receiving eye. The garage door sensor wiring diagram illustrates how these two components are wired in parallel or series, depending on the manufacturer, to create a continuous “safety loop.” Most modern systems utilize a two-wire configuration for each sensor, typically involving a solid white wire and a white wire with a black or red stripe.
The diagram focuses on three primary areas: the sensor head terminals, the traveler wire path along the garage walls, and the terminal block located on the back or side of the garage door opener motor. In a standard setup, you will see the white wires from both sensors bundled together and the striped wires bundled together before they enter the motor head. This is known as a parallel connection. The diagram also identifies the polarity of the connections, which is crucial for the infrared beam to align and communicate correctly with the logic board of the opener.
In more complex diagrams, you might encounter variations based on the year of the model. Older units might use a three-wire system, but the vast majority of systems manufactured in the last few decades rely on the two-wire digital signal. The wiring diagram also highlights the internal components of the sensors, such as the LED indicators that signal power and alignment status. The sending eye (usually possessing an amber or orange LED) transmits the infrared beam, while the receiving eye (usually possessing a green LED) catches that beam. If the wiring is crossed or the signal is interrupted, the diagram shows how the circuit breaks, preventing the door from closing.
Most modern garage door openers operate on a logic board that expects a specific resistance from the sensors. Using the wrong gauge of wire or improper terminal connections can alter this resistance, leading to phantom “obstruction” errors even when the path is clear.
Technical Specifications and Wire Properties
Before diving into the physical installation, it is critical to understand the specifications listed in the garage door sensor wiring diagram. The system operates on low voltage, typically ranging from 5V to 24V DC. Because the current is low, the wire gauge used is significantly thinner than standard household wiring. Most manufacturers recommend 20-gauge or 22-gauge bell wire. Using a wire that is too thick can make it difficult to fit into the quick-connect terminals, while a wire that is too thin may suffer from voltage drop over long distances.
The traveler wire is the term used for the length of wire that runs from the motor head down the ceiling and walls to the sensors. This wire must be handled carefully to avoid nicks in the insulation. In the context of the motor head, you will often find a common terminal where multiple wires are joined. Identifying the common terminal is vital because it serves as the return path for the electrical signal. While the sensors themselves utilize low voltage, they are powered by the main motor unit which is connected to a 120V household outlet. Therefore, you must be aware of the hot wire and neutral wire feeding the main unit, even though you are only working on the secondary low-voltage side.
Always unplug the garage door opener from the power outlet before handling any wiring. Although the sensor wires are low voltage, a short circuit could damage the expensive logic board or result in a mild shock if the main power is still active.
Step-by-Step Guide to Wiring Your Sensors
Following a garage door sensor wiring diagram requires a methodical approach to ensure every connection is secure and logically placed. Follow these steps to complete a professional-grade installation.
- ✓ Step 1: Mount the Sensor Brackets – Install the brackets on the left and right tracks of the garage door, no higher than six inches above the floor. This height is standardized to ensure the beam can detect small children or pets.
- ✓ Step 2: Prepare the Traveler Wire – Measure the distance from each sensor to the motor head. Cut two lengths of 22-gauge wire. Strip approximately 7/16 of an inch of insulation from the ends of each wire, taking care not to cut the copper strands inside.
- ✓ Step 3: Connect to the Sensors – If your sensors have pre-attached wires, use wire nuts to connect them to your traveler wires. Match colors: solid white to solid white, and striped to striped. If your sensors have a brass screw terminal, wrap the wire clockwise around the screw before tightening to ensure a firm mechanical bond.
- ✓ Step 4: Route the Wires to the Opener – Use insulated staples to secure the wire along the wall and ceiling. Avoid over-tightening the staples, as this can pinch the wire and cause a short circuit. Keep the wire away from moving parts like the door tracks or the chain/belt drive.
- ✓ Step 5: Identify Terminals on the Motor – Locate the wiring panel on the back of the motor. You will usually see three or four terminals. Refer to your garage door sensor wiring diagram to find the sensor inputs. Typically, terminal 2 is the common terminal, and terminal 3 is the signal input for the sensors.
- ✓ Step 6: Finalize Connections – Twist the two solid white wires together and insert them into the white/common terminal. Twist the two striped wires together and insert them into the red or grey terminal designated for sensors. Use a small screwdriver if the terminals are screw-down style, or simply push them in if they are quick-release.
- ✓ Step 7: Power On and Test – Plug the motor back into the wall outlet. Check the LEDs on the sensors. If the wiring is correct and the sensors are aligned, both lights should be solid. If the receiving eye is flickering, adjust the physical position of the brackets.
Common Issues and Troubleshooting the Diagram
Even with a perfect garage door sensor wiring diagram, issues can arise during or after installation. The most frequent problem is a failure in the “handshake” between the sender and receiver. If the main unit’s lights flash ten times when you try to close the door, the logic board is telling you that the safety circuit is open.
A common culprit is a loose connection at the common terminal. Because two wires are often shoved into one small slot, one wire can easily slip out, breaking the loop. Another issue is the “staple short.” If an insulated staple is driven too deep into the wood, it can pierce the insulation and connect the striped wire to the solid white wire, bypassing the sensor entirely. The logic board will detect this improper voltage and prevent the door from moving.
You should also inspect the sensors for environmental damage. Since they are located near the floor, they are susceptible to moisture, cobwebs, and physical bumps from garbage cans or car bumpers. Use a multimeter to check the voltage at the sensor ends. If you have 12V-24V at the motor but 0V at the sensor, your traveler wire has a break somewhere along the path.
If you suspect a wire break but cannot find it, perform a “bench test.” Take the sensors off the tracks, bring them up to the motor head, and wire them with short 2-foot “jumper” wires directly to the terminals. If the sensors work there, you know the issue is with the long traveler wires in your walls.
Advanced Considerations: Polarity and Voltage
In the world of garage door electronics, polarity matters more than you might think. While some older AC-based systems were more forgiving, modern DC systems require strict adherence to the wiring diagram. The “striped” wire is usually the signal carrier, while the “solid white” wire acts as the neutral or ground-return for the low-voltage side. If you reverse these at one sensor but not the other, the sensors will likely fail to power up entirely.
Furthermore, consider the role of the ground wire in the overall system. While the sensors themselves do not typically have a dedicated ground wire (they use the common terminal for the return), the main motor unit must be properly grounded via its three-prong plug. Improper grounding of the main unit can lead to “noisy” electrical signals that interfere with the sensitive logic board, causing the sensors to trigger falsely during thunderstorms or when other heavy appliances in the garage turn on.
If your opener uses a brass screw for terminal connections, ensure the wire is wrapped tightly. Oxidation can build up on brass over time, especially in humid garages. A light sanding of the wire ends or the screw surface can restore a failing connection. Always ensure the gauge of your replacement wire matches the original factory wire to maintain the correct electrical resistance across the circuit.
Best Practices for a Long-Lasting Installation
To ensure your garage door sensor wiring remains functional for years to come, follow these maintenance and installation best practices:
1. Wire Management: Never leave loops of extra wire hanging near the sensors. Excess wire can be caught by the door’s bottom seal or by pets. Trim the wire to length, leaving only a small amount of “service loop” (about 2 inches) near the sensor.
2. Quality Components: If you must replace a sensor, always buy the brand-specific model recommended by your opener’s manufacturer. While universal sensors exist, they often have different voltage requirements that may not perfectly align with your specific garage door sensor wiring diagram.
3. Environmental Protection: In areas prone to flooding or heavy snow, consider mounting the wires slightly higher and bringing them down to the sensor inside a small piece of plastic conduit to prevent moisture from wicking into the wire insulation.
4. Regular Testing: Once a month, place an object (like a cardboard box) in the path of the sensors while the door is closing. The door should immediately reverse. This confirms that the wiring, the logic board, and the sensors are all communicating correctly.
Final Thoughts on Sensor Wiring
Navigating a garage door sensor wiring diagram might seem daunting at first, but it is a logical and straightforward process once you understand the components. By identifying the traveler wire, ensuring correct connections at the common terminal, and respecting the low-voltage requirements of the system, you can save yourself the cost of a professional service call. Proper wiring is not just about convenience; it is the fundamental mechanism that keeps your garage a safe environment for your family. Whether you are dealing with a brass screw terminal or a modern push-button connector, the principles of continuity and polarity remain the same. Keep your wires tidy, your sensors aligned, and your connections tight to enjoy the seamless operation of your automated garage door system.
Frequently Asked Questions
Where is the garage door sensor located?
Safety sensors are located at the bottom of the left and right garage door tracks. They should be mounted no higher than six inches above the floor. This specific height ensures that any person, pet, or object blocking the path is detected by the infrared light beam before the door closes.
What does a garage door sensor wiring diagram show?
This diagram displays the low-voltage path from the sending and receiving sensors to the motor head. It highlights where the traveler wire connects to the terminal strip. It also indicates how the sensors integrate with the opener’s internal logic board to provide a safety signal during the closing cycle.
How many wires does a garage door sensor have?
Each sensor typically has a two-strand wire. In most systems, the solid white wire acts as the common terminal connection, while the white-with-black-stripe wire serves as the signal lead. When wiring to the motor, you often combine the two white wires and the two striped wires into separate terminals.
What are the symptoms of a bad garage door sensor?
Common symptoms include the door refusing to close, the main opener light flashing ten times, or the sensor LEDs being completely unlit. If the green or amber lights are flickering, it often indicates a misalignment or a loose connection at the terminal block rather than a completely failed sensor unit.
Can I install garage door sensors myself?
Yes, installing or replacing sensors is a straightforward DIY task. Because these components use low-voltage electricity, there is no risk of high-voltage shock. Most homeowners can complete the task in under 30 minutes using basic hand tools by following a standard garage door sensor wiring diagram and alignment guide.
What tools do I need for sensor wiring?
You will need a sturdy ladder to reach the motor unit, wire strippers to prepare the ends of the traveler wire, and a small flat-head screwdriver for the terminal screws. A staple gun with insulated staples is also recommended to neatly route the wire along the walls and ceiling.
