Travel Trailer 30 Amp RV Wiring Diagram: Easy Setup Guide

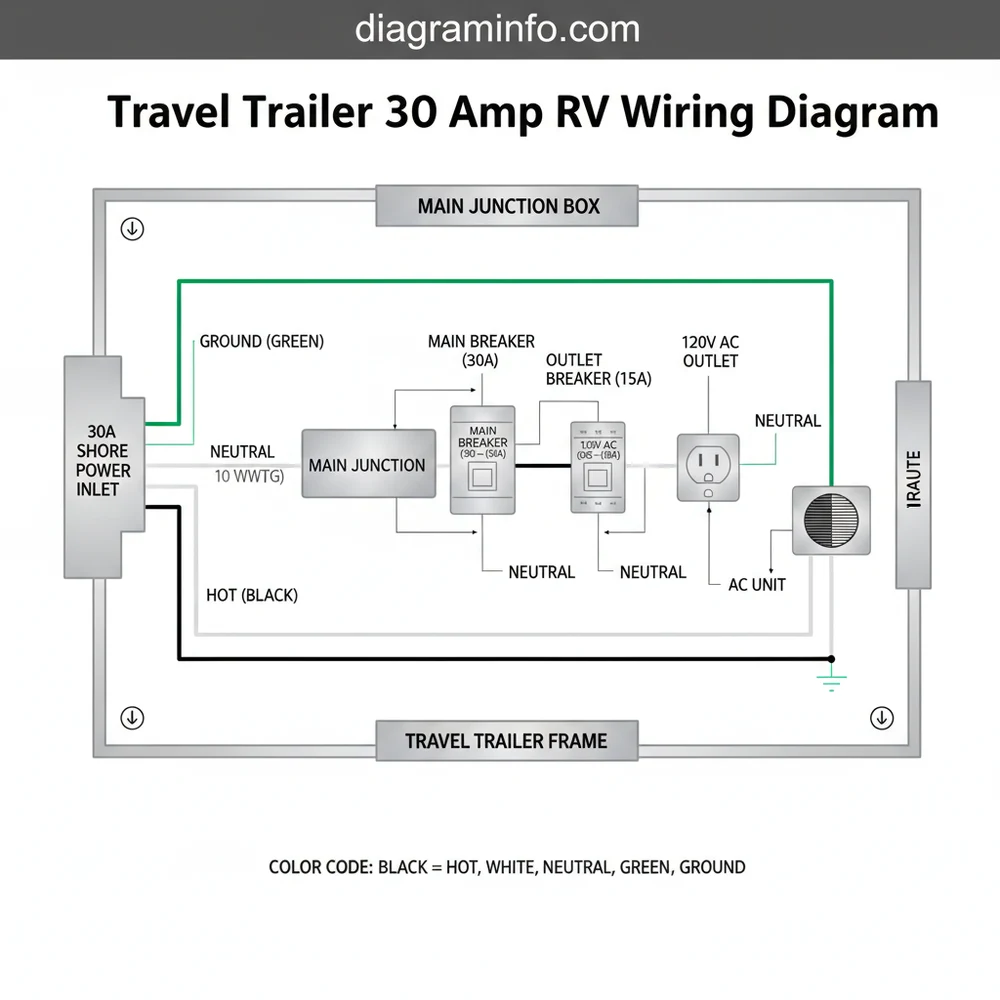

A travel trailer 30 amp RV wiring diagram illustrates the connection between the 120V shore power inlet and the distribution panel. It consists of three main lines: a black hot wire for power, a white neutral wire for the return circuit, and a green ground wire for safety and circuit protection.
📌 Key Takeaways
- Visualizes the 120-volt AC power flow through the RV.
- Distinguishes between hot, neutral, and ground connections.
- Essential for preventing electrical fires and equipment damage.
- Helps in sizing the correct 10-gauge wire for 30 amp service.
- Used when upgrading shore power or troubleshooting dead outlets.
Understanding the intricacies of a travel trailer 30 amp rv wiring diagram is a fundamental skill for any RV owner looking to maintain, repair, or upgrade their vehicle’s electrical system. Whether you are replacing a damaged power cord, installing a new inlet, or troubleshooting a loss of power, having a clear visual and conceptual map of how electricity flows from the shore power pedestal to your distribution panel is vital. This guide provides a comprehensive breakdown of the standard 30-amp 120-volt AC system used in the majority of travel trailers, ensuring you have the technical knowledge to handle connections safely and effectively. By mastering the color codes, terminal assignments, and wire gauges, you can prevent common electrical failures and ensure your mobile home remains a safe environment for your family.
A standard 30-amp RV circuit provides 120-volt power through a three-prong configuration. Unlike 50-amp systems which provide two hot legs of 120V (240V total), the 30-amp system relies on a single hot leg. This distinction is critical when selecting components or reading a wiring diagram.
Decoding the 30 Amp RV Wiring Diagram
The primary travel trailer 30 amp rv wiring diagram centers around the NEMA TT-30 connection standard. This system consists of three primary conductors, each with a specific role and a standardized color code to prevent dangerous cross-wiring. When you look at a diagram of a 30-amp plug or receptacle, the most prominent features are the three distinct blades or slots arranged in a triangular pattern.
The three core components you will encounter are the hot wire, the neutral wire, and the ground wire. In North American RV standards, the hot wire is almost always color-coded black. This wire carries the 120-volt current from the source to the trailer. The neutral wire is color-coded white and serves as the return path for the current, completing the electrical circuit. Finally, the ground wire is either bare copper or covered in green insulation, acting as a safety path to divert electricity in the event of a short circuit or fault.
When examining the back of a 30-amp plug or a power inlet, the terminals are often color-coded to match the wires. The hot wire (black) connects to the brass screw or gold-colored terminal. The neutral wire (white) must be attached to the silver-colored terminal, which is often referred to as the common terminal in AC circuits. The ground wire (green/bare) connects to the green hexagonal screw. Maintaining this specific orientation is non-negotiable; reversing the hot and neutral wires creates a “hot skin” condition, where the entire metal frame of your travel trailer becomes electrified, posing a lethal shock hazard.
While the main power cord handles the 120V input, some advanced travel trailer systems utilize a traveler wire in multi-way switching configurations for interior lighting. Although less common in basic 30-amp entry-level trailers, these traveler wires allow you to control a single light fixture from two different locations, such as the entry door and the bedside. Understanding how these smaller-scale circuits interact with the primary distribution panel is essential for a complete electrical overview.
Step-by-Step Guide to Wiring a 30-Amp RV Connection
Performing electrical work on your travel trailer requires precision and a strict adherence to the travel trailer 30 amp rv wiring diagram. Before starting any work, ensure all power sources are disconnected, including the shore power cord, the onboard battery, and any solar arrays or generators.
Electricity can be fatal. Always use a digital multimeter to verify that a circuit is “dead” before touching any exposed wires. If you are uncomfortable with high-voltage AC systems, consult a certified RV technician.
To implement the wiring diagram correctly, follow these structured steps:
-
✓ Step 1: Select the Correct Wire Gauge
For a 30-amp circuit, you must use 10-gauge (10 AWG) wire. Using a thinner wire, such as 12 or 14 gauge, will lead to excessive heat buildup, voltage drop, and potential fire hazards. Verify that your cable is rated for “Outdoor” or “RV” use if it will be exposed to the elements. -
✓ Step 2: Prepare the Cable
Strip approximately 1.5 to 2 inches of the outer jacket from the 10/3 cable. Be careful not to nick the insulation of the individual conductors inside. Once the three wires are exposed, strip about 3/4 of an inch of insulation from the ends of the black, white, and green wires. -
✓ Step 3: Connect the Ground Wire
Identify the green or U-shaped terminal on your plug or inlet. Insert the bare or green ground wire into the terminal and tighten the screw firmly. Connecting the ground first is a safety best practice in electrical assembly. -
✓ Step 4: Connect the Neutral Wire to the Common Terminal
Locate the silver-colored screw. This is your common terminal. Insert the white neutral wire and tighten the connection. Ensure that no stray strands of copper are sticking out, which could cause a short. -
✓ Step 5: Connect the Hot Wire
Locate the brass screw. Insert the black hot wire into this terminal. This wire is the one that will carry the 120V voltage into the trailer. Secure the screw tightly. -
✓ Step 6: Secure the Strain Relief
Most RV plugs and inlets have a clamp or housing designed to grip the outer jacket of the cable. Tighten this strain relief so that any tension on the cord is absorbed by the housing rather than the electrical terminals themselves. -
✓ Step 7: Final Inspection and Testing
Before plugging into shore power, use a multimeter to check for continuity between the pins. There should be no continuity between the hot and neutral or hot and ground pins. Once confirmed, plug into a known good power source and verify the voltage inside the RV.
Common Issues and Troubleshooting
Even with a perfect travel trailer 30 amp rv wiring diagram, real-world conditions can lead to electrical failures. One of the most common issues is “Reverse Polarity.” This happens when the hot and neutral wires are swapped, either at the trailer inlet or at the campground pedestal. A simple plug-in circuit tester can identify this immediately, and the diagram will show you exactly which two wires need to be swapped to fix it.
Another frequent problem is a “Dropped Neutral.” If the white neutral wire becomes loose at the common terminal, the electrical current cannot return to the source. This often manifests as flickering lights or appliances that refuse to turn on, even though your voltmeter shows power at the breaker. Continuous vibration from travel can loosen even the tightest screws, so periodic inspections are necessary.
Watch for signs of “pitting” or discoloration on the plug blades. If the brass or silver surfaces look burnt, it indicates high resistance, usually caused by a loose connection or a worn-out receptacle at a campsite. This resistance generates heat, which can eventually melt the plug housing. If you notice a burnt smell near your power cord, stop using it immediately and refer to your wiring diagram to replace the affected components.
Tips and Best Practices for RV Electrical Maintenance
To ensure the longevity of your 30-amp system, high-quality components are your best investment. When replacing a plug, look for “heavy-duty” or “marine-grade” versions that offer better weather sealing and more robust terminal clamps.
Apply a small amount of dielectric grease to the terminals of your 30-amp plug. This prevents moisture from causing corrosion on the brass screw and silver common terminal, ensuring a steady voltage flow for years to come.
Always use a surge protector or an Electrical Management System (EMS). While a wiring diagram helps you fix internal issues, an EMS protects you from external issues like low voltage or power surges from the campground pedestal. If the pedestal voltage drops below 104V, your appliances (especially the air conditioner) can be permanently damaged.
When it comes to wire management, never use a standard household extension cord to power your RV. Household cords are typically 14 or 16 gauge, which cannot handle the 30-amp load required by an RV. Always use a dedicated 10-gauge RV extension cord if the shore power pedestal is out of reach.
Lastly, make it a habit to “tug test” your wires during installation. After tightening the brass or silver screws, give each wire a firm pull. If it moves at all, it is not secure. A loose wire is a fire waiting to happen. By following your travel trailer 30 amp rv wiring diagram meticulously and performing regular maintenance, you can enjoy your travels with the peace of mind that your electrical system is safe, efficient, and reliable.
Frequently Asked Questions
Where is the main electrical panel located?
In most travel trailers, the main electrical panel is located near the floor, often under a cabinet or bed, close to where the shore power cord enters. It houses the circuit breakers and the 12V converter, serving as the hub for all internal electrical distribution and wiring connections.
What does a 30 amp RV wiring diagram show?
The diagram shows the path of electricity from the shore power cord to the breaker box and outlets. It details how the hot wire carries current to the common terminal, while the neutral and ground wires ensure a safe return path and protection against electrical faults throughout the trailer.
How many wires does a 30 amp RV plug have?
A standard 30 amp RV plug has three wires: one black hot wire (120V), one white neutral wire, and one green or bare copper ground wire. Unlike 50 amp systems which use four wires, the 30 amp setup utilizes a single 120-volt leg to power the entire vehicle.
What are the symptoms of a bad RV electrical connection?
Symptoms of a faulty connection include flickering lights, tripped breakers, or outlets that provide no power. If a traveler wire in a light circuit or a connection at the common terminal is loose, you might experience intermittent power or visible heat damage, which poses a significant fire risk.
Can I wire a 30 amp RV outlet myself?
You can wire a 30 amp RV outlet if you have basic electrical knowledge and follow local codes. However, precision is key; ensuring the hot wire and neutral wire are not reversed is critical for safety. If you are uncomfortable with high-voltage AC systems, always consult a professional electrician.
What tools do I need for RV electrical wiring?
To wire a 30 amp system, you will need a wire stripper, a screwdriver set for terminal screws, a voltmeter to test for power, and electrical tape. Using a torque screwdriver ensures that connections at the common terminal are tightened to the manufacturer’s specific safety standards for mobile use.
