HUD Single Wide Mobile Home Construction Diagram: 2026 Guide
A single wide mobile home construction diagram outlines the structural layout built on a heavy-duty steel I-beam chassis. It details 2×6 floor joists spaced 16 inches on-center, 2×4 exterior wall studs, roof trusses, belly pan insulation, and the protective bottom board membrane adhering to HUD code manufacturing standards.
📌 Key Takeaways
- Steel I-beam main chassis frames typically use 10-inch or 12-inch steel beams spaced 99.5 inches apart.
- Floor joists are standard 2×6 lumber spaced 16 inches on-center with 23/32-inch OSB subfloor tongue-and-groove decking.
- HUD Federal Manufactured Home Construction Safety Standards mandate wind zone structural ties and specific thermal envelope ratings.
- Common structural failure points include sagging belly pan membranes, floor joist rot around plumbing penetrations, and out-of-level frame piers.
- Minor wall framing and belly pan patching are DIY-friendly, but chassis releveling and structural load-bearing truss modifications require certified professionals.
Engineering modern manufactured housing requires a rigorous understanding of structural load transfers, integrated utility systems, and regulatory standards defined under 24 CFR Part 3280 (HUD Code). A single wide mobile home construction diagram provides the ultimate technical schematic for analyzing how structural components—ranging from heavy-gauge steel I-beam chassis assemblies to engineered roof truss layouts—function as an interdependent system. This comprehensive technical guide decodes blueprint configurations, structural framing schedules, mechanical chases, and anchoring configurations, giving structural contractors, inspectors, and experienced technicians the precise engineering specifications needed for modification, repair, and HUD compliance verification.
Structural Component Breakdown in a Single Wide Mobile Home Construction Diagram
Analyzing a single wide mobile home construction diagram reveals an integrated structural assembly engineered to withstand highway transport forces as well as long-term environmental shear, wind uplift, and dead loads. Unlike traditional site-built structures relying on continuous concrete footings, a manufactured home uses its steel chassis as the primary foundational datum. Every sub-assembly—from the floor deck to the ridge line—keys directly into this structural core.
Recommended Best Deal Products
According to HUD Code 24 CFR 3280.305, frame structural members must be designed to handle total live and dead loads without exceeding allowable stress limits of ASTM A36 structural steel. Floor systems must support a minimum 40 PSF live load, while roof truss live loads range from 20 PSF (Middle Zone) to 40 PSF (Alaska/High-Snow Zone).

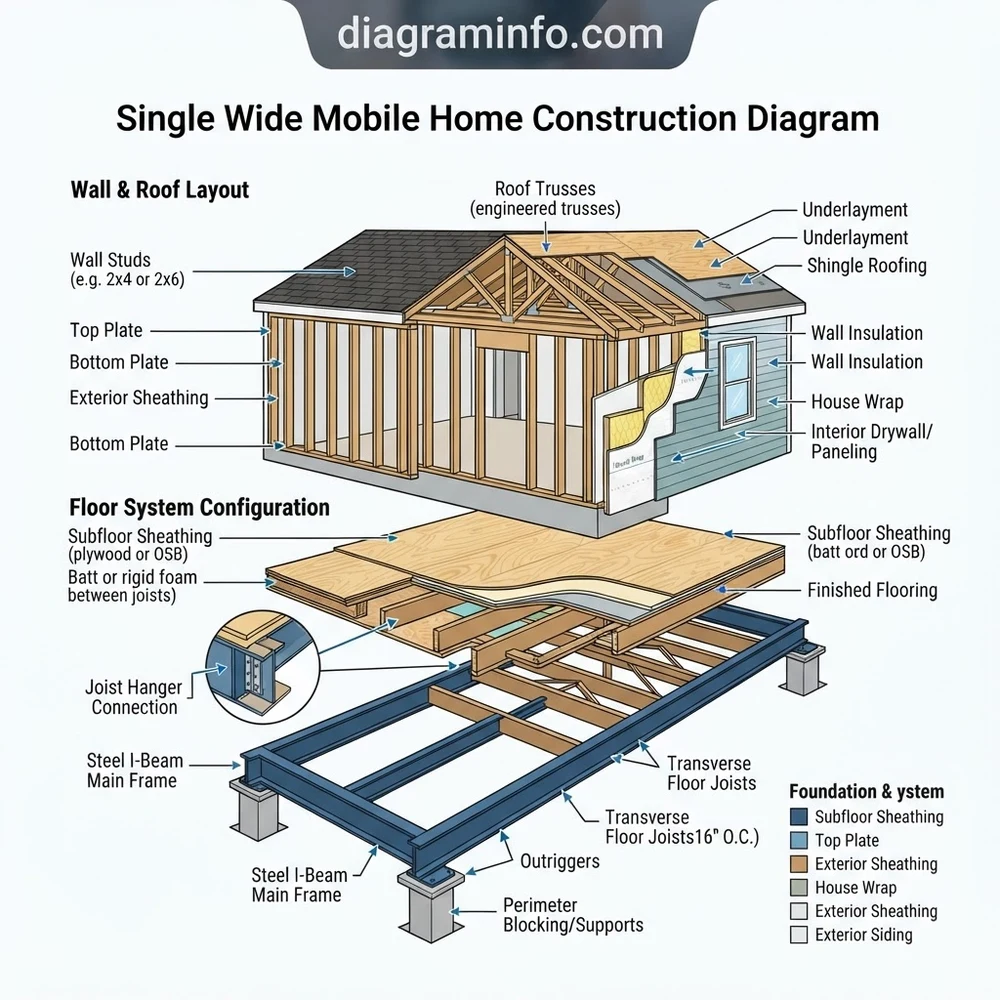

The system comprises five core structural sub-assemblies illustrated across comprehensive overview schematics:
- Main I-Beam Chassis & Outrigger Assembly: Formed from twin longitudinal 10-inch or 12-inch hot-rolled ASTM A36 steel I-beams. Stamped steel outriggers (transverse cantilever arms) extend outward at 48-inch intervals on center (O.C.) to transfer load from the exterior rim joists back to the main frame.
- Bottom Board & Subfloor Envelope: A heavy-duty, asphalt-impregnated woven polypropylene belly board (minimum 4-mil thickness) seals the underside. It encapsulates thermal insulation (R-11 to R-22) and mechanical ductwork, directly protected by the floor joist matrix.
- Floor Joist Framework: Transverse 2×6 or 2×8 nominal grade #2 Southern Yellow Pine or Douglas Fir joists spaced at 16 inches O.C., attached to the steel frame via welded clip angles and fastened at the perimeter with double rim plates. Subflooring consists of 23/32-inch tongue-and-groove APA-rated Sturd-I-Floor OSB or plywood.
- Load-Bearing Perimeter & Interior Wall Studs: Perimeter walls utilize 2×4 or 2×6 structural studs at 16 inches O.C., featuring continuous bottom plates and double top plates. Shear walls incorporate continuous structural sheathing and structural metal strapping to withstand lateral racking forces.
- Engineered Gang-Nail Roof Trusses: Prefabricated Fink or Howe roof trusses secured with 20-gauge galvanized steel connector plates. Trusses connect directly to top plates using H2.5A hurricane clips to meet specific Wind Zone I, II, or III uplift requirements.
| Structural Component | Standard Material Spec | Fastener / Connector Standard |
|---|---|---|
| Steel Chassis Frame | 10″ or 12″ ASTM A36 I-Beams | E70XX AWS Fillet Welds / Grade 5 Bolts |
| Floor Framing | 2×6 / 2×8 No. 2 SYP @ 16″ O.C. | 16d Common Ring-Shank / 3″ Floor Screws |
| Wall Framing | 2×4 or 2×6 Studs @ 16″ O.C. | 10d Framing Nails / Continuous Adhesive |
| Roof Truss System | Engineered Fink/Howe 2×4 Webbing | 20-Ga Gang-Nail Plates / H2.5A Clips |
| Belly Board Membrane | Woven Polyethylene / Polypropylene | 1-inch Crown Galvanized Staples & Spray Tack |
How to Read and Interpret the Single Wide Mobile Home Construction Diagram Schematic
Reading a technical single wide blueprint requires systematic navigation across multiple views: floor layout plans, longitudinal elevation profiles, cross-sectional details, and mechanical/electrical overlay schematics. Technicians must understand how line weights, structural symbols, and callout schedules correlate to physical load pathways and framing connections.
Always cross-reference the structural framing sheet with the mechanical chase layout before executing structural cuts. HVAC crossover ducts and supply trunks run centrally along the main steel beam web, while drain lines require specific slope allowances beneath joist penetrations.
Recommended Best Deal Products
Decoding Chassis, Outrigger, and Subfloor Framing Layouts
The foundation plan section of the schematic details the chassis layout. Thick solid lines represent the longitudinal steel I-beams, typically spaced at 99.5 inches on center for standard 14-foot wide units (or 115.5 inches for 16-foot units). Perpendicular dashed lines indicate cross-members, while angled or perpendicular lines extending past the main beam denote outriggers. Verify outrigger spacing (32 to 48 inches O.C.) and check detail callouts for steel thickness (typically 11-gauge to 7-gauge stamped steel). Reference internal technical guides on mobile home leveling procedures when cross-referencing beam deflection points on the blueprint.
Interpreting Structural Wall Assemblies and Roof Truss Configurations
Cross-section views detail wall-to-floor and wall-to-roof structural attachments. Double top plates are designated by parallel solid lines with overlapping offset hatch marks showing staggered corner lap joints. Look for tie-down strap schedules noted near exterior wall studs; HUD Wind Zone II and III schematics require continuous 26-gauge galvanized steel tie-down straps running from the roof truss top chord, down through the wall studding, and wrapped under the rim joist to connect directly to frame-mounted ground anchor straps.
Mapping Mechanical, Electrical, and Plumbing Chases Across the Frame
Utility pathways are overlaid using standard architectural callouts:
- HVAC Trunk Lines: Represented as rectangular shaded corridors running down the geometric center of the floor structure between joist bays. Flex duct connections branching out to floor registers are shown as dashed flexible lines.
- Electrical Wire Routing: Schematics use dashed thin arcs with letter designations. Home runs back to the main distribution panel board (100A or 200A main breaker) are explicitly detailed in the HUD electrical wire sizing charts embedded in the plan legend.
- Plumbing Supply and Waste Systems: Solid lines indicate PEX supply tubing (red for hot, blue for cold running through heated belly insulation), while thick broken lines represent DWV (Drain-Waste-Vent) ABS or Schedule 40 PVC piping sloped at 1/4-inch per foot toward the central drop location.
Diagnostic and Structural Failure Analysis Using the Construction Layout Blueprint
When performing field assessments, structural failure symptoms such as floor sagging, wall cracking, or door frame binding can be directly traced to specific points of structural failure by referencing the blueprint’s load path diagrams. Comparing actual structural conditions against original engineering schematics allows technicians to identify failed load paths, compromised outriggers, or unbolted anchor interfaces.
Cutting into floor joists, outriggers, or engineered truss chords without approved engineering modification plans invalidates the HUD compliance certification tag. Never notch load-bearing top plates or lower chords without installing engineered header transfers.
Field diagnosis requires systematically mapping localized defects back to the structural framework:
- Floor Deflection along Perimeter: Indicates outrigger metal fatigue, failed outrigger-to-I-beam welds, or rotted double rim joists resulting from exterior flashing leaks.
- Roof Truss Chord Bowing or Separation: Indicates excessive live loads (snow accumulation exceeding PSF rating) or missing hurricane clip ties at top plate bearing points. Refer to modular foundation anchoring guides for uplift structural calculations.
- Belly Board Sag and Moisture Accumulation: Indicates a hidden DWV plumbing leak, uninsulated PEX condensation, or torn vapor barrier membrane letting ground moisture penetrate the floor cavity.
| Symptom | Root Cause (Blueprint Load Path) | Corrective Engineering Solution |
|---|---|---|
| Perimeter Wall Sag (>0.5″ dip) | Bending/Failure of Outrigger Arm | Weld 3x3x1/4″ structural angle iron sister brace; re-level piers |
| Interior Door Jamb Binding | I-Beam Center Sag / Pier Differential Settlement | Re-level main frame piers using hydraulic jacks; torque tie-downs |
| Ceiling Drywall Longitudinal Cracks | Truss Bottom Chord Separation at Gang Plate | Sister 3/4″ plywood gussets with 10d nails along affected truss joints |
| Soft / Springy Floor Sheathing | Delaminated OSB decking / Missing Edge Blocking | Remove floor covering, add 2×4 blocking, replace with 23/32″ T&G OSB |
Single Wide Mobile Home Construction Diagram Technical FAQ
How does a HUD-code chassis configuration differ from standard modular frame schematics?
A HUD-code single wide chassis features built-in longitudinal camber engineered into the steel I-beams, designed to support the structure without a permanent perimeter foundation. The chassis includes a integrated tow hitch assembly, removable running gear axles, and stamped steel outriggers designed to support perimeter wall loads. In contrast, modular frame schematics rely on perimeter load-bearing basement or crawlspace walls, utilizing removable transportation frames or structural steel “off-frame” designs with heavier perimeter box rims.
What are the exact spacing and fastener specs for rim joists and outriggers?
Outriggers are typically spaced 48 inches on center along the length of the main 10-inch or 12-inch steel I-beams and welded using 3/16-inch fillet welds along the top and bottom flanges. Floor joists (2×6 or 2×8) rest on or attach flush to the outriggers. Rim joists (double 2×6 or 2×8) attach to the ends of the floor joists with three 16d common ring-shank nails (0.135″ x 3.5″) per joist end. High Wind Zone specifications mandate 18-gauge uplift metal straps connecting each joist to the rim band.
How are shear walls and wind-zone anchor points identified on the blueprint?
On single wide construction schematics, shear walls are highlighted with thick cross-hatching or double-dashed line patterns, indicating full-height APA-rated structural plywood or OSB sheathing fastened with 8d nails at 4 inches O.C. along edges. Ground anchor tie-down points are indicated by diamond or triangle symbols along the main I-beam baseline. Callout tables specify anchor spacing (e.g., 6 feet O.C. for Wind Zone II, 4 feet O.C. for Wind Zone III), strap tension requirements (minimum 4,725 lbs working load per HUD 3280.306), and soil class torque requirements.
What insulation and vapor barrier layering sequence is specified in modern thermal envelopes?
Modern HUD-code thermal specifications call for a multi-layer assembly starting from the ground up: asphalt-coated black bottom board (woven polyethylene), fiberglass blanket or blown-in insulation filling the floor cavity fully against the subfloor, a continuous 6-mil polyethylene vapor retarder installed directly above the joists (in humid climates), and 23/32-inch subfloor decking. Wall envelopes feature exterior weather-resistive barriers (housewrap), fiberglass batt or continuous foam board insulation, and continuous interior vinyl-faced gypsum or painted drywall panels serving as the primary air barrier.
How do load calculations account for roof truss dead loads and live snow loads in northern zones?
Engineering schematics calculate roof systems based on combined dead loads (truss wood framing, OSB sheathing, asphalt shingles, interior ceiling drywall = approximately 10 to 15 PSF) and location-specific live loads. North Zone schematics mandate a minimum 30 PSF live load capacity, while High Snow Zones require 40 PSF or higher. Web members are sized accordingly (typically 2×4 minimum grade #2 or higher), gang-nail plate surface areas are increased by up to 30%, and top chord slopes are steepened (3/12 to 4/12 pitch) to facilitate snow shedding while maintaining overall transport height restrictions.
Step-by-Step Guide to Understanding the Single Wide Mobile Home Construction Diagram
Identify – Locate the structural specification block on the single wide mobile home construction diagram.
Locate – Reference the steel I-beam frame and outrigger spacing points beneath the floor system.
Reference – Verify joist direction, stud centers (16 or 24 inch), and utility chase routing corridors.
Connect/Route – Align replacement framing or structural fasteners strictly according to HUD structural load paths.
Verify – Inspect bottom board membrane sealing and frame levelness using a water or laser level tool.
Troubleshoot – Check for floor deflection, out-of-square wall frames, or belly pan sagging if layout misalignment occurs.
