Frigidaire Gallery Refrigerator Parts Diagram: Component Breakdown 2026
The Frigidaire Gallery refrigerator parts diagram details the internal system configuration, mapping electrical and mechanical layouts. It illustrates key assemblies including the sealed system compressor, evaporator coils, defrost heater, damper control, and main control board behind the rear access panel, enabling precise component location and harness routing during repairs.
📌 Key Takeaways
- Identifies precise component layout including the 120V defrost heater and evaporator fan motor configuration.
- Maps the sealed cooling system structure from compressor discharge to capillary tube expansion.
- Requires unplugging 120V power supply prior to inspecting main control board wire harnesses.
- Defrost thermostat failure (bi-metal opening at 45°F) is the primary cause of evaporator frost buildup.
- DIY repair is suitable for fan and sensor replacements; sealed refrigerant leaks require EPA certification.
Frigidaire Gallery French-door and side-by-side refrigerators utilize advanced multi-evaporator cooling circuits, electronic damper controls, and variable-speed inverter compressors. Navigating repairs or routine maintenance on these high-efficiency appliances requires a precise understanding of their mechanical and electrical architecture. Analyzing a comprehensive frigidaire gallery refrigerator parts diagram enables appliance technicians and experienced DIYers to quickly isolate structural, mechanical, and electrical failures. This technical guide breaks down the full system layout, schematics, component locations, and troubleshooting methodologies according to manufacturer specifications for Frigidaire Gallery models manufactured from 2012 to the present.

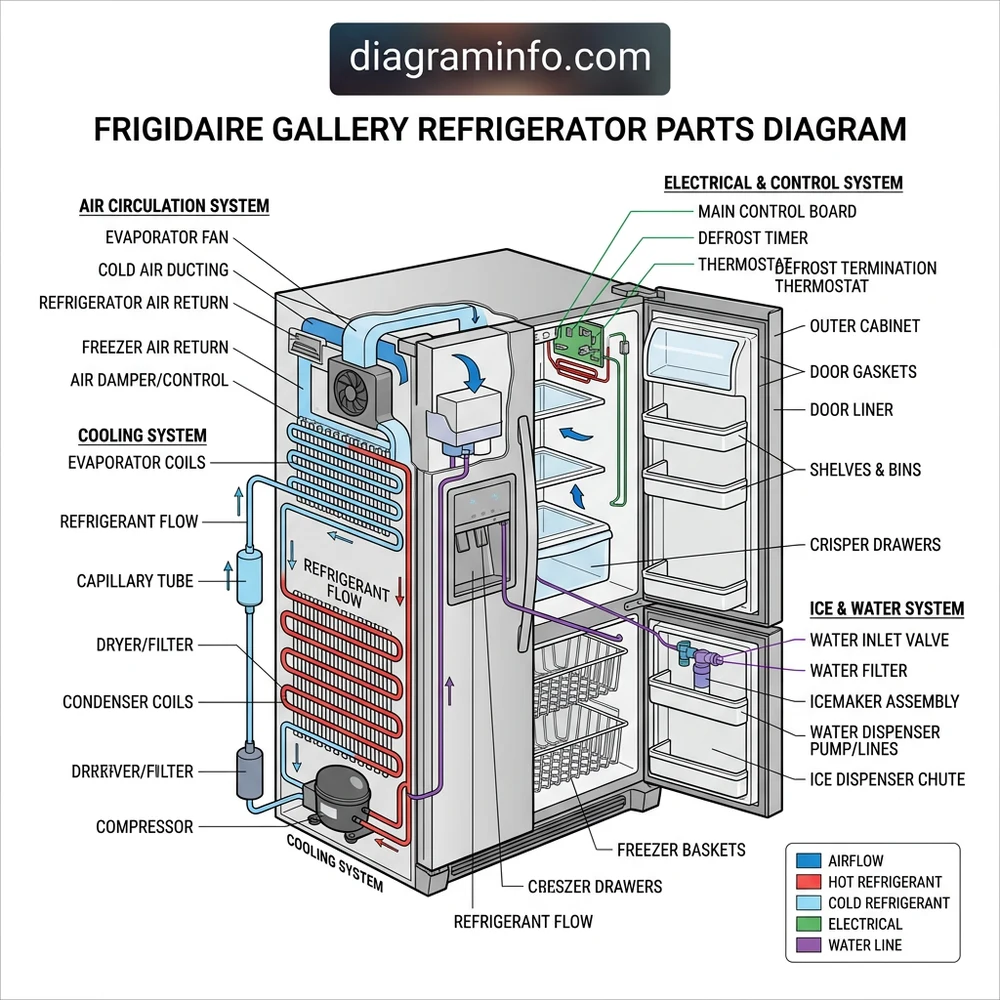

Frigidaire Gallery Refrigerator Parts Diagram: Key Component Layout
Understanding the internal structure of a modern Frigidaire Gallery unit requires categorizing components into three core functional subsystems: sealed refrigeration, airflow distribution, and fluid dispensing. Each subsystem operates under closed-loop feedback monitored by the main electronic control board.
Sealed Refrigeration System Components
The sealed system controls the phase-change heat absorption loop. Located at the bottom rear of the cabinet within the machine compartment is the compressor assembly. Modern Frigidaire Gallery units use either a Permanent Split Capacitor (PSC) single-speed compressor or an inverter-driven variable-speed compressor (such as Embraco VEM series). Connected directly to the compressor discharge line is the forced-air condenser coil, constructed of wire-and-tube steel, cooled by a 120V AC or 12V DC condenser fan motor. The system utilizes an inline copper filter drier to trap moisture before refrigerant passes into the micro-capillary tube. In models produced after 2019, R600a (isobutane) refrigerant is standard, operating at lower suction pressures (-2 to 1 PSI) compared to legacy R134a systems (0 to 3 PSI).
Airflow and Defrost System Structure
Heat absorption occurs in the evaporator coil assembly, housed inside the freezer section behind the rear plastic bulkhead panel. Attached directly to the evaporator assembly is the defrost heating element (calrod or glass-sheath type rated at 400W to 500W, 115V AC). Overheat protection is managed by a inline bimetal thermostat snapped onto the upper evaporator suction line. The air circulation system relies on a brushless 12V DC evaporator fan motor driven by Pulse-Width Modulation (PWM) signals from the main board. Air distribution between the freezer and fresh food compartments is modulated by a stepper-motorized electronic air damper assembly located inside the air tower structure.
Water Dispenser and Icemaker Assembly Configuration
The fluid delivery layout consists of a dual-stage or triple-stage solenoid water valve mounted in the machine compartment. Cold water lines (1/4-inch LLDPE tubing) route through the internal cabinet wall to the secondary reservoir and up to the door hinge passage. The ice maker module—either a 10-cube mechanical tray unit or a dual flex-tray assembly—is located in the upper left fresh food corner or inside the freezer drawer. It interfaces directly with an optic ice-level sensor or a mechanical bail arm switch.
Defrost Heater Resistance: 28 Ω to 38 Ω nominal at 70°F (21°C)
Defrost Bimetal Thermostat: Closed below 15°F (-9.4°C), Opens at 45°F (7.2°C)
NTC Evaporator Thermistor: 10,000 Ω at 77°F (25°C); 32,600 Ω at 32°F (0°C)
Condenser Fan DC Voltage: 12V DC nominal across Red (+) and Black (-) leads
How to Read the Frigidaire Gallery Refrigerator Schematic and Blueprint
Reading a Frigidaire blueprint or tech sheet schematic involves deciphering standard NEMA electrical symbols, tracing signal paths, and locating physical pinouts on the electronic control module. Schematics are organized with line voltage (120V AC) circuits at the top and low-voltage DC logic circuits at the bottom.
Locating Main Power and Electronic Control Board Schematic Symbols
The primary power entry point is represented on the blueprint by L1 (Hot, Black wire) and N (Neutral, Light Blue wire). Power routes through an inline 15A fuse or thermal cutout before feeding the main printed circuit board (PCB). The main PCB schematic displays individual relays for high-load AC components, labeled as COMP (Compressor), DEF (Defrost), and FAN (AC Condenser Fan). Low-voltage outputs originate from a step-down switching transformer converting 120V AC line power to regulated 12V DC and 5V DC supply buses for sensors, user interfaces, and stepper motors.
Tracing Wire Harness Layouts and Color Code System
Frigidaire Gallery wire harnesses follow a standardized wiring color protocol. Tracing a fault requires cross-referencing wire insulation colors with schematic terminal designations. For step-by-step controller service, refer to our detailed Frigidaire refrigerator defrost control board replacement guide. Below is the primary wiring pinout reference for standard Frigidaire Gallery control harnesses:
| Wire Insulation Color | Circuit Function | Operating Voltage | Target Test Resistance |
|---|---|---|---|
| Black / Blue Stripe | Compressor Line / Inverter Power | 120V AC | 6 Ω – 10 Ω (Inverter Phase-to-Phase) |
| Brown | Defrost Heater Power Line | 120V AC | 28 Ω – 38 Ω |
| Yellow / Red Stripe | Evaporator Fan VCC Power | 12V DC | N/A (Solid State Motor) |
| White / Green Stripe | Evaporator Fan Tachometer Feedback | 0.5V DC – 4.5V DC (Pulsing) | Infinite (Open Circuit) |
| Orange / Black Stripe | NTC Thermistor Signal Line | 1.5V DC – 4.8V DC | 10k Ω at 77°F (25°C) |
Identifying Component Connectors and Test Point Locations
The control board utilizes multi-pin Molex headers labeled J1 through J12. Terminal header J1 carries main AC line inputs, J2 controls load relays for heating elements and solenoids, while J4 and J7 carry DC sensor feedback and display logic. To diagnose intermittent board communications, field technicians perform voltage drops across test points TP GND and TP 5V using a calibrated Digital Multimeter (DMM).
On variable-speed Frigidaire Gallery models, the main control board sends a low-voltage Square Wave PWM frequency signal (typically 50 Hz to 150 Hz at 5V DC) from terminal J9 to the frequency inverter board mounted near the compressor. Do not attempt to read 120V AC across the compressor terminals on inverter models; test input voltage at the inverter board harness first.
Troubleshooting Using the Frigidaire Gallery Refrigerator Parts Diagram
A structured electrical diagnostic strategy relies on utilizing the schematic diagram to trace open circuits, measure component resistance, and verify input/output voltages.
Diagnosing Evaporator Fan and Defrost Heater Electrical Failures
When frost accumulates heavily on the evaporator assembly, the unit loses fresh food cooling capacity while the compressor runs continuously. Using the parts configuration drawing, access the lower freezer section back wall and test components in sequence:
- Step 1: Disconnect Main Power. Remove the rear access cover inside the freezer compartment to access the defrost circuit inline connections.
- Step 2: Test Defrost Heater Resistance. Unplug the brown wire leads from the harness connection. Connect DMM test leads across the heater pins. A reading of infinity (OL) indicates a broken heating element filament requiring replacement.
- Step 3: Test Defrost Bimetal Thermostat. While the bimetal is covered in frost (below 15°F), test for zero resistance (0.1 Ω to 0.5 Ω) across its terminals. If it reads open circuit (OL) when frozen, the internal contacts have failed.
- Step 4: Check Evaporator Fan Motor Power. Restore power to the unit and force diagnostic test mode (press Fresh Food Up + Freezer Down simultaneously on the UI). Measure DC voltage across Pin 1 (Red) and Pin 2 (Black) at connector J4 on the main board. If 12V DC is present but the fan does not rotate, replace the DC fan assembly. For more insights on mechanical component diagnostics, check our compressor relay troubleshooting manual.
Testing Compressor Relay and Run Capacitor Resistance Values
For standard PSC compressor models that hum and trip the overload protector, check the start relay and capacitor located on the side of the compressor shell:
- PTC Starter Relay Test: Remove the relay device. Shake the component gently; a rattling sound indicates shattered internal ceramic disks. Set the multimeter to Resistance (Ω) mode and probe terminals S and R. A normal PTC device measures between 3 Ω and 12 Ω at ambient room temperature (70°F).
- Run Capacitor Test: Discharge the run capacitor using a 20k-ohm 5-watt resistor across its terminals. Set your meter to Capacitance (µF). Compare the measured value against the casing rating (typically 12 µF or 15 µF ±5%). Any deviation exceeding 10% necessitates replacement.
- Inverter-Driven Compressor Resistance Check: Disconnect the 3-pin harness leading from the inverter to the compressor terminals (labeled U, V, W). Measure resistance across all pin combinations: U-to-V, V-to-W, and W-to-U. All three readings must be identical (typically 6.0 Ω to 10.0 Ω ±0.5 Ω). Measure each pin to the copper ground frame; any continuity (below 10 MΩ) indicates a grounded winding failure requiring compressor replacement.
Inverter boards store high DC voltages (up to 320V DC) within smoothing capacitors even after mains power is disconnected. Always disconnect power and wait at least 5 minutes before probing inverter control terminals or servicing compressor electrical components.
Frigidaire Gallery Refrigerator Schematic Frequently Asked Questions
Where can I locate the physical tech sheet and wiring diagram on my unit?
On most Frigidaire Gallery French-door and side-by-side models, the factory schematic and tech sheet are tucked inside a clear plastic sleeve behind the bottom front toe-kick grille panel. Alternatively, on select top-freezer or built-in models, the diagram sheet is attached inside a plastic cavity on the upper rear panel next to the main control board housing.
How do I test the defrost thermistor resistance against OEM specs?
Disconnect the thermistor harness from the main control board connector (usually J7). Immerse the sensor tip into a glass filled with ice water (32°F / 0°C) for 5 minutes. Set your multimeter to measure resistance (K-Ohms). A properly functioning NTC thermistor should read precisely 32.6 kΩ (±2%). If the sensor reads open (OL), shorted (0 Ω), or drifted out of tolerance (e.g., below 25 kΩ at 32°F), it must be replaced.
What are the voltage requirements for the inverter compressor control board?
The variable-speed inverter board receives a main power supply of 120V AC (±10%, 60 Hz) across the line-and-neutral input terminal. The control signal line coming from the main control board inputs a low-voltage DC pulse-width modulated (PWM) signal ranging between 2.0V DC and 5.0V DC. Output from the inverter board to the 3-phase compressor delivers variable 230V AC (phase-to-phase) at frequencies ranging between 50 Hz and 150 Hz depending on cooling load demand. Review additional diagnostic information in our appliance control module diagnostic codes resource.
How do I identify part numbers on a Frigidaire exploded view diagram?
Exploded parts diagrams use callout index numbers (such as Item 24 or Item 530) to point to individual physical components in the drawing. These callout numbers do not represent actual factory part numbers. Cross-reference the callout index number with the part list key printed on the side or bottom of the sheet to extract the true 10-digit OEM part number (typically starting with 240…, 5303…, or 5304…). Always verify compatibility using your refrigerator’s full model number from the cabinet serial tag.
Why does my ice maker dual solenoid valve trigger a low water flow issue?
A low water flow issue at the ice maker or door dispenser usually stems from restricted inlet line pressure, a clogged filter internal bypass, or low coil voltage. Check incoming residential water line pressure to ensure it meets the minimum 30 PSI operating threshold. Measure coil resistance across the 120V AC solenoid valve terminals; operational coils measure between 1,800 Ω and 2,200 Ω. A reading outside this range indicates an open or shorted solenoid coil preventing full valve stroke opening.
Step-by-Step Guide to Understanding the Frigidaire Gallery Refrigerator Parts Diagram
Identify – Find your exact Frigidaire Gallery model number on the frame tag inside the cabinet.
Locate – Find the specific subsystem section on the diagram corresponding to your failure symptom.
Reference – Match the numbered schematic callout to the OEM part number in the components list.
Connect/Route – Disconnect power and map replacement wire harness connections according to the circuit layout.
Verify – Check component resistance with a multimeter and reassemble housing panels securely.
Troubleshoot – Restore power and test cooling cycle parameters if error codes or warm temperatures persist.
