An above ground pool parts diagram illustrates the structural layout and circulation system configuration. Key components include steel or resin top rails, vertical uprights, top/bottom plates, wall track, vinyl liner, wall skimmer, return jet, and connected pump-filter assembly with 1.5-inch PVC or corrugated hose lines.
📌 Key Takeaways
- Steel and resin uprights utilize #10 or #12 stainless steel fasteners to maintain structural integrity under hydrostatic pressure.
- Critical skimmer-to-pump suction connections require 1.5-inch NPT threaded fittings sealed with PTFE plumber tape.
- Pool liner coping clips must be centered firmly over the wall track before water depth exceeds 12 inches.
- Suction-side air leaks at the skimmer gasket or pump lid O-ring represent 80% of prime failure points.
- Minor hose replacement and basket cleaning are DIY tasks, but wall panel buckling requires immediate professional intervention.
Analyzing an above ground pool parts diagram requires a precise understanding of civil, mechanical, and hydraulic engineering principles. An above ground pool operates as a balanced structural and fluid system, consisting of a load-bearing wall-and-frame assembly integrated with a closed-loop hydraulic re-circulation system. Whether performing a routine seasonal overhaul, replacing structural uprights, or troubleshooting low flow rates across the filtration loop, referencing an accurate system schematic is essential. This technical overview breaks down the complete physical architecture, detailing tolerance limits, fastener torques, pressure ratings, and material specifications required for proper maintenance and installation.
Above Ground Pool Parts Diagram: Structural and Hydraulic Component Analysis

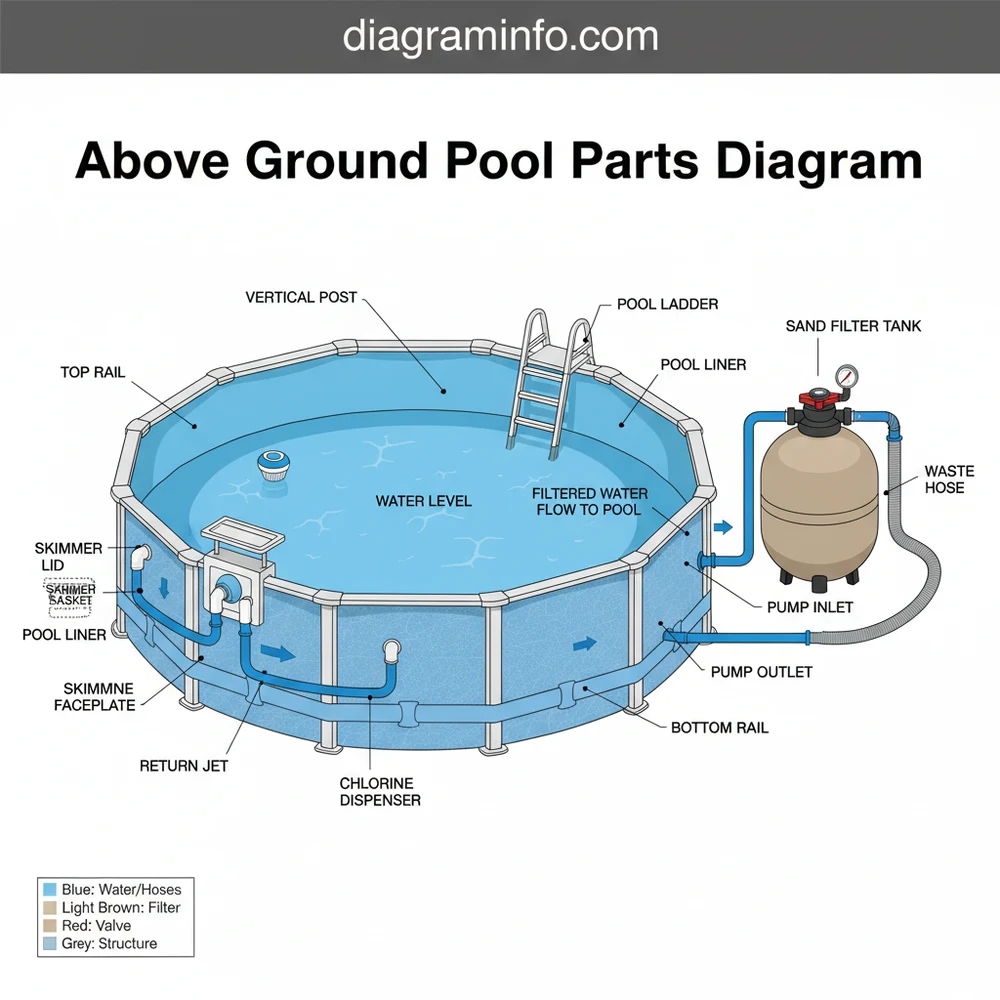

The system configuration of an above ground pool splits into two primary subsystems: the structural retention assembly and the mechanical fluid circulation loop. As shown in the diagram above, structural integrity depends on precise load distribution across all vertical and perimeter members to contain thousands of gallons of hydrostatic pressure.
| Component Category | Primary Function | Technical Specifications & Materials |
|---|---|---|
| Corrugated Steel Wall | Primary lateral hydrostatic load retention | Heavy-gauge G90 hot-dipped galvanized steel, multi-coat enamel sealant |
| Uprights & Top Ledges | Vertical stability and rim rigidity | 6″ to 9″ extruded resin or galvanized steel; 304 stainless hardware |
| Bottom & Top Tracks | Perimeter alignment and wall insertion channel | Roll-formed resin or stamped steel; channel tolerance ±0.030″ |
| Thru-Wall Skimmer Assembly | Surface debris removal and pump suction inlet | ABS plastic body, double-lip EPDM gasket, 1.5″ or 2″ NPT female ports |
| Filtration & Pump System | Particulate removal and hydraulic head pressure generation | 1.0–2.0 HP induction motor; sand (20# silica) or cartridge filter (10–15 micron) |
Wall joiner bar bolts must be torqued to 35–45 in-lbs using a staggered, center-outward torque pattern to avoid buckling the metal seam. Ensure all EPDM gaskets on faceplates are torqued evenly to maintain a watertight seal without crushing the vinyl liner membrane.
Structural Framework Subassembly
The structural layout relies on a continuous bottom track anchored by steel or resin stabilizing plates. The corrugated wall inserts into this track, forming an unbroken cylinder. Top plates sit atop each vertical upright, securing the top stabilizer rails and supporting the heavy-duty top ledges. If you are servicing related pool systems, consult our companion inground pool plumbing schematics for comparative layout standards.
Hydraulic Loop and Filtration Subassembly
Water enters via the thru-wall skimmer, routed down Schedule 40 flex PVC or rigid pipe into the strainer basket housing of the pump. The pump impeller accelerates water through a multi-port valve (MPV) into the filter media vessel. Cleaned fluid returns through a directional eyeball fitting back into the pool interior, completing the closed hydraulic circuit.
Navigating the Above Ground Pool Schematic and System Layout
Executing an installation or tear-down using an above ground pool parts diagram requires methodical sequencing. Failure to sequence assembly steps properly often results in unlevel rails, pinched liners, or premature mechanical wear on pump impellers.
Phase 1: Perimeter Base and Bottom Ring Alignment
Start by laying out the bottom plates and bottom tracks according to the radius specifications outlined in the blueprint. Establish a perfectly level foundation ring; laser level measurements must confirm site elevation variance is less than ±0.125 inches across the full diameter. Install unpaved patio stones under each bottom plate to prevent vertical settling under full fluid weight.
When installing curved track segments into bottom plates, leave a 1/16-inch expansion gap inside each plate channel. This allows for thermal expansion of metal components under high heat conditions before the water fill process grounds the structure.
Phase 2: Wall Unrolling and Joiner Bar Fastening
Unroll the corrugated steel wall into the bottom track groove, ensuring skimmer and return cutouts match your pump pad location. Secure the wall ends using the factory joiner bar assembly. Use every single bolt hole provided; omitting a single bolt reduces structural shear strength by up to 15%, leading to wall failure.
Phase 3: Liner Seat, Coping, and Hydraulic Plumbing Integration
Form a smooth sand cove (2″ x 2″ minimum) along the interior perimeter bottom edge to protect the liner from slipping beneath the bottom rail. Drape the vinyl liner over the wall top edge, fixing it in place with plastic coping strips and top stabilizer rails. Once water fills to within 3 inches of the cutouts, mount the skimmer box and return fitting using dual EPDM gaskets before connecting the filter pad lines. For electrical pump hookups, review our detailed variable-speed pool pump wiring diagrams.
Diagnosing Structural and Flow Issues via the Above Ground Pool Parts Diagram
When system performance degrades, trace symptoms directly back to specific structural or hydraulic nodes mapped on the blueprint.
Never drain an above ground pool past 50% capacity under high wind conditions or without internal structural bracing. The thin wall relies on internal hydrostatic pressure to maintain circular rigidity; removing water can cause complete wall collapse.
1. Suction-Side Air Entrapment
Symptom: Continuous air bubbles visible in the pump clear lid pot or returning via return jet.
Diagnostic Isolation: Check the intake path on the system layout. Inspect the skimmer weir door for sticking, verify water level is at mid-skimmer height, and test the threaded intake union on the pump housing. Apply silicone lubricant to the main pump lid O-ring and replace damaged EPDM flange gaskets.
2. Structural Out-of-Round or Wall Buckling
Symptom: Vertical uprights leaning inward/outward, or localized wall wrinkling near upright bases.
Diagnostic Isolation: Reference the bottom track schematic. Vertical leaning indicates settling of the support stone under that specific upright plate. Wall wrinkling near the base suggests the top rail screws are overtightened or the sand cove has eroded, transferring vertical downward load directly into the thin metal wall instead of the uprights.
3. Hydraulic Head Loss / Low Flow Rate
Symptom: Return jet pressure drops below 5 GPM; filter vessel pressure gauge reads >10 PSI over baseline.
Diagnostic Isolation: Follow the flow path from pump discharge to multi-port valve. Severe pressure buildup indicates localized media channeling or calcification inside the filter bed. Perform a backwash sequence or tear down the filter tank to clean elements. Refer to our step-by-step sand filter multiport valve rebuild guides if internal spider gaskets show sign of fluid bypass.
Above Ground Pool Parts Configuration FAQ
What torque spec should be applied to the pool wall joiner bar bolts?
Wall joiner bolts on standard galvanized steel walls should be tightened to 35 to 45 inch-pounds (in-lbs). Use hand tools rather than pneumatic impact drivers to prevent stripping the factory zinc coating or warping the pre-drilled wall holes. Always replace damaged or rusted wall bolts with Grade 304 or 316 stainless steel hardware.
How does the blueprint distinguish between resin and steel pool components?
Diagram blueprints mark resin parts with cross-hatched shading or explicit material calls (e.g., “Extruded Resin Top Ledge”). Resin structural members are non-corrosive and suited for salt-chlorine generator systems, whereas steel parts feature geometric reinforcement ribs and are designated with galvanized coating designations like G90 or zinc-clad callouts.
What operating pressure differential indicates a dirty filter media assembly?
An increase of 8 to 10 PSI above clean starting pressure indicates that the filter media (sand or cartridge grid) is loaded with particulate matter. This restricts total dynamic head (TDH) performance, decreasing system turnover rates and placing unnecessary heat load on the pump motor windings.
Why does the schematic specify an EPDM gasket on both sides of the wall for skimmer cutouts?
Dual-gasket configurations (or single butterfly gaskets) completely isolate raw steel wall cutouts from moisture contact. Because steel wall cutouts expose ungalvanized raw metal edges, any minor water seepage past the skimmer faceplate will trigger rapid oxidation, weakening the structural steel adjacent to the skimmer mounting area.
How do you identify air leaks vs. water leaks on the pump suction schematic?
Components operating prior to the pump impeller (skimmer, suction line, pump pot inlet) exist under negative hydraulic pressure (vacuum). Leaks on this side draw atmospheric air into the system without leaking water out. Components after the pump impeller operate under positive pressure; defects in these areas present as active water leaks.
Step-by-Step Guide to Understanding the Above Ground Pool Parts Diagram
Identify – Unpack all structural hardware and match components against the pool schematic listing.
Locate – Position the bottom wall track and vertical upright plates along the leveled ground perimeter.
Reference – Review the diagram for proper placement of top plates, wall stabilizer rails, and liner coping.
Connect/Route – Attach skimmer and return jet fittings, routing 1.5-inch flex hoses to pump and filter connections.
Verify – Inspect all frame bolt torques, gasket seals, and hose clamps before filling pool beyond 12 inches.
Troubleshoot – Check suction fittings for air bubbles and structural uprights for vertical plumb if misalignment occurs.
