1769-IF8 Wiring Diagram: Complete Connection Guide 2026
The Allen-Bradley 1769-IF8 analog input module uses an 18-point removable terminal block (1769-RTBN18). Terminal pin assignment pairs channels 0–7 as IN+ and IN-, with single-ended or differential setups. Connect signal positive to INx+, negative to INx-, and route shield wire to ANLG GND to prevent ground loops and signal interference.
📌 Key Takeaways
- 18-point removable terminal block (1769-RTBN18) handles 8 differential or single-ended channels for 0-20mA, 4-20mA, or ±10V DC signals.
- Crucial pin assignment: term 1–16 map channel inputs (INx+ and INx-), while terminals 17–18 accept the analog ground wire.
- Torque terminal block screws strictly to 0.68 N·m (6 lb-in) using 22 to 14 AWG shielded twisted-pair conductors.
- Most common failure point is ungrounded shield wires or leaving unused current loop channels unshorted, creating floating voltage faults.
- Seek professional system integrator help if internal module channels burn out or backplane communication fails across CompactLogix racks.
The Allen-Bradley 1769-IF8 Compact I/O module provides eight high-resolution analog input channels for CompactLogix control systems and MicroLogix 1500 expansion racks. Correctly wiring this module requires precise attention to signal types, terminal jumper configurations, field transmitter power sources, and grounding architecture. Whether installing 4-to-20 milliamp current loops or 0-to-10 volt DC transducers, mastering the 1769-IF8 wiring diagram ensures signal integrity, prevents ground loops, and protects delicate analog-to-digital converters from overvoltage faults. This technical guide breaks down pin assignments, terminal block identification, shield wire termination, and step-by-step field wiring procedures.

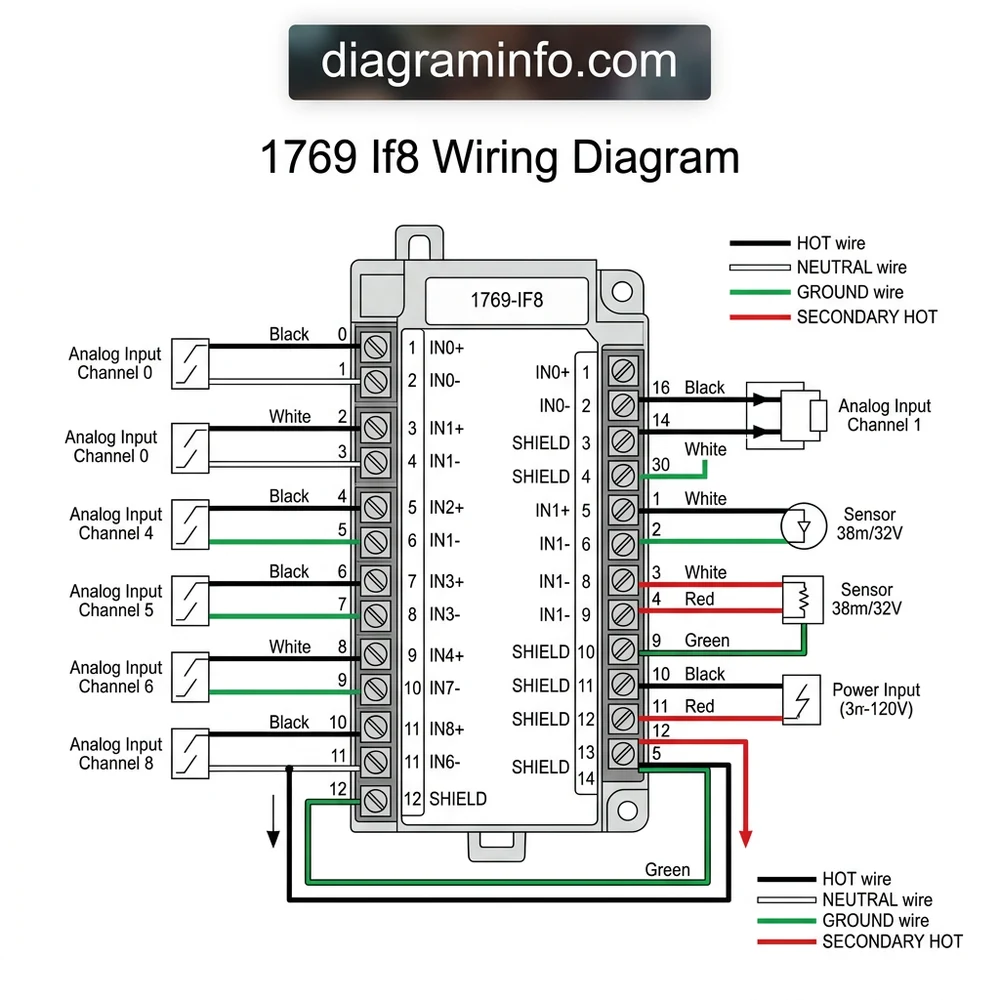

[DIAGRAM PLACEHOLDER: Allen-Bradley 1769-IF8 Wiring Diagram showing 18-pin RTB terminal block, differential and single-ended sensor wiring, 24VDC loop power, and shield ground connections]
Recommended Best Deal Products
1769-IF8 Wiring Diagram Specifications and Signal Modes
According to OEM technical documentation, the Allen-Bradley 1769-IF8 is an 8-channel analog input module capable of reading both current and voltage signals. The module features an 18-point Removable Terminal Block (RTB), designated as model 1769-RTBN18 (screw clamp) or 1769-RTBN18C (spring clamp). It interfaces directly with controllers such as the 1769-L33ER CompactLogix controller or operates as distributed I/O across Ethernet/IP networks.
The module supports single-ended and differential wiring configurations. Single-ended configurations allow up to 8 input channels sharing a common ground return, whereas differential configurations group inputs to maximize common-mode noise rejection in high-interference industrial environments. Proper setup requires matching your field sensor wiring to the channel properties configured inside Studio 5000 Logix Designer or RSLogix 500 timeframe software.
Input Ranges: 0-20 mA, 4-20 mA, ±10V DC, 0-10V DC, 0-5V DC, 1-5V DC
Resolution: 16 bits (unipolar), 15 bits plus sign (bipolar)
Input Impedance: Voltage terminal: >1MΩ; Current terminal: 249Ω (internal precision resistor)
Maximum Continuous Overvoltage: ±30V DC continuous (voltage mode), ±30mA continuous (current mode)
Terminal Block Screw Torque: 0.68 N·m (6 lb-in) maximum
When wiring current inputs (such as 4-20mA process loops), an internal 249-ohm precision shunt resistor must be connected into the circuit. On the 1769-IF8 terminal block, this is accomplished by physically jumpering the V/I in+ terminal to the i in+ terminal for that specific channel, or routing the field hot wire through the dedicated current input terminal as specified by the module schematic.
1769-IF8 Terminal Block Pin Assignment and Wire Color Code
The 1769-RTBN18 terminal block features 18 distinct connection points organized in two vertical columns. Understanding the pin assignment prevents short circuits and ensures accurate analog-to-digital conversions. Below is the standard pin assignment and recommended industrial wire color code mapping for 2-wire current loops, 4-wire transmitters, and voltage instruments when reference wiring to a standard 24VDC system.
| Pin # | Terminal ID | Wire Color Code | Voltage / Signal Type | Functional Connection Details |
|---|---|---|---|---|
| 1 | V/I in 0+ | Red (Hot Wire) | 0-10V / 4-20mA Signal (+) | Positive input terminal for Channel 0. Jumper to Pin 2 for current mode. |
| 2 | i in 0+ | White or Jumper Wire | Current Shunt (249Ω) | Connects internal shunt for Ch 0. Jumper to Pin 1 when measuring 4-20mA. |
| 3 | COM 0 | Black (Neutral / Return) | 0V DC Signal Common | Signal return terminal for Channel 0. Connects to field device signal ground. |
| 4 | V/I in 1+ | Red (Hot Wire) | 0-10V / 4-20mA Signal (+) | Positive input terminal for Channel 1. Jumper to Pin 5 for current mode. |
| 5 | i in 1+ | White or Jumper Wire | Current Shunt (249Ω) | Connects internal shunt for Ch 1. Jumper to Pin 4 when measuring 4-20mA. |
| 6 | COM 1 | Black (Neutral / Return) | 0V DC Signal Common | Signal return terminal for Channel 1. |
| 7 | V/I in 2+ | Red (Hot Wire) | 0-10V / 4-20mA Signal (+) | Positive input terminal for Channel 2. Jumper to Pin 8 for current mode. |
| 8 | i in 2+ | White or Jumper Wire | Current Shunt (249Ω) | Connects internal shunt for Ch 2. Jumper to Pin 7 when measuring 4-20mA. |
| 9 | COM 2 | Black (Neutral / Return) | 0V DC Signal Common | Signal return terminal for Channel 2. |
| 10 | V/I in 3+ | Red (Hot Wire) | 0-10V / 4-20mA Signal (+) | Positive input terminal for Channel 3. Jumper to Pin 11 for current mode. |
| 11 | i in 3+ | White or Jumper Wire | Current Shunt (249Ω) | Connects internal shunt for Ch 3. Jumper to Pin 10 when measuring 4-20mA. |
| 12 | COM 3 | Black (Neutral / Return) | 0V DC Signal Common | Signal return terminal for Channel 3. |
| 13 | AN LGND | Green / Bare Drain Wire | Chassis Ground Wire | Analog Common Ground terminal. Tie cable shield drain wires here. |
| 14 | V/I in 4+ | Red (Hot Wire) | 0-10V / 4-20mA Signal (+) | Positive input terminal for Channel 4. Jumper to Pin 15 for current mode. |
| 15 | i in 4+ | White or Jumper Wire | Current Shunt (249Ω) | Connects internal shunt for Ch 4. Jumper to Pin 14 when measuring 4-20mA. |
| 16 | COM 4 | Black (Neutral / Return) | 0V DC Signal Common | Signal return terminal for Channel 4. |
| 17 | V/I in 5+ to 7+ | Red (Hot Wire) | 0-10V / 4-20mA Signal (+) | Positive input terminals for remaining channels 5 through 7. |
| 18 | AN LGND | Green / Bare Drain Wire | Chassis Ground Wire | Secondary Analog Ground terminal point for multi-pair cable shields. |
How to Complete the 1769-IF8 Wiring Diagram Step by Step
Executing an installation according to the 1769-IF8 wiring diagram requires systematically preparing conductors, landing loop leads, and verifying mechanical terminal retention. Follow this five-step sequence to complete a reliable, noise-free installation.
- Isolate System Power and Remove the Terminal Block: Turn off all main 24VDC control supply circuit breakers and backplane bus power fed from the system supply (such as a 1769-PA4 power supply unit). Unlatch the orange terminal block retaining clips on top and bottom of the 1769-RTBN18 connector and pull the terminal block firmly out from the module housing.
- Configure Current Mode Jumpers (For 4-20mA Channels Only): Determine which channels will receive current signals. For every channel operating in 4-20mA mode, install a short 22 AWG jumper wire between the
V/I in X+terminal and its adjacenti in X+terminal (for instance, Pin 1 to Pin 2 for Channel 0). Skip this jumper step if the channel is configured for 0-10V or 1-5V voltage signals. - Prepare Field Wiring Conductors: Strip approximately 10mm (3/8 inch) of outer insulation from your shielded twisted pair cable (e.g., Belden 8761 or 8771). Strip 6mm (1/4 inch) of insulation off individual conductors. Crimp insulated ferrules onto the wire tips to ensure tight clamping inside the terminal block cage clamp without stray wire strands causing short circuits.
- Land Hot, Neutral, and Shield Drain Conductors:
- For a 2-Wire Loop Powered Transmitter: Connect +24VDC hot wire directly from your power supply to transmitter terminal (+). Run the signal return wire (black or blue) from transmitter terminal (-) back to the
V/I in X+terminal on the 1769-IF8 block. Connect system 0V DC neutral return to the correspondingCOM Xterminal. - For a 4-Wire Voltage or Powered Sensor: Land the sensor positive output wire (red/hot) onto
V/I in X+, land the sensor common return wire (black/neutral) ontoCOM X, and land the bare ground wire or shield drain wire onto terminal 13 or 18 (AN LGND).
- For a 2-Wire Loop Powered Transmitter: Connect +24VDC hot wire directly from your power supply to transmitter terminal (+). Run the signal return wire (black or blue) from transmitter terminal (-) back to the
- Seat RTB Connector and Perform Torque Check: Align the RTB block with the front header pins on the 1769-IF8 module and press firmly until both retaining latches click into place. Using a small flathead torque screwdriver, tighten all cage terminal screws to 0.68 N·m (6 lb-in). Reapply system power and confirm green module status LEDs.
Never apply external +24VDC loop power directly across the V/I in X+ and COM X terminals without a field transmitter or load resistance inline. Direct application of 24VDC across the internal 249Ω resistor will cause excessive current flow (~96mA) and burn out the channel precision input resistor.
Managing Gauge, Voltage Drop, and Ground Wire Noise Protection
Analog field wiring is inherently sensitive to electro-magnetic interference (EMI) and radio frequency interference (RFI). Selecting the proper wire gauge and implementing correct shield grounding rules are vital steps when following the 1769-IF8 wiring diagram.
Manufacturer specifications recommend using 22 AWG to 14 AWG (0.34 to 2.5 mm²) shielded twisted pair (STP) cable for all analog signal runs. For low-voltage signals (0-10V DC) across long distance runs exceeding 100 feet (30 meters), copper wire resistance introduces measurable voltage drop errors. In these scenarios, upgrading to 18 AWG gauge wire lowers line resistance and prevents signal degradation.
Grounding mechanics must be strictly enforced to avoid ground loops. A ground loop occurs when a potential voltage difference exists between field device ground and the PLC panel ground. To prevent circulating ground loop currents:
- Ground the cable shield drain wire at ONE END ONLY, preferably at the 1769-IF8 module chassis ground terminal (Pin 13 or 18
AN LGND). - Cut, isolate, and heat-shrink the shield drain wire at the field sensor enclosure so it floats relative to local earth ground.
- Ensure the CompactLogix DIN rail is solidly bonded to main cabinet earth ground using a minimum 10 AWG copper ground wire.
Common 1769-IF8 Wiring Diagram Errors and Diagnostics
When commissioning an industrial automated cell using the 1769-IF8 module, troubleshooting signal errors often traces back to wiring discrepancies. Below are the most frequent installation errors, their operational symptoms, and diagnostic solutions.
Always check software channel properties in RSLogix/Studio 5000 before troubleshooting physical wiring. A channel configured in software for “0-10V” will not convert current correctly even if physical jumpers are installed on the terminal block.
Missing V/I to i Terminal Current Jumper
Symptom: The process variable reads zero or maximum negative raw counts in controller software even though a multimeter confirms 12mA flowing in the field loop.
Cause: The physical wire jumper between V/I in X+ and i in X+ was omitted. Without this jumper, current flows into high-impedance voltage circuitry instead of through the 249-ohm shunt resistor.
Fix: Power down the system and add a 22 AWG jumper wire across the appropriate channel current pins on the terminal block.
Dual-Ended Shield Grounding (Ground Loop Interferences)
Symptom: Signal values bounce erratically, fluctuate when heavy motor drives run nearby, or exhibit constant 60Hz hum offset.
Cause: The shield ground wire was connected to earth ground at both the sensor body and the PLC panel, allowing ground current to travel along the foil shield.
Fix: Disconnect the ground wire shield at the sensor end. Insulate the cut drain wire using heat-shrink tubing.
Reversed Polarity on Field Transmitters
Symptom: PLC channel tag returns minimal under-range fault values (-32768 counts).
Cause: The hot wire and return wire were swapped at the sensor terminal block, driving channel polarity negative.
Fix: Verify terminal assignments using a DC voltmeter. Ensure positive voltage lands on V/I in X+ and common lands on COM X.
Common-Mode Voltage Limit Exceeded
Symptom: Multiple adjacent channels read full-scale saturation or exhibit offset errors when multiple sensors are active.
Cause: In single-ended mode, field sensors powered by independent non-isolated power supplies exceed the maximum allowable common-mode voltage limit (±10V relative to module ground).
Fix: Bond all 24VDC supply 0V DC commons together at a single bus bar or convert channel wiring to differential input configuration where applicable.
Frequently Asked 1769-IF8 Wiring Diagram Questions
What wire gauge should be used with the 1769-IF8 terminal block?
The 1769-RTBN18 terminal block accepts wire gauges ranging from 22 AWG minimum to 14 AWG maximum (0.34 to 2.5 mm²). For standard industrial 4-20mA and 0-10V runs, 22 AWG or 20 AWG shielded twisted pair cable (such as Belden 8761) is recommended due to its flexibility and effective EMI protection.
How do you wire a 2-wire 4-20mA transmitter to the 1769-IF8 wiring diagram?
To wire a 2-wire transmitter, connect the +24VDC power supply hot wire directly to the transmitter positive terminal (+). Connect the transmitter negative terminal (-) to the 1769-IF8 V/I in X+ terminal. Install a physical jumper wire between V/I in X+ and i in X+. Finally, run a black neutral return wire from the power supply 0V DC terminal to the 1769-IF8 COM X terminal.
Should the shield ground wire be grounded at both ends of the cable?
No. Shield drain wires should only be grounded at one end—typically at the PLC enclosure terminal block (AN LGND Pin 13 or 18). Grounding both ends creates a closed loop susceptible to magnetic induction and ground potential differences, which introduces severe signal noise into the analog-to-digital converter.
Why does the 1769-IF8 read 0mA when a 4-20mA sensor is working?
A reading of 0mA usually indicates either an open circuit in the loop, reversed wiring polarity, or a missing jumper between the V/I in X+ and i in X+ terminals. Verify with a digital multimeter in series that loop current is flowing, and verify that software channel configuration matches physical terminal wiring.
What is the maximum allowable voltage input on the 1769-IF8 terminals?
The maximum continuous overvoltage rating for the 1769-IF8 input channels is ±30V DC continuous in voltage mode. Exceeding ±30V DC will damage internal input protection circuitry and destroy channel analog operational amplifiers.
Step-by-Step Guide to Understanding the 1769-If8 Wiring Diagram
Identify – Turn off system power and confirm sensor signal output types (4-20mA, 0-10V) for each channel.
Locate – Access the 18-point 1769-RTBN18 removable terminal block on the Allen-Bradley 1769-IF8 input module.
Reference – Match sensor outputs to module terminals: IN+ for hot wire positive, IN- for negative/neutral wire.
Connect/Route – Route shielded twisted-pair wire, connect signals to terminals, and ground wire shield at ANLG GND.
Verify – Torque terminal screws to 0.68 N·m (6 lb-in) and test channel input voltage/current with a multimeter.
Troubleshoot – Check PLC tag values in Studio 5000 and verify single-point grounding if signal readings fluctuate.
