Ridgid 12 Inch Miter Saw Parts Diagram: 2026 Guide
The Ridgid 12 inch miter saw parts diagram details the layout of key mechanical and electrical subsystems. It maps the 15-amp motor configuration, carbon brush locations, blade guard linkage, bevel detent plate, and table assembly, allowing quick identification of wear components like the drive belt, arbor bolt, and switch key.
📌 Key Takeaways
- Motor structure utilizes a 15-amp, 120V motor powering the 12-inch blade at approximately 4,000 RPM.
- Arbor bolt uses reverse (left-hand) threads requiring clockwise rotation to loosen during blade replacement.
- Primary wear components include carbon brushes, lower guard linkage springs, and miter detent lock plates.
- Proper guard spring orientation is critical to maintain auto-retraction for user safety during operation.
- Basic mechanical and electrical swap-outs are straightforward DIY projects, while inner gear housing failures require specialized service.
Navigating repairs on heavy-duty cutting equipment requires an authoritative technical visual guide. The ridgid 12 inch miter saw parts diagram provides a comprehensive schematic breakdown of mechanical and electrical sub-systems across popular dual-bevel and sliding compound models such as the R4122, R4221, and MS1290LZ series. Whether performing routine armature maintenance, replacing worn carbon brushes, or recalibrating the precision miter detent table, understanding the structural layout ensures fast OEM part identification and correct torque re-assembly. Manufacturer specifications dictate precise alignment sequences to maintain factory cutting tolerances within 0.005 inches across all bevel angles.

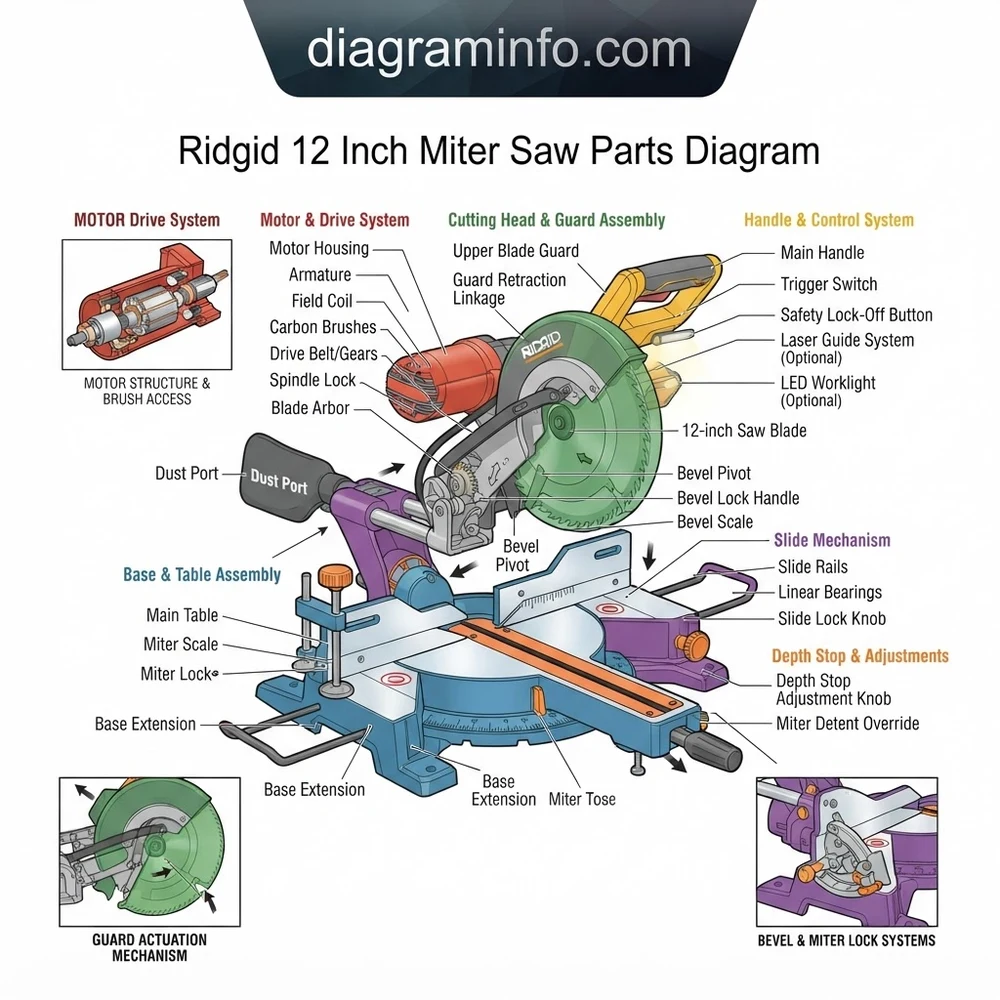

Ridgid 12 Inch Miter Saw Parts Diagram: Core System Layout
Analyzing the exploded layout of a Ridgid 12-inch compound miter saw reveals four primary sub-assemblies working in tandem. Understanding how these mechanical and electrical systems interact allows technicians to pinpoint wear points and execute precision repairs efficiently.
1. Motor and Power Drive System
The universal electric motor layout typically features a 15-Amp direct-drive or belt-driven configuration operating at 3,800 to 4,000 RPM. Key internal components identified on the electrical schematic include the armature, field coil winding, commutator stack, dual carbon brush assemblies, and soft-start electronic module. Power flows through a heavy-duty double-pole switch housed inside the handle assembly. Wear components such as brush caps (OEM part #089037007031) and brush sets are engineered for field replacement without opening the primary gear motor casing.
2. Miter Table and Base Configuration
The structural foundation consists of a precision-machined aluminum table cast with integrated miter scale markings. The lower assembly component schematic illustrates the detent plate (typically featuring 11 positive stops at common angles), turn table casting, miter lock handle actuation rod, and micro-adjust cam lever. A center pivot bolt holds the turn table to the outer base, secured with a specialized Belleville washer and jam nut to maintain consistent rotating resistance without mechanical play.
3. Bevel Pivot and Trunnion Assembly
Dual-bevel models utilize a rear-mounted trunnion mechanism allowing 0 to 48-degree tilts left and right. The structural diagram displays heavy-duty bevel lock levers, positive bevel stop pins (preset at 0, 22.5, 33.9, and 45 degrees), counterbalance torsion springs, and linear slider rails on sliding models. The slide carriage utilizes linear ball bearings housed inside cast sleeves to maintain smooth horizontal travel under heavy blade loads.
4. Lower Blade Guard and Arbor System
Safety and blade retention are managed through the upper blade housing, lower dynamic guard linkage, inner flange, outer flange, and reverse-thread 1-inch arbor bolt. According to OEM technical manuals, the automatic guard retraction mechanism utilizes a roller guide arm riding along a pivot track as the saw head is lowered.
| Component Description | Schematic Callout Reference | OEM Specification / Torque Rating |
|---|---|---|
| 12-Inch Arbor Bolt (LH Thread) | Ref #112 | 1-inch arbor size; 18-22 ft-lbs torque |
| Motor Carbon Brush Assembly | Ref #45 (Pair) | 120V AC, auto-stop carbon insert |
| Stainless Steel Detent Plate | Ref #208 | Torx T-25 fasteners; 35-40 in-lbs |
| Armature Assembly (120V) | Ref #18 | Precision balanced; dual rubber-sealed ball bearings |
| Torsion Pivot Return Spring | Ref #87 | High-tensile spring steel spring return rate |
How to Interpret the Ridgid 12-Inch Miter Saw Blueprint Assembly
Reading an technical blueprint schematics accurately requires understanding standard exploded-view conventions. Technical diagrams present the equipment disassembled along central axis lines, allowing mechanics to determine the exact order of stacking for washers, bearings, bushings, and housing shells.
When studying your model’s exploded schematic, follow these structural reading steps:
- Trace the Projection Lines: Dotted directional lines indicate the axial path of insertion. Fasteners, spacers, and shims are drawn in direct linear relation to the tapped holes or shafts they lock into.
- Identify Assembly Sub-Groups: Components enclosed within dashed bounding boxes indicate pre-assembled service kits (such as a complete gear box assembly or handle housing set). These can often be ordered as single units rather than individual piece parts.
- Match Fastener Profiles: Machine screws on the diagram are tagged with thread sizes and head types (e.g., M5 x 0.8 x 12mm Pan Head Torx). Cross-reference these specs before reassembling to prevent cross-threading soft cast-aluminum housings.
- Verify Electrical Wiring Configurations: Electrical schematics located in the diagram corner detail color-coded wire paths (Black = Line, White = Neutral, Red = Switch Lead, Yellow/Green = Ground) from the cordset through the soft-start board to the field windings. Refer to our comprehensive carbon brush replacement procedure for step-by-step motor electrical servicing details.
Always check the revision letter on your saw’s serial number badge (e.g., R4122 vs R4122-01). Ridgid frequently updates internal drive gears, switch suppliers, and guard linkage geometries between production runs while retaining the primary model designation.
Troubleshooting System Failures Using the Miter Saw Component Schematic
A technical diagram is an indispensable diagnostic tool when identifying component wear, electrical faults, and alignment errors. Using the schematic as a map, mechanics can isolate root causes behind common operational failures.
Motor Hesitation or Excessive Commutator Sparking
If the saw experiences intermittent power loss or heavy blue arc sparking around the motor housing, consult the motor section of the parts diagram. Remove the carbon brush caps (Ref #45) and inspect the carbon length. If worn below 1/4 inch, replace both brushes simultaneously. If new brushes do not resolve the issue, check the electrical schematic to test for continuity across the field coil windings and soft-start module using a digital multimeter.
Inaccurate Cut Angles and Miter Slop
When cuts deviate from square despite setting the table to 0 degrees, the problem generally stems from the miter detent system layout. Locate the detent plate fasteners on the base breakdown drawing. Loosen the T-25 Torx screws, re-square the fence relative to the blade using an engineer’s square (as detailed in our miter saw blade alignment guide), and retighten the detent plate bolts to 38 in-lbs.
Sticky or Binding Lower Guard Retraction
A lower blade guard that fails to spring back smoothly exposes operators to severe hazards. Reference the guard linkage section of the diagram. Inspect the guard actuation arm shoulder bolt, lower spring tensioner, and roller track for pitch buildup or bent structural links.
Disconnect all AC power sources before attempting repairs on the motor, blade arbor, or wiring layout. Certain dual-bevel models incorporate heavy-duty spring-loaded pivot mechanisms that can discharge stored mechanical energy rapidly during disassembly.
Factory Run-out Tolerances: Arbor shaft radial run-out must remain under 0.0015 inches (0.038 mm). Maximum allowable blade face wobble at 12 inches diameter is 0.004 inches (0.101 mm).
Ridgid 12 Inch Miter Saw Parts Diagram and Maintenance FAQ
How do I locate the exact model and serial number to find my saw’s parts diagram?
The model number plate on Ridgid 12-inch miter saws is riveted to the upper motor housing or main cast base assembly. It contains the exact model designation (e.g., R4222, MS1290LZ) along with the manufacturing date code and serial number. Always use these exact identifiers when cross-referencing OEM schematic revisions, as internal part numbers frequently change across model generations.
Is the blade arbor bolt thread standard or left-hand threaded on 12-inch Ridgid saws?
All standard Ridgid 12-inch miter saws utilize a left-hand threaded arbor bolt (Ref #112 on most motor schematics). To loosen the bolt, turn it clockwise while depressing the arbor lock pin located on the gearbox housing. To tighten, turn counter-clockwise, torquing to manufacturer specs of 18 to 22 ft-lbs.
Why does my motor diagram show a soft-start module and how do I test it?
The soft-start module reduces initial current inrush, providing smooth motor acceleration and protecting internal drive gears from rotational shock. If the saw fails to turn on but has continuity through the power switch and carbon brushes, bypass the module temporarily using a fused jumper as shown on the switch electrical schematic to verify if the module requires replacement.
How do I calibrate the LED shadow cut indicator or laser guide using the schematic?
On models equipped with LED LED/Laser cut guidance systems, power is supplied via a low-voltage transformer module wired downstream of the main switch. If the light system fails, refer to the handle wiring schematic to test output voltage (typically 3V to 5V DC) at the driver board. Consult our dedicated guide on laser guidance system calibration for physical alignment procedures.
Can I replace individual gears inside the motor housing or must I buy the whole gearbox assembly?
The structural diagram breaks down the gear housing into individual callouts including the helical drive gear, armature pinion, needle roller bearings, and grease seals. While individual gears are available as OEM replacement parts, replacing the entire factory-assembled gear case module is recommended if bearing seats show signs of wear or heat damage.
Step-by-Step Guide to Understanding the Ridgid 12 Inch Miter Saw Parts Diagram
Identify – Unplug the miter saw and match your model number (e.g., R4222) to the correct diagram version.
Locate – Pinpoint the faulty component on the schematic diagram to note its exact placement and reference number.
Reference – Cross-reference the diagram reference number with the master parts list to confirm the exact replacement part number.
Connect/Route – Follow the structural diagram to remove surrounding fasteners and route replacement linkages or electrical wires precisely as shown.
Verify – Reassemble the housing and verify that safety guard mechanisms retract smoothly and all lock handles clamp securely.
Troubleshoot – Test operation at low speed or manually rotate the blade arbor by hand to ensure no internal binding exists before full power use.
