Trane Forced Air Heating System Diagram: Proper Routing 2026
A forced air heating system diagram illustrates airflow and electrical pathways between the furnace, blower motor, thermostat, and central air components. High-voltage 120V/240V power feeds the blower motor relay, while 24V low-voltage control wiring triggers the heating elements or gas valve, operating alongside heat pump evaporator coils for year-round climate management.
📌 Key Takeaways
- Standard system transformers step down 120VAC line power to 24VAC for low-voltage control circuits.
- The high-limit safety switch opens standard circuits if heat exchanger temperatures exceed 170°F–200°F.
- Ensure dual-run capacitors meet strict microfarad (µF) ratings within ±5% tolerance for optimal blower motor life.
- Restricted airflow from dirty filters is the primary cause of frequent thermal limit tripping.
- DIY work should be limited to 24V control diagnostics; hire licensed pros for 240V or refrigerant lines.
Technical analysis of a forced air heating system diagram is essential for diagnosing airflow bottlenecks, electrical sequence faults, and thermodynamic performance anomalies in modern HVAC installations. Whether evaluating a standard gas-fired furnace, an electric air handler, or a dual-fuel heat pump configuration, understanding schematic representations allows technicians to trace power distribution, control signal pathways, and fluid dynamic heat exchange loops. According to OEM technical specifications, modern forced air systems integrate low-voltage control circuits (24VAC) alongside high-voltage line feeds (120V/240V), requiring precise schematic interpretation during system commissioning, routine maintenance, and field repairs.

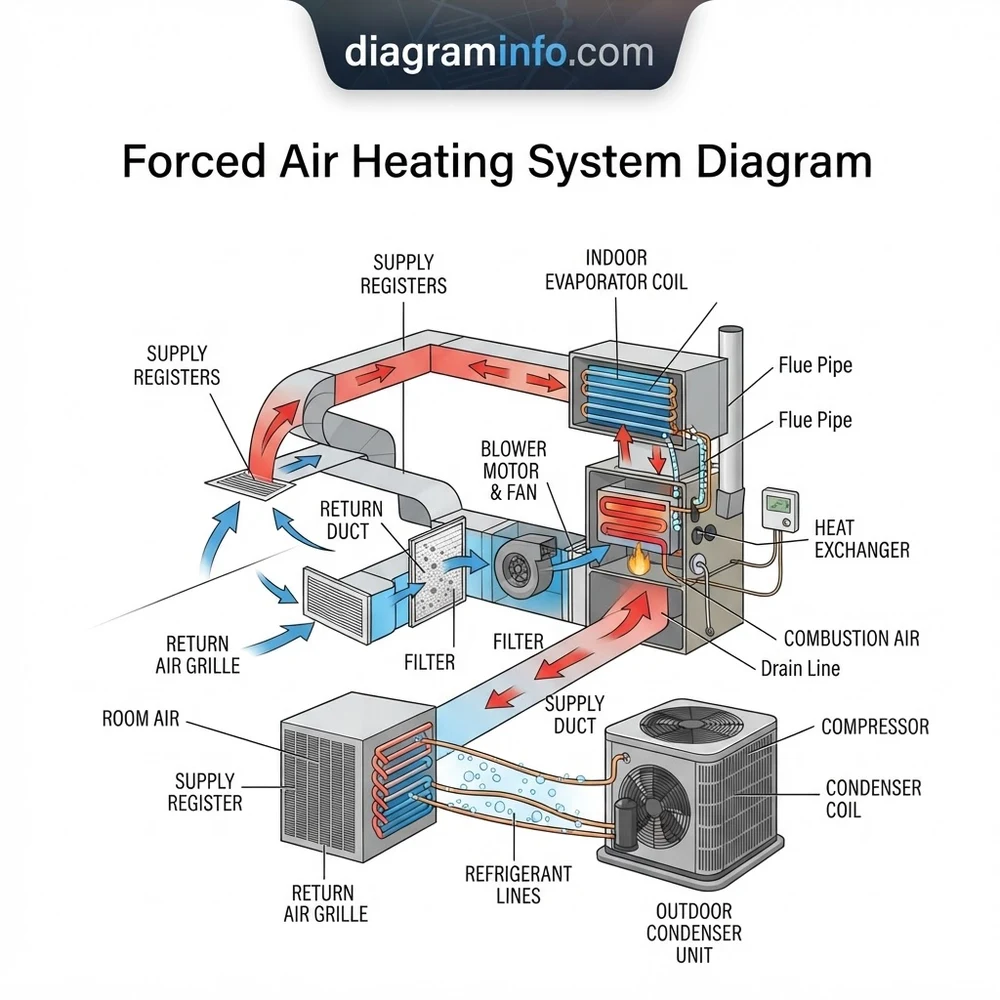

Forced Air Heating System Diagram: Primary Component Identification
To accurately read a forced air heating system diagram, you must first identify how mechanical, electrical, and refrigerant sub-assemblies interlock within the overall system schematic. Forced air designs rely on a forced-convective loop where air is drawn from occupied spaces, conditioned, and redistributed through supply ductwork.
Recommended Best Deal Products
Air Handler and Blower Motor Assembly
The air handler serves as the central structural housing for the internal air distribution machinery. On a standard wiring and airflow diagram, the air handler enclosure encompasses the blower motor, the indoor heat exchanger or electric heating elements, the primary control board, and the filter rack. The blower motor—typically a multi-speed Permanent Split Capacitor (PSC) or an Electronically Commutated Motor (ECM)—is represented as a multi-wire inductive load connected directly to high-voltage relays on the control board. Variable-speed ECMs feature separate high-voltage power leads (120VAC or 240VAC) and a low-voltage pulse-width modulation (PWM) or serial communication harness coming from the integrated furnace control (IFC).
Heat Exchanger and Combustion Control Loop
In fossil-fuel forced air systems, the heat exchanger isolates toxic flue gases from the conditioned indoor airstream while transferring thermal energy from the burner flame. On the mechanical schematic, the primary heat exchanger appears directly downstream of the blower motor discharge. Electrical schematics depict safety limit switches wired in series with the main gas valve. These safety devices include high-limit thermistors, rollout switches, and pressure switches connected to the draft inducer fan. Flame rectification rods and spark igniters or hot-surface igniters (HSI) are detailed with specific resistance values (e.g., Silicon Nitride HSIs reading 40–90 ohms cold).
Heat Pump Refrigerant Circuit: Compressor, Condenser, and Evaporator
For hybrid or heat pump forced air setups, the diagram incorporates a sealed thermodynamic circuit. In heating mode, the outdoor unit functions as the evaporator coil, while the indoor coil inside the air handler functions as the condenser heat exchanger. The compressor acts as the pressure-raising vapor pump, driving the synthetic refrigerant (such as R-410A or R-32) through copper line sets. On the schematic, the reversing valve solenoid (O/B terminal) dictates whether the system routes high-pressure superheated refrigerant gas to the indoor coil (heating) or outdoor coil (cooling). High-pressure and low-pressure cut-off switches are inline safety controls guarding the compressor contactor coil against thermal overload or low charge conditions.
Return Duct and Plenum Layout
The ductwork system is represented in airflow and static pressure schematics. The return duct network collects ambient air from interior spaces, directing it past return registers back to the air handler return plenum. The diagram specifies the return filter location immediately upstream of the air handler intake to prevent dust accumulation on the blower motor wheel and heat exchanger surfaces.
Standard residential air handlers operate at 0.50 inches Water Column (in. W.C.) total external static pressure (TESP). Control board low-voltage transformers must output 24VAC nominal (208–230V primary, 24V secondary, rated at 40VA minimum) to maintain contactor pull-in without voltage sag below 18VAC.
Recommended Best Deal Products
| Terminal Designation | Standard Wire Color | Operating Voltage | Target Component Function |
|---|---|---|---|
| R | Red | 24VAC | Hot side of 24V control transformer power feed |
| C | Blue / Cyan | 24VAC Common | Ground reference/return line for 24V control circuit |
| W / W1 | White | 24VAC | Stage 1 Heat Call (Igniter/Gas Valve or Aux Heat) |
| Y / Y1 | Yellow | 24VAC | Compressor Contactor coil energization (Cooling/Heat Pump) |
| G | Green | 24VAC | Indoor Blower Motor relay activation for fan operations |
| O / B | Orange / Brown | 24VAC | Reversing Valve Solenoid (O = Cool active, B = Heat active) |
Tracing Circuits and Airflow on a Forced Air Heating System Diagram
Systematic diagnostic procedures require following both the thermodynamic flow of air/refrigerant and the step-by-step electrical control logic depicted in the schematic. Refer to our heat pump wiring schematics guide for complementary outdoor unit wiring patterns.
1. High-Voltage and Low-Voltage Control Signal Path
Begin tracing at the incoming line-voltage supply disconnect box (typically 120VAC for gas furnaces or 208/240VAC single-phase for electric air handlers and heat pumps). Line power feeds terminal L1 and Neutral/L2 on the integrated furnace control board. From here, high voltage routes through internal PCB trace relays to supply power to the step-down 24VAC transformer primary winding. The secondary winding outputs 24VAC between terminals R and C.
When the wall thermostat calls for heat (R connects to W), 24VAC travels back down the thermostat wire bundle to terminal W on the control board. This signal triggers the ignition control algorithm:
1. The draft inducer motor relay energizes (120VAC).
2. The pressure switch contacts close under negative draft pressure.
3. The hot-surface igniter heats up for 15–45 seconds.
4. The main gas valve solenoid opens (24VAC), igniting gas across the burner assembly.
5. Flame sensor verifies ionization current (>1.5 microamps DC).
6. After a programmed delay (usually 30–60 seconds), the air handler blower motor energizes on the heating speed tap.
2. Air Supply and Return Duct Static Pressure Loop
Mechanical schematics illustrate the physical path of indoor air circulating through the system. Room air enters the return duct registers, driven by negative static pressure generated at the blower motor inlet side. The return duct passes air through the filter media, entering the blower compartment. The blower wheel pressurizes the air, forcing it across the external surface of the hot heat exchanger tubes (or heat pump indoor coil). Thermal energy conducts into the air, raising its temperature by the design temperature rise rating (typically 30°F to 60°F Delta T). The heated air flows into the supply plenum and branches out through supply trunk lines and registers into the structure.
3. Thermodynamic Heat Pump Heating Phase Sequence
In a heat pump forced air configuration, tracing the refrigerant circuit on the system diagram follows four distinct phase changes during a heating cycle:
1. Compression: The compressor draws low-pressure, low-temperature superheated refrigerant vapor from the suction line and compresses it into high-pressure, superheated hot gas.
2. Condensation: The reversing valve directs this hot gas indoors to the air handler coil (acting as the condenser). As the indoor blower motor pushes cold return duct air over the coil, heat releases into the airstream, causing the refrigerant to condense into a high-pressure liquid.
3. Expansion: High-pressure liquid travels out through the liquid line to the outdoor unit thermal expansion valve (TXV) or electronic expansion valve (EEV), where it undergoes a sudden pressure drop.
4. Evaporation: The low-pressure, low-temperature liquid/vapor mixture enters the outdoor evaporator coil. Outdoor air forced over the coil by the fan transfers ambient thermal energy into the cold refrigerant, boiling it back into a superheated gas before it re-enters the compressor suction port.
When diagnosing air delivery issues as shown in duct schematics, measure Total External Static Pressure (TESP) using a dual-port digital manometer. Insert pressure probes into the return duct plenum (before the filter) and supply duct plenum (after the heat exchanger). TESP equals Supply Static Pressure minus Return Static Pressure. Excessively high return-side negative pressure indicates undersized return ducting or a clogged filter.
Always isolate power at the external breaker box before testing low-voltage transformer continuity or servicing internal air handler wiring. High-voltage capacitors connected to PSC blower motors retain dangerous electrical charges even after main power disconnect. Discharge capacitors through a 20k-ohm, 10-watt resistor before handling terminals.
Troubleshooting System Failures with HVAC Schematics
When systematically isolating faults using a forced air heating system diagram, technicians rely on point-to-point voltage checks, resistance measurements, and static pressure differential evaluations. For deeper fault isolation strategies, consult our HVAC static pressure troubleshooting manual.
Diagnosing Blower Motor and Air Handler Electrical Open Circuits
If the air handler fails to circulate air during a heat call:
1. Check for 24VAC across terminal G and C on the air handler control board. If 24VAC is present but the blower motor will not energize, verify line voltage (120VAC or 240VAC) across the motor supply terminals on the control board.
2. If line voltage is present at the board terminals, disconnect power and measure winding resistance across the blower motor leads. PSC motors should show measurable resistance across Run, Start, and Common windings (e.g., 5–30 ohms). An infinite reading (OL) indicates an open thermal overload protector or broken internal winding wire.
3. For variable-speed ECM motors, isolate the unpowered motor and test resistance across the 5-pin communication module and 3-pin power harness. Winding resistance between any two of the three main motor phase pins must be equal and low (typically 1.0 to 3.0 ohms balance), with infinite resistance to ground.
Heat Exchanger Thermal Limit Tripping and Flame Rollout
A primary symptom of improper airflow or heat exchanger degradation is repeated opening of the high-limit switch. On the system diagram, the high-limit switch is a normally-closed (NC) bimetallic sensor located above the heat exchanger cell panel.
1. Place meter leads across the limit switch terminals during system operation. If the switch opens and reads 24VAC across its terminals while the burners are lit, the system is overheating.
2. Inspect for restricted airflow: verify return duct static pressure, check for a dirty return filter, inspect the blower wheel fins for dirt loading, and ensure supply air registers are unblocked.
3. If airflow static pressure is within OEM specifications (below 0.50 in. W.C.) but the limit switch trips, conduct a visual inspection of the primary heat exchanger for cracks, internal soot buildup, or severe rust buildup that compromises airflow and flame pass-through.
Refrigerant Delta T and Compressor Performance Issues
In heat pump heating mode, poor heating capacity requires diagnosing the refrigerant circuit using manifold gauges alongside thermodynamic performance charts.
1. Measure suction line superheat and liquid line subcooling at the outdoor service valves. In heating mode, typical liquid subcooling ranges from 8°F to 14°F at the indoor coil outlet (liquid line).
2. Low head pressure combined with high suction pressure indicates damaged compressor internal valves or a leaking reversing valve slide.
3. High head pressure combined with low suction pressure indicates an outdoor heat exchanger metering device (TXV) restriction or severe liquid line plug. For detailed valve troubleshooting steps, see the refrigerant circuit diagnostics guide.
Forced Air Heating System Diagram Technical FAQ
How do you differentiate between 24VAC control wiring and 120V/240V power on the diagram?
Schematics differentiate line voltage from low voltage through distinct line weights and legend markings. Line voltage (120V or 240V power to the blower motor, compressor, and transformer primary) is represented by thick solid black lines. Low voltage (24VAC control wiring to thermostats, sensors, and contactor coils) is drawn using thin solid lines, dashed lines, or color-coded wires labeled with terminal letters (R, C, W, Y, G). Transformer coils physically separate these two sections on the schematic diagram.
What schematic symbols represent the furnace heat exchanger limit switches?
Limit switches are drawn on schematics as a switch contact symbol accompanied by a bimetallic disc or temperature-sensitive symbol. They are labeled as NC (Normally Closed) in series with the 24VAC signal to the main gas valve or primary ignition control circuit. Rollout switches—designed to detect flame spilling out of the burner box—are shown with a manual reset button symbol tied to the limit string on the circuit trace.
Where is the reversing valve shown in a dual-fuel heat pump forced air diagram?
The reversing valve solenoid (O/B terminal) is typically located in the outdoor unit control section of the dual-fuel diagram. It is represented electrically as an inductive coil connected between the terminal board (O or B wire) and the 24VAC Common (C). Hydraulically, the physical 4-way valve body is shown connected between the compressor discharge line, compressor suction line, outdoor coil header, and indoor air handler coil line set.
Why does the return duct require specific sizing in forced air schematics?
Return duct sizing specs on mechanical schematics ensure adequate air mass flow (CFM) reaches the blower motor inlet without exceeding maximum static pressure limits. Undersized return ducts create excessive negative pressure (vacuum) in the air handler intake cabinet. This starves the blower motor, causes ECM motors to over-speed and overheat, drops supply airflow across the heat exchanger, and triggers high-temperature limit safety lockouts.
How do schematic wiring colors map to standard HVAC wire nuts and terminals?
Standard HVAC industry schematics use standardized wire insulation colors mapped to standardized terminal strip letters: Red (R – 24VAC power), White (W – Heating stage 1), Yellow (Y – Compressor control), Green (G – Blower fan switch), Blue/Cyan (C – Common ground), and Orange/Brown (O/B – Reversing valve). In field retrofits, field-installed wire colors must be confirmed at both the thermostat base plate and the air handler integrated control board using terminal labels rather than relying purely on wire jacket color.
Step-by-Step Guide to Understanding the Forced Air Heating System Diagram
Identify – Locate the main schematic posted inside the furnace access panel door.
Locate – Find the 120V line voltage input and 24V step-down transformer secondary terminals.
Reference – Match color-coded thermostat wires (R, W, Y, G, C) to control board terminals.
Connect/Route – Verify high-voltage wiring to the blower motor and dual-run capacitor.
Verify – Measure 24VAC across terminal R and C to ensure steady control power.
Troubleshoot – Test continuity across open limit switches if the blower runs without heat.
