BrassCraft Sink Shut Off Valve Diagram: Proper Routing 2026
A sink shut off valve diagram illustrates 1/2-inch Nominal copper or PEX wall stub-outs feeding into dual 3/8-inch OD compression angle stop valves. Located below the tailpiece and P-trap assembly, these valves control hot and cold water lines supplying the faucet or garbage disposal bypass, allowing isolated water supply shutoff during repairs.
📌 Key Takeaways
- Standard shut off valves feature a 1/2-inch NOM inlet and a 3/8-inch OD compression outlet.
- Hot water supply valves are positioned on the left stub-out; cold water supply valves are on the right.
- Compression nuts require 12 to 15 ft-lbs of torque; over-tightening crushes the brass ferrule and causes leaks.
- Mineral buildup inside quarter-turn ball valves and multi-turn gate valves is the primary cause of valve seize.
- Replace shut off valves immediately if corrosion appears around the valve body, packing nut, or wall escutcheon.
Understanding a comprehensive sink shut off valve diagram is essential for diagnosing water supply restrictions, executing fixture retrofits, and assembling code-compliant drainage pathways under residential and commercial sinks. Modern under-sink plumbing systems integrate high-pressure potable water distribution manifolds with unpressurized gravity drain networks. A technical schematic outlines the spatial arrangement and mechanical connections between dual supply stop valves, fixture tailpieces, the main drain assembly, and localized venting mechanisms. Whether installing a commercial basin or servicing a dual-basin kitchen sink, following OEM piping schematics and standardized mechanical specs ensures optimal flow rates and long-term joint integrity.
Sink Shut Off Valve Diagram: Key Supply and Drain Components
A technical sink shut off valve diagram details two distinct fluid mechanical systems: the high-pressure supply circuit and the gravity-fed wastewater circuit. Understanding how these sub-assemblies interface ensures correct component selection during service or installation.
Water Supply Stop Valves and Flexible Risers
The pressurized side of the system originates at the rough-in wall stub-outs, typically constructed from 1/2-inch Nominal copper pipe, PEX tubing, or CPVC. As depicted in standard schematics, these lines connect directly to quarter-turn ball valves, known as angle stops or straight stops. Modern specifications favor quarter-turn valves over multi-turn compression stem valves due to their synthetic PTFE seals and resistance to mineral build-up. The outlet side of the stop valve uses a 3/8-inch Outside Diameter (OD) compression fitting that couples to a flexible braided stainless steel riser feeding the faucet shank.
Drain Assembly, Tailpiece, and Slip Joint Fittings
The wastewater stream begins at the sink strainer flange, which seals against the basin body using plumbers putty or silicone gaskets. Directly beneath the flange sits the 1-1/2-inch DWV (Drain, Waste, and Vent) tailpiece. Components in this section rely on slip joint connections secured by threaded slip nuts and bevel washers made of polyethylene or rubber. Torque applied to the slip nut compresses the washer against the telescoping pipe section, yielding an airtight, liquid-tight seal that accommodates minor axial misalignment.
P-Trap, Garbage Disposal, and AAV Vent Pipe Integration
Downstream of the tailpiece, wastewater flows through the continuous waste arm or directly into a motorized garbage disposal unit. The discharge tube from the disposal angles down toward the P-trap J-bend. The P-trap maintains a standing water seal between 2 and 4 inches deep, preventing hazardous sewer gas from escaping into the living space. Where primary stack venting is structurally unfeasible, an Air Admittance Valve (AAV valve) is fitted on a vertical branch pipe above the trap weir to provide localized pressure equalization during drainage cycles.
Standard kitchen supply stop valves utilize a 1/2-inch Nominal Compression (5/8-inch actual OD) inlet with a 3/8-inch OD male compression outlet compliant with ASME A112.18.1/CSA B125.1 specs. Drain tailpieces for kitchen applications require 1-1/2-inch outer diameter PVC or brass tubing, whereas lavatory basins utilize 1-1/4-inch OD standards.
How to Read and Apply the Under Sink Shut Off Valve Diagram
Translating a sink shut off valve diagram into physical installation requires systematic verification of pipe pitch, thread sealing compounds, and mechanical mechanical fastener specifications. Review our kitchen plumbing rough-in specifications for detailed layout clearances prior to fitting alignment.
Tracing Hot and Cold Water Lines to Angle Stops
In standard mechanical drawings, the hot water supply is conventionally positioned on the left, with the cold water line positioned on the right. Verify that the wall stub-out centerline rests 2 to 4 inches above the cabinet floor to allow proper radius clearance for flexible risers. When mounting brass compression angle stops to bare copper, slide the brass compression nut and solid copper ferrule onto the pipe. Apply a thin coating of pipe joint compound to the exterior of the ferrule (avoiding thread contamination) and torque the valve body onto the pipe using dual open-ended wrenches.
Assembling the Continuous Waste Arm and P-Trap
Orient the slip joint nuts with their threads facing the receiving pipe hub. Insert the bevel washer with its tapered edge pointing toward the joint interface. Slip the tailpiece into the P-trap inlet hub, ensuring a minimum insert depth of 1 inch to prevent joint slippage under thermal expansion. Maintain a minimum downward slope of 1/4-inch per linear foot on all horizontal waste arms running toward the wall drain stub-out to adhere to International Plumbing Code (IPC) guidelines.
| System Component | Fitting Specification | Primary Material | Torque / Tightening Spec |
|---|---|---|---|
| Angle Stop Inlet | 1/2″ Nom Compression (5/8″ OD) | Forged Lead-Free Brass | Hand-tight + 3/4 turn (dual wrench) |
| Riser Outlet Fitting | 3/8″ OD Compression | Braided Stainless Steel / Brass | Hand-tight + 1/2 turn |
| Drain Tailpiece Joint | 1-1/2″ Slip Joint | Schedule 40 PVC / Polypropylene | Hand-tight + 1/4 turn max |
| Air Admittance Valve (AAV) | 1-1/2″ MPT Connection | ABS / PVC with silicone seal | Hand-tight only with PTFE tape |
Integrating the Garbage Disposal and AAV Valve Branch
When installing a garbage disposal unit, remove the internal knockout plug inside the disposal inlet stub before connecting the dishwasher drain hose. Secure the main elbow tube to the disposal housing using the supplied two-bolt metal flange plate. For unvented branch lines, extend a vertical riser pipe at least 4 inches above the horizontal trap weir before threading the AAV valve into place. Consult our commercial faucet installation guide for details on routing high-flow supply lines.
Never apply PTFE tape or pipe dope to the male threads of compression fittings on stop valves. Compression seals rely strictly on the mechanical wedge created by the brass ferrule against the smooth valve seat, not thread intervention.
Troubleshooting Common Under Sink Shut Off Valve Diagram Faults
Diagnosing under-sink leaks or slow drainage requires comparing the physical assembly against the structural layout in the sink shut off valve diagram. Refer to established plumbing leak detection procedures if persistent moisture accumulates inside cabinet bases.
Resolving Compression Valve Stem and Ferrule Leaks
If water weeps around the valve stem during operation, tighten the packing nut behind the valve handle 1/16th of a turn clock-wise using a smooth-jaw wrench. If the leak originates at the wall stub-out compression connection, over-tightening may have deformed the copper pipe or crushed the ferrule oval. Disassemble the joint, inspect the pipe for scoring, and if necessary, cut the tubing back using a wheel cutter to seat a fresh brass ferrule.
Eliminating Drain Assembly and Slip Joint Seepage
Persistent drips at the P-trap or tailpiece slip joint usually indicate misalignment, distorted bevel washers, or cracked slip nuts. Ensure the pipes enter receiving sockets at true 90-degree angles without stress loads. Plastic slip nuts can fracture if over-torqued with pipe wrenches; hand-tightening plus a quarter turn with rubber strap wrenches is recommended for Schedule 40 PVC or polypropylene assemblies.
Failure to install a P-trap or operating an AAV valve with a seized mechanical diaphragm allows sewer gases (including hydrogen sulfide and methane) to vent directly into structural interiors, posing severe health hazards and explosive risks.
Sink Shut Off Valve Diagram Questions and Technical Specifications
What is the functional difference between an angle stop and a straight stop in a diagram?
An angle stop features an outlet port positioned at a 90-degree angle to the supply inlet pipe, making it ideal for wall-rough-in stub-outs. A straight stop features an inline 180-degree flow path, designed for water supply lines coming straight up through the floor of the sink cabinet.
How high above the P-trap weir must an AAV valve be positioned?
According to international building codes, an Air Admittance Valve (AAV) must be mounted vertically at least 4 inches above the top of the horizontal trap arm weir, and a minimum of 6 inches above the insulation level of any fixture branch drain line connected to the sink.
Why do slip joint connections under sinks leak after thermal cycling?
Repeated thermal expansion and contraction from hot water discharge causes plastic tubing and bevel washers to relax over time. This minor shifting reduces mechanical tension on the washer face. Re-snugging the slip nut by hand typically restores the seal without requiring washer replacement.
What is the correct knockout plug removal procedure for garbage disposals?
Insert a flat-head punch or screwdriver against the plastic knockout plug located inside the disposal’s 7/8-inch dishwasher nipple. Strike the punch sharply with a hammer to break the retention tab. Retrieve the loose plastic disc from inside the main grinding chamber before completing electrical and plumbing installation.
Can push-to-connect fittings replace threaded compression stop valves?
Yes, push-to-connect stop valves compliant with ASSE 1061 standards can be used on copper, PEX, or CPVC stub-outs. However, the pipe end must be clean, deburred, cut perfectly square, and marked for depth insertion (typically 15/16-inch) to ensure the internal O-ring and stainless steel grab ring lock effectively.
Step-by-Step Guide to Understanding the Sink Shut Off Valve Diagram
Identify – Locate the hot (left) and cold (right) water supply stub-outs exiting the wall underneath the sink cavity.
Locate – Position the angle stop shut off valves on the 1/2-inch copper or PEX stub-outs directly clear of the P-trap assembly.
Reference – Consult the diagram to align the 3/8-inch compression outlets toward the faucet shanks and garbage disposal inlet line.
Connect/Route – Thread the braided stainless steel flex lines from the shut off valve outlets upward past the tailpiece to the sink faucet.
Verify – Open the shut off valves fully, check compression fittings for moisture, and confirm proper water flow without line binding.
Troubleshoot – Tighten the packing nut 1/4 turn with an adjustable wrench if seepage occurs around the valve stem upon pressure testing.
Sink Shut Off Valve Diagram: Frequently Asked Questions

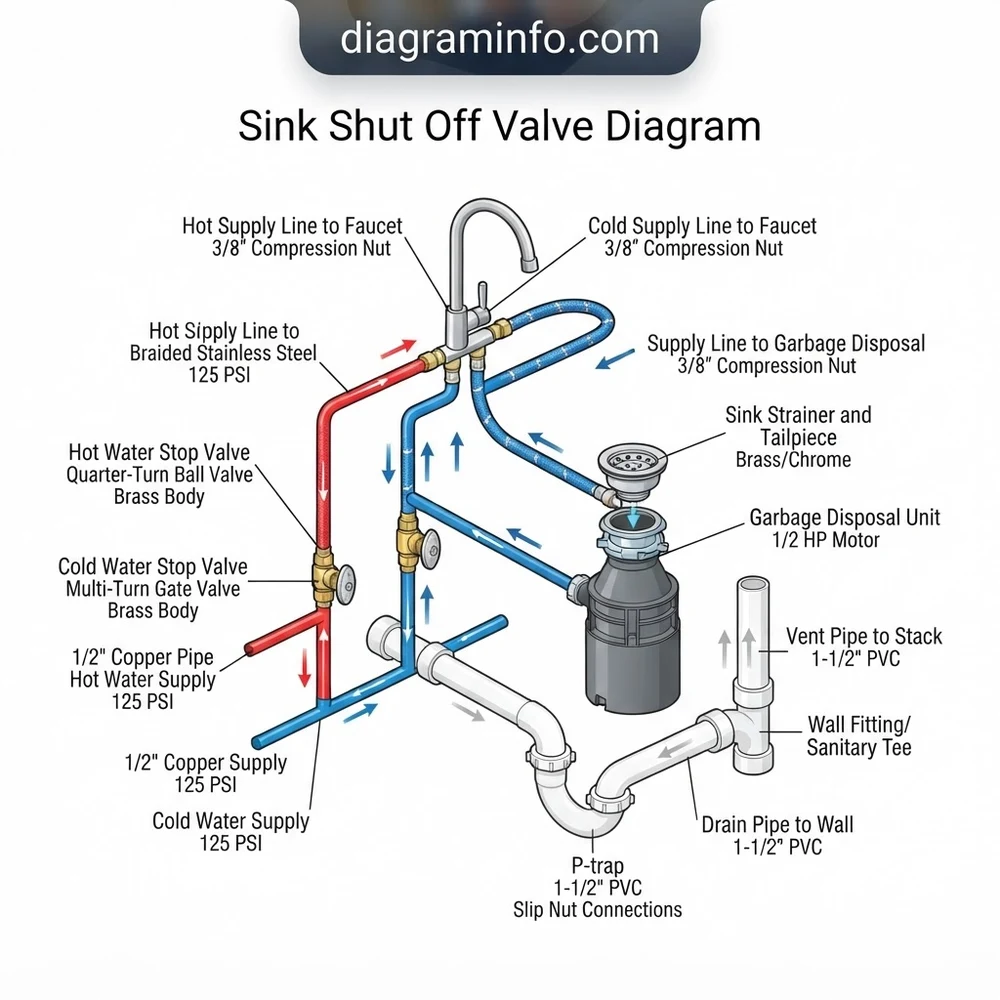

What does the sink shut off valve diagram show?
The diagram illustrates the layout of hot and cold water angle stop valves connected to 1/2-inch wall stub-outs. It highlights the spatial relationship between supply shut off valves, flex lines, faucet shanks, and drainage components like the P-trap, tailpiece, and garbage disposal branch for clear plumbing system identification.
How do I read the sink shut off valve diagram?
Trace main supply pipes exiting the wall to the angle stop valves. Red lines denote hot water (left), while blue lines represent cold water (right). Flex lines lead upward past the drain assembly and tailpiece to the faucet, while auxiliary ports feed into equipment like dishwashers or garbage disposal units.
What are the main components in sink shut off valve diagram?
Key components include hot and cold angle stop valves, flexible supply lines, 1/2-inch wall stub-outs, and compression nuts. The diagram also contextualizes surrounding drainage elements, including the sink tailpiece, P-trap assembly, vent pipe connection, and garbage disposal discharge tube to prevent layout interference during repairs.
What are common problems with sink shut off valve diagram?
Common issues shown include leaking packing nuts, stuck valve stems, and corroded compression rings. Failure to align shut off valves with the P-trap or tailpiece can strain flexible supply lines, while improper vent pipe air balancing can cause vacuum pressure that damages valve seals during emergency shutoffs.
Can I use sink shut off valve diagram for DIY repair?
Yes, the diagram enables DIY replacement of standard compression angle stops, supply hoses, and faucet connectors. However, if main wall stub-outs are heavily corroded, soldered copper joints require modification, or vent pipe routing is compromised, consulting a licensed plumber is recommended to ensure code compliance.
What tools do I need for sink shut off valve diagram?
You need adjustable wrenches, a basin wrench, a pipe cutter, Teflon tape, and thread sealant. When working near the drain assembly or P-trap, keep a catch bucket and plumber’s putty ready to handle excess water drained from the tailpiece when disconnecting supply lines or replacing valves.
