H4 Headlight Wiring Diagram: Troubleshooting 2026
A standard 3-pin H4 headlight wiring diagram utilizes three main terminals: Pin 1 for the ground wire (typically black), Pin 2 for the low beam hot wire (red/white), and Pin 3 for the high beam hot wire (red/yellow). Always run 14 AWG copper wiring through a 30A relay to prevent voltage drops.
📌 Key Takeaways
- Standard H4 dual-beam bulbs use 3 pins: Ground (Pin 1), Low Beam (Pin 2), and High Beam (Pin 3).
- High-draw halogen and LED upgrades require 14 AWG wire minimum and a 30A automotive relay harness.
- A poor chassis ground wire connection causes over 80% of flickering or dim headlight issues.
- Always use heat-shrink butt connectors and loom to protect hot wire runs from engine heat and shorts.
- Consult specific OEM schematics as wire color codes vary significantly across vehicle manufacturers.
Navigating a modern or legacy dual-beam headlight wiring diagram requires a precise understanding of circuit topography, relay logic, and conductor ampacity. Whether you are performing an aftermarket high-intensity discharge (HID) or LED retrofit, replacing a melted OEM harness socket, or installing an auxiliary lighting harness through a 4-pin electro-mechanical relay, accurate pin assignment and terminal identification are essential to prevent thermal damage and voltage degradation. Incorrectly routed current can melt multi-function column switches, drop system operating voltage below functional thresholds, or trip diagnostic trouble codes (DTCs) in modern body control modules (BCM). The following technical reference details standard pinouts, color coding schemes, conductor gauge selection, and step-by-step wiring procedures for standard automotive lighting systems.
Standard Headlight Wiring Diagram Wire Color Code and Pin Assignments
According to SAE J1128 and DIN 72551 automotive standards, wire color codes vary by manufacturer, but pin functions on standardized sockets like H4 (9003), H13 (9008), and 9007 follow rigid terminal arrangements. Understanding terminal identification at the connector face prevents inadvertent short circuits between the high-beam hot wire and low-beam supply lines.
| Terminal / Pin ID | Circuit Function | Standard Wire Color Code | Recommended Gauge & Nominal Voltage |
|---|---|---|---|
| Pin 30 (Relay) | Fused Battery Constant Power (Hot Wire) | Red / Yellow Striped | 12 AWG or 14 AWG (12V–14.4V DC) |
| Pin 85 (Relay) | Relay Coil Ground / Control Trigger | Black or Brown | 18 AWG (12V DC Low Current) |
| Pin 86 (Relay) | Switch Signal Input (From Light Switch) | Blue / White Striped | 18 AWG (12V DC Signal) |
| Pin 87 (Relay) | Relay Switched Output to Headlight Hot Wire | Blue or Red | 14 AWG (12V–14.4V DC Load) |
| Terminal 56a (H4/Socket) | High Beam Filament Supply | White or Red/Blue | 14 AWG (12V DC Output) |
| Terminal 56b (H4/Socket) | Low Beam Filament Supply | Yellow or Green/Black | 14 AWG (12V DC Output) |
| Terminal 31 (Socket Ground) | Common Low/High Return Ground Wire | Black or Solid Brown | 12 AWG or 14 AWG (0V Chassis Ground) |
When viewing a female 3-prong H4/9003 bulb connector from the front face (slots facing you with the vertical slot on top): the left slot represents the primary ground wire connection (Terminal 31), the top horizontal slot is the low-beam hot wire (Terminal 56b), and the right slot is the high-beam hot wire (Terminal 56a). On switched-ground circuits common to older Japanese platforms (e.g., Toyota, Nissan), constant 12V positive potential sits on the common pin, while the light switch toggles the ground wire connection between high and low beam paths.
In heavy machinery, off-highway equipment, or conversions utilizing AC-to-DC driver modules, an internal neutral wire or secondary reference plane may be present inside the ballast/driver enclosure. Always ensure secondary AC output lines in high-intensity discharge systems are strictly isolated from vehicle DC chassis ground.

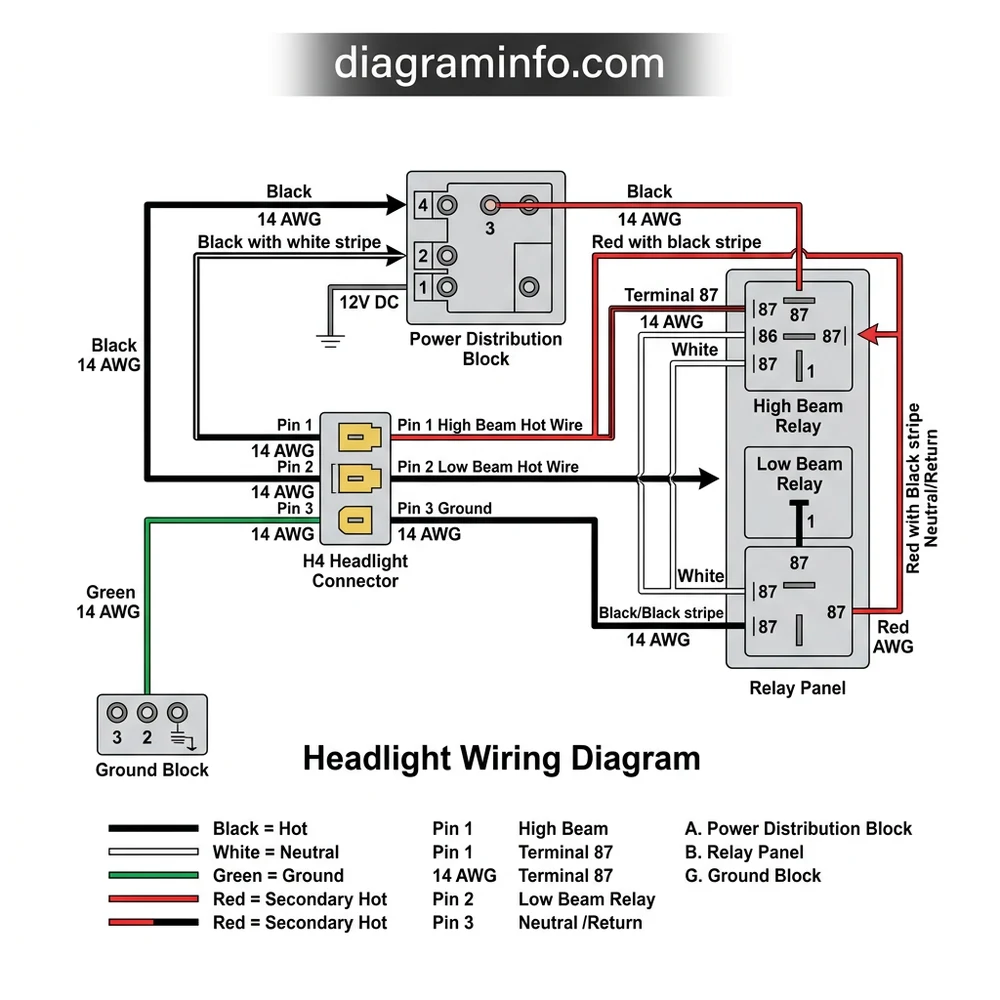

How to Wire a Headlight Relay System Using the Wiring Diagram
Executing an upgraded relay harness bypasses fragile factory dashboard switches by supplying direct battery current to the headlamp assemblies. Follow this connection sequence referencing standard terminal block layouts and socket pin locations.
1. Isolate the Circuit and Mount Central Components
Disconnect the negative battery cable to eliminate short-circuit risks during terminal block installation. Mount two 4-pin or 5-pin 40-amp automotive relays (one dedicated to low beams, one to high beams) on a clean engine bay bulkhead near the primary power distribution point. Mount an insulated multi-position terminal block nearby if you are routing custom auxiliary or dual-pod lighting connections.
2. Route Primary Fused Power (Hot Wire Feed)
Run a continuous 12 AWG copper hot wire directly from the positive battery terminal or primary alternator B+ post to an inline fuse holder. Install a 20-amp or 30-amp MAXI fuse within 7 inches of the battery connection. Route the fused hot wire line to the primary terminal block or splice it directly into Terminal 30 on both low-beam and high-beam relays.
Do not install fuses larger than the ampacity rating of the narrowest gauge wire in the circuit. Utilizing a 30A fuse on a 16 AWG wire branch creates a severe fire risk if a direct short to ground occurs.
3. Connect Trigger Lines from the OEM Harness
Identify the factory OEM driver-side headlight socket. Plug a tap adapter or wire into the factory low-beam signal line and connect it to Terminal 86 on the low-beam relay. Connect the factory high-beam signal line to Terminal 86 on the second high-beam relay. Terminal 85 on both relays must be connected to a clean chassis ground wire using a ring terminal secured to clean, unpainted metal.
4. Terminal Output Routing to Lamp Sockets
Connect Terminal 87 on the low-beam relay to the low-beam pin (Terminal 56b) on both left and right headlamp ceramic sockets using 14 AWG stranded copper wire. Similarly, connect Terminal 87 on the high-beam relay to the high-beam pin (Terminal 56a) on both sockets. Ensure all primary output splices use solder-sleeve heat shrink connectors or crimp connectors sealed with polyolefin dual-wall shrink tubing.
5. Establish Low-Resistance Ground Wire Termination
Run a dedicated 12 AWG ground wire from Terminal 31 on each headlight ceramic socket directly to a dedicated battery-to-chassis grounding point. Do not rely on rust-prone sheet metal screws; use an M6 or M8 stainless steel bolt attached to the frame or unibody structure, prep with dielectric grease, and torque to manufacturer specification (typically 9–11 Nm).
Relay Operating Parameters: Coil Resistance: 75–90 Ohms | Pull-In Voltage: ≤ 8.5V DC | Continuous Contact Current Rating: 40A at 14V DC | Temperature Range: -40°C to +125°C.
Wire Gauge Requirements and Voltage Drop Calculations
Automotive lighting output is highly sensitive to line voltage drop. Standard halogen bulbs produce luminescent output proportional to the 3.4 power of applied voltage. A mere 10% drop in operating voltage (falling from 13.2V to 11.88V) results in a nearly 30% reduction in light output (lumen emission).
When selecting wire gauge for a headlight wiring diagram, calculate maximum current draw using Ohm’s Law ($I = P / V$). A standard 55W/60W dual-filament bulb operating at 13.5V nominal alternator charge voltage draws approximately 4.07 to 4.44 Amps per side. Dual lamps on a single supply run draw approximately 9 Amps total.
- 18 AWG: Rated up to 7 Amps max (5–10 ft run length). Suitable only for relay trigger wires (Pins 85 and 86).
- 16 AWG: Rated up to 10 Amps max. Acceptable for short individual runs to single 55W LED/Halogen units under 4 feet.
- 14 AWG: Rated up to 15 Amps max. Recommended standard for dual lamp supply branches (Pin 87 to ceramic socket terminal blocks).
- 12 AWG: Rated up to 20 Amps max. Standard requirement for primary fused battery feeds (Pin 30) and master ground wire home-runs.
To verify circuit integrity, perform a dynamic voltage drop test using a digital multimeter (DMM) set to DC millivolts while the headlamps are illuminated under full alternator load:
- Place the positive DMM probe on the positive battery terminal post.
- Place the negative DMM probe directly on the high/low beam hot wire pin at the back of the illuminated bulb socket.
- A reading exceeding 0.3V (300 mV) indicates excessive inline resistance caused by undersized wire gauge, corroded terminal block connections, or pitted relay contacts.
- Repeat the test on the ground side: probe between the bulb ground wire pin and the negative battery post. Acceptable ground-side voltage drop must not exceed 0.1V (100 mV).
Resolving Common Headlight Wiring Diagram Faults and High Resistance
System failures usually manifest as dim filaments, hyper-flashing control units, rapidly cycling relays, or complete loss of beam functions. Below are key physical wiring errors and diagnostic remediation steps.
1. Reverse Pin Assignment on High/Low Beam Sockets
Symptom: Dim illumination across both filaments simultaneously or low beams activating when high beams are selected.
Cause: Inverting the ground wire with either the high or low hot wire pin forces current to flow in series through both internal filaments to find an alternate ground path.
Fix: Depress the locking tangs on the socket terminal block using a pin extractor tool. Refer to the standard H4 pinout matrix, re-index the pin terminals, and confirm ground path continuity with an ohmmeter (resistance to ground should measure < 0.2 Ohms).
2. Floating Ground Wire on Switched-Ground Circuits
Symptom: Relays buzz loudly (chatter) or headlamps stay permanently illuminated regardless of dash switch position.
Cause: Modern vehicles with pulse-width modulation (PWM) or switched-ground steering column circuits lack a static ground reference line.
Fix: Install a flyback diode (1N4007) or reverse-polarity suppression harness across relay coil terminals 85 and 86, or wire an inline capacitor (4700μF 25V) to smooth PWM voltage oscillations originating from the body control module.
3. Melted Plastic Sockets and Scorched Terminal Blocks
Symptom: Intermittent bulb cutout when driving over bumps; burned plastic smell near headlamp housing.
Cause: High resistance at cheap brass pin crimps generates local thermal runaway, melting plastic OEM connectors.
Fix: Cut off burned factory plugs and solder ceramic high-temperature (1000°C rated) socket pigtails. Utilize terminal blocks equipped with stainless steel pressure plates rather than direct screw-down studs to prevent stranded wire shear.
4. CAN-Bus Bulb-Out Diagnostics Trapped in Circuit
Symptom: Headlights illuminate briefly for 2–3 seconds and then completely shut off.
Cause: The factory vehicle computer monitors current draw. Lower resistance from aftermarket LED upgrades triggers “bulb out” logic, causing the BCM to open solid-state high-side drivers.
Fix: Install dedicated load resistors (6 Ohm, 50W mounted to metal chassis surfaces) in parallel with the low-beam input feed to simulate standard 55W halogen resistance curves.
Headlight Wiring Diagram Questions Answered
How do I identify pin positions on an unmarked 3-prong headlight socket?
Set a digital multimeter to resistance mode (Ohms). Measure the static resistance across the three male pins on the bulb itself. The two pins that yield the highest resistance reading represent the series circuit between the high-beam and low-beam filaments. The remaining third pin is the common ground terminal block pin. Once ground is identified, test continuity between ground and the other pins individually; the pin with slightly lower resistance corresponds to the higher-wattage high-beam filament.
What size inline fuse should be installed in a custom headlight wiring harness?
Size the inline fuse based on total circuit power demand plus a 25% safety margin, without exceeding the wire gauge ampacity limit. For dual standard 55W halogen low beams drawing 8.15 Amps combined at 13.5V DC, a 15-amp mini blade fuse provides optimal protection when wired with a 14 AWG primary hot wire feeder. If installing 100W off-road halogen bulbs (drawing ~15 Amps combined), step up to a 20-amp fuse backed by 12 AWG wiring.
Can I run a single ground wire for both left and right headlamp assemblies?
While physically possible, routing a single shared ground wire introduces a single point of failure and increases total circuit voltage drop due to combined return current flow. Standard wiring practice dictates running separate ground wires from each headlamp socket to independent chassis grounding points or merging them at a heavy 12 AWG common ground terminal block tied directly to the battery negative post.
Why do my retrofitted LED headlights flicker when connected to a standard relay system?
Flickering occurs because modern vehicle lighting channels use Pulse Width Modulation (PWM) from the BCM to control light output and prolong bulb life. Rapid voltage pulses cause the electro-mechanical relay coil to toggle on and off dozens of times per second. To stabilize voltage, install a plug-and-play anti-flicker PWM filter containing a 25V electrolytic capacitor and inline rectifier diode between the factory switch harness signal wire and relay terminal 86.
What is the functional difference between a power-switched and ground-switched headlight circuit?
In a power-switched circuit (standard in most domestic vehicles), the negative ground wire terminal is permanently tied to chassis ground, while the dash switch or relay applies 12V positive hot wire potential to select high or low beam pins. In a ground-switched circuit (common on Japanese imports), 12V positive power is constantly supplied to the common terminal block pin whenever the ignition or headlight switch is ON, and selector switches switch the ground wire return side to complete individual beam circuits.
Step-by-Step Guide to Understanding the Headlight Wiring Diagram
Identify – Disconnect the negative battery terminal and inspect the socket pin assignment on your replacement headlight harness.
Locate – Find a suitable clean metal location on the chassis frame to attach the primary ground wire.
Reference – Match the wire color code on your diagram to identify the low beam hot wire, high beam hot wire, and ground path.
Connect/Route – Strip and crimp 14 AWG primary wire connections using heat-shrink terminals, routing harnesses away from hot exhaust manifolds.
Verify – Reconnect the battery, test low beam and high beam functionality, and check pin voltage using a digital multimeter.
Troubleshoot – If bulbs illuminate dimly or flicker, clean the ground wire contact point to remove paint or corrosion.
