Miller Bobcat 250 Parts Diagram: 2026 Component Guide
The Miller Bobcat 250 parts diagram details the engine-driven generator system configuration, showing the drive motor (Kohler CH730 or Subaru EH72), rotor/stator assembly, slip ring brush arrangement, and front panel control layout. It highlights part numbers for the 10,000-watt generator, fuel pump, oil filter, and receptacle circuit breaker assemblies.
📌 Key Takeaways
- Identifies Kohler CH730 (23.5 HP) or Subaru EH72 engine system component configurations and part numbers.
- Locates generator slip ring brushes requiring inspection when AC output drops below 120/240V.
- Specifies factory oil drain plug torque (21 ft-lbs) and spark plug gap (0.030 in / 0.76 mm).
- Highlights common failure points like clogged fuel shut-off solenoids, worn brushes, and corroded ground wires.
- Recommends professional servicing for internal generator rotor alignment and transformer rewinding.
Navigating repairs on the Miller Bobcat 250 engine-driven welder requires absolute precision when matching replacement parts and tracing electrical faults. Utilizing an official OEM parts blueprint ensures accurate identification of internal generator components, engine maintenance kits, and control panel wiring assemblies. Whether performing routine field service or executing a complete overhaul of the power generation module, understanding the structural layout prevents costly misdiagnoses. OEM documentation outlines exact part numbers, wire color codes, and fastener specifications across various engine configurations, including Kohler Command PRO CH730 and Robin Subaru EH722 models manufactured across multiple production years.

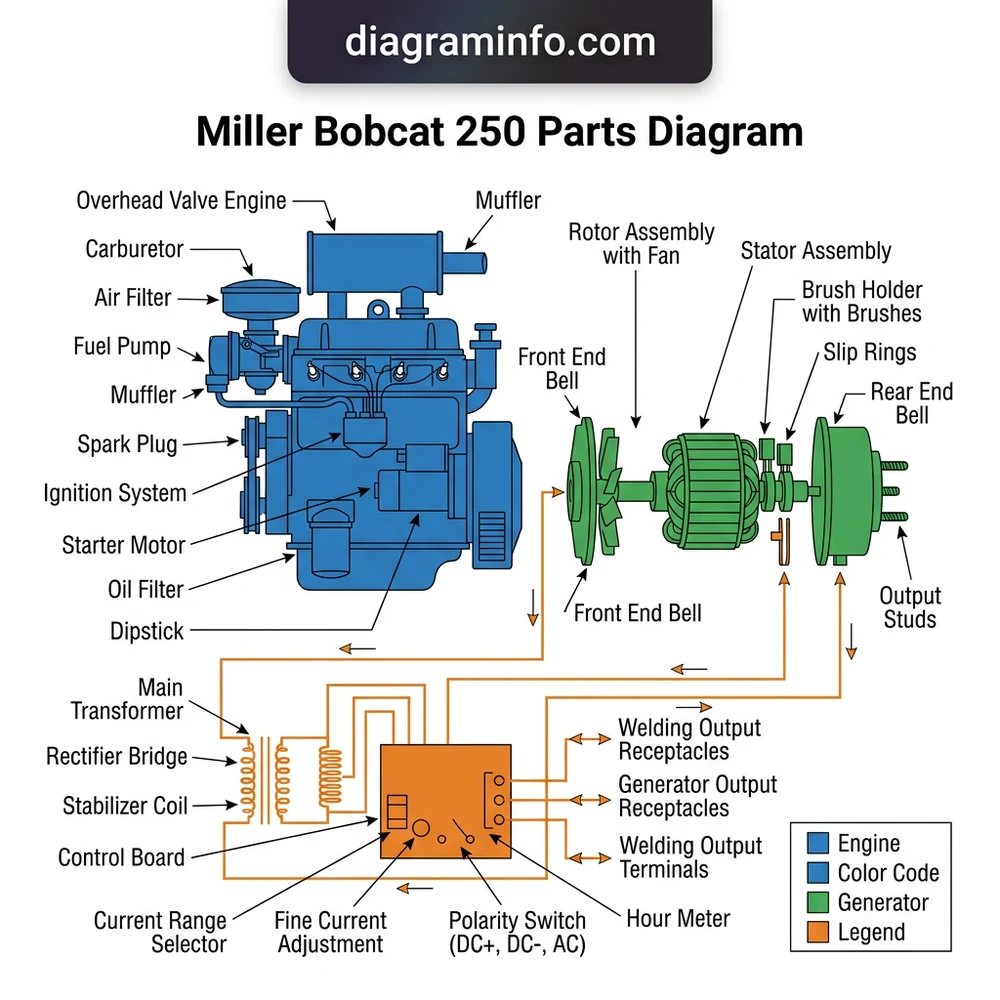

Miller Bobcat 250 Parts Diagram: Assembly and Component Breakdown
The structural framework of the Miller Bobcat 250 is engineered to isolate high-vibration engine mechanics from delicate solid-state control electronics. When referencing the exploded structural views, the machine is logically divided into three primary functional zones: the power plant drive assembly, the generator field core, and the front-panel output interface.
Engine Drive Assembly and Mechanical Foundation
The primary power plant consists of a heavy-duty twin-cylinder four-stroke engine (commonly a Kohler CH730 rated at 23.5 HP or a Subaru EH722). As indicated on the main mechanical assembly schematic, the engine is secured to the base chassis using four vibration-isolation rubber mounts (OEM Part # 083152) torqued to 25 ft-lbs. Key engine-driven components detailed in the schematic include the starter motor, flywheel, oil pressure safety switch, and vacuum fuel pump. Directly connected to the engine crankshaft via a tapered fit drive shaft is the cooling fan blower wheel, which directs forced air across the rotor and stator windings.
Generator Field Core, Rotor, and Stator Configuration
The power generation system convert mechanical energy into high-frequency AC current. The rotor assembly (OEM Part # 210889) spins inside the stationary stator housing (OEM Part # 210887). The main generator layout details the positioning of the dual carbon brush assembly (OEM Part # 161160) riding on copper slip rings. Excitation voltage from the control board flows through these brushes to induce a magnetic field in the rotor. Surrounding the rotor, the stator contains both auxiliary power windings (120V/240V AC) and main welding power windings, wired directly into heavy-duty aluminum heat-sink bridge rectifiers.
Control Panel Module and Electrical Interface Layout
The front panel houses all user controls, circuit protection devices, and output studs. Key components callouts on the control panel schematic include the primary range selector switch (OEM Part # 207038), fine amperage potentiometer rheostat (OEM Part # 208534), printed circuit board PCB1 (OEM Part # 219338 or equivalent by serial range), and thermal-magnetic circuit breakers. To aid in part selection, reference the standard component specifications in the reference table below.
| Diagram Reference | OEM Part Name | Part Number | Technical Specification / Value |
|---|---|---|---|
| Rotor Assembly | 4-Pole Revolving Field Rotor | 210889 | 3.5 – 4.2 Ω Resistance across slip rings |
| Brush Holder | Carbon Brush Set w/ Springs | 161160 | Min length 0.25 in (6.3 mm); 15 in-lbs torque |
| PCB1 Control Board | Main Auto-Idle & Field Control Board | 219338 | 12V DC input; integrated idle-solenoid relay |
| Rheostat (R1) | Fine Amperage Potentiometer | 208534 | 150 Ohm, 100 Watt wire-wound resistor |
| Selector Switch | Coarse Range Rotary Switch | 207038 | 4-Position, high-amp contactor switch |
| Bridge Rectifier | Main Power Output Rectifier Module | 201823 | 300A, 600V full-wave silicon diode array |
Main Rotor Center Bolt Torque Spec: 35 to 40 ft-lbs (47 to 54 Nm). When installing replacement slip ring brushes, ensure lead terminals are torqued to 15 in-lbs to prevent insulation melting due to high resistance contact. Refer to the welding machine rectifier diode testing section before replacing PCB1.
How to Read the Miller Bobcat 250 Schematic and Structure Layout
Interpreting a technical schematic diagram requires understanding the standardized graphic symbols and wiring callouts established by Miller Electric. A typical diagram includes two distinct visual representations: the physical exploded parts view (which shows physical spatial layout and fastener callouts) and the electrical wiring circuit diagram (which details functional current paths).
Tracing Primary Wiring and Circuit Paths
Miller uses a numbered and color-coded wire identification scheme throughout the Bobcat 250 series. Wire numbers are stamped directly on the wire insulation every few inches along the harness. On the electrical schematic, lines represent conductors, while intersecting dots indicate hard-wired junction points. Terminal strip connections (e.g., TS1) and pin numbers on multi-pin plugs (e.g., RC1 and RC2 on PCB1) are marked alongside the wire path.
- Wire 42 (Red): Supplies +12V DC battery power from the key switch (S1) through the fuse block to the engine ignition system and control board.
- Wire 21 (Black): System chassis ground path connecting the engine block, control panel frame, and auxiliary receptacle ground lugs.
- Wire 14 / Wire 15 (White/Blue): Delivers AC field excitation voltage from the control board PCB1 through the brushes to the rotor slip rings.
- Wires 1, 2, 3, & 4 (Heavy Gauge Clear/Black): Main heavy-amperage AC stator winding leads connected directly to the selector switch and rectifier heatsink assembly.
Locating Hardware Callouts and Exploded Index Bubbles
On the exploded structural view, numbered index bubbles correspond to the item index column in the OEM parts list. Item callouts framed in dashed rectangular boxes indicate sub-assemblies sold as a complete unit (such as a complete carburetor overhaul kit or complete control panel plate assembly). When ordering hardware, check whether the index specifies standard UNC thread bolts or specialized self-tapping thread-forming screws used in sheet metal panels.
When cross-referencing parts across different production years, always verify the machine serial number prefix (e.g., MA, MB, MC, or KK prefixes). Miller frequently updates internal components—such as updating PCB1 from a 10-pin plug to a 14-pin harness—without changing the external Bobcat 250 model name. For engine service details, consult a dedicated Kohler CH730 engine wiring diagram.
Troubleshooting Technical Faults Using the System Blueprint
A systematic diagnostic process using the schematic prevents premature replacement of functional parts. Use a calibrated digital multimeter (DMM) set to measure resistance (Ohms), DC voltage, and AC voltage when testing components identified on the layout.
Diagnosing Auxiliary AC Power Loss and Low Weld Output
If the engine runs smoothly at high idle (3600 RPM) but the machine produces no auxiliary 120V/240V AC power and zero weld arc current, the issue usually stems from loss of initial rotor field flashing voltage.
- Inspect Field Fuse F1: Locate fuse F1 on the front control panel schematic. Check for continuity using a multimeter. Replace if blown (10A, 250V fast-acting).
- Measure Slip Ring Resistance: Isolate the generator core. Remove the lead wires from the carbon brush holders. Measure resistance directly across the two copper slip rings. Standard resistance according to OEM specs should read between 3.5 Ω and 4.2 Ω at 70°F (21°C). An open circuit (infinite resistance) indicates a broken rotor winding; a reading below 3.0 Ω indicates a shorted rotor core requiring replacement.
- Check Carbon Brush Wear: Inspect brush lengths against the layout callouts. If brushes are worn past the minimum service line (0.25 inches) or exhibit heavy pitting, replace brush assembly 161160. Clean slip rings using a fine slip-ring polishing stone.
- Verify Field Flashing Voltage: With the engine running at high idle, measure DC voltage across brush leads 14 and 15. You should read approximately 18V to 24V DC at idle. If voltage is zero, PCB1 or the flashing diode bridge D1 has failed.
Resolving Engine Drive Ignition and Auto-Idle Failures
When the engine cranks but fails to start, or fails to drop down to low idle speed (2200 RPM) when welding stops, trace the engine control loop on the electrical blueprint.
Start at the battery supply line. Wire 42 must deliver +12V DC to the oil pressure safety switch. If engine oil pressure is low or the pressure switch fails, the ignition circuit grounds out, killing the spark to the spark plugs. Test the auto-idle solenoid by checking for continuity across the solenoid coil leads (Wire 23 to ground). The coil should read approximately 18 to 22 Ohms. If the solenoid energizes continuously without dropping, check for a shorted idle-control current sensing transformer (CT1) or a shorted switching transistor on PCB1.
High Voltage / Stored Energy Hazard: The primary stator and output capacitors store high-voltage charges even after the engine is shut off. Disconnect the negative (-) battery cable and discharge all filter capacitors using a 20k-ohm 10W resistor before touching internal rectifier plates or control board terminals. Never flash the rotor field directly with 12V DC without isolating the control board, or permanent board destruction will occur.
Miller Bobcat 250 Parts Diagram Frequently Asked Questions
How do I locate the exact serial number on my Miller Bobcat 250?
The serial number plate is stamped into the lower front metal chassis base plate, directly below the control panel output terminals. It is also printed on the main specification data decal located on the inside surface of the flip-up side engine access door. The serial number consists of two letters followed by six numbers (e.g., LJ123456H). Always reference this exact serial number when searching the parts layout, as component revisions vary significantly across production runs.
What are the primary differences between Kohler and Robin Subaru Miller Bobcat 250 schematics?
While the generator stator, rotor, and front panel welding controls remain largely identical, the engine integration wiring harness differs substantially. Kohler-equipped models utilize a SAM (Smart Ignition Module) or oil-delay module connected to Wire 42, with a 15-amp engine charging alternator circuit. Robin Subaru models employ an external engine ignition unit, a different choke solenoid relay configuration, and a distinct key-switch pin layout. Always refer to the engine-specific section of the manual for precise spark plug, air filter, and oil filter part numbers.
How can I test the rotor slip rings and brushes using the electrical blueprint?
First, turn off the engine and disconnect the 12V battery. Access the rear generator housing section identified on the general system blueprint. Unclip the brush holder leads (wires 14 and 15). Place multimeter probes on each carbon brush terminal and measure resistance. A correct reading is 3.5 to 4.2 Ohms. Next, check for ground faults by placing one probe on the clean steel rotor shaft and the second probe on a slip ring. Resistance must read infinite (OL). Any continuity to the shaft indicates insulation breakdown requiring a rotor rebuild.
Where is the main circuit protection breaker located on the parts layout?
The circuit breakers are mounted on the lower right section of the front control panel interface. On the schematic, they are designated as CB1 (a 50-amp 240V double-pole breaker protecting the full KVA outlet) and CB2/CB3 (20-amp 120V single-pole breakers protecting the GFCI duplex receptacles). Supplementary engine control fuses (F1) are located behind the front drop-down door or directly adjacent to the main wiring harness connector on PCB1.
Which control board part number corresponds to my Bobcat 250 model year?
Control board part numbers are tied directly to the unit serial number range. Early-generation Bobcat 250 units (serial numbers starting with LC, LD, LE, LF) typically utilize PCB1 Part # 206532 or 219338. Later units (serial numbers KK, MA, MB) utilize updated control boards, such as Part # 233289 or 257540, which feature modified plug pinouts and improved potted weatherproofing. Check the white barcode decal printed on the board surface to confirm the exact original board part number before ordering a replacement. For routine service items, refer to our comprehensive engine-driven welder maintenance guide.
Step-by-Step Guide to Understanding the Miller Bobcat 250 Parts Diagram
Identify – Locate your specific engine model (Kohler or Subaru) and serial number on the unit chassis.
Locate – Find the target section in the Miller Bobcat 250 parts diagram, such as engine layout or generator assembly.
Reference – Match the schematic callout numbers with the OEM part numbers listed in the parts index.
Connect/Route – Route replacement wiring or position mechanical fasteners following the structural system layout.
Verify – Check all torque settings, terminal connection tightness, and clear line-of-sight paths before reassembly.
Troubleshoot – Test generator voltage output and engine idle speed to ensure correct component installation.
