Stihl Parts of a Chainsaw Diagram: 2026 Component Breakdown
A complete chainsaw layout integrates a two-stroke engine core, chain brake assembly, centrifugal clutch, drive sprocket, guide bar, and cutting chain. The fuel system relies on a diaphragm carburetor fed by dual fuel lines, while the automatic oiler pump delivers bar lubrication via targeted oil delivery ports along the guide groove.
📌 Key Takeaways
- Standard guide bar nut torque specification is 15-18 ft-lbs (20-24 Nm) to ensure proper bar alignment.
- The chain brake mechanism uses a wrap-around steel band that contracts around the clutch drum to stop chain movement instantaneously.
- Proper chain tension requires 1/8-inch clearance between the drive links and the bottom of the guide bar rail.
- Dull cutting teeth and clogged oiler ports account for over 70% of uneven cutting and thermal overload failures.
- Carburetor tuning and engine rebuilds require specialized pressure gauges, while chain replacement and filter cleaning are ideal DIY tasks.
Modern two-stroke chainsaws rely on precise mechanical engineering to balance power density, operator safety, and long-term durability under heavy logging or arboricultural loads. Whether servicing a professional timber-falling powerhead or diagnosing a mid-range utility saw, referencing a detailed parts of a chainsaw diagram is essential for accurate teardown, component identification, and torque-spec reassembly. This technical overview dissects internal engine architecture, fuel metering systems, drive clutches, and cutting attachments. By mastering the visual layout of these interconnected sub-assemblies, equipment technicians and small engine mechanics can accurately isolate mechanical failures, verify factory tolerances, and perform OEM-level repairs.

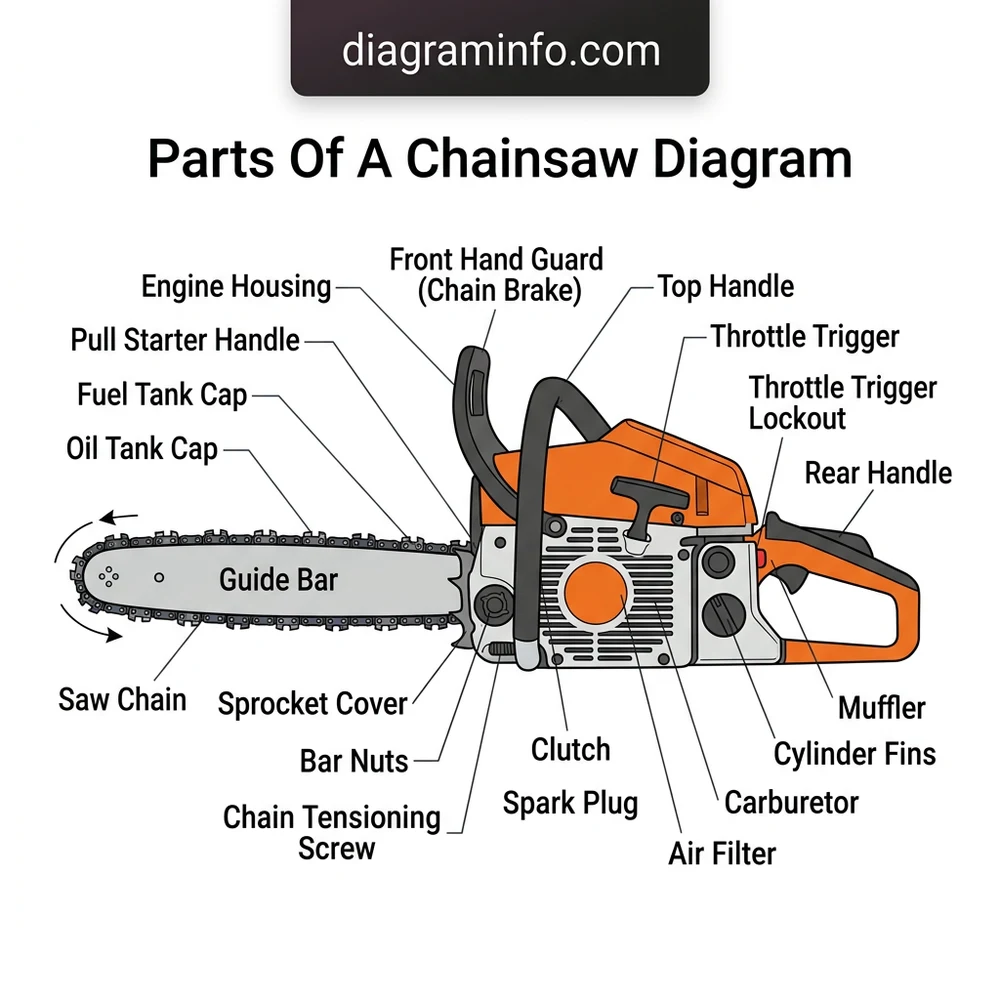

Complete Parts of a Chainsaw Diagram and Component Layout
Understanding the internal structure of a chainsaw requires dividing the power unit into three functional systems: the powerhead assembly, the drive and cutting mechanism, and the safety chassis framework. Each system contains precision-machined parts engineered to endure extreme thermal cycling and structural vibration during operation.
Recommended Best Deal Products
Powerhead and Engine Core Components
At the center of the engine configuration is a single-cylinder two-stroke air-cooled engine, typically ranging from 30cc to over 120cc displacement. OEM specifications mandate a chrome-nickel or Nikasil-coated cylinder wall to withstand piston speeds exceeding 13,000 RPM. The forged steel crankshaft rests on high-speed main ball bearings within a split magnesium alloy crankcase. Fuel and air mixing is governed by a diaphragm-type carburetor (manufactured by Walbro, Zama, or Tillotson), which utilizes crankcase impulse pressure rather than gravity to pump fuel from the tank, enabling multidirectional operation.
Cutting System and Drive Mechanism
The drive system converts crankshaft torque into linear chain velocity along the guide bar. Primary drive components must maintain exact mechanical alignment to prevent excessive bar wear or derailment.
| Component Name | Primary Function | Factory Specification / Tolerance |
|---|---|---|
| Centrifugal Clutch | Engages drive drum via expansion springs when engine exceeds idle speed. | Engagement speed: 3,200 – 4,200 RPM |
| Drive Sprocket (Spur/Rim) | Transfers rotational movement to saw chain drive links. | 7-tooth or 8-tooth (3/8″ or .325″ pitch) |
| Diaphragm Carburetor | Meters fuel air ratio using impulse pressure from the crankcase. | Pop-off pressure: 14 – 18 PSI |
| Ignition Module / Coil | Triggers timed spark across the plug gap via flywheel magnet pass. | Air gap: 0.20 mm – 0.40 mm (0.008″ – 0.016″) |
| Guide Bar Rail | Tracks drive links and channels bar oil along the cutting loop. | Groove width: .050″, .058″, or .063″ |
Safety Controls and Ergonomic Frame
Modern equipment blueprints feature mandatory safety interlocks designed into the structural chassis. The primary safety system is the inertia-activated chain brake assembly, which uses a steel brake band wrapped around the clutch drum. When kickback occurs, the front hand guard trips a heavy tension spring, bringing the moving chain to a complete stop in less than 0.12 seconds. Additional structural safety features include a chain catcher pin on the lower housing, a throttle trigger interlock lever, and anti-vibration rubber or steel spring buffer mounts isolating the handles from the engine crankcase.
How to Read a Chainsaw Engine Blueprint and Assembly Schematic
Interpreting an exploded parts view or repair schematic requires a systematic methodology to trace fluid paths, electrical circuits, and mechanical power transmission routes across the powerhead.
Locating Components on the Technical Overview Schematic
When reading an exploded diagram, establish orientation by dividing the chassis into the PTO (Power Take-Off) side and the Magneto (Flywheel) side. The PTO side contains the centrifugal clutch, chain oil pump assembly, brake band mechanism, and bar mounting studs. The Magneto side contains the recoil starter spool, rewind spring, flywheel, and ignition armature module.
Tracing the Fuel and Ignition System Wiring
Follow the low-pressure fuel flow path on the schematic starting from the weighted fuel pickup filter inside the fuel tank. The flexible fuel line connects to the carburetor inlet nipple. Located adjacent to the main fuel line is the impulse hose (or integrated cylinder passage), which supplies pressure pulses directly to the carburetor pump diaphragm. For fine-tuning carburetion parameters, review our specialized guide on carburetor tuning and adjustment procedures. Electrical schematics depict a simple earth-ground circuit: the primary coil wire connects to the spark plug boot, while the secondary kill-switch wire routes through a single-pole toggle switch to ground out the circuit during engine shutoff.
Verifying Torque Specs and Mechanical Tolerances
Disassembly and reassembly require strict adherence to mechanical fast-torque charts provided alongside assembly schematics. Fastener failure in magnesium housings can strip threads or cause air leaks, leading to engine seizure.
• Cylinder Base Screws: 9.0 Nm – 11.0 Nm (80 – 97 in-lbs)
• Crankcase Bolts: 8.0 Nm – 10.0 Nm (70 – 88 in-lbs)
• Clutch Hub Nut (Left-Hand Thread): 25.0 Nm – 30.0 Nm (18.4 – 22.1 ft-lbs)
• Flywheel Retention Nut: 28.0 Nm – 35.0 Nm (20.6 – 25.8 ft-lbs)
• Spark Plug: 20.0 Nm – 25.0 Nm (14.7 – 18.4 ft-lbs)
Always verify thread direction on clutch retaining nuts before applying breakaway torque. Nearly all two-stroke chainsaw clutch hubs utilize left-hand threads (rotate clockwise to loosen) to prevent accidental backing off under anti-clockwise engine acceleration. After rebuilding the bottom end, always execute a 2-stroke engine crankcase pressure and vacuum test to ensure air seals remain intact at -0.5 bar and +0.5 bar testing pressures.
Diagnosing Failures Using the Parts of a Chainsaw Diagram
Systematic troubleshooting utilizes component diagrams to isolate failure modes, mapping operational symptoms back to specific internal seal compromises, mechanical wear, or flow blockages.
Engine Overheating and Air Leak Diagnostics
Uncontrolled high idle speeds, erratic throttle response, or lean-fuel running conditions usually indicate unmetered atmospheric air entering the two-stroke engine core. Using the crankcase layout diagram, trace the four primary air-leak entry points:
- Radial Shaft Seals (PTO/Flywheel): Worn rubber lips allow air past the rotating crankshaft journals.
- Cylinder Base Gasket: Cracks or improper bolt torque break the seal between cylinder base and crankcase mate face.
- Intake Manifold Boot: Dry-rotted or cracked rubber boots between carburetor and intake port.
- Impulse Hose: Splits or loose fittings bleed off impulse pressure, starving the carburetor pump.
Oiling System and Bar Feed Failures
If saw chain friction causes excessive heat and smoking along the guide bar, trace the lubrication schematic. Verify that the plastic drive worm gear mounted behind the clutch drum has not stripped its inner teeth. If the worm gear spins freely, inspect the plunger assembly within the automatic oil pump for fine sawdust contamination or hardened oil varnish. Ensure the rubber suction hose filter screen inside the oil tank is clean and that the bar oil discharge hole aligns perfectly with the oil inlet hole on the guide bar tail. Mechanics should consult our guide on chainsaw chain brake assembly repair and clutch service when working within the drive side cover.
The chain brake mechanism incorporates a heavy steel compression spring under extreme mechanical tension. When releasing or servicing the brake band assembly using a chassis diagram, always wear certified safety glasses and use designated spring lever tools to prevent serious impact injury from sudden spring release.
Frequently Asked Questions on Chainsaw Structure and Parts
How do I identify the drive sprocket type on a chainsaw diagram?
Technical diagrams differentiate between a spur sprocket and a rim sprocket. A spur sprocket consists of a drive gear welded directly to the clutch drum shell as a single component. A floating rim sprocket system features a splined central hub on the drum, which holds a separate, replaceable rim sprocket held in place by a retaining e-clip.
What is the function of the impulse line in the engine schematic?
The impulse line connects the crankcase cavity directly to the fuel pump chamber in the diaphragm carburetor. As the piston moves upward, it creates negative pressure; as it descends, it creates positive pressure. These alternating pressure pulses drive the internal rubber diaphragm back and forth to pump fuel continuously from the tank.
How do pitch and gauge measurements correspond to the guide bar?
Pitch is defined as the distance between any three consecutive rivets divided by two (common sizes: .325″, 3/8″, or .404″). Gauge refers to the drive link tang thickness (common sizes: .050″, .058″, or .063″) that rides inside the guide bar groove. These specifications are permanently stamped into the tail section of the guide bar shown in chassis diagrams.
Where is the spark arrestor screen located in the exhaust system?
The spark arrestor screen is located inside or directly over the discharge outlet port of the muffler assembly, held in place by a cover plate and screw. It traps glowing carbon particles coming off the piston crown. If clogged with carbon buildup, it creates excessive exhaust backpressure, causing power loss and engine stalling at wide-open throttle.
Why does the clutch nut on a chainsaw diagram turn clockwise to loosen?
The clutch hub threads directly onto the PTO side of the crankshaft, which rotates counter-clockwise during normal engine operation. The left-hand thread configuration ensures that the rotational inertia of the engine continually tightens the clutch hub against the crankshaft shoulder, preventing the clutch from spinning off during rapid deceleration.
Step-by-Step Guide to Understanding the Parts Of A Chainsaw Diagram
Identify – Locate the engine housing, guide bar, cutting chain, and chain brake controls on the unit.
Locate – Map the internal centrifugal clutch, drive sprocket, and automatic chain oiler delivery port.
Reference – Use the system structure layout to identify fuel lines, diaphragm carburetor, and spark plug.
Connect/Route – Align the drive links into the guide bar groove and properly seat around the drive sprocket.
Verify – Set proper chain tension to 1/8-inch sag and torque side plate nuts to 15-18 ft-lbs.
Troubleshoot – Test the inertia chain brake engagement and verify oil output before starting engine operations.
