Les Paul Jr Wiring Diagram: 2026 Complete Connection Guide
A classic Les Paul Jr wiring diagram routes the P-90 pickup hot wire (center core) to lug 1 of a 500K volume potentiometer. The outer braided wire acts as the ground wire attached to the volume pot casing. A 0.022µF capacitor bridges volume lug 2 (50s style) or lug 1 (modern) to tone lug 3.
📌 Key Takeaways
- Standard vintage 50s wiring places a 0.022µF capacitor between volume pot wiper lug 2 and tone pot lug 3.
- Braided shield wire serves as the ground wire, while the inner conductor carries the single hot wire signal.
- 500K audio taper potentiometers maintain proper frequency response and brightness for P-90 pickups.
- The most frequent failure point is a cold solder joint on the pot back casing ground connections.
- Simple single-pickup circuits make this an approachable DIY repair requiring basic 22 AWG wire and a 30W iron.
Executing a precise installation or restoration on a single-pickup electric guitar requires a thorough understanding of signal paths, potential grounding issues, and component values. The Gibson Les Paul Junior circuit remains one of the most efficient passive audio control circuits ever designed, utilizing a single P-90 single-coil pickup, a 500kΩ master volume potentiometer, a 500kΩ master tone potentiometer, a tone capacitor, and a 1/4-inch mono output jack. Following an accurate wiring diagram prevents ground loops, reduces 60Hz electromagnetic interference, ensures correct high-frequency roll-off characteristics, and maintains maximum millivolt output from the pickup coil directly to the amplifier input stage.
Recommended Best Deal Products
Passive guitar electronics operate entirely on low-level alternating current (AC) voltage generated by magnetic induction. P-90 pickups typical output ranges between 200mV and 500mV RMS. Ensuring zero DC resistance along all ground paths is critical for optimal noise cancellation and high-frequency signal retention.

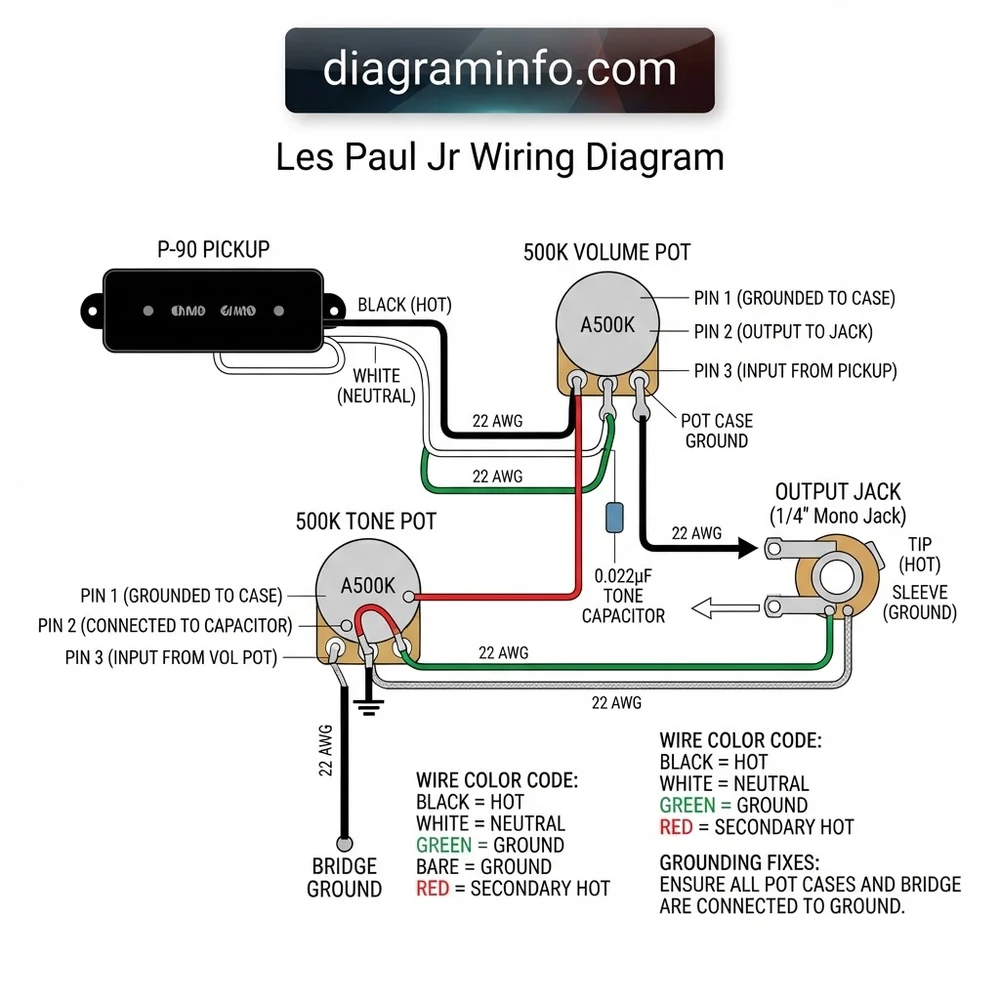

Pinout and Wire Color Reference for Les Paul Jr Circuits
Understanding wire identification and physical terminal assignments is crucial before applying heat to any circuit component. The table below provides standardized wiring parameters for vintage single-conductor braided leads, modern aftermarket four-conductor P-90 pickups, and internal harness connections. Maintain strict adherence to wire color code specs to prevent phase cancellation and signal grounding errors.
| Wire Type / Color | Circuit Function | Terminal / Pin Assignment | Electrical Spec & Gauge |
|---|---|---|---|
| Outer Metal Braid (Vintage Lead) | Primary Shield & Ground Wire Return | Master Volume Potentiometer Casing | Tinned Copper Braid, 0.0Ω Resistance to Ground |
| Inner Cloth Conductor (Vintage Lead) | Hot Wire Signal Lead (AC Output) | Master Volume Potentiometer Lug 1 (Input) | 22 AWG Stranded Copper, 200–500mV AC Peak |
| Black Wire (4-Conductor Modern P-90) | Coil Main Hot Wire | Master Volume Potentiometer Lug 1 | 28 AWG Color-Coded Conductor |
| White & Green Wires (4-Conductor) | Coil Tap / Series Link Connection | Solder Together & Insulate (Unused) | 28 AWG Stranded Wire |
| Red & Bare Wires (4-Conductor) | Coil Ground & Frame Shield Wire | Master Volume Potentiometer Casing | 28 AWG / Bare Shield, Common Ground |
| Solid Bus Wire (Bare) | Inter-Component Ground Bridge Wire | Volume Pot Casing to Tone Pot Casing | 20 AWG Tinned Solid Copper Wire |
| Uninsulated String Ground | Tailpiece / Bridge Chassis Ground | Master Volume Potentiometer Casing | 22 AWG Solid Wire from Bridge Post Cavity |
| Jack Tip Wire (Hot Output) | Final Audio Signal Output Lead | Volume Lug 2 (Wiper) to Output Jack Tip Lug | 22 AWG Cloth Push-Back or Braided Core Wire |
| Jack Sleeve Wire (Neutral/Return) | Ground Reference / Circuit Return Lead | Volume Pot Casing to Output Jack Sleeve Lug | 22 AWG Stranded Core Wire or Braided Shield |
Les Paul Jr Wiring Diagram Component Specs and Terminal Identification
Every standard Les Paul Jr electronics cavity houses four primary hardware components. To match original factory performance and prevent high-frequency signal loading, exact component values and terminal pin assignments must be verified prior to assembly.
1. Potentiometer Terminal Identification
Standard CTS 500kΩ Audio Taper (A500K) short-bushing potentiometers feature three primary connection lugs (terminals) and a ground casing:
- Lug 1 (Input Terminal): Receives the raw AC voltage signal from the P-90 pickup hot wire. In modern circuits, this lug also connects to the tone pot capacitor input.
- Lug 2 (Output/Wiper Terminal): Connects directly to the tip terminal block lug on the 1/4-inch output jack to send attenuated AC voltage out of the instrument.
- Lug 3 (Ground Reference Terminal): Bent back and soldered flat against the back of the potentiometer’s nickel-plated steel casing to establish the reference ground termination.
- Potentiometer Casing: Serves as a chassis ground plane and heat sink junction for incoming shielding braid, bridge ground wire, and interconnecting bus wires.
2. Capacitor Values and Signal Isolation
The standard tone capacitor value for a Les Paul Jr control circuit is 0.022µF (22nF), rated for a minimum working voltage of 100V to 400V DC. Common industrial choices include paper-in-oil (PIO) or metallized polypropylene drop capacitors. Higher capacitance values (such as 0.047µF) shift the cutoff frequency lower, creating a darker audio profile, whereas lower values (0.010µF) isolate roll-off strictly to upper harmonic frequencies.
3. Output Jack Terminal Assignment
A Switchcraft #11 1/4-inch open-frame mono output jack acts as the final terminal block for signal distribution:
Recommended Best Deal Products
- Tip Terminal Lug: Connects to the hot output lead originating from Lug 2 of the volume pot. It contacts the tip plug of the guitar cable.
- Sleeve Terminal Lug: Connects to the common ground wire network via the back of the volume pot. Serves as the return/neutral wire reference plane back to the amplifier chassis.
Optimal Soldering Parameters: Use a 40W–60W temperature-controlled soldering station set to 350°C–370°C (660°F–700°F) using 63/37 rosin-core solder. Limit iron dwell time on potentiometer casings to under 3 seconds to prevent thermal breakdown of internal carbon track elements.
How to Solder and Cable a Les Paul Jr Wiring Diagram Step-by-Step
Follow this exact wiring sequence when constructing or restoring a schematic-compliant Les Paul Jr harness. Utilizing cardboard jig templates matching the control cavity hole spacing is highly recommended to protect instrument finish during soldering operations.
Step 1: Mechanical Component Mounting and Ground Preparation
Mount the 500kΩ volume and tone potentiometers into your jig or control cavity spaced approximately 2 inches apart. Using pliers, bend Lug 3 of the Volume Potentiometer directly upward until it contacts the side of the pot casing. Scrape a small area on the pot casing to remove protective oxidation, apply flux, and solder Lug 3 firmly to the metal casing. Repeat this grounding step for Lug 3 of the Tone Potentiometer if using modern topology, or leave it disconnected depending on the vintage schematic selected.
Step 2: Routing the Heavy-Gauge Ground Bus Wire
Cut a section of 20 AWG solid tinned copper bus wire. Solder one end securely to the top casing of the Master Volume potentiometer. Run the bus wire in a straight line across to the top casing of the Master Tone potentiometer and solder it into place. This establishes a low-impedance ground bus bridging both component bodies together. Ensure the bus wire clears all terminal lugs to prevent accidental shorting of the hot signal path.
Step 3: Installing the Tone Capacitor (Vintage ’50s Configuration)
According to original factory specs for vintage ’50s single P-90 setups:
- Solder one lead of the 0.022µF capacitor to Lug 2 (Center Wiper) of the Master Volume Potentiometer.
- Solder the opposing lead of the capacitor to Lug 2 (Center Wiper) of the Master Tone Potentiometer.
- Solder a short jumper wire from Lug 1 of the Tone Potentiometer directly to its own grounded casing.
Step 4: Pickup Lead Signal and Ground Connections
Route the P-90 pickup wire through the cavity channel into the main control compartment:
- If using vintage metal braided wire, push back the outer braid insulation to expose approximately 1/2 inch of the inner cloth-covered conductor wire.
- Solder the inner hot wire conductor directly to Lug 1 of the Master Volume Potentiometer.
- Tack-solder the exposed outer metal ground wire braid directly onto the top back surface of the Master Volume Potentiometer casing, ensuring the connection is free of movement.
Step 5: Output Jack Terminal Wiring and Bridge Grounding
Prepare a 22 AWG shielded lead or twisted pair wire for connection to the output jack terminal block:
- Solder the inner hot signal lead from Lug 2 (Center Wiper) of the Volume Potentiometer to the Tip Lug on the 1/4-inch output jack.
- Solder the ground wire braided return from the Volume Potentiometer casing to the Sleeve Lug of the output jack.
- Strip 1/2 inch of insulation off the solid string ground wire originating from the tailpiece/bridge mounting stud bushing. Solder this bare ground wire directly to the Master Volume potentiometer casing.
Do not allow solder or uninsulated bus wire to contact the metal shield foil on control cavity walls unless that foil is explicitly connected to the primary ground circuit. Accidental signal shorts to ground will eliminate audio output entirely.
Vintage 1950s vs Modern Les Paul Jr Wiring Diagram Signal Paths
When studying a classic or reissue schematic, guitar technicians must distinguish between Vintage 1950s wiring and Modern independent volume/tone wiring topology. While both methods utilize identical physical hardware (two 500k pots, one P-90, one 0.022µF cap), the signal path variations alter treble attenuation dynamics significantly.
1. Structural Differences in Circuit Topology
In a Vintage 1950s Les Paul Jr Wiring Diagram, the tone control circuit (capacitor and tone pot) is connected downstream to the wiper (Lug 2) of the volume potentiometer. The high-frequency RC filter network interacts with the load resistance after volume reduction takes place.
In a Modern Wiring Diagram, the tone capacitor lead is connected upstream directly to Lug 1 (Input Lug) of the volume pot. The tone control operates independently on the raw P-90 pickup signal before the main volume wiper attenuates the voltage.
2. Performance Characteristics Comparison
- Vintage 1950s Signal Response: Rolling off the master volume control retains high-frequency clarity and upper-range sparkle without requiring a treble bleed circuit. However, adjusting the tone pot causes a slight interactive drop in overall volume output when the volume control is rolled back to lower levels.
- Modern Signal Response: The volume and tone controls act completely independently. However, rolling down the master volume causes a noticeable loss of high-end frequency response (treble bleed effect), resulting in a darker tone profile at lower output levels.
Ground Wire Loops, Voltage Loss, and Terminal Fault Diagnostics
Because passive pickup circuits generate extremely low AC voltage signals, improper solder technique or faulty wiring topologies quickly introduce severe 60Hz hum, signal attenuation, or dead audio output. Use these diagnostic procedures to isolate errors.
1. Identifying and Resolving Ground Loops
A ground loop occurs when multiple return paths of varying resistance exist between circuit components and the common ground terminal block. In a single-pickup guitar, running redundant ground loops (such as connecting cavity foil tape at multiple points while also running duplicate ground bus wires) creates an antenna ring for ambient 60Hz hum. Eliminate ground loops by ensuring a single, continuous continuous star-ground system anchored to the Master Volume potentiometer casing.
2. Diagnosing Low Voltage Output and Tone Degradation
Use a Digital Multimeter (DMM) set to the 20kΩ DC Resistance scale to perform terminal point checks across the circuit:
- P-90 Pickup Resistance Check: Place meter probes on Volume Lug 1 and the Volume Pot Casing (with Volume on 10). Typical reading should be between 7.8kΩ and 9.5kΩ depending on coil wire gauge and temperature. A reading of zero indicates a short circuit to ground; an infinite (OL) reading indicates a broken coil winding or severed lead wire.
- Potentiometer Resistive Track Test: Measure resistance between Lug 1 and Lug 3 of an uninstalled potentiometer. If resistance deviates more than ±20% from the rated 500kΩ value (e.g., reading under 400kΩ), the pot will excessively bleed high frequencies to ground, dulling the instrument’s overall tone.
- Output Jack Ground Continuity: Set DMM to Continuity/Beep test. Touch one probe to the guitar bridge/tailpiece post and the second probe to the outer sleeve of the 1/4-inch output jack cable plug. The DMM should register zero resistance (0.00Ω) with an immediate beep, verifying complete chassis string ground continuity.
Les Paul Jr Wiring Diagram Frequently Asked Technical Questions
What is the difference between 250kΩ and 500kΩ potentiometers in a P-90 circuit?
A 500kΩ potentiometer presents a higher electrical resistance path to ground compared to a 250kΩ pot. Because P-90 single-coil pickups have relatively high inductance and mid-range emphasis, 500kΩ pots allow maximum high-frequency harmonic content to pass to the output jack. Using 250kΩ potentiometers bleeds noticeable upper-mid and treble frequencies to ground, producing a muddy audio output.
Why does my Les Paul Jr hum loudly until I touch the metal strings?
This condition occurs when the string ground wire extending from the bridge post cavity is improperly connected, corroded, or missing entirely from the volume pot ground casing. Touching the metal strings uses your body as a shield ground to dump static ambient interference to earth ground. If noise increases when you touch the strings, the hot and ground wires at the output jack terminal block are wired in reverse polarity.
Do I need a treble bleed modification circuit on a Les Paul Jr?
If your guitar is wired according to the classic 1950s Les Paul Jr wiring diagram, a treble bleed mod is unnecessary because high frequencies are inherently preserved as the volume wiper scales down. If your harness uses modern wiring topology, adding a 1000pF ceramic capacitor paired in parallel with a 220kΩ resistor across Volume Lug 1 and Volume Lug 2 will prevent treble loss when rolling back volume.
Can I use a 0.047µF capacitor instead of the standard 0.022µF value?
Yes, but installing a 0.047µF capacitor lowers the tone control RC filter’s corner frequency cut-off. When you roll the tone pot toward zero, a 0.047µF cap removes significantly more midrange and upper-bass frequencies compared to a standard 0.022µF capacitor, creating a dark, bass-heavy tone suitable for specific vintage blues audio profiles.
How do I identify cold solder joints on component terminal lugs?
A healthy solder joint appears smooth, shiny, and concave around the terminal post or pot casing. A cold solder joint displays a dull, granular, or pitted surface texture and causes intermittent signal loss or crackling noise when physical pressure or mechanical vibration occurs during play. Re-heat cold joints, apply fresh rosin flux, and re-flow with clean 63/37 solder.
