Rexroth Hydraulic Flow Control Valve Diagram: 2026 Setup
A hydraulic flow control valve diagram illustrates the internal component layout and system fluid routing configuration. It details the valve body structure, adjustable needle shaft, internal check valve, orifice spring, and inlet/outlet ports (P, T, A, B). Use it to adjust GPM flow rates, diagnose pressure drops, and ensure correct flow-metering direction.
📌 Key Takeaways
- Flow rate adjustments typically range from 0.5 to 30 GPM depending on orifice sizing and spring tension.
- Identify flow direction arrows on the valve body structure to prevent reverse-metering system lockups.
- Torque valve body mounting bolts to 18-22 lb-ft and verify O-ring seals before pressurizing.
- Contaminated fluid causing orifice clogging is the primary cause of unstable spool movement and flow variance.
- Consult system schematics for complex pressure-compensated configurations; attempt DIY seal replacements only on isolated lines.
Analyzing a hydraulic flow control valve diagram requires understanding both ISO 1219-1 schematic symbols and physical fluid power principles. Hydraulic flow control valves regulate actuator speed by altering the cross-sectional area of an orifice, directly dictating the flow rate ($Q = C_d \cdot A \cdot \sqrt{\frac{2\Delta P}{\rho}}$) within high-pressure circuits. Whether working on heavy machinery, industrial automation, or mobile equipment, mastering the circuit layout enables technicians to accurately trace fluid paths, diagnose speed fluctuations, and perform precision maintenance. This technical overview breaks down the internal structure, schematic representations, operational configurations, and diagnostic procedures for standard and pressure-compensated flow control assemblies.
Decoding the Hydraulic Flow Control Valve Diagram Component Layout

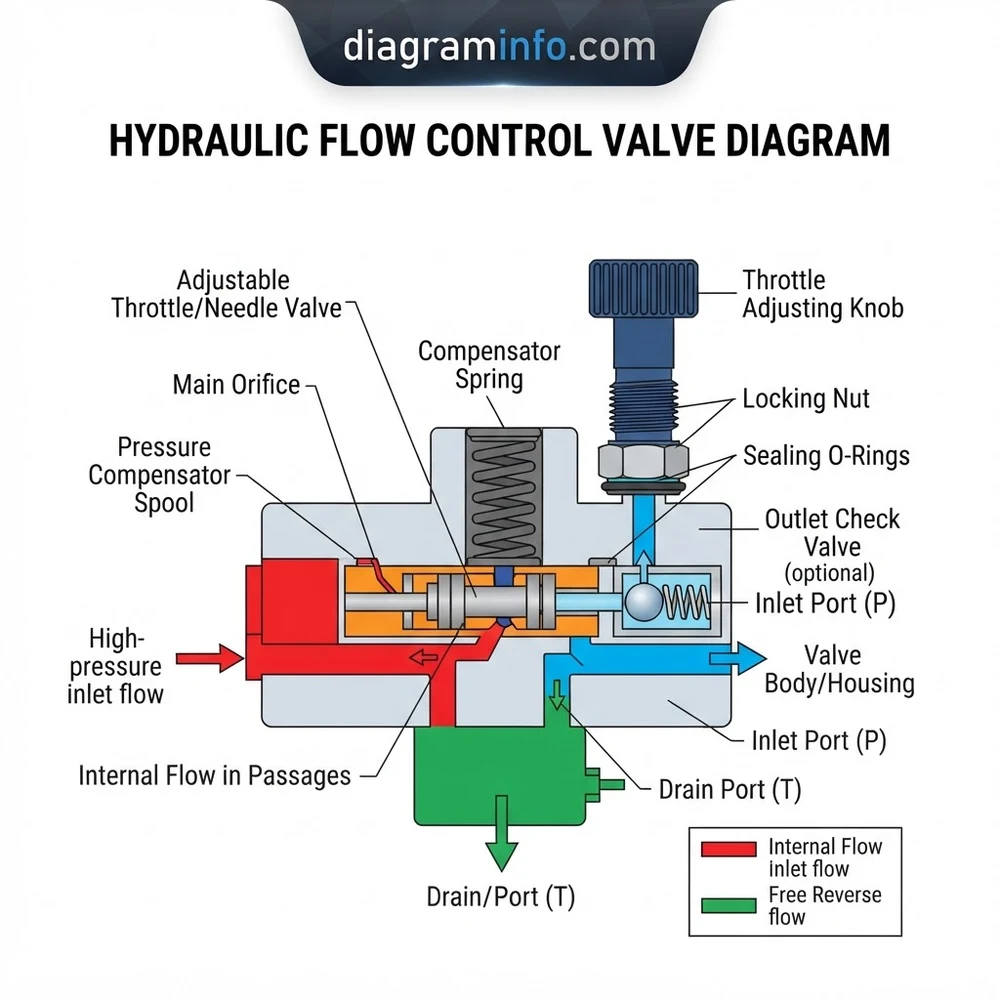

A standard hydraulic flow control valve diagram represents multiple internal mechanical sub-components integrated into a single block or cartridge body. Interpreting the blueprint requires identifying how these internal parts interact during both restricted flow and free-reverse flow operations. OEM schematics isolate these functions using standardized graphical shapes.
Recommended Best Deal Products
| Component Part | ISO Schematic Symbol Representation | Functional Role in Hydraulic Circuit |
|---|---|---|
| Variable Orifice / Throttle Needle | Slanted arrow cutting through a restricted flow path line | Adjusts the cross-sectional passage size to regulate primary fluid volume to the actuator. |
| Internal Check Valve | Ball seated in a 90-degree V-seat with an optional bias spring | Bypasses the metering orifice during reverse flow, allowing unrestricted fluid return. |
| Pressure Compensator Spool | Rectangular box with internal pilot lines and adjustable spring | Maintains a constant pressure drop ($\Delta P$) across the orifice regardless of load variations. |
| Proportional Solenoid Actuator | Box with diagonal line and electrical connection arrow | Provides electro-hydraulic variable orifice control via 0–24V DC or 4–20mA PWM signal inputs. |
| Temperature Compensating Element | Bimetallic symbol or heat-variant indicator beside orifice | Adjusts gap clearance as fluid thermal viscosity changes to prevent flow drift. |
In non-compensated flow control valves, fluid passes through the variable needle orifice where flow rate varies with inlet pressure variations. In pressure-compensated configurations, a hydrostat (compensator spool) sits in series or parallel with the throttle orifice. Internal pilot lines sample fluid pressure upstream and downstream of the throttle needle, balancing system pressure against an internal bias spring (typically rated between 2.5 bar to 8 bar / 36 to 116 PSI). If load resistance increases downstream, the pilot signal shifts the spool to open wider, preserving a constant differential pressure across the restriction.
When selecting replacement components, technicians should reference specific system drawings alongside detailed proportional directional control valve schematics to verify port sizing, thread standards (SAE ORB vs. BSPP), and internal spool configurations.
Standard cartridge-style flow control valves operate within maximum working pressures of 210 bar to 420 bar (3000 to 6000 PSI). Metering accuracy requires clean fluid maintained to ISO 4406 Cleanliness Code 18/16/13 or higher. Recommended installation torque for size 10 (5/8-18 UNF thread) aluminum cavity cartridges is 35–40 Nm (26–30 lb-ft).
How to Read a Hydraulic Flow Control Valve Schematic Step-by-Step
Tracing the operational path within a hydraulic flow control valve diagram requires following ISO standardized fluid routing rules. Equipment blueprints use solid primary lines for main power flow, dashed lines for internal/external pilot signals, and dotted lines for drain paths.
Follow this systematic procedure to analyze the flow path on any hydraulic system layout:
Recommended Best Deal Products
Step 1: Locate Primary System Ingress and Egress Ports
Identify primary fluid connections marked as Port A (inlet from pump/directional control valve) and Port B (outlet to cylinder or hydraulic motor). Solid dark lines on the blueprint represent these main working lines.
Step 2: Trace Controlled Flow Mode (Forward Direction)
Follow the fluid entering Port A. Locate the internal check valve symbol. In the forward direction, fluid pressure forces the check valve ball against its seat, blocking unrestricted flow. Fluid is directed through the variable orifice line. If an arrow is drawn diagonally across the orifice symbol, this indicates a manually or electro-proportionally adjustable restriction.
Step 3: Analyze Pressure Compensation Mechanism
Examine pilot lines leading to the compensator spool symbol located adjacent to the orifice. A dashed pilot line connects upstream fluid to one side of the spool, while a second pilot line routes downstream fluid—combined with an internal spring—to the opposite side. This arrangement balances hydraulic forces, maintaining constant flow regardless of system pressure fluctuations during operation.
Step 4: Determine Reverse Flow Bypass Path
Follow fluid entering Port B during reverse actuator movement. Fluid pressure lifts the check valve ball off its seat against light spring force (typically 0.3 bar to 0.5 bar crack pressure). The fluid bypasses the metering orifice completely, allowing full, unthrottled return speed.
Step 5: Identify Meter-In vs. Meter-Out Circuit Configuration
Determine where the valve is located relative to the actuator. In a meter-in circuit, the flow control valve is located between the directional control valve and the actuator inlet port, regulating fluid entering the cylinder. In a meter-out circuit, the valve is placed on the actuator exhaust line, controlling fluid exiting the cylinder. Comparing this arrangement with directional control valve internal spool configurations ensures accurate evaluation of system backpressure and actuator stability under overrunning loads.
Meter-out circuits are essential for applications with overrunning or pulling loads (such as winch drives or lowering booms). By controlling exhaust fluid, the valve creates a hydraulic lock that prevents cavitation and uncontrolled load movement.
Troubleshooting Hydraulic System Flow Control Valve Diagram Faults
System speed issues, thermal spikes, and irregular motion can frequently be traced back to flow control valve malfunctions. Technicians can isolate mechanical and hydraulic failures by comparing operational symptoms with circuit diagram design parameters.
Symptom 1: Erratic or Jerky Actuator Motion (Speed Fluctuations under Load)
If the actuator speed varies when system load changes on a pressure-compensated valve, the internal compensator spool is likely sticking or its internal pilot dampening orifice is clogged with particulate contamination. According to OEM specifications, fine particles larger than 10 microns can jam the tight 0.005 mm manufacturing tolerances of compensator spools. Disassemble the valve, clean all internal ports with solvent, inspect spring tension against OEM specs, and replace fluid filters.
Symptom 2: Excessive Heat Generation and Pressure Drop
When fluid flows through a flow control valve restriction, mechanical energy converts directly into thermal energy ($\Delta P \times Q / 600 = \text{kW Loss}$). However, if fluid temperature increases rapidly above normal operating limits (60°C / 140°F), the variable orifice needle may be overly restricted, or a bypass relief valve in a three-way flow control circuit is dumping excess flow to tank at maximum relief setting. Re-evaluate overall circuit design against standard hydraulic relief valve pressure setting guidelines to ensure bypass fluid returns at minimal pressure.
Symptom 3: No Speed Adjustment / Unresponsive Metering Screw
If turning the adjustment screw fails to change actuator speed, the check valve seat may be damaged, allowing fluid to continuously bypass the metering orifice. Alternatively, internal threads on manual adjusting needles may be stripped or sheared due to over-tightening past mechanical stops (maximum seating torque: 5–8 Nm / 44–70 lb-in).
Depressurize the complete hydraulic circuit and discharge all system accumulators before loosening cartridge valves or test fittings. High-pressure fluid injection injuries can occur even when pump power is shut off if trapped fluid stays pressurized behind closed flow control orifices.
Hydraulic Flow Control Valve Blueprint and Configuration FAQs
What is the difference between pressure-compensated and non-pressure-compensated flow control valves in a schematic?
On a hydraulic blueprint, a non-pressure-compensated valve is depicted simply as a variable orifice symbol (slanted arrow through a restriction line). A pressure-compensated flow control valve diagram includes an additional symbol integrated into the housing—a compensator spool box connected by internal pilot sensing lines. Pressure-compensated models maintain a constant flow rate regardless of load pressure changes, whereas non-pressure-compensated valves allow flow rate to fluctuate whenever workload resistance changes.
How do you identify a meter-in versus a meter-out configuration on a hydraulic blueprint?
To identify the configuration on a schematic, trace the flow path relative to the actuator. In a meter-in configuration, the flow control valve’s controlled path (metered orifice) faces toward the actuator inlet line, regulating fluid entering the cylinder extend port. In a meter-out configuration, the flow control valve is located on the discharge side, with the check valve blocking free flow leaving the cylinder port, forcing return fluid through the metered orifice to tank.
What ISO symbol represents a temperature-compensated hydraulic flow control valve diagram?
According to ISO 1219-1 standards, a temperature-compensated flow control valve is identified by a small thermal expansion element symbol (or a thermometer symbol beside the variable orifice) placed adjacent to the adjustable needle arrow. This signifies that the internal orifice geometry automatically adjusts to maintain consistent fluid viscosity and flow settings across operating temperatures ranging from 20°C to 80°C.
What causes a hydraulic flow control valve to lose speed control under varying loads?
Loss of speed regulation under fluctuating loads usually indicates a stuck or binding pressure compensator spool. This is commonly caused by fine particulate contamination, varnished hydraulic oil buildup, or a fatigued differential bias spring. When the compensator spool cannot shift freely, the pressure drop ($\Delta P$) across the metering orifice changes along with load fluctuations, causing unpredictable speed variations.
What are standard torque specs for installing cartridge-style flow control valves?
Torque specifications depend on valve thread size and body material. Standard steel size 08 cartridges (3/4-16 UNF thread) installed in aluminum manifolds typically require 25 to 30 Nm (18–22 lb-ft), while size 10 cartridges (5/8-18 UNF thread) require 35 to 45 Nm (26–33 lb-ft). Over-torquing can deform internal spool bores, causing the compensator or check valve mechanism to bind.
