4 Wire Fan Motor Wiring Diagram: 2026 Connection Guide

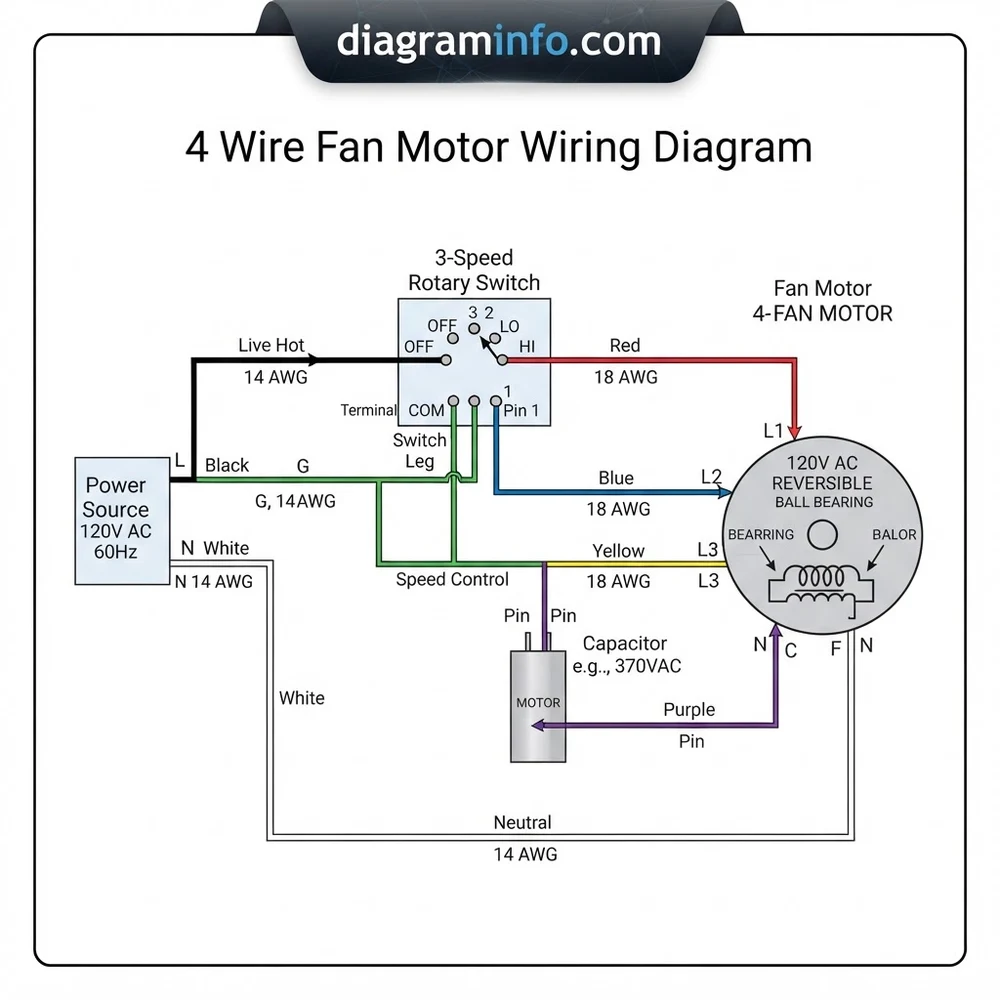

A 4 wire fan motor wiring diagram typically routes the black hot wire to line power, the white neutral wire to the power source common, the green ground wire to the chassis frame, and the blue or red wire to the run capacitor or secondary speed switch. Always match wire color code to terminal pin assignments.
📌 Key Takeaways
- Black serves as the primary hot wire (120V/240V), while white functions as the common neutral wire.
- The green or bare copper ground wire must be securely fastened to the chassis to prevent shock hazards.
- Capacitor auxiliary leads require precise microfarad matching (e.g., 5µF 370VAC) to avoid motor overheating.
- Miswiring line voltage directly into the auxiliary capacitor lead is the primary cause of burned motor windings.
- Perform a winding resistance test with a multimeter to decide if a motor requires replacement or simple rewiring.
Wiring a 4-wire fan motor correctly requires a clear understanding of line voltage routing, speed control modulation, and safety grounding protocols. Whether you are servicing an industrial HVAC condenser unit, a commercial refrigeration evaporator, or a high-output 12V DC automotive cooling assembly, following an accurate schematic prevents motor winding burnouts, blown fuses, and nuisance thermal tripping. This technical guide delivers a precise electrical layout detailing pin assignment, wire color code conventions, terminal block terminations, and diagnostic resistance thresholds. Utilizing the correct 4 wire fan motor wiring diagram ensures optimal thermal management, stable voltage delivery, and complete compliance with OEM installation standards under heavy duty-cycle demands.
4 Wire Fan Motor Wiring Diagram: Wire Color Code and Terminal Identification
Accurate conductor identification is essential before applying power to any 4-wire fan motor assembly. Industrial HVAC equipment utilizing single-phase Permanent Split Capacitor (PSC) motors and modern electronically commutated (EC) DC cooling fans share a 4-lead structure, but their internal wiring functions differ significantly. Standard single-phase AC fan motors typically separate leads into primary line power, common return, and dedicated run capacitor connections. Conversely, 4-wire DC brushless motors organize leads into DC voltage supply, circuit return, Pulse-Width Modulation (PWM) speed signal, and tachometer feedback output.
Recommended Best Deal Products
When interacting with an unfamiliar terminal block or wiring harness, refer to the OEM manufacturer schematic affixed to the motor housing. Standardized NEMA and IEC color conventions provide a reliable baseline for circuit tracing, though legacy or custom equipment may exhibit variations.
| Wire Function | Typical AC (120V/240V) Color | Typical DC (12V/24V) Color | Pin / Terminal Assignment | Electrical Parameter / Notes |
|---|---|---|---|---|
| Line Power / High Speed | Black (or Red for High Speed) | Red (+12V / +24V VCC) | Terminal L1 / Pin 1 | Primary hot wire connection; switched via relay or contactor |
| Common / Return | White (120V) or Blue (240V) | Black (GND Return) | Terminal N / Pin 2 | Neutral wire connection for AC; DC power ground return path |
| Safety Earth / Chassis Ground | Green or Bare Copper | Green or Chassis Ground Lead | GND Lug / Pin 3 | Dedicated ground wire bolted directly to frame lug; zero resistance |
| Capacitor Aux / Speed Signal | Brown (or Brown/White Striped) | Blue or Yellow (PWM / Tach) | Terminal CAP / Pin 4 | Connects to run capacitor auxiliary terminal or ECU control logic |
On 4-wire PSC HVAC blower motors, the fourth wire is frequently a second speed tap (e.g., Black for High Speed, Red for Low Speed) rather than an external capacitor lead. Always measure winding resistance across all leads with an ohmmeter to confirm internal coil configuration before applying voltage.
4 Wire Fan Motor Circuit Architecture and Operating Modes
Understanding the internal circuitry of a 4-wire fan motor dictates how power distribution and speed regulation are handled. In a standard single-phase alternating current motor, the 4-wire design separates the main running winding from the auxiliary starting winding. The hot wire feeds line voltage into the main winding, while the neutral wire completes the path to the power source. The auxiliary winding connects in series with a dedicated run capacitor across the brown terminal lead, creating a 90-degree electrical phase shift required to sustain magnetic field rotation.
For modern equipment utilizing direct current or electronically commutated motors, the 4-wire configuration separates heavy current delivery from low-voltage logic processing. The primary high-current hot wire and neutral wire (ground return) supply constant power directly from a battery, power supply, or heavy-duty busbar. The remaining two wires handle operational logic: one receives a 5V or 12V PWM signal (typically at 25 kHz) to modulate RPM, while the fourth wire transmits a hall-effect tachometer pulse back to the system controller to monitor fan speed in real time.
Refer to our comprehensive guide on dual-speed radiator fan relay wiring for advanced automotive relay configurations and thermostatic control circuit design.
How to Wire a Fan Motor Step-by-Step Using the 4 Wire Wiring Diagram
Follow this standardized, systematic procedure to execute a complete and safe installation of a 4-wire fan motor assembly. Ensure all power supplies are isolated and locked out before initiating physical connections.
Step 1: Perform System De-energization and Circuit Pre-Inspection
Disconnect all electrical supply sources at the main breaker or master cut-off switch. Use a calibrated Digital Multimeter (DMM) set to AC/DC voltage to verify zero voltage across the field terminal block. Inspect the incoming wiring harness for thermal breakdown, cracked insulation, or corrosion. Verify that the current lead conductor size meets minimum gauge standards based on the motor nameplate full-load amperage (FLA) rating.
Step 2: Terminate the Safety Ground Wire Connection
Connect the green or bare copper chassis ground wire to the designated grounding stud on the fan motor frame or terminal enclosure. Ensure the mounting point is clean and free of paint, rust, or oxidation. Crimp an appropriately sized ring terminal onto the conductor and tighten the fastener to 18-20 in-lbs using a torque screwdriver to guarantee low-impedance earthing under fault conditions.
Step 3: Connect the Neutral Wire / System Return Path
Locate the common or return conductor from the motor harness (white lead for 120V AC systems, blue for 240V single-phase, or solid black for 12V/24V DC equipment). Insert the conductor into the terminal block slot marked “N”, “COM”, or “Pin 2”. Tighten the terminal block screw clamp to the manufacturer torque specification (typically 12-15 in-lbs) to prevent resistive heating at high current loads.
Step 4: Connect the Hot Wire to the Contactor or Relay Terminal
Route the line power lead (black or red hot wire) from the load side of the controlling relay, thermostat contactor, or control switch. Strip 3/8 inch of insulation, ensuring no conductor strands are frayed or severed. Insert the hot wire into terminal “L1”, “LINE”, or the designated relay output post. Secure the lug to maintain a gas-tight mechanical connection.
Step 5: Connect Auxiliary Capacitor Leads or Pulse Signal Input
For AC PSC fan motors, attach the dedicated auxiliary wires (brown and brown/white) directly to the terminals of an correctly rated run capacitor (e.g., 5 µF / 370V AC). For DC variable-speed motors, connect the 4th wire (PWM signal input lead) to the pulse output pin of your electronic control unit (ECU) or digital fan controller. Recheck all pin assignments against the 4 wire fan motor wiring diagram before restoring power.
Standard Terminal Block Torque Ratings: Screw-type clamp terminals accept stranded copper conductors up to 10 AWG. Tighten screw terminals to 14 in-lbs (1.6 N·m). Ensure quick-connect spade terminals maintain a minimum retention force of 8 lbs (35 N) to resist vibration disconnects.
Wire Gauge, Terminal Block Ratings, and Voltage Specifications
Selecting appropriate conductor sizes, overcurrent protective devices, and terminal blocks is essential to avoid excessive voltage drop and fire hazards. The cross-sectional gauge of both the hot wire and neutral wire must accommodate the inrush starting current (locked rotor amps, LRA), which can reach three to six times the continuous full-load amperage (FLA).
Voltage drop across power supply conductors must not exceed 3% of nominal supply voltage under full operational load. Excess line drop reduces motor torque output, causing higher operational temperatures and premature winding breakdown.
| Continuous Amperage (FLA) | Minimum Wire Gauge (AWG) | Max Fuse / Breaker Rating | Terminal Block Screw Size | Recommended Insulation Type |
|---|---|---|---|---|
| 0.0 A – 6.0 A | 18 AWG copper | 10 Amp slow-blow | M3 / #4-40 | THHN / PVC 105°C |
| 6.1 A – 12.0 A | 16 AWG copper | 15 Amp slow-blow | M3.5 / #6-32 | THHN / Cross-linked PE |
| 12.1 A – 18.0 A | 14 AWG copper | 20 Amp standard | M4 / #8-32 | THHN / Tefzel (GXL) |
| 18.1 A – 25.0 A | 12 AWG copper | 30 Amp standard | M5 / #10-32 | TXL Automotive / THHN |
For broader HVAC system integration, consult our technical breakdown on single-phase motor capacitor testing procedures to verify proper capacitance ratings prior to motor re-commissioning.
Diagnostic Multimeter Protocols for Ground Wire and Hot Wire Testing
When performing field troubleshooting on a non-functional 4-wire fan motor, routine static resistance tests isolate internal winding failures from external electrical supply issues. Set your multimeter to the low-ohms range (200 Ω scale) and zero out probe resistance prior to taking measurements.
- Main Winding Resistance Check: Place meter leads across the hot wire terminal and neutral wire terminal. A functional single-phase motor typical displays a low resistance reading (between 5 Ω and 50 Ω, depending on horsepower). An infinite resistance (OL) reading indicates an open winding or tripped internal thermal overload protector.
- Auxiliary Winding Resistance Check: Measure resistance between the neutral wire terminal and the brown run capacitor terminal. The auxiliary winding reading should be higher than the main winding reading (typically 15 Ω to 100 Ω).
- Ground Isolation Resistance Check: Set the multimeter to its highest resistance scale (20 MΩ) or use an insulation resistance megohmmeter set to 500V DC. Measure from the green ground wire lug to the hot wire, neutral wire, and auxiliary leads sequentially. Any resistance reading below 1 MΩ indicates insulation breakdown and a dangerous ground fault.
- DC PWM Signal Testing: Set DMM to DC Voltage. Probe the control signal input pin relative to the ground wire return pin while the controller commands fan operation. A valid signal will read between 0V (0% speed) and 5V/12V DC (100% full speed command).
Common 4 Wire Fan Motor Wiring Diagram Errors and Technical Fixes
Incorrect installation practices during motor replacement lead to component destruction, poor thermal performance, and severe electrical hazards. Review these frequent technical mistakes and their corrective procedures.
Mistake 1: Transposing Hot Wire and Auxiliary Capacitor Terminals
Connecting supply line voltage directly across the auxiliary capacitor lead instead of the primary line terminal forces high current through the fine-wire start winding. This error causes rapid thermal buildup, boiling internal capacitor dielectric oil, and burning out the stator insulation within seconds of power application.
Fix: Measure coil resistance before powering on. Connect the hot wire exclusively to the winding pair with the lowest measured resistance, leaving the auxiliary lead dedicated solely to the capacitor circuit.
Mistake 2: Operating Without an Effective Chassis Ground Wire
Leaving the chassis ground wire unbonded or attaching it over painted surfaces isolates the motor frame. Internal insulation breakdown can energize the metal housing to full line potential, creating an extreme electrical shock hazard for service personnel.
Fix: Scrape non-conductive coatings away from the chassis grounding point. Secure the bare copper ground wire with a star lock washer and verify resistance to ground is below 0.2 Ω.
Mistake 3: Reversing Speed Taps on Dual-Speed 4-Wire Configurations
In 4-wire fan motors configured with high and low speed power taps, connecting both speed wires simultaneously energizes opposing internal winding taps. This causes excessive current draw, inductive hum, low shaft torque, and severe thermal cut-out cycling.
Fix: Ensure speed control relays utilize single-pole double-throw (SPDT) switching logic so that line voltage is applied to only one speed wire at any given moment.
High-Voltage Run Capacitors Store Lethal Charge: Always discharge run capacitors using a 20,000-ohm, 5-watt wire-wound resistor across terminals prior to handling wiring harness connections. Never short capacitor terminals directly with a screwdriver blade.
4 Wire Fan Motor Wiring Diagram Frequently Asked Questions
How do I identify 4-wire fan motor terminals if the wire color code is non-standard?
Use a digital multimeter set to ohms to identify terminal functions. Resistance testing reveals specific winding profiles: the lowest non-zero resistance reading exists between the hot wire and neutral wire (main winding). A higher resistance reading exists between the neutral wire and auxiliary lead (start winding). The reading between the hot wire and auxiliary lead will equal the sum of both individual winding resistances. The chassis ground wire displays absolute zero resistance to the metal outer housing frame.
Can a 4-wire DC fan motor operate if the signal wire is disconnected?
It depends on internal fan control logic design. Many 4-wire brushless DC fans feature an internal pull-up resistor on the PWM signal input line. If the signal lead is left disconnected (floating), the internal circuitry interprets this as a 100% duty cycle signal, driving the fan at maximum rated speed. However, certain automotive OEM brushless fan assemblies enter an emergency fail-safe mode or remain completely stationary when no valid control frequency (typically 1 kHz to 25 kHz) is detected on the signal pin.
What is the functional difference between a 4-wire PSC motor and a 4-wire EC motor?
A 4-wire PSC motor operates on single-phase AC line voltage, utilizing two wires for line/neutral main power and two brown wires dedicated to an external AC run capacitor. A 4-wire EC (Electronically Commutated) motor receives constant main power through its primary hot wire and ground return wire, while using its third and fourth wires for internal microprocessor control: one wire receives a low-voltage speed command signal while the other outputs an analog or digital tachometer speed feedback signal.
Why does my 4-wire fan motor rotate in reverse after complete re-wiring?
Rotational direction in single-phase 4-wire AC PSC fan motors is determined by the phase angle relation between the main and auxiliary start windings. If the relationship between the main hot wire and the start winding polarity is inverted, the rotating magnetic field flips direction. To reverse rotation, swap the internal connections of the auxiliary start winding relative to the main run winding at the terminal block assembly.
