2026 Massey Ferguson Fuse Box Diagram Repair Guide
Massey Ferguson tractor fuse boxes are located under the left instrument panel or inside the cab console near the ECU. The diagram identifies blade fuses (10A red to 30A green) powering lighting, hydraulic solenoids, and key-switch ignition relays. A blown fuse triggers a diagnostic code or check engine light.
📌 Key Takeaways
- High-amp MAXI fuses (40A–60A) safeguard the primary alternator circuit, main cab harness, and engine ECU.
- Standard ATO/ATC blade fuses follow strict color coding (10A Red, 15A Blue, 20A Yellow, 30A Green).
- Always tighten battery feed lug terminals to a 8–10 Nm (70–88 in-lbs) torque spec to prevent arching.
- Corroded spade terminals and melted relay sockets are the most common points of intermittent power failure.
- Safe for DIY fuse replacements, but persistent diagnostic code triggers require harness continuity testing.
Understanding the electrical power distribution architecture of modern and legacy Massey Ferguson utility and row-crop tractors requires an accurate technical manual and wiring schematic. Modern agricultural machinery relies heavily on centralized power distribution centers to protect sensitive microprocessors, electro-hydraulic solenoids, lighting circuits, and cab environmental controls. Utilizing a precise massey ferguson fuse box diagram allows diesel technicians and equipment operators to systematically trace power supply lines, verify relay operational integrity, isolate short circuits, and prevent catastrophic harness fires during field operations, maintenance routines, or electrical overhauls.

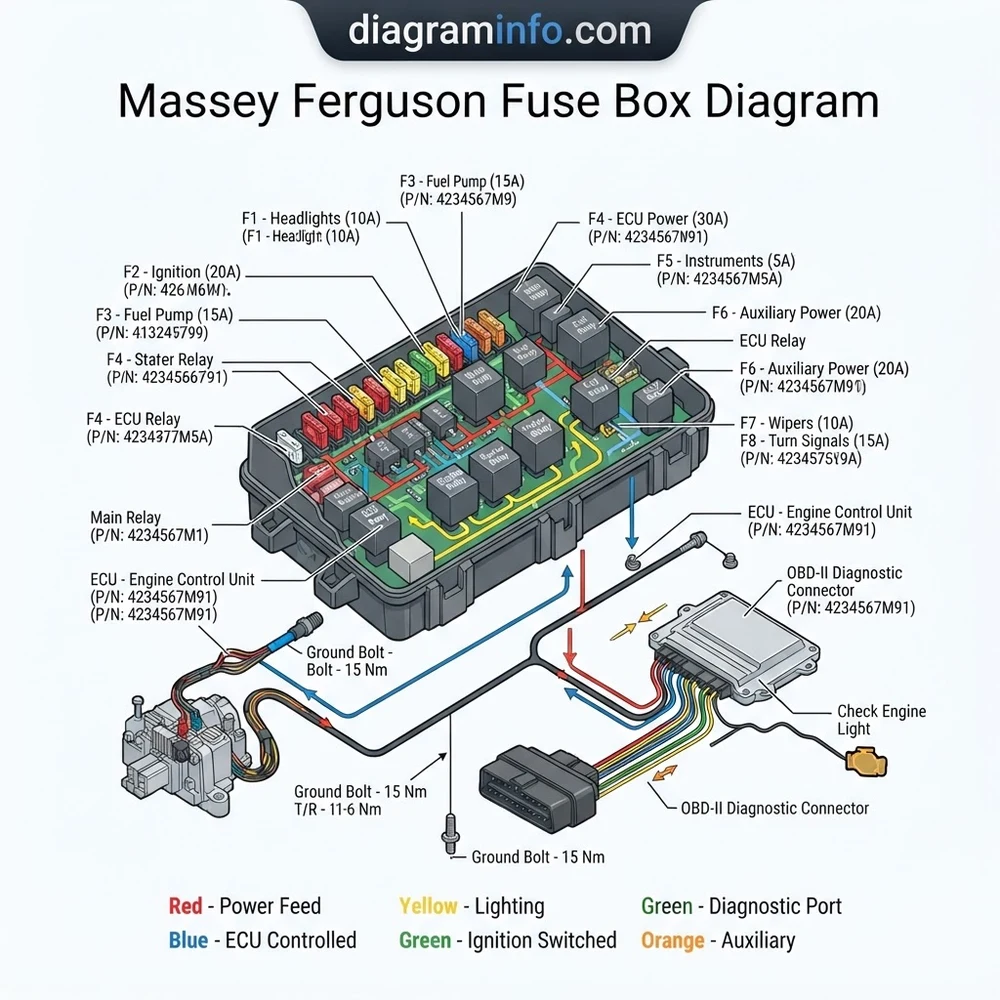

Decoding the Massey Ferguson Fuse Box Diagram: Component Layout and Pinouts
The primary power distribution block on Massey Ferguson tractors is generally located either inside the cab behind the right-hand console access panel, beneath the operator seat, or under the hood adjacent to the firewall. Depending on the generation—ranging from the classic 300 and 3000 series to modern 5700, 6700, and 7700 Dyna-6/Dyna-VT models—the main fuse panel utilizes a combination of standard ATO/ATC blade fuses, MAXI slow-blow fuses for high-amp distribution, and ISO micro-relays. Referencing the correct factory schematic ensures that technicians do not cross-wire protected sub-circuits or alter required current thresholds.
Recommended Best Deal Products
Power Distribution and Main Relay Assignments
Main power originates at the starter solenoid and battery disconnect switch, feeding the primary bus bar inside the central fuse box. High-current circuits (typically 40A to 80A MAXI fuses) protect the main cab ignition feed, hydraulic control unit (HCU), glow plug pre-heater grid, and alternator charge line. The main ignition relay transfers battery voltage to secondary bus bars when the key switch is set to the “ON” position. Internal relay sockets feature standardized DIN 72552 terminal numbering:
- Terminal 30: Unswitched direct battery positive input (+12V DC nominal).
- Terminal 85: Relay coil ground control line (switched via ECU or physical switch).
- Terminal 86: Relay coil switched power input (+12V from key switch or control module).
- Terminal 87: Normally Open (NO) power output to load equipment.
- Terminal 87a: Normally Closed (NC) secondary circuit output (where applicable).
Sensor Circuit Fuses for Engine ECU and Instrument Cluster
Modern electronically controlled Tier 3, Tier 4i, and Stage V AGCO Power engines depend on regulated power directly fed from dedicated low-amperage mini-fuses (typically 5A, 7.5A, or 10A). A designated fuse supplies unswitched memory power to the Engine Control Unit (ECU), while a separate switched fuse energizes the internal microprocessors, fuel injection driver modules (IDM), and CAN-bus communication nodes. In addition, secondary power branches supply reference voltages to critical engine sensors monitoring crankshaft speed, camshaft position tied to the engine timing gear train, and intake manifold pressure.
Always check the color coding of the wiring harness adjacent to the fuse block when cross-referencing against an OEM massey ferguson fuse box diagram. Standard AGCO wiring uses red/blue traces for unswitched battery feeds, orange/white traces for switched ignition outputs, and solid black or brown wires for dedicated chassis grounds.
| Fuse ID | Rating (Amps) | Wire Gauge & Color | Protected System / Circuit Description |
|---|---|---|---|
| F01 | 10A (Red) | 18 AWG Red/Yellow | Engine ECU Constant Memory Power & Diagnostics Port |
| F02 | 15A (Blue) | 16 AWG Orange/Black | Instrument Panel, Dash Display, & Warning Buzzer |
| F03 | 7.5A (Brown) | 18 AWG Green/White | Engine Sensors (Oil Pressure, Coolant Flow, Cam Position) |
| F04 | 20A (Yellow) | 14 AWG Yellow/Red | Electro-Hydraulic PTO Clutch & 3-Point Hitch Controller |
| F05 | 25A (Clear) | 12 AWG White/Blue | Cab HVAC Blower Motor & Air Conditioning Compressor Relay |
| F06 | 30A (Green) | 10 AWG Red/Black | Work Lights Front/Rear Aux Relay Feed |
Massey Ferguson Fuse Box Diagram Electrical Failures and Symptoms
Electrical issues in agricultural environments are frequently driven by environmental exposure, physical vibration, moisture ingress, and thermal cycling. When inspecting a tractor experiencing intermittent electrical dropouts, technicians must distinguish between open fuse elements, high-resistance connections inside the fuse block socket, and ground loop anomalies. Reviewing an updated massey ferguson fuse box diagram is the critical first step in determining which individual sub-circuit controls the failed component.
Open Circuit Faults Triggering Check Engine Light and Diagnostic Codes
When an active circuit experiences a short to ground or severe current spike, the corresponding blade fuse melts, isolating the circuit. On electronic diesel engines, a blown sensor circuit or ECU supply fuse disrupts sensor feedback loops. When power to the engine management subsystem is interrupted, the main instrument cluster registers a lost-communication fault, turns on the check engine light, and logs a specific diagnostic code (Diagnostic Trouble Code / DTC) within the control module memory.
Common fault codes linked directly to fuse block issues include:
- P0685 / SPN 1485: ECM/PCM Power Relay Control Circuit / Open (Blown ECU main power fuse or faulty ignition relay).
- SPN 100 / FMI 4: Engine Oil Pressure Signal Voltage Below Normal (Blown sensor power feed fuse F03).
- SPN 110 / FMI 3: Engine Coolant Temperature / Flow Circuit Voltage Above Normal (Open power circuit to sensor array).
Voltage Drops Affecting Oil Pressure Switches and Coolant Flow Sensors
Corrosion on the internal bus pins of the fuse box creates localized electrical resistance. This resistance causes a drop in voltage supplied to downstream components even when the fuse element itself remains intact. An analog sensor, such as an engine oil pressure sender or coolant flow rate monitor, relies on a precise 5.0-volt reference signal supplied by the controller or a stable 12V ignition circuit. If contact oxidation in the fuse block reduces the supplied operating voltage to 10.2 volts, the sensor reading shifts out of calibration. This triggers false warning indicators or causes the safety system to execute an automatic engine shutdown procedure to protect engine components like the camshaft drive gear and engine bearings.
Never replace a blown fuse with a higher amperage rating or bridge terminal sockets with copper wire. Over-fusing bypasses the wire harness thermal safety limits, causing rapid insulation melting, irreparable destruction of the main engine harness, and severe fire risk inside the tractor cab.
Step-by-Step Electrical Testing Using the Massey Ferguson Fuse Box Diagram
Diagnosing complex electrical faults requires systematic testing using specialized diagnostic tools, including a Digital Multimeter (DMM), terminal pin break-out kits, and a factory wiring diagram. Avoid probing wire insulation directly with sharp test needles, as puncturing the outer sheath exposes copper strands to moisture and accelerates green-rot corrosion within the harness.
Systematic Voltage Drop and Continuity Diagnostics
To pinpoint the source of power loss using your fuse box map, follow this technical testing procedure:
- Visual & Tactile Inspection: Access the fuse box and visually verify each fuse element. Inspect the plastic housing for signs of thermal warping, discoloration, or melting around the terminal legs.
- Static Voltage Test (Key ON, Engine OFF): Connect the negative meter lead of your DMM to a verified clean chassis ground point. Set the meter to DC Volts. Touch the positive meter probe sequentially to the two small exposed metal test ports located on the top face of each blade fuse.
- Voltage on both test ports = Fuse intact, power reaching circuit.
- Voltage on one port only = Fuse element blown (open circuit).
- Zero volts on both ports = Upstream relay, ignition switch, or primary feed fuse open.
- Load Testing and Voltage Drop Verification: Place the affected circuit under operating load (e.g., switch on work lights or engage the hydraulic solenoid). Measure voltage across the fuse terminal input side and the load end. A measured difference exceeding 0.2V DC indicates excessive contact resistance inside the fuse socket requiring terminal tension adjustment or chemical contact cleaning.
OBD-II CAN-Bus Scanning and ECU Terminal Verification
On electronically governed tractors equipped with an OBD-II style or 9-pin Deutsch J1939 diagnostic connector, connect an industrial diagnostic scan tool to evaluate live sensor telemetry. If the scan tool fails to communicate with the tractor network, use your electrical panel schematic to locate the power supply fuse for the diagnostic port and controller. Trace the CAN High (CAN-H) and CAN Low (CAN-L) lines back through the firewall bulkhead connector to confirm that terminal corrosion has not interrupted communication bus power. Inspect circuits linked to synchronized engine components—such as camshaft position sensors running parallel to the timing gear or timing chain assembly—to ensure fluctuating voltage supply is not generating false engine timing fault codes.
System Voltage Limits (12V Nominal Architecture):
• Static Battery Voltage: 12.6V to 12.8V DC
• Engine Running / Alternator Charging: 13.8V to 14.4V DC
• Maximum Allowable Circuit Voltage Drop: 0.2V DC across fuse box contacts
• Main Terminal Post Fastener Torque Spec: M6 Studs = 8.5 Nm (75 in-lbs) / M8 Studs = 15 Nm (132 in-lbs)
Massey Ferguson Fuse Box Diagram Technical FAQ
How do I locate the primary fuse panel on Massey Ferguson 5700 and 7700 series tractors?
On modern Massey Ferguson 5700 and 7700 series tractors, power distribution is split across two main locations. The primary cab fuse panel is located behind a removable access cover on the right-hand rear trim panel inside the operator cab. The main power, high-amperage MAXI fuses, and engine relays are housed in an under-hood power distribution box mounted near the battery on the right side of the engine compartment firewall. Consult the engine bay layout diagram on the inside of the fuse block lid for exact slot positions.
Why does the ECU fuse keep blowing when the ignition switch is cycled?
Repeated blowing of the main controller fuse immediately upon key ignition indicates a direct short to ground on the switched +12V power supply line or a shorted internal component within the module itself. Disconnect the main harness connector from the engine controller and cycle the key. If the fuse remains intact, the short is internal to the controller or downstream sensor feeds. If the fuse continues to blow with the controller disconnected, trace the wire harness running from the fuse block through the cab firewall for pinched insulation, rubbed chassis contact points, or melted harness sections near hot exhaust manifolds.
What diagnostic code indicates an interrupted power supply to the oil pressure sensor?
An interrupted supply voltage or blown sensor circuit fuse typically generates fault code SPN 100 / FMI 4 (Oil Pressure Voltage Below Normal / Shorted Low) or SPN 100 / FMI 3 (Oil Pressure Voltage Above Normal / Open Circuit). When power is lost at the fuse box output terminal, the controller cannot establish the required sensor bias voltage, defaulting to an emergency engine protection strategy or lighting the primary warning lamp on the dash display.
Can a blown fuse prevent OBD-II communication with the tractor engine controller?
Yes. Diagnostic scan tools powered through the diagnostic link connector (DLC) require a stable +12V DC feed on Pin 16 (standard OBD-II) or Pin A (Deutsch 9-pin J1939). In most AGCO electrical systems, this diagnostic port power line is shared with the primary memory feed or instrument cluster fuse. If this fuse is blown or removed, the scan tool will fail to power up or will report a “No Communication / Bus Offline” error despite the engine controller functioning normally via secondary ignition feeds.
How does fuse box maintenance impact timing gear and engine synchronization sensors?
Modern electronically managed AGCO Power diesel engines rely on high-precision hall-effect sensors to detect crankshaft position and timing gear rotation. These sensors require clean, uninterrupted voltage supplied through the main engine engine sensor fuse circuit. High contact resistance, oxidation, or loose fuse holder tension inside the fuse box causes voltage ripples and signal noise. This noise disrupts sensor timing calculations, leading to rough engine idling, hard starting, loss of governor response, or erroneous timing correlation diagnostic trouble codes.
