2026 Chevy Tahoe Transmission Oil Cooler Line Diagram: Repair
The transmission oil cooler line diagram routes hot fluid from the transmission case lower feed port into the bottom cooler inlet. Cooled fluid exits the top radiator cooler port, passing through the auxiliary cooler before returning to the rear case port. Quick-connect fittings require proper clip seating and 18–22 lb-ft torque spec on threaded unions.
📌 Key Takeaways
- Feed lines originate from the lower transmission port, carrying hot fluid up to 220°F to the cooler inlet.
- Return lines connect the top cooler fitting back to the rear transmission return port to lubricate gearsets.
- Threaded line fittings require a strict torque spec of 18–22 lb-ft to avoid stripping soft aluminum transmission casings.
- Fluid leaks at quick-connect fittings often trigger an OBD-II diagnostic code due to slippage detected by the ECU.
- Replacing damaged quick-connect retaining clips prevents catastrophic line disconnection under peak operating pressure.
Understanding the exact routing and architectural layout of an automatic transmission cooling system requires a technical reference to a transmission oil cooler line diagram. Modern electronic transmissions rely on precise thermal regulation to maintain correct hydraulic fluid viscosity, preserve clutch friction material, and prevent solenoid chatter. The cooler line circuit transfers high-temperature automatic transmission fluid (ATF) from the torque converter charge circuit to heat exchangers integrated into the radiator assembly or auxiliary air-to-oil coolers. Consulting a detailed schematic diagram allows automotive technicians and mechanics to correctly identify supply and return circuits, verify fluid flow direction, diagnose hydraulic restrictions, and execute component replacements safely without cross-wiring or misrouting lines.

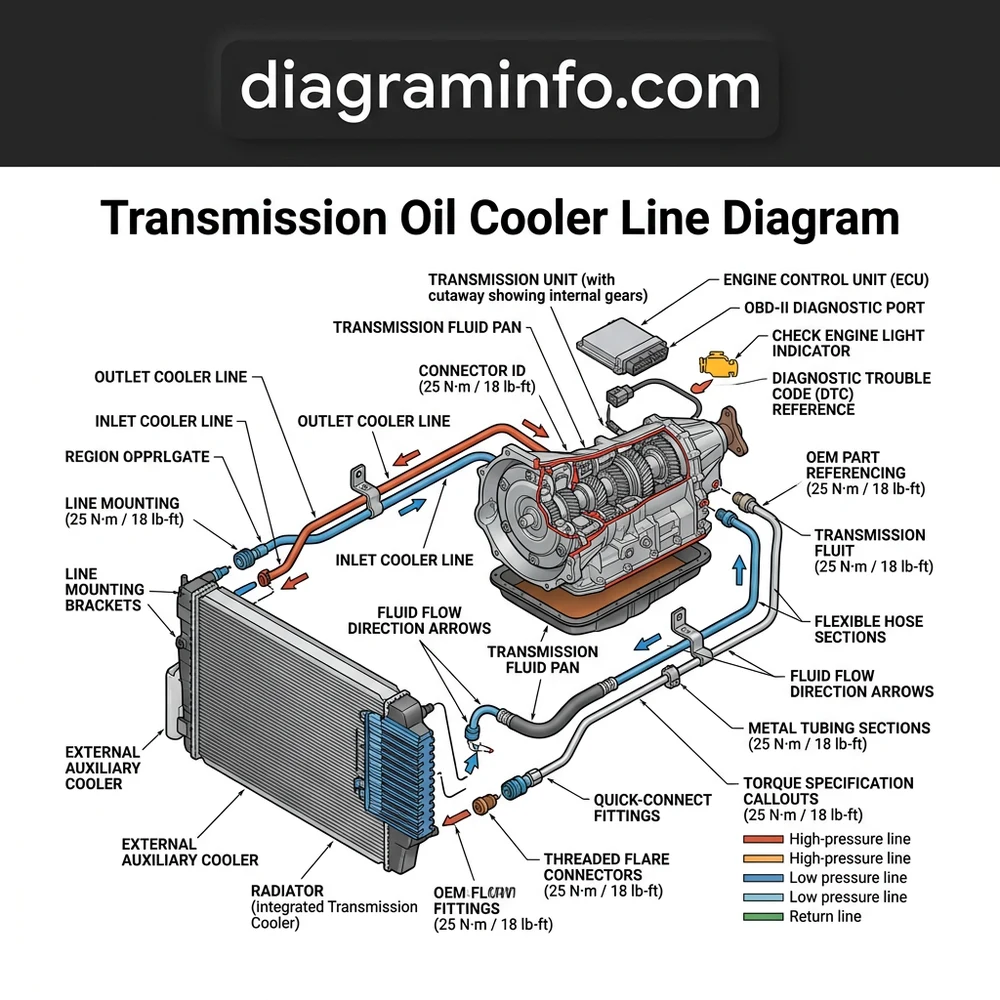

Transmission Oil Cooler Line Diagram: Key Components Identified
A comprehensive transmission oil cooler line diagram details the hydraulic circuit connecting the transmission case ports to the heat exchanger assembly. The primary components shown on the schematic include:
Recommended Best Deal Products
- Feed Line (Outlet / Pressure Side): Carrying hot fluid directly from the torque converter outlet port to the cooler inlet. Operating pressures in this line vary based on throttle position and converter slip, typically ranging between 50 PSI and 150 PSI, though pressure spikes up to 250 PSI can occur during heavy vehicle load or stall conditions.
- Return Line (Inlet / Low-Pressure Lube Side): Transporting cooled ATF back from the heat exchanger discharge port to the transmission rear lube circuit and fluid sump. Fluid pressure on the return side is reduced, typically operating between 15 PSI and 45 PSI.
- In-Tank Heat Exchanger (Radiator Cooler): A liquid-to-liquid internal cooler module immersed within the radiator cold tank. This heat exchanger utilizes engine coolant flow to extract initial thermal energy from the transmission fluid.
- Auxiliary Air-to-Liquid Cooler: An external fin-and-tube or stacked-plate heat exchanger mounted behind the front grille. It provides secondary cooling under severe duty, such as towing or high ambient temperature operation.
- Thermal Bypass Valve (TBV / OTMS): A thermostatic wax-pellet valve or electronic flow control module that restricts ATF flow through the external cooler when fluid temperatures are below approximately 160°F (71°C), ensuring rapid engine and transmission warm-up.
- Quick-Connect Couplers and Threaded Fittings: Quick-disconnect assemblies (such as Jiffy-tite retaining clip connections) or threaded inverted-flare fittings (AN-style or metric thread) that seal hard lines to the case and radiator ports.
| Component / Section | Typical Line Size / Material | Operating Oil Pressure | Torque Spec / Standard |
|---|---|---|---|
| Converter Outlet Feed Line | 3/8″ or 1/2″ Steel / Aluminum Hard Line | 50 – 150 PSI (Spikes to 250 PSI) | 18 – 22 lb-ft (24 – 30 Nm) |
| Case Lubrication Return Line | 3/8″ Flexible High-Temp Hose / Steel Pipe | 15 – 45 PSI | 18 – 22 lb-ft (24 – 30 Nm) |
| Radiator Fitting Adapters | Brass / Stainless Inverted Flare or Jiffy-tite | System Working Pressure | 22 – 28 lb-ft (30 – 38 Nm) |
| Thermal Bypass Valve Bolts | M6 x 1.0 Steel Fasteners | Internal Hydraulic Pressure | 8 – 10 lb-ft (11 – 14 Nm) |
Fluid Flow Dynamics, Thermal Regulation, and Coolant Flow Pathways
The operational efficiency of an automatic transmission relies directly on the thermodynamic balance maintained across the cooling circuit. During vehicle operation, kinetic energy loss within the torque converter generates substantial heat. Fluid is drawn from the valve body and pumped out through the transmission case discharge port into the supply line at a volumetric flow rate between 1.0 and 2.5 gallons per minute (GPM) at 2000 RPM.
The ATF first enters the in-tank heat exchanger built into the radiator radiator assembly. Here, engine coolant flow circulating from the water pump across the lower radiator tank interacts thermally with the outer jacket of the cooler insert. When engine coolant temperature is lower than incoming ATF temperature, heat transfers rapidly from the oil to the engine coolant. Conversely, during initial cold startup, warm engine coolant flow aids in rapidly heating cold, viscous transmission fluid up to efficient operating range.
In heavy-duty applications or modern 8-, 9-, and 10-speed transmissions, fluid continues through an auxiliary air-to-liquid heat exchanger. If the system is equipped with a thermal bypass valve, fluid under 160°F bypasses the auxiliary core and returns directly to the transmission sump to prevent over-cooling. Maintaining fluid operating temperatures between 175°F (80°C) and 200°F (93°C) prevents premature fluid oxidation, varnish accumulation on valve body spools, and thermal breakdown of seal elastomers.
Technicians conducting complete mechanical overhauls should reference related systems documentation, such as our comprehensive guide on engine cooling system troubleshooting, to ensure radiator performance and fan clutch operation are within OEM specifications before installing new transmission cooler lines. Proper maintenance of engine timing chain components, oil pump output, and thermal management hardware directly influences cooling efficiency.
Symptoms of Line Failures, High Oil Pressure, and OBD-II Diagnostic Code Triggers
Cooler line failures present clear physical and electronic diagnostic signatures. Physical damage often includes fatigue cracking at rigid line bends, crimp fitting separation on rubber flex sections, and galvanic corrosion beneath line hold-down brackets. Furthermore, internal restrictions or faulty line pressure regulator valves in the valve body can generate excessive oil pressure spikes that rupture flexible line joints.
Recommended Best Deal Products
Operating a vehicle with severe cooler line restriction or severe fluid leakage causes immediate loss of hydraulic pressure to clutch packs, leading to catastrophic friction plate slippage, planetary gear set destruction, and total transmission failure within miles.
When fluid flow through the cooler lines becomes restricted due to internal debris, kinked tubing, or a stuck thermal bypass valve, the transmission control module (TCM) and engine control unit (ECU) detect thermal anomalies via internal temperature sensors (TFT). This immediately illuminates the check engine light on the instrument cluster and sets specific diagnostic trouble codes (DTCs) via the OBD-II port:
- P0218: Transmission Fluid Over Temperature Condition — Triggered when fluid temperature exceeds approximately 240°F (115°C) for a programmed duration.
- P0711: Transmission Fluid Temperature Sensor Performance Circuit Error — Set when the ECU detects irrational temperature readings relative to engine run time and coolant sensor inputs.
- P0712 / P0713: Transmission Fluid Temperature Sensor Circuit Low/High Input — Indicates short circuits, open wiring, or complete thermal sensor failure.
- P0894: Transmission Component Slipping — Often induced when overheated, thinned fluid fails to maintain necessary line pressure across clutch pistons.
When DTC P0218 or P0711 is set, modern vehicle ECUs often initiate limp mode or protective shift strategies. These strategies increase baseline line pressure to limit clutch slippage, alter torque converter clutch (TCC) lockup behavior, and command cooling fans to operate at 100% duty cycle continuously.
How to Read the Transmission Oil Cooler Line Diagram for Technical Repairs
To use a transmission oil cooler line diagram accurately during physical repairs, technicians must master reading directional flow markers, case port labels, and connection quick-disconnect styles. Modern diagrams use standard schematic conventions to prevent reversing line connections during installation.
Start by identifying the transmission case port orientation. On GM longitudinal transmissions (e.g., 4L60E, 6L80E), the upper case port is almost universally the low-pressure lube return line, while the lower port serves as the high-pressure converter discharge line. On Ford transmissions (such as the 6R80 or 10R80), the forward port typically acts as the feed to the cooler circuit, and the rear port acts as the return. Chrysler/ZF 8-speed configurations feature dedicated line manifolds mounted directly to the thermal management valve on the side of the case.
Always trace fluid direction using the flow arrows printed on the technical schematic. Fluid must enter the bottom fitting of an in-tank radiator cooler and exit through the top fitting. This bottom-to-top fluid path purged air bubbles naturally from the heat exchanger core, ensuring complete internal fluid volume utilization and preventing cavitation inside the return line circuit.
Additionally, check for integrated line components indicated on the diagram, such as inline check valves. These spring-loaded ball valves prevent torque converter drain-back during extended parked periods. Installing a line backwards against an inline check valve blocks fluid flow entirely, leading to instantaneous line pressure accumulation, blown line seals, and immediate transmission clutch starvation.
System Diagnostics, ECU Monitoring, and Check Engine Light Activation
Accurate diagnosis of cooler line circuit faults requires combining physical fluid testing with live OBD-II diagnostic data streams. When troubleshooting thermal warnings or suspected line restrictions, follow this precise procedure:
- Scan Tool Data Verification: Connect an OBD-II scan tool and monitor live PIDs for Transmission Fluid Temperature (TFT) and Engine Coolant Temperature (ECT). Compare cold-engine starting values; both readings should be within 5°F of ambient temperature.
- Infrared Thermal Camera Inspection: Start the engine, bring it to operating temperature, and capture thermal images along the supply line, thermal bypass valve, and return line. A properly functioning cooling system exhibits a 15°F to 30°F temperature drop across the combined heat exchanger assembly under normal load. Zero temperature drop indicates no fluid flow through the cooler circuit.
- Line Flow Rate Test: Disconnect the return line at the transmission case port and secure it into a graduated measuring container. Crank the engine for exactly 15 seconds (with ignition/fuel disabled, or at idle in Park if specified by OEM service manuals). A functional pump should yield approximately 1 quart (0.95L) of fluid within 15 seconds. Minimal or pulsing flow indicates a collapsed hose liner, blocked heat exchanger, or clogged pump intake filter.
- Flushing Protocol Post-Failure: Following mechanical transmission repairs—especially after metal contamination resulting from clutch failure or timing chain replacement protocols where debris circulates—cooler lines must be reverse-flushed using dedicated solvent flushes and compressed air. Never connect a remanufactured transmission to un-flushed original cooler lines.
Always replace retaining clips (such as Jiffy-tite wire clips) whenever cooler lines are disconnected. Never reuse distorted wire clips. Torque threaded flare fittings to 18-22 lb-ft (24-30 Nm) using a flare nut crowfoot wrench attached to a calibrated torque wrench to avoid stripping brass case adapters.
Transmission Oil Cooler Line Diagram Frequently Asked Questions
How do I determine which line is supply and which is return on a transmission oil cooler line diagram?
On a technical schematic, fluid supply lines are designated as “Converter Out” or “Cooler Feed” and are traced directly from the torque converter pump discharge circuit. Return lines are labeled “Cooler Return” or “Lube In” and connect to the transmission rear planetary lube gallery. Physically on the vehicle, tracing the line from the lower case port (GM models) or forward case port (Ford models) identifies the feed line leading to the heat exchanger inlet.
What operating oil pressure range should be expected inside cooler lines?
Baseline pressure inside the cooler supply line ranges between 50 PSI and 150 PSI during standard driving conditions. Under wide-open throttle, heavy towing, or stall testing, line pressure controlled by the transmission main regulator valve can peak up to 250 PSI. The return line operates at significantly lower pressure, typically between 15 PSI and 45 PSI, as fluid has passed through the restriction of the heat exchangers.
Will a leaking transmission cooler line trigger a check engine light or store an OBD-II diagnostic code?
Yes. A leaking line causes fluid volume depletion, resulting in pressure drop across hydraulic circuits. As fluid level falls below operational thresholds, the torque converter slips excessively, driving temperatures up rapidly. The ECU monitors the TFT sensor and sets diagnostic codes such as P0218 (Over Temperature) or P0711 (Sensor Performance), subsequently illuminating the check engine light and potentially triggering vehicle limp mode.
Why does the transmission line circuit integrate with engine coolant flow in the radiator?
The primary in-tank liquid-to-liquid heat exchanger submerged in engine coolant provides rapid thermal equalization. Liquid transfers heat up to four times faster than air. During cold starts, warm engine coolant flow heats cold, viscous automatic transmission fluid quickly to bring it up to optimum operating temperature. Under warm driving conditions, engine coolant dissipates excess ATF thermal load efficiently into the main cooling system.
What is the correct torque spec for installing transmission oil cooler line fittings?
Standard threaded inverted-flare fittings (3/8-inch tubing) require a torque spec of 18 to 22 lb-ft (24 to 30 Nm). Banjo bolt connections on European or compact applications require 25 to 30 lb-ft (34 to 41 Nm) with new crushed copper washers installed. Cooler mounting bracket retainers typically torque to 8 to 10 lb-ft (11 to 14 Nm). Always use a backup wrench on the case nut or radiator adapter while torquing flare fittings to avoid twisting aluminum or brass ports.
Step-by-Step Guide to Understanding the Transmission Oil Cooler Line Diagram
Identify – Locate the supply (feed) and return ports on the transmission case using the diagram reference key.
Locate – Trace the hard metal cooler lines from the transmission housing forward alongside the engine oil pan to the radiator chassis.
Reference – Consult the routing schematic to confirm thermal bypass valve direction and auxiliary cooler inlet/outlet orientation.
Connect/Route – Snap line fittings securely into retaining clips and hand-thread fittings to prevent cross-threading soft ports.
Torque – Tighten all threaded line unions to the exact 18–22 lb-ft torque spec recommended by the manufacturer.
Verify – Start the engine, inspect fittings for leaks, check fluid level, and scan for any active check engine light or ECU diagnostic code.
