2 Stroke Mercury Outboard Motor Parts Diagram: Component Breakdown 2026
A 2 stroke mercury outboard motor parts diagram details the engine’s core layout, linking the powerhead assembly, fuel recirculating system, CDI ignition, and lower unit. It illustrates key components like the carburetor jets, reed valves, drive shaft, and lower unit water pump, providing critical torque specs and part configurations for repair.
📌 Key Takeaways
- Standard fuel-to-oil mix ratio is 50:1 using TC-W3 marine oil, with flywheel torque ranging from 100-120 ft-lbs depending on horsepower.
- Critical system layout links the upper powerhead, CDI ignition module, fuel carburetors, drive shaft, and lower unit gearcase.
- Water pump impeller degradation in the lower unit is the primary cause of engine overheating and requires replacement every 100 hours.
- Clogged main carburetor jets and warped reed valve petals represent the most common cause of rough idling and acceleration bogging.
- Basic carburetor rebuilds and impeller replacements are DIY-friendly, whereas crankshaft or gearcase servicing requires specialty pullers.
Deciphering a 2 stroke Mercury outboard motor parts diagram requires a clear understanding of marine engineering conventions, exploded-view projections, and serial-number-specific component indexing. Whether maintaining a classic inline-two, an inline-four, or a high-displacement V6 Black Max engine, factory schematics serve as the ultimate blueprint for assembly, fast fastener identification, and system diagnostics. According to OEM technical documentation, properly interpreting part callouts, seal orientations, and torque specifications prevents premature mechanical failure. This comprehensive guide breaks down every critical system layout across vintage and modern Mercury two-stroke outboards, giving technicians the precision tools needed for accurate overhauls.

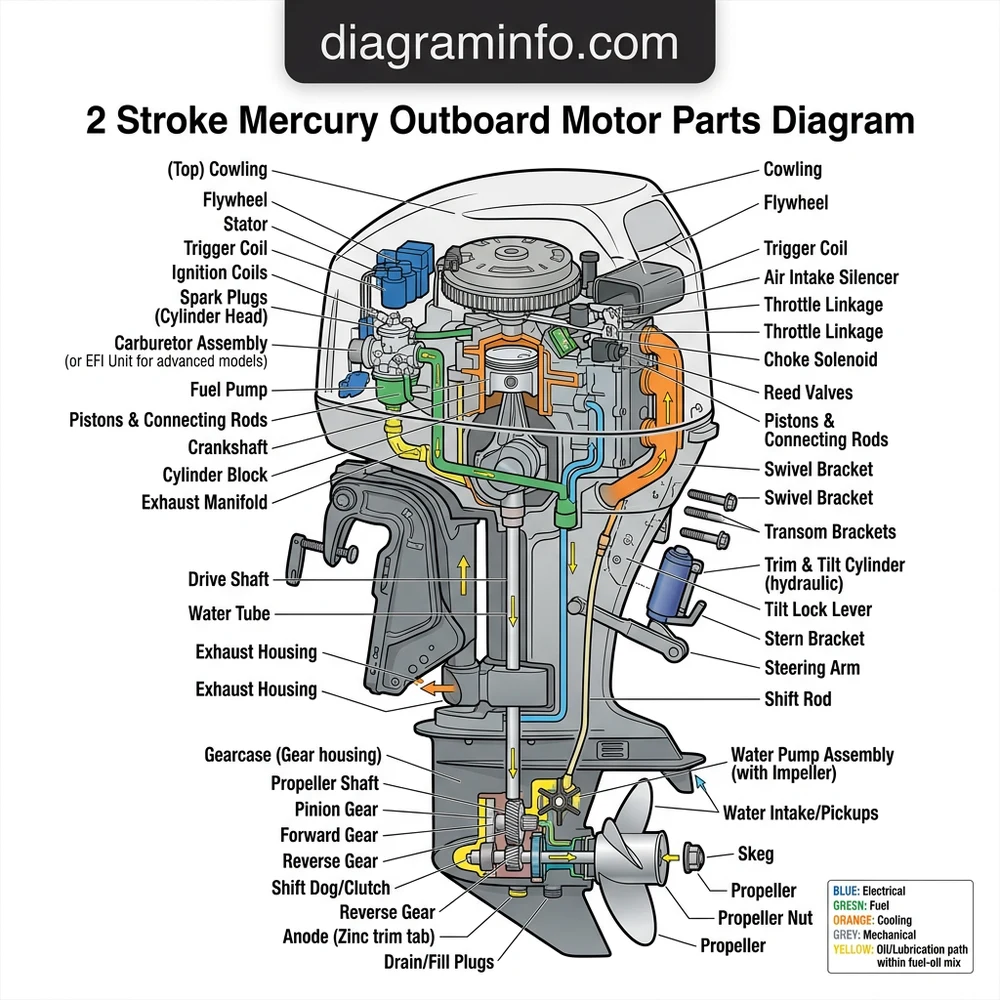

2 Stroke Mercury Outboard Motor Parts Diagram: Primary System Layout
The internal configuration of a two-stroke Mercury marine engine relies on a modular system layout. Unlike four-stroke powerheads that utilize overhead camshafts and oil sumps, two-stroke Mercury outboards route fuel, oil, and air directly through the crankcase. To navigate an exploded-view technical blueprint effectively, service technicians must understand the four core mechanical systems that form the outboard motor’s structure.
Recommended Best Deal Products
Powerhead and Crankcase Structural Assembly
The powerhead blueprint reveals the cylinder block, crankcase cover halves, forged crankshaft, connecting rods, and aluminum pistons. OEM schematics detail the exact location of the reed valve blocks positioned between the intake manifold and the crankcase. These one-way reed petals control the intake charge during the piston’s upward stroke. Pay close attention to seal orientation callouts: upper crankshaft main seals and lower end-cap carrier seals prevent crankcase vacuum leaks that cause destructive lean fuel conditions.
Fuel Induction and Carburetor Configuration
In carbureted 2-stroke models, the fuel system schematic displays the mechanical pulse fuel pump, enrichment valve, and single or multi-carburetor setups. The diagram illustrates how engine crankcase pulse pressure operates the diaphragm inside the fuel pump. For direct-injected models (such as OptiMax architectures), the layout details high-pressure fuel rails, air injectors, and dual-stage direct fuel injectors driven by a belt-driven compressor.
CDI Ignition and Charging Schematic
The electrical overview shows the flywheel assembly housing the internal magnet ring, mounted above the stator coils and ignition trigger. Standard Mercury two-stroke configurations feed high-voltage AC current from the stator into a Capacitance Discharge Ignition (CDI) switch box. The switch box then distributes timed discharge pulses to individual high-tension ignition coils located on the powerhead plate.
Midsection and Lower Unit Gearcase System
The lower unit diagram provides an exploded view of the drive shaft, shift shaft, water pump housing, forward/reverse gear assemblies, and propeller shaft. Understanding the lower unit schematic is critical when performing a complete gearcase seal replacement or servicing the internal tapered roller bearings and shim stacks.
Factory service manuals specify precise torque limits for two-stroke Mercury outboards. Torque cylinder head fasteners in a spiral sequence from the center outward to 27–30 ft-lbs (36.6–40.7 Nm) on V6 powerheads. Flywheel retaining nuts require 120–125 ft-lbs (162.7–169.4 Nm) using a flywheel holder tool to prevent crank rotation.
Recommended Best Deal Products
| System Component | Standard Factory Spec / Voltage | Critical Assembly Clearance / Torque |
|---|---|---|
| Flywheel Retaining Nut | N/A (Hardware) | 120 – 125 ft-lbs (V6 Models) / 55 – 60 ft-lbs (2-Cyl) |
| Stator Low-Speed Winding | 200 – 300 VAC (DVA Test) / 2500-3500 Ω | Air Gap: Fixed alignment on mounting boss |
| Connecting Rod Bolts | Specialty Stretch Fasteners | 30 – 35 ft-lbs (Torque plus angle spec per manual) |
| Water Pump Housing Bolts | Stainless Steel 1/4″-20 | 60 – 80 in-lbs (Do not over-torque into aluminum) |
| Lower Unit Drain/Fill Plug | Magnetic Plug with Drain Washer | 35 – 50 in-lbs (Always replace yellow washer) |
Navigating the Mercury Outboard Schematic and Component Blueprint
Reading an official factory 2 stroke Mercury outboard motor parts diagram requires a systematic approach to ensure exact part ordering and correct component orientation during reassembly. Marine engines undergo frequent production updates within single model years, making it necessary to cross-reference serial numbers and understanding visual callout cues.
Step 1: Locate and Validate the Engine Serial Number Range
Before relying on any parts blueprint, retrieve the outboard’s serial number plate, typically located on the swivel bracket transoms or powerhead core plug. Mercury does not organize two-stroke parts purely by model year; instead, parts catalogs rely on serial number blocks (e.g., 0D000000 through 0G960000). Mismatched serial numbers often lead to ordering incorrect needle valves, electronic control modules, or gearcase seal kits.
Step 2: Trace the Numerical Index Callouts
Each component on the exploded diagram features a numerical callout balloon (e.g., key number 14). Match this key number to the corresponding entry in the OEM parts list. The list will specify:
- Part Number: The official Mercury/Quicksilver service part number.
- Description: Component name, including thread pitch or physical size parameters.
- Quantity per Assembly: The exact count required for that specific powerhead or gearcase layout.
- Superceded Numbers: Notes indicating if an old part number was redesigned due to factory service bulletins.
Step 3: Analyze Exploded Sub-Assembly Relationships
Exploded schematics display components pulled apart along invisible centerline axes. Dotted projection lines indicate how internal washers, thrust bearings, and retainers slide onto shafts. For instance, when executing a complete water pump impeller replacement, follow the drive shaft line down through the upper wear plate, keyway insert, flexible neoprene impeller, pump cup, outer housing, and retaining washers in exact order.
Step 4: Identify Service Kits vs. Individual Hardware
Outboard parts diagrams frequently surround groups of individual parts with bracketed or dotted lines. This notation signifies a complete assembly or repair kit (such as a overall gasket kit, rebuild seal kit, or carb repair kit). When executing extensive overhauls—such as detailed carburetor rebuild procedures—purchasing the grouped kit identified on the blueprint ensures all single-use O-rings, check valves, and gaskets are replaced simultaneously.
On Mercury lower unit blueprints, notice the callouts located behind the forward gear and pinions. These represent selective shims. Factory tolerances demand backlash measurements between .014″ and .020″ using a dial indicator. Never assume re-using existing shims maintains correct gear contact wear patterns when replacing gearcase bearings or gear sets.
Troubleshooting Failures Using the 2 Stroke Mercury Outboard Motor Parts Diagram
A technical parts diagram is not merely an ordering sheet; it is an invaluable diagnostic tool. By understanding the structural relationship between interconnected parts on a schematic, technicians can perform rapid root-cause failure analysis on common 2-stroke issues.
Diagnosing No-Spark and Ignition Dropouts
When an engine experiences loss of spark across one or all cylinders, use the ignition system diagram to trace the electrical pathway. Start at the flywheel stator (generating low and high-speed AC voltage), follow the wiring leads to the switch box inputs, and continue through to the output terminals connected to the ignition coils. If two companion cylinders misfire simultaneously on a V6 powerhead, tracing the schematic reveals that both cylinders share a single switch box bias circuit or trigger coil hub.
For detailed electrical verification, perform targeted diagnostic checks using dedicated Mercury stator testing protocols to measure resistance across color-coded leads before replacing expensive electronic components.
Resolving Overheating and Cooling Stream Loss
When cooling water flow fails or temperature alarms activate, consult the midsection cooling circuit blueprint. Trace the water path: water pickup grilles → lower gearcase passage → water pump impeller housing → copper water tube → lower powerhead base plate → cylinder water jackets → poppet valve and thermostat housing. If tell-tale water pressure drops at idle but normalizes at high RPM, the diagram pinpoints the poppet valve assembly. A poppet valve stuck open by debris diverts water flow away from the upper cylinder heads at low engine speeds.
Addressing Crankcase Lean Conditions and Air Leaks
Two-stroke engines rely on negative crankcase pressure pulses to pull the air-fuel charge through the reed valves. A failing crankshaft lower seal assembly or torn intake manifold gasket permits unmetered atmospheric air into the crankcase. By reviewing the powerhead exploded view, technicians can locate every critical seal point, including crankcase half sealant flanges, reed block gaskets, and throttle body O-rings that must be inspected using a vacuum leak test spray.
Air leaks caused by missing or damaged gaskets shown on the intake schematic cause an instant lean fuel-to-air ratio. Unlike four-stroke motors, oil is mixed directly into the fuel charge on two-strokes. A lean condition means inadequate lubrication, resulting in rapid cylinder scoring, severe piston scuffing, and total powerhead failure in under 60 seconds of high-load operation.
2 Stroke Mercury Outboard Motor Parts Diagram Technical Reference FAQ
How do I locate the exact serial number to match my 2 stroke Mercury outboard schematic?
The primary serial number is stamped on an aluminum rivet tag located on the starboard or port side of the outboard transom mounting bracket. If this tag is missing or unreadable, locate the round aluminum core plug (freeze plug) pressed into the top or side of the engine cylinder block. The factory serial number is laser-etched directly onto this plug. Always use this number when accessing parts diagrams, as mid-year running engineering changes occur frequently across Mercury marine production lines.
What do the dotted lines and shaded boxes represent on Mercury exploded views?
Dotted lines on Mercury technical diagrams illustrate the exact axis of assembly, showing how internal hardware, spacers, and seals line up sequentially during installation. Shaded or bracketed boxes encompassing a group of components indicate that those individual items are supplied together as a pre-assembled factory unit or rebuild kit (such as a complete lower unit gearcase kit or water pump rebuild package). Hardware contained inside the shaded box can usually be purchased as a single master part number.
Why do part numbers differ across identical horsepower 2-stroke Mercury models?
Even when two outboards share the same horsepower rating and cowl graphics, internal engineering revisions often differ. Mercury regularly updated ignition components (such as transitioning from 2-stroke 2-wire stators to 4-wire high-output stators), modified gear ratios inside the lower unit (e.g., 1.87:1 vs. 2.00:1 ratios), and changed carburetor jetting profiles. Always verify the serial number break listed in the header column of the parts catalog before ordering replacement components.
How are torque sequences and fastener specs indicated on Mercury parts blueprints?
Master service manuals supplement the exploded parts breakdown with dedicated torque sequence diagrams. Fasteners requiring specific tightening patterns—such as cylinder head bolts, crankcase cover bolts, and flywheel retainer nuts—are designated with numbered circles showing the exact cross-pattern or spiral sequence required. Critical fasteners will list dry torque values alongside notes specifying whether thread-locking compounds (e.g., Loctite 271) or anti-seize lubricants must be applied prior to torquing.
What electrical wire color codes are standardized on Mercury 2-stroke ignition schematics?
Mercury Outboards maintain a standard factory wiring color code across virtually all 2-stroke marine engines. Understanding these standardized colors simplifies reading electrical blueprints and performing harness troubleshooting:
| Wire Color Code | Circuit / Functional Purpose | Diagnostic Connection Point |
|---|---|---|
| Black | Engine Ground Circuit | Powerhead Block Ground Studs |
| Black with Yellow Stripe | Ignition Kill Switch / Stop Circuit | CDI Switch Box (Grounded to stop spark) |
| Red | Unfused +12V Battery Positive | Starter Solenoid / Rectifier Output |
| Purple | Switched +12V (Ignition Key ON) | Gauges, Enrichment Valve, Electric Choke |
| Yellow with Red Stripe | Starter Solenoid Engagement Circuit | Key Switch START Position to Solenoid S Terminal |
| Blue / Blue with White Stripe | Stator Low-Speed / High-Speed Charge Coils | Stator to Switch Box Input Terminals |
Step-by-Step Guide to Understanding the 2 Stroke Mercury Outboard Motor Parts Diagram
Identify – Locate your outboard motor’s specific serial number and horsepower on the transom bracket tag.
Locate – Find the primary component system in the diagram, such as the powerhead, fuel system, or lower unit assembly.
Reference – Cross-reference exploded view callout numbers with the OEM parts list to verify exact part numbers and seal directions.
Connect/Route – Disassemble or assemble components systematically, noting gasket placements, hose routing, and wiring harness connections.
Verify – Torque all fasteners to factory specifications (e.g., flywheel and head bolts) and inspect seal seating before operation.
Troubleshoot – Check spark, compression, and water pump pressure using the diagram’s component flow if the motor fails to start.
