ProCom Propane Heater Hook Up Diagram: 2026 Setup
A standard propane heater hook up diagram connects a 20 lb propane cylinder via an LP regulator (11 inches W.C.) to the heater’s inlet control valve. Route yellow Teflon-taped 3/8-inch NPT or flare fittings, ensuring the hose connects securely to the tank service valve before conducting a soap bubble leak test.
📌 Key Takeaways
- Standard LP gas heaters operate at 11 inches water column (W.C.) manifold pressure (approx. 0.4 psi).
- Always use yellow PTFE pipe thread tape rated for gas lines on NPT threaded connections.
- Flare fittings rely on metal-to-metal seating and must never be sealed with thread tape.
- The most common failure point is a dirty ODS thermocouple pilot assembly causing thermal shutdown.
- Hire a certified gas technician if main control valve leakage or burner manifold cracks are detected.
Installing or servicing commercial LP space heaters, mobile rig equipment, or heavy-duty shop heaters requires strict adherence to system fluid dynamics and low-voltage electrical control loops. Referencing an authoritative propane heater hook up diagram ensures all fuel lines, pressure regulation stages, ignition components, and safety shut-off circuits are installed to precise OEM specifications. Incorrect pipe sizing, uncalibrated gas pressure, or reversed control wiring can lead to incomplete combustion, thermal lockout, or dangerous fuel accumulation. The technical guide below analyzes the physical structural layout, line operating pressures, torque parameters, and control schematics needed for a code-compliant installation.
Propane Heater Hook Up Diagram: Component Structure and Layout

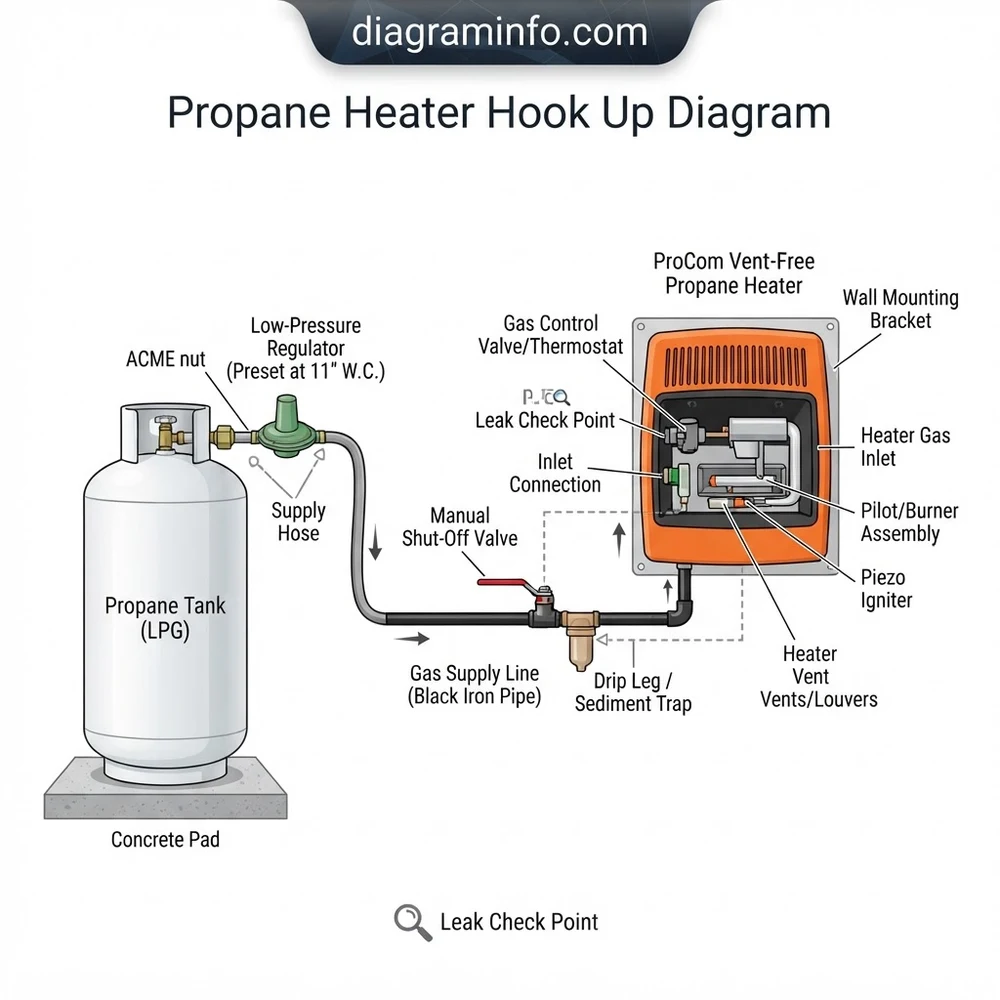

As illustrated in the primary propane heater hook up diagram schematic, a complete system integrates mechanical fuel delivery with low-voltage safety loops. Propane is stored under high vapor pressure in an ASME tank or DOT cylinder. Fuel travels through a two-stage regulation assembly to drop pressure from container levels (up to 250 PSI) to standard appliance manifold operating pressure—typically 11 inches Water Column (W.C.), equivalent to roughly 0.4 PSI.
Downstream of the regulator, fuel flows through gas-rated flexible hose or rigid iron pipe to the manual shut-off valve, electrical control valve assembly, burner orifice, and flame tube. Interlocked with this gas path is the thermoelectric safety circuit, which incorporates a high-limit thermal switch, thermocouple or flame rectification probe, and pilot generator. For comprehensive sizing metrics on first- and second-stage gas delivery, consult our guide on LP pressure regulator sizing.
| System Component | Fitting / Connection Spec | Operating Parameter / Target Spec |
|---|---|---|
| Propane Tank / Cylinder Valve | Type 1 (QCC1) or POL Left-Hand Thread | 10 to 250 PSI (Vapor Pressure) |
| Two-Stage Regulator Assembly | 1/4″ NPT Inlet / 3/8″ Female NPT Outlet | 11″ W.C. Output Pressure (±0.5″ W.C.) |
| Flexible Gas Supply Line | 3/8″ SAE 45° Female Flare Nut | 350 PSI Max Pressure Rating; Dry Joint |
| Automatic Gas Control Valve | 3/8″ or 1/2″ NPT Female Ports | 12V DC (1.5A Draw) or 24V AC Control Coil |
| Thermocouple Assembly | M8x1 Threaded Nut into Control Solenoid | 25 mV to 30 mV Open-Circuit Signal |
According to OEM standards, propane manifold pressure must be confirmed using a U-tube or digital manometer at the test port on the outlet side of the combination valve. Standard operating pressure for commercial equipment units manufactured after 2010 is 10.5″ to 11.0″ W.C. under full burner load.
Executing the Propane Heater Hook Up System Configuration
Preparing Threaded Pipe Fittings and Flare Connections
When assembling tapered pipe threads (NPT) along the fuel delivery pathway, apply yellow PTFE tape marked specifically for LP/Natural Gas (ANSI Z21.15) or non-hardening anaerobic pipe joint compound. Apply compound or tape starting two threads back from the end of the pipe to keep sealant out of internal valve seats. Never apply thread sealant or tape to the face or threads of 3/8-inch SAE 45-degree flare fittings. Flare connections rely on metal-to-metal burnishing to form a gas-tight seal; tape prevents proper seating and causes leaks. Torque 3/8-inch flare fittings to 18–20 lb-ft using dual wrenches to prevent line twisting.
Mounting Regulator Assemblies and Running Supply Lines
Position the two-stage pressure regulator so the vent port points vertically downward or is protected by a weather hood to prevent water or debris ingestion. Secure high-pressure flexible fuel lines away from hot burner exhaust plenums, sharp chassis edges, and moving drive components. Maintain a minimum clearance of 6 inches from uninsulated radiant heat surfaces. When completing line installation, perform pressure drop testing and follow standard gas leak testing protocols using a non-corrosive bubble solution prior to ignition.
Wiring Low-Voltage Control Valves and Thermal Sensors
Interconnect the gas valve solenoid circuit using 18 AWG stranded copper wire for runs under 20 feet, or 16 AWG for longer runs. Route the positive lead from the 12V DC power source or 24V AC transformer through the high-limit thermal switch, tip-over safety switch, and wall thermostat before connecting to the main gas valve terminal (+). Thread the thermocouple nut into the power unit magnet housing hand-tight, then tighten an additional 1/4 turn using a 8mm wrench. Over-tightening crushes the internal insulator sleeve, grounding out the millivolt signal.
For direct spark ignition (DSI) or hot-surface ignition (HSI) propane units, ensure the control module mounting plate has a clean, bare-metal chassis ground path (< 0.5 Ohms resistance). A weak ground causes microamp flame sensing failure, resulting in system lockout within 3 to 7 seconds after burner ignition.
Diagnosing System Failures in the Propane Heater Schematic Blueprint
Resolving Manifold Pressure Drops and Flame Burnout
If the main burner ignites but produces a lazy yellow flame or extinguished burner output when high heat is demanded, the primary fault is usually low manifold pressure or liquid propane freeze-up. Connect a manometer to the gas valve outlet tap. Static pressure should read 11″ W.C. If pressure drops below 9″ W.C. during burner operation, inspect the first-stage regulator vent for ice accumulation, check line sizing against equivalent pipe length charts, or verify that the LP tank OPD valve is fully open. Oil contamination inside older regulator diaphragms can also restrict internal orifice travel.
Testing Millivolt Thermocouples and Thermal Safety Loops
When the pilot lights but extinguishes as soon as the control knob is released, the thermocouple or safety loop circuit has failed. Use a multimeter set to DC millivolts to test thermocouple output. Place the probe tips on the copper outer sheath and the isolated center tip at the end of the thermocouple lead. A healthy thermocouple under direct pilot flame impingement generates 25 to 30 mV DC. If output reads below 18 mV DC, replace the thermocouple assembly. If voltage is sufficient, test continuity across inline thermal limit switches using a resistance check; the circuit must read 0.0 Ohms (normally closed). For specific schematics on older equipment, review our detailed guide on RV furnace wiring schematics.
Do not bypass thermal limit switches, roll-out switches, or tilt switches with jumper wires except during brief diagnostic testing. Operating a propane heater without active safety interlocks creates an immediate hazard of carbon monoxide generation, structural fire, or heat exchanger failure.
Propane Heater Hook Up Diagram Technical Specs and FAQ
What gas pressure is required at the propane heater gas valve inlet?
Propane heaters require an inlet gas pressure between 11″ W.C. (minimum operating threshold) and 14″ W.C. (maximum allowable inlet limit). Dynamic pressure under full firing load should not drop below 10.5″ W.C. Pressure exceeding 14″ W.C. (approx. 0.5 PSI) damages internal control valve diaphragms and voids equipment safety certifications.
Can thread sealant or Teflon tape be used on 3/8-inch flare fittings?
No. Tape or liquid thread sealant must never be used on 45-degree flare connections or compression fittings. Flame-cut flare joints seal along the angled metal-to-metal mating surface. Thread sealant applied to flare threads prevents proper torque torque-down, alters shoulder alignment, and frequently causes gas leaks.
How do year variations affect LP valve wiring schematics?
Pre-2000 equipment schematics predominantly utilize standing pilot systems with millivolt control loops (750mV thermopiles or 30mV thermocouples) requiring no external power source. Modern systems (post-2005) utilize direct spark ignition (DSI) or silicon nitride hot-surface igniters controlled by microprocessors, requiring constant 12V DC or 120V AC input along with multi-wire harness connectors for integrated safety diagnostics.
Why does the main gas valve collapse immediately after releasing the pilot knob?
This failure occurs when the internal electromagnet in the safety valve drops out. Causes include a defective thermocouple (producing under 15 mV DC under load), high resistance from a loose or oxidized terminal connection, or an open inline thermal limit switch interrupting the low-voltage ground return path.
What gauge wire should be used for 12V DC propane furnace supply lines?
Power feed lines for 12V DC propane heaters must be sized based on total wire run length and blower motor amp draw (typically 3A to 9A). For runs under 15 feet, use 14 AWG copper wire. For runs exceeding 15 feet, step up to 12 AWG or 10 AWG wire to limit voltage drop under 3% (minimum 10.8V DC maintained at the unit terminals under full motor start-up load).
Step-by-Step Guide to Understanding the Propane Heater Hook Up Diagram
Identify – Inspect the heater hook up diagram to confirm component compatibility and connection thread types.
Locate – Position the propane cylinder on a level surface at least 6 feet away from the heater unit.
Reference – Follow the diagram line routing to attach the pressure regulator directly to the LP tank service valve.
Connect/Route – Thread the gas supply hose from the regulator to the heater gas control valve inlet using proper sealant.
Verify – Perform a soap-and-water leak test on all joint connections at 11 W.C. operating pressure.
Troubleshoot – Inspect thermocouple connections and gas flow paths if the pilot flame fails to remain lit.
