Frigidaire Gas Stove Parts Diagram: 2026 Component Guide
A Frigidaire gas stove parts diagram illustrates the internal component layout, detailing the gas manifold system, surface burner orifices, spark igniter electrode wiring, and safety valve configuration. It maps gas flow from the pressure regulator (1/2 PSI rating) through individual burner control valves to ensure proper diagnosis and assembly.
📌 Key Takeaways
- Oven igniter coils typically require 3.2 to 3.6 amps of current draw to open the dual-stage gas safety valve properly.
- Color-coded wiring layout connects surface spark switches directly to the spark module, typically located at the lower rear.
- Standard gas manifold pressure regulator operates at 4 inches W.C. for natural gas or 10 inches W.C. for LP systems.
- Weak igniters and clogged brass orifice caps account for over 70% of gas stove ignition and burner flame failures.
- Replace surface igniters and spark switches DIY; call a technician for manifold gas leaks or internal valve replacement.
Servicing modern Frigidaire gas ranges requires a precise understanding of gas distribution networks, high-voltage ignition loops, and electronic control circuits. The factory-original frigidaire gas stove parts diagram serves as the definitive technical schematic for identifying component locations, tracing line voltage pathways, and verifying mechanical assemblies across Gallery, Professional, and standard series models. Whether you are performing resistance checks on a silicon carbide oven igniter or replacing a shorted spark harness, cross-referencing OEM component layouts ensures accurate diagnosis, preserves thermal safety margins, and prevents damage to sensitive electronic oven controls (EOC).
Frigidaire Gas Stove Parts Diagram: Critical System Components

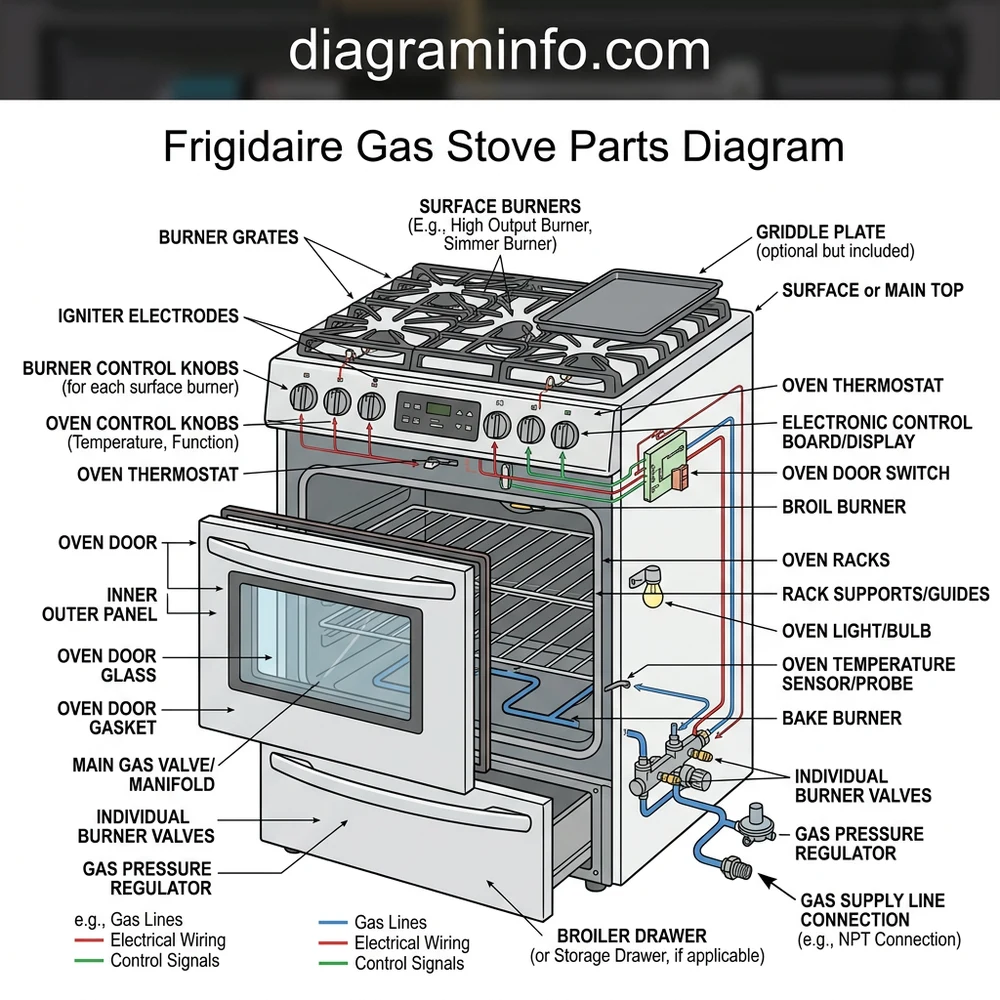

A standard Frigidaire gas range layout splits into four primary subsystems: the surface gas train, the oven burner assembly, the electronic control logic, and the high-voltage spark circuit. As shown in the diagram above, each component works in a specific sequence to maintain safe fuel combustion and accurate temperature regulation.
The top burner configuration consists of sealed burner heads mounted above individual gas orifice spuds. Fuel flows from the main manifold pipe through individual burner valves equipped with microswitches. When a control knob turns, the microswitch closes the low-current loop to the spark module, sending a high-voltage pulse across the surface spark igniter electrode. Simultaneously, gas passes through the precision-bored orifice, mixing with ambient air before igniting at the burner cap ports.
Standard Natural Gas (NG) manifold pressure is set to 4.0 inches Water Column (W.C.), while Liquid Propane (LP) requires 10.0 inches W.C. Silicon carbide bake igniters must draw between 3.2 and 3.6 Amps AC under load to fully actuate the thermal bi-metal oven safety valve.
The lower oven system relies on a series circuit between the electronic oven control (EOC), safety valve, and igniter. Unlike surface burners that use direct spark ignition, the oven system uses a thermal igniter. Current flows through the igniter, raising its temperature until its internal resistance drops, allowing sufficient current (3.2 to 3.6 A) to heat the bi-metal element inside the dual gas safety valve. Once warmed, the valve opens, releasing gas across the bake or broil burner tubes.
| Component Description | OEM Part Number (Ref) | Electrical / Operating Specs |
|---|---|---|
| Flat Oven Igniter Assembly | 5304509706 / 316489402 | 120 VAC, 3.2–3.6 A, 40–400 Ω cold resistance |
| Dual Gas Safety Valve | 5304509707 / 316031501 | 3.03–3.3 VAC coil trigger, 2.5–3.0 Ω terminal resistance |
| 4-Point Surface Spark Module | 316272400 / 5304508269 | 120 VAC input, 12kV–15kV pulse output |
| Dual-Fuel Pressure Regulator | 316091706 | Convertible NG (4″ W.C.) / LP (10″ W.C.), max 1/2 PSI in |
Reading the Frigidaire Gas Stove Schematic and Blueprint Layout
Interpreting a technical frigidaire gas stove parts diagram requires navigating two primary visual formats: exploded physical assembly schematics and point-to-point electrical ladder diagrams. Exploded diagrams utilize callout numbers tied to a master part index, detailing the exact order of mechanical disassembly and fastener locations.
When analyzing electrical system wiring, follow these structural tracing steps:
- Identify Supply Terminals: Locate the L1 (120VAC Hot), Neutral (N), and Equipment Ground connections entering the main terminal block or power cord harness.
- Trace the Surface Ignition Loop: Follow the line voltage from L1 through the parallel-wired burner valve switches to the input terminal of the re-ignition spark module. Output lines (typically color-coded tan, blue, yellow, and red) route directly to individual burner spark electrodes. For detailed switch testing procedures, reference our spark igniter switch continuity testing guide.
- Analyze the Thermal Heating Circuit: Trace L1 from the main control board relay (BAKE or BROIL output) through the high-limit thermal fuse down to the heating element igniter leg. Return paths route back through the secondary terminal of the dual-gas safety valve to neutral. Check our oven temperature sensor resistance chart if the board fails to energize the relay.
- Verify Gas Train Pressure Boundaries: Examine the physical manifold breakdown to ensure proper placement of O-rings, pipe threads, and orifice holders relative to the regulator output port. If adjusting supply lines, consult our gas range pressure regulator adjustment guide.
Wiring harness colors on Frigidaire ranges vary by production year. Models manufactured prior to 2015 generally use solid white for neutral return loops, while post-2015 models utilize standardized light blue lines for neutral across surface spark modules and control boards.
Troubleshooting Common Failures Using the Frigidaire Gas Range Diagram
System failures on Frigidaire gas ranges generally present as ignition non-starts, erratic spark behavior, or fuel-air imbalance. Utilizing the system schematic allows tech personnel to systematically isolate root causes using a multimeter and pressure manometer.
Disconnect the main 120V power cord and shut off the manual gas shut-off valve before performing continuity checks or replacing gas line components. Always conduct a bubble leak test on gas joints using an approved non-corrosive solution after servicing.
If the bake burner fails to ignite despite the igniter glowing red, the issue is typically insufficient amp draw rather than a complete circuit break. Over time, silicon carbide igniters degrade, increasing their internal resistance. While cold resistance may read within the normal 40–400 Ω range, the igniter may only draw 2.5 Amps under load. Because the bi-metal safety valve requires a strict 3.2 to 3.6 Amp draw to open, the valve remains closed. Measure current draw in series using a clamp-on ammeter around the igniter supply wire during startup to confirm failure.
When all surface igniters click continuously even when control knobs are turned off, the schematic points to a grounded spark switch or a shorted wire harness. Moisture intrusion from boil-overs frequently bridges the contacts inside the burner valve microswitches. Disconnect power, remove the knob bezels, and test continuity across each switch pair. A closed circuit reading (0 Ω) while the knob is in the “OFF” position pinpoints the defective microswitch assembly.
Frigidaire Gas Stove Component Configuration FAQ
How Do You Locate the Exact Model Number on a Frigidaire Range?
The model and serial number tag is affixed directly to the appliance frame. On standard slide-in and freestanding gas ranges, open the bottom storage or warming drawer and locate the metal plate on the lower front frame leg. On double-oven configurations, the tag is positioned along the inside rim of the lower oven door jamb.
What Resistance Reading Indicates a Functional Oven Igniter?
A cold silicon carbide igniter typically measures between 40 Ω and 400 Ω across its spade terminals at room temperature (70°F / 21°C). However, cold resistance alone is not a definitive test. If the igniter reads within this range but fails to draw at least 3.2 Amps AC when power is applied, the component has worn out and must be replaced.
How Do You Convert a Frigidaire Gas Stove System from Natural Gas to Liquid Propane?
Converting fuel types requires modifying both the pressure regulator and individual gas orifice spuds. Unscrew the hex cap on the main pressure regulator, flip the internal plastic plunger pin to reveal “LP” facing outward, and torque the cap back into place. Next, replace the brass top burner orifices with color-coded LP orifices (typically smaller aperture sizes, such as 0.52mm to 0.89mm), and thread the oven bake/broil orifice spuds inward until snug (typically 1.5 to 2 full turns down) to adjust burner gas flow.
Why Does the Spark Module Click When No Burners Are Turned On?
Continuous clicking indicates an unintended electrical path completing the 120V circuit to the spark module input trigger. This is caused by liquid ingress into one of the gas valve microswitches, grease buildup behind the burner control knobs creating a high-resistance short, or a degraded wire insulation chafing against the grounded metal chassis.
Step-by-Step Guide to Understanding the Frigidaire Gas Stove Parts Diagram
Identify – Locate your specific range model number tag inside the door frame or lower drawer area.
Locate – Find the target system on the layout, such as the manifold, orifice tubes, or igniter circuit.
Reference – Match part numbers from the diagram structure to original OEM replacement components.
Connect/Route – Route gas lines and spark electrode wires according to the internal wiring configuration.
Verify – Perform a soap bubble leak test on gas fittings and test igniter spark continuity with a multimeter.
Troubleshoot – Consult the schematic diagram if igniters click continuously or burner flames show orange tips.
