Pit Boss Control Board Wiring Diagram 2026: Troubleshooting Guide

Properly understanding and executing the wiring connections for your Pit Boss control board is paramount for both operational reliability and safety. This detailed guide, accompanied by a comprehensive wiring diagram, provides the exact specifications, wire color codes, and pin assignments necessary to correctly install, replace, or troubleshoot your control board. Mastering these connections ensures your pellet grill functions optimally, preventing potential damage, system malfunctions, and ensuring accurate temperature regulation. We emphasize precision in every step, from identifying the ground wire to confirming hot and neutral wire assignments, empowering you to maintain peak performance for your equipment.

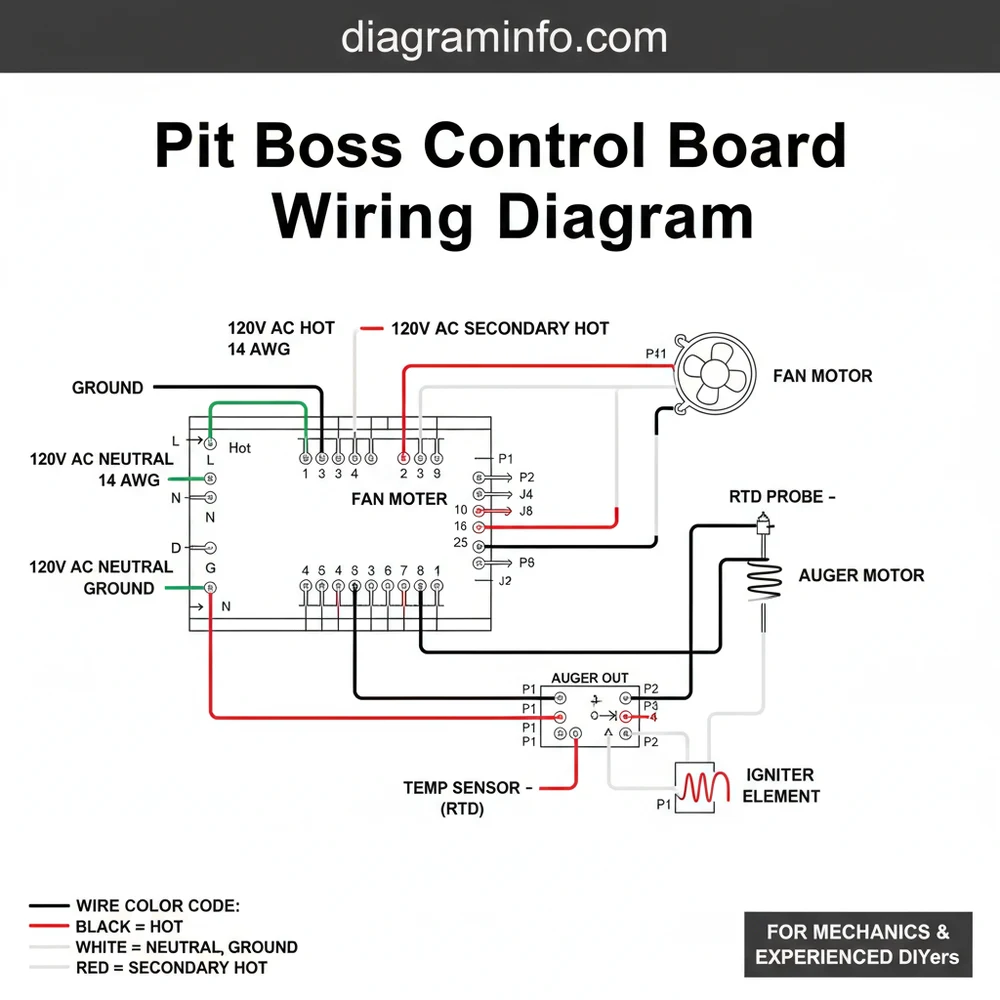

[Insert detailed Pit Boss control board wiring diagram here. The diagram should visually represent the control board, its various terminal blocks/connectors, and all connected components (auger motor, hot rod igniter, combustion fan, RTD probe, main power input) with corresponding wire colors and pin labels as described in the reference table below. Include clear indications for AC input, low-voltage outputs, and sensor inputs.]

📤 Share

📌 Pinterest
📘 Facebook
🐦 Twitter
💬 WhatsApp
✉️ Email

💾 Download

Wire Color Reference Table

This table outlines the typical wire color codes, their functions, and their corresponding pin or terminal assignments on a standard Pit Boss control board. Always cross-reference with your specific model’s service manual as variations may occur across different years and series.

Step-by-Step Connection Guide

📤 Share

📌 Pinterest
📘 Facebook
🐦 Twitter
💬 WhatsApp
✉️ Email

💾 Download

Executing these connections with precision is critical for the safe and efficient operation of your Pit Boss pellet grill. Always reference the provided wiring diagram and your specific model’s service manual for any year-specific variations. This guide assumes you are either replacing a control board or re-wiring components after maintenance.

1. Prepare the Work Area and Disconnect Power: Begin by unplugging the grill from its wall outlet. Open the control panel access and visually inspect the existing wiring. Document existing connections with photographs if possible, particularly if your board or wiring colors differ slightly from this general guide.
2. Connect the Main Power Input:
   • Locate the main power cord wires: the bare copper or green/yellow insulated ground wire, the white neutral wire, and the black hot wire.
   • Connect the Green (or Green/Yellow) ground wire to the designated GND or PE terminal block on the control board. Ensure this connection is secure, as proper grounding is essential for safety.
   • Connect the White neutral wire to the AC_N terminal.
   • Connect the Black hot wire to the AC_L terminal.
   • Confirm all three connections are tight and correctly seated in their respective terminal blocks, as shown in the diagram.
3. Connect the Auger Motor:
   • Identify the two wires leading from the auger motor. One will typically be the Red auger power wire, while the other will be a neutral return (often white or another common color).
   • Connect the Red wire to the AUG_PWR terminal on the control board.
   • Connect the neutral return wire from the auger motor to a common neutral terminal or bus bar, often labeled N_OUT, or a shared neutral with other components if present on your board. Refer to the diagram for this specific pin assignment.
   • Ensure the wire gauge used for the auger motor matches or exceeds the OEM specification, typically 16 AWG, given its current draw.
4. Connect the Hot Rod Igniter:
   • Locate the two wires from the hot rod igniter. One is the Orange igniter power wire, and the other is its neutral return.
   • Connect the Orange wire to the IGN_PWR terminal.
   • Connect the neutral return wire from the igniter to a common neutral terminal or bus bar.
   • Verify connections are robust, as the igniter draws significant current during its operation. For comprehensive diagnostics on your pellet grill’s igniter system, refer to our guide on pellet grill igniter troubleshooting.
5. Connect the Combustion Fan:
   • Identify the two wires from the combustion fan (induction fan). One is the Blue fan power wire, and the other is its neutral return.
   • Connect the Blue wire to the FAN_PWR terminal.
   • Connect the neutral return wire from the fan to a common neutral terminal or bus bar.
   • These connections are crucial for maintaining proper airflow and combustion within the fire pot.
6. Connect the RTD Temperature Probe:
   • Locate the two wires from the RTD (Resistance Temperature Detector) probe. These are typically the Purple (RTD_A) and Yellow (RTD_B) wires.
   • Connect the Purple wire to the RTD_A terminal.
   • Connect the Yellow wire to the RTD_B terminal.
   • While RTDs are generally not polarity-sensitive, it is best practice to match the original wiring or diagram to avoid any potential misreadings by the control board. For more on ensuring accurate temperature readings, consult our resource on RTD temperature probe calibration.
7. Final Inspection and Power-Up: After all connections are made, visually inspect every terminal block to ensure no stray wire strands are present, all connections are tight, and no wires are pinched. Close the control panel access. Reconnect the grill to power and perform a functional test. Observe for proper auger rotation, fan operation, igniter heating, and accurate temperature display.

Common Wiring Mistakes & Troubleshooting

Even for experienced technicians, wiring errors can occur. Understanding common pitfalls and their resolutions is key to efficient troubleshooting and ensuring your Pit Boss control board functions correctly.

1. Incorrect Polarity (Hot/Neutral Reversal):
   • Mistake: Swapping the black (hot) and white (neutral) wires at the AC input terminal block.
   • Consequence: While some devices may appear to function, this creates a significant safety hazard by making the chassis potentially live and bypassing critical safety features. It can also cause erratic behavior or damage to sensitive electronic components.
   • Fix: Disconnect power immediately. Use a multimeter to identify the hot wire (typically 120V AC relative to ground) and neutral (0V AC relative to ground) from your main power cord. Reconnect the black hot wire to AC_L and the white neutral wire to AC_N on the control board.
2. Missing or Improper Grounding:
   • Mistake: Failing to connect the green/yellow ground wire, or making a loose/corroded connection.
   • Consequence: Eliminates the safety path for fault currents, increasing the risk of electrocution if a live wire touches the metal chassis. Can also lead to electromagnetic interference affecting control board electronics.
   • Fix: Ensure the green/yellow ground wire from the power cord is securely fastened to the designated GND or PE terminal on the control board and to the grill chassis. Clean any corrosion from terminals before re-connecting.
3. Loose or Partially Connected Wires:
   • Mistake: Connections at terminal blocks are not fully tightened, or crimp connectors are poorly made.
   • Consequence: Intermittent operation, arcing, localized overheating, and eventual component failure. Loose power connections are a fire hazard. For RTD probes, a loose connection leads to erratic or incorrect temperature readings.
   • Fix: Power off the grill. Systematically check each wire connection by gently pulling on it. Re-tighten all screw terminals. For crimped connections, if loose, cut and re-crimp with appropriate tools and connectors.
4. Incorrect Wire Gauge:
   • Mistake: Using a wire with a smaller gauge (higher AWG number) than specified by the manufacturer for high-current components like the igniter or auger motor.
   • Consequence: The wire can overheat, melt its insulation, and potentially cause a fire. It also leads to excessive voltage drop, reducing power delivered to the component.
   • Fix: Always replace wires with the same or a larger gauge (smaller AWG number) than the original OEM specification. For instance, if replacing an auger motor wire, use 16 AWG if the original was 18 AWG, never vice-versa.
5. Misidentifying Component Wires:
   • Mistake: Swapping connections between components, such as connecting the auger motor wires to the fan terminals.
   • Consequence: The control board will attempt to power the wrong component at the wrong time, leading to non-functional components (e.g., auger doesn’t turn, fan doesn’t run), error codes, or even damage to the control board or components.
   • Fix: Carefully review the wiring diagram and wire color reference table. Disconnect all component wires and re-connect them one by one, ensuring each specific wire color and its corresponding component is routed to the correct pin assignment on the control board. If you’re experiencing issues with specific components, our article on auger motor replacement procedures might also offer relevant troubleshooting steps.

FAQ

How do I test if my Pit Boss control board is receiving power?

With the grill plugged in and powered on (if the board partially responds), carefully use a multimeter set to AC voltage. Place one probe on the AC_L (hot) terminal and the other on the AC_N (neutral) terminal. You should read approximately 120V AC. Then, test between AC_L and the GND (ground) terminal; this should also read 120V AC. If you get no reading, or a significantly lower reading, check your power cord, outlet, and internal fuse (if present on the board).

Are Pit Boss control boards interchangeable between different models or years?

Generally, no. While some basic functions remain consistent, control boards are often model-specific due to variations in component types (e.g., auger motor speed, fan RPM, igniter wattage), software calibrations, and physical form factors. Always check the manufacturer’s part number against your specific Pit Boss grill model and year. Attempting to install an incompatible board can lead to improper operation, error codes, or permanent damage to the control board or connected components.

What wire gauge is recommended for replacing power components like the auger or igniter?

For AC power components such as the auger motor, combustion fan, and hot rod igniter, the manufacturer typically uses 16 AWG or 14 AWG wire due to the current draw (voltage). It is crucial to replace any damaged wiring with the same or a heavier gauge (lower AWG number) to ensure safe and efficient power delivery. Using a wire that is too thin will lead to overheating and potential fire hazards.

What if my temperature readings are inaccurate after re-wiring the RTD probe?

Inaccurate temperature readings after re-wiring the RTD probe often stem from a poor connection, a damaged probe, or incorrect wiring. First, ensure the purple and yellow wires are securely seated in their respective RTD_A and RTD_B terminals on the control board. Check for any corrosion or damage to the probe’s wires. While RTDs are not polarity-sensitive, matching the original connection ensures consistency. If the issue persists, the RTD probe itself may be faulty and require replacement. Verify the resistance of the RTD at room temperature against manufacturer specifications using a multimeter.

Can I extend the wiring for components like the RTD probe or auger motor?

While technically possible, extending wiring should be approached with caution. For RTD probes, excessive length can introduce resistance and electrical noise, leading to less accurate temperature readings. If extending, use shielded, appropriate gauge wire and ensure connections are professionally spliced and insulated. For power components like the auger motor, extending wires can lead to voltage drop, reducing motor efficiency and increasing wire heating. If extensions are unavoidable, use a heavier wire gauge (e.g., 14 AWG instead of 16 AWG) for the extended run to compensate for increased resistance.

Frequently Asked Questions
