Massey Ferguson Fuel System Diagram: Repair & Maintenance 2026
A typical Massey Ferguson diesel fuel system includes a primary filter, fuel transfer pump, secondary filter, high pressure fuel pump (HPFP), injection pressure regulator, fuel return line, and injectors. Fuel is drawn from the tank, filtered, pressurized by the HPFP, and delivered to injectors, with excess fuel returning via the return line.
📌 Key Takeaways
- Fuel flow sequence: Fuel typically moves from the tank through a primary filter, transfer pump, secondary filter, high pressure fuel pump (HPFP), and then to the injectors, with excess returning via the fuel return line.
- Injection Pressure Regulator (IPR) identification: The IPR is crucial for controlling fuel pressure to the injectors; locate it near the high-pressure fuel pump or common rail.
- Torque specification: Always adhere to manufacturer-specified torque values for fuel line fittings and component mounting bolts to prevent leaks and damage.
- Most common failure point: Clogged fuel filters are the most frequent cause of Massey Ferguson fuel system issues, leading to power loss or no-start conditions.
- When to seek professional help vs DIY: For complex diagnostics involving the high pressure fuel pump or injection pressure regulator, or if special tools are required, professional service is recommended.
This article provides a detailed examination of the common rail fuel system as found in many Massey Ferguson tractors equipped with the Perkins 1104D-44TA engine. Understanding the intricacies of this high-pressure diesel injection system is crucial for effective diagnostics, maintenance, and repair. This comprehensive guide will delineate each component, illustrate its function within the fuel delivery process, and outline common failure points. Technicians and experienced equipment owners will find this resource invaluable for maintaining optimal engine performance and efficiency.

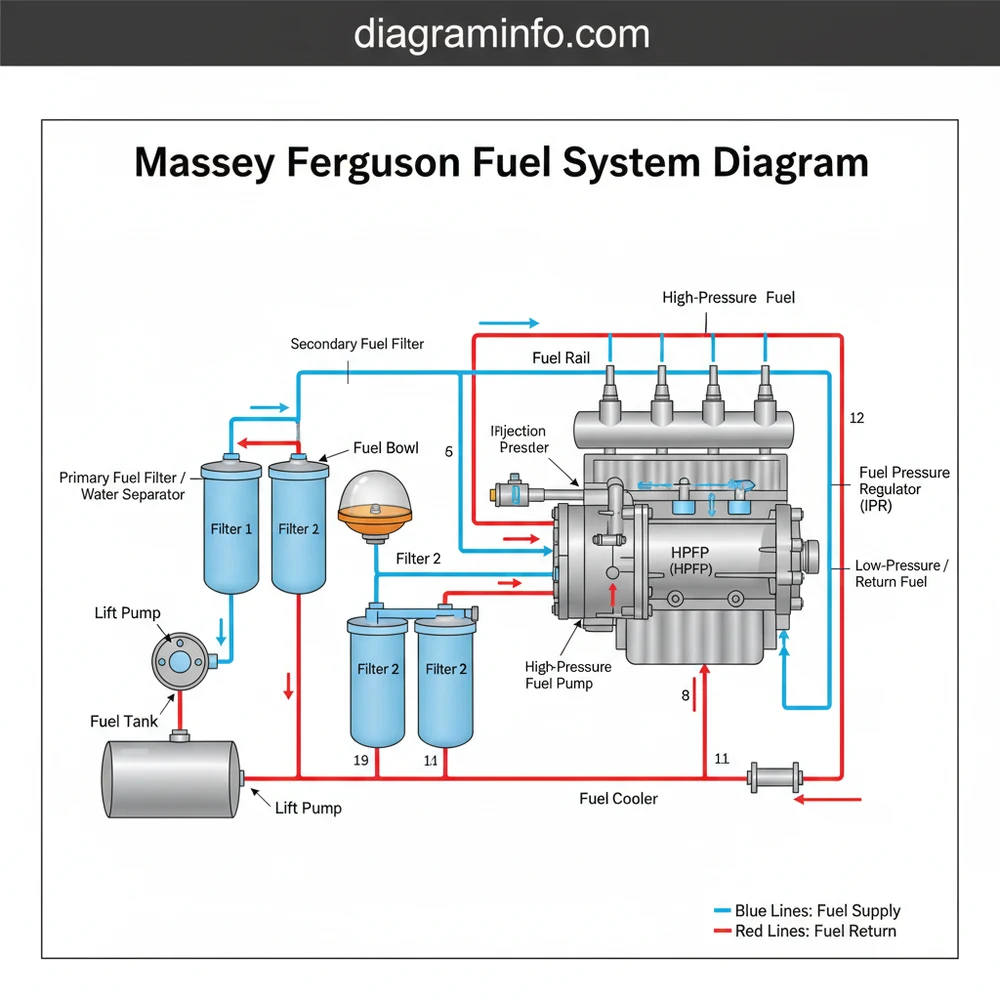

FUEL SYSTEM COMPONENTS BREAKDOWN
The Massey Ferguson fuel system, particularly in modern common rail applications like the Perkins 1104D-44TA, is a sophisticated network designed for precise fuel delivery and atomization. Referencing the diagram above, each component plays a critical role in ensuring optimal engine performance and emissions compliance.
| Component | Function |
|---|---|
| 1. Fuel Tank | Stores diesel fuel. Incorporates a sender unit for fuel level monitoring and a pickup tube. |
| 2. Fuel Heater | Heats the fuel in cold conditions to prevent wax precipitation and maintain viscosity, ensuring smooth flow. |
| 3. Primary Fuel Filter / Water Separator | Removes larger contaminants and separates water from the fuel. Often includes a draincock and a clear fuel bowl for inspection. |
| 4. Low-Pressure Fuel Pump (Lift Pump) | Draws fuel from the tank and supplies it under low pressure to the high-pressure circuit. May be electric or mechanically driven. |
| 5. Fuel Primer Pump | A manual or electric pump used to prime the fuel system after maintenance or running out of fuel, removing air. |
| 6. Secondary Fuel Filter | Provides finer filtration, protecting sensitive high-pressure components like the HPFP and injectors from microscopic particles. |
| 7. High Pressure Fuel Pump (HPFP) | The heart of the common rail system. It generates extremely high fuel pressure (up to 2500 bar) and delivers it to the common rail. |
| 8. Fuel Pressure Regulator (IMV/MPROP/PCV) | Also known as the Injection Pressure Regulator or Fuel Metering Valve. Located on the HPFP or common rail, it electronically controls the volume of fuel entering the high-pressure pumping elements, thereby regulating rail pressure. |
| 9. Common Rail | A high-pressure accumulator that stores fuel under constant high pressure, ensuring immediate and consistent supply to all injectors. |
| 10. Rail Pressure Sensor | Monitors the actual fuel pressure within the common rail and sends feedback to the Engine Control Unit (ECU). |
| 11. Fuel Injectors | Electronically controlled nozzles that spray a precisely atomized fuel charge directly into the combustion chamber based on ECU commands. |
| 12. Fuel Return Line | Routes excess fuel (from HPFP, injectors, and pressure regulators) back to the fuel tank, often via a fuel cooler. |
| 13. Fuel Cooler | Cools the returning fuel, which can be heated by the high-pressure pumping process, before it re-enters the fuel tank. This prevents thermal degradation of the fuel and tank. |
Modern Massey Ferguson common rail systems utilize sophisticated control strategies. The ECU continuously monitors various parameters (engine speed, load, temperature, rail pressure) to precisely control the injection pressure regulator and injector timing/duration, optimizing fuel efficiency and reducing emissions. Variations in component placement or design may exist across different Massey Ferguson models or specific engine variants, so always consult the specific service manual for your machine’s year and engine code.
COMMON FAILURE POINTS & SYMPTOMS
Diagnosing fuel system issues in a Massey Ferguson can be challenging due to the intricate nature of common rail technology. Here’s a breakdown of common failure points, their associated symptoms, and initial diagnostic approaches.
- Primary Fuel Filter / Water Separator:
- Symptom: Engine loss of power, stumbling, rough running, or complete engine shutdown. Visible water or debris in the fuel bowl.
- Diagnosis: Inspect the clear fuel bowl for contaminants. Drain water regularly. A clogged filter will restrict fuel flow, leading to low pressure before the lift pump. Use a vacuum gauge to check for excessive restriction on the suction side.
- Low-Pressure Fuel Pump (Lift Pump):
- Symptom: Engine crank-no-start, hard starting, low power, or fuel starvation at high loads.
- Diagnosis: Check fuel pressure output at the secondary filter housing or before the HPFP. Manufacturer specifications indicate a typical low-pressure range of 3-7 bar (45-100 psi) depending on the system. Use a pressure gauge; electrical issues may require checking pump current draw and voltage at the pump connector (e.g., typically 12V with ignition on).
- Secondary Fuel Filter:
- Symptom: Similar to primary filter issues but can be more subtle initially, leading to premature wear of the HPFP and injectors due to finer particle bypass. Engine de-rating.
- Diagnosis: If the primary filter is clear, but symptoms persist, replace the secondary filter. Monitor fuel pressure before and after the filter for significant pressure drops, indicating clogging.
- High Pressure Fuel Pump (HPFP):
- Symptom: Engine crank-no-start (no rail pressure), severe power loss, misfires, black smoke, rough idle, or diagnostic trouble codes (DTCs) related to rail pressure.
- Diagnosis: Monitor actual vs. desired rail pressure via a diagnostic tool. A failing HPFP will struggle to build or maintain target pressure. Check for external leaks or abnormal noises. On some models, the HPFP is driven directly by the engine, so ensure mechanical integrity.
- Injection Pressure Regulator (IMV/MPROP/PCV):
- Symptom: Erratic rail pressure, sudden pressure drops, engine stalling, rough idle, poor fuel economy, or DTCs related to fuel metering.
- Diagnosis: Use a diagnostic scanner to observe the duty cycle or current commanded by the ECU to the regulator. Test the resistance of the solenoid. A faulty regulator can cause improper fuel metering, either starving the rail or over-pressurizing it.
- Fuel Injectors:
- Symptom: Misfires, excessive smoke (black, white, or blue), rough running, increased fuel consumption, knocking sounds, or visible fuel leaks from the injector body/return line.
- Diagnosis: Perform a cylinder contribution test or injector return flow test. Excessive return flow from an injector can indicate an internal leak, reducing rail pressure. For significant issues, remove and have injectors tested by a specialist. DTCs for individual injector circuits can point to electrical failures.
- Rail Pressure Sensor:
- Symptom: Incorrect rail pressure readings on diagnostic tools, erratic engine operation, limp mode, or DTCs related to rail pressure sensor rationality.
- Diagnosis: Compare sensor readings with a known good sensor or pressure gauge. Check sensor wiring for continuity and correct voltage supply (typically 5V reference).
- Fuel Return Line / Fuel Cooler:
- Symptom: Fuel leaks, noticeable increase in fuel temperature in the tank, or in the case of a clogged fuel cooler, potentially higher fuel temperatures leading to cavitation or decreased component lifespan.
- Diagnosis: Visually inspect all fuel return lines for cracks, chafing, or signs of leakage. Check the fuel cooler for external damage or internal restrictions if fuel temperature remains excessively high.
Working with high-pressure common rail fuel systems is extremely dangerous. Fuel pressures can exceed 2000 bar (30,000 psi). A fuel leak at these pressures can penetrate skin and cause severe injury or death. Always depressurize the system and wear appropriate personal protective equipment (PPE) including eye protection and heavy-duty gloves. Never loosen high-pressure lines with the engine running or while the system is pressurized.
REPAIR & REPLACEMENT STEPS: HIGH PRESSURE FUEL PUMP (HPFP)
Replacing the High Pressure Fuel Pump (HPFP) is a critical service procedure requiring meticulous attention to cleanliness and torque specifications. This procedure assumes the HPFP is externally mounted and gear-driven, common in Perkins 1104D-44TA engines. For specific variations, always consult the Massey Ferguson service manual for your exact model and year. Before commencing, ensure the engine is cool and disconnected from its power source (battery ground terminal removed).
Diesel fuel is flammable. Ensure adequate ventilation and fire suppression equipment is readily available. High-pressure fuel components are extremely sensitive to contamination. Maintain an immaculately clean workspace. Any ingress of dirt or debris can lead to premature failure of new components.
Procedure for HPFP Replacement:
- System Depressurization:
- Disconnect the battery ground cable.
- Cycle the ignition key several times without starting the engine to allow the ECU to de-energize fuel system solenoids.
- Carefully loosen the fuel lines to the HPFP, starting with the low-pressure supply and return, then the high-pressure output. Allow residual pressure to dissipate.
- Preparation & Access:
- Clean the area around the HPFP thoroughly using appropriate degreasers and compressed air to prevent contamination.
- Place clean rags or absorbent material beneath the HPFP to catch any residual fuel.
- Remove any ancillary components that obstruct access to the HPFP, such as brackets, wiring harnesses, or cooling lines.
- Disconnecting Fuel Lines and Electrical Connectors:
- Carefully disconnect the low-pressure supply line from the secondary fuel filter. Cap or plug all open lines and ports immediately to prevent contamination.
- Disconnect the fuel return line from the HPFP.
- Disconnect the high-pressure fuel line connecting the HPFP to the common rail. Use two wrenches to prevent twisting the line.
- Unplug electrical connectors for the injection pressure regulator (IMV) and any other sensors on the HPFP. Note wire colors and routing for reassembly.
- HPFP Removal:
- If gear-driven, locate the timing marks. Ensure the engine is at Top Dead Center (TDC) on cylinder 1 compression stroke or as specified by the OEM. Lock the engine flywheel or crankshaft as required.
- Loosen the mounting bolts securing the HPFP to its mounting flange on the engine. On some models, a specific sequence may be required.
- Carefully withdraw the HPFP from its mounting. Be cautious not to damage the drive gear or shaft seal.
- Installation of New HPFP:
- Ensure the new HPFP is the correct part number (e.g., Perkins part numbers often start with “264”).
- Lightly lubricate the HPFP O-rings and mounting surface with clean diesel fuel.
- Align the HPFP drive gear (if applicable) and carefully insert it into position. Ensure it seats correctly without force.
- Install the mounting bolts.
- Torque Specifications & Reconnection:
- Tighten the HPFP mounting bolts to OEM specifications. Manufacturer specs typically indicate values around 25-35 Nm (18-26 lb-ft), but confirm with your specific manual.
- Reconnect the high-pressure fuel line to the common rail. Tighten the fittings to the specified torque (often 25-30 Nm for M12 lines, up to 50 Nm for larger lines). Use a torque wrench.
- Reconnect the low-pressure supply and fuel return lines.
- Reconnect all electrical connectors, ensuring positive engagement.
- Priming the Fuel System:
- After any fuel system disruption, priming is essential. Use the primer pump (manual or electric) to expel air from the system until a steady stream of fuel (without bubbles) emerges from a bleed screw or the primary filter housing.
- Continue priming until resistance is felt at the primer pump.
- Testing & Leak Check:
- Reconnect the battery.
- Start the engine. It may take several cranking cycles to build rail pressure. Avoid excessive cranking to prevent starter motor damage.
- Once running, visually inspect all connections for fuel leaks, especially high-pressure lines. Rectify any leaks immediately.
- Monitor rail pressure using a diagnostic tool to ensure it reaches and maintains desired values.
Typical Fuel Pressure Specs (Perkins 1104D-44TA Common Rail):
Low Pressure (Lift Pump Output): 3-7 bar (45-100 psi)
High Pressure (Common Rail): 300-2500 bar (4,350-36,250 psi) at various engine loads.
Refer to your specific service manual for exact values as these can vary significantly by engine calibration and model year.
FAQ
What are the common signs of a clogged fuel filter in a Massey Ferguson?
Common signs of a clogged fuel filter include a noticeable loss of engine power, stumbling or hesitation under load, difficulty starting, or erratic engine idle. If equipped with a clear fuel bowl, you might visually identify excessive sediment or water. A diagnostic tool may show low fuel pressure readings on the low-pressure side of the system, indicating a restriction. Regular filter replacement is crucial; for optimal performance, consider replacing both primary and secondary filters annually or every 500-1000 operating hours, depending on manufacturer recommendations and fuel quality.
How important is the fuel return line and fuel cooler in common rail systems?
The fuel return line is critically important. It routes excess fuel from the HPFP, injection pressure regulator, and injectors back to the tank. This flow is necessary for pressure regulation and component cooling. The fuel cooler, often integrated into the return circuit, cools this heated fuel before it returns to the tank. Without adequate cooling, fuel temperature in the tank can rise excessively, leading to fuel degradation, increased vapor pressure, and potential cavitation in the lift pump, compromising the entire system’s longevity and performance. For more insights on temperature management, explore our article on Diesel Engine Cooling Systems.
Can I use biodiesel in my Massey Ferguson with a common rail fuel system?
Many modern Massey Ferguson engines, including those with common rail systems, are designed to operate on biodiesel blends up to B20 (20% biodiesel). However, it is imperative to check your specific operator’s manual for compatibility and any specific recommendations or limitations. Biodiesel can affect fuel system components, filter life, and lead to issues like filter plugging or accelerated rubber seal degradation if not approved or if using higher concentrations. Always ensure biodiesel meets ASTM D6751 or EN 14214 standards.
What diagnostic tools are essential for troubleshooting Massey Ferguson common rail fuel systems?
For in-depth troubleshooting of Massey Ferguson common rail systems, a high-quality diagnostic scanner with OEM-level capabilities is indispensable. This allows you to monitor live data such as rail pressure (actual vs. desired), injector pulse width, injection pressure regulator duty cycle, and fuel temperature. A digital multimeter is essential for checking sensor voltages and circuit continuity, while a fuel pressure gauge (low and high pressure) helps verify pump output. A dedicated injector return flow test kit is also highly beneficial for identifying faulty injectors. For information on specific diagnostic strategies, refer to our Common Rail Diagnostics Guide.
Are there year-specific considerations for Massey Ferguson fuel systems?
Absolutely. Older Massey Ferguson models (generally pre-2000s) primarily utilized mechanical fuel injection systems (e.g., rotary or inline pumps) with significantly lower pressures and simpler filtration. As emissions regulations tightened, common rail systems became standard, introducing electronic control, much higher pressures, and more sophisticated filtration. For instance, early common rail systems might use a single HPFP and simpler injection pressure regulator, while newer systems incorporate more advanced metering valves, potentially multiple rail pressure sensors, and even exhaust aftertreatment considerations tied to fuel injection. Always verify the specific year and engine variant when obtaining diagrams or parts. This article primarily focuses on the common rail systems found in many modern Massey Ferguson tractors.
Step-by-Step Guide to Understanding the Massey Ferguson Fuel System Diagram: Repair & Maintenance 2026
Identify – Locate the fuel tank, filters, and high pressure fuel pump (HPFP) on your Massey Ferguson using the diagram.
Locate – Pinpoint the fuel return line and injection pressure regulator for system tracing.
Reference – Use the diagram to trace fuel flow from the tank through filters, pumps, and to injectors, noting the fuel bowl’s position.
Connect/Route – Verify correct routing of fuel lines, especially the fuel return line, ensuring no kinks or obstructions.
Verify – After any component replacement, check for proper fuel pressure (low and high side) and test for leaks across the system.
Troubleshoot – If issues persist, use the diagram to isolate sections, testing components like the injection pressure regulator or high pressure fuel pump (HPFP) systematically.
Frequently Asked Questions
What are the main components of the massey ferguson fuel system diagram?
The Massey Ferguson fuel system includes the fuel tank, primary and secondary filters, fuel transfer pump, high pressure fuel pump (HPFP), common rail (if applicable), injection pressure regulator, fuel injectors, and the fuel return line. Some models may feature a fuel bowl or sedimenter pre-filter to separate water and larger particles.
What are symptoms of a failing massey ferguson fuel system diagram pump?
Symptoms of a failing fuel pump (transfer or high pressure fuel pump) include engine cranking but not starting, loss of power under load, rough idling, misfires, or stalling. You might also notice unusual noises from the pump area or a drop in fuel pressure readings, impacting the injection pressure regulator’s function.
How do I diagnose a fuel leak in massey ferguson fuel system diagram?
To diagnose a fuel leak, visually inspect all fuel lines, especially the fuel return line, and connections from the tank to the injectors. Look for wet spots or drips. Pressurize the low-pressure side using a hand primer, then check high-pressure lines. A strong fuel smell is also a key indicator.
What is the fuel pressure spec for massey ferguson fuel system diagram?
Fuel pressure specifications vary significantly by Massey Ferguson model and engine. Low-pressure side typically ranges from 30-70 PSI, while the high pressure fuel pump (HPFP) can generate thousands of PSI for common rail systems. Always consult your specific service manual for precise idle and under-load pressure values, which are critical for injection pressure regulator function.
How long does massey ferguson fuel system diagram fuel pump last?
The lifespan of a Massey Ferguson fuel pump (high pressure fuel pump or transfer pump) varies greatly, often 5,000-10,000 hours or more, depending on fuel quality, maintenance, and operating conditions. Regular fuel filter replacement and avoiding running the tank dry are crucial to extending its life and preventing premature failure.
Can I replace the massey ferguson fuel system diagram fuel filter myself?
Yes, replacing the fuel filter on most Massey Ferguson models is a common DIY task. Ensure you use the correct replacement filter, prime the system afterward to remove air, and check for leaks. For systems with a fuel bowl, ensure it’s clean upon reassembly. Always follow the service manual for specific steps.
