5.9 Cummins Fuel Line Diagram: Routing & Repair 2026
The 5.9 Cummins fuel line diagram illustrates the path from the fuel tank through the lift pump, fuel filter (fuel bowl), high pressure fuel pump (HPFP), and common rail to the injectors, including the fuel return line. It’s crucial for identifying component placement, checking for leaks, verifying proper routing, and diagnosing fuel delivery issues within the fuel system.
📌 Key Takeaways
- The 5.9 Cummins fuel system typically operates at a lift pump pressure of 10-20 PSI and common rail pressures up to 23,000 PSI depending on the year/HPFP.
- Proper identification of the high pressure fuel pump (HPFP) and the fuel return line is crucial for diagnosis and preventing misinstallation.
- Always relieve fuel system pressure before disconnecting any fuel lines to prevent serious injury; use eye protection and gloves.
- The fuel bowl (filter housing) and its associated O-rings are a common source of air intrusion and leaks in the 5.9 Cummins fuel system.
- While fuel filter replacement is DIY, issues involving the HPFP or injection pressure regulator typically require specialized tools and professional expertise.
Navigating the intricate fuel system of the Cummins 5.9L engine is crucial for maintaining its legendary reliability and performance. This guide provides a comprehensive breakdown of the 5.9 Cummins fuel line diagram, encompassing its various components, operational principles, and critical service considerations. Whether you’re working on a 12-valve, 24-valve VP44, or Common Rail (CR) variant, understanding the fuel flow from the tank to the injectors is fundamental for accurate diagnosis and effective repairs. The diagram below illustrates a typical Common Rail 5.9 Cummins fuel system, serving as a primary reference for the detailed explanations that follow, though specific components and pressures will vary across different generations.

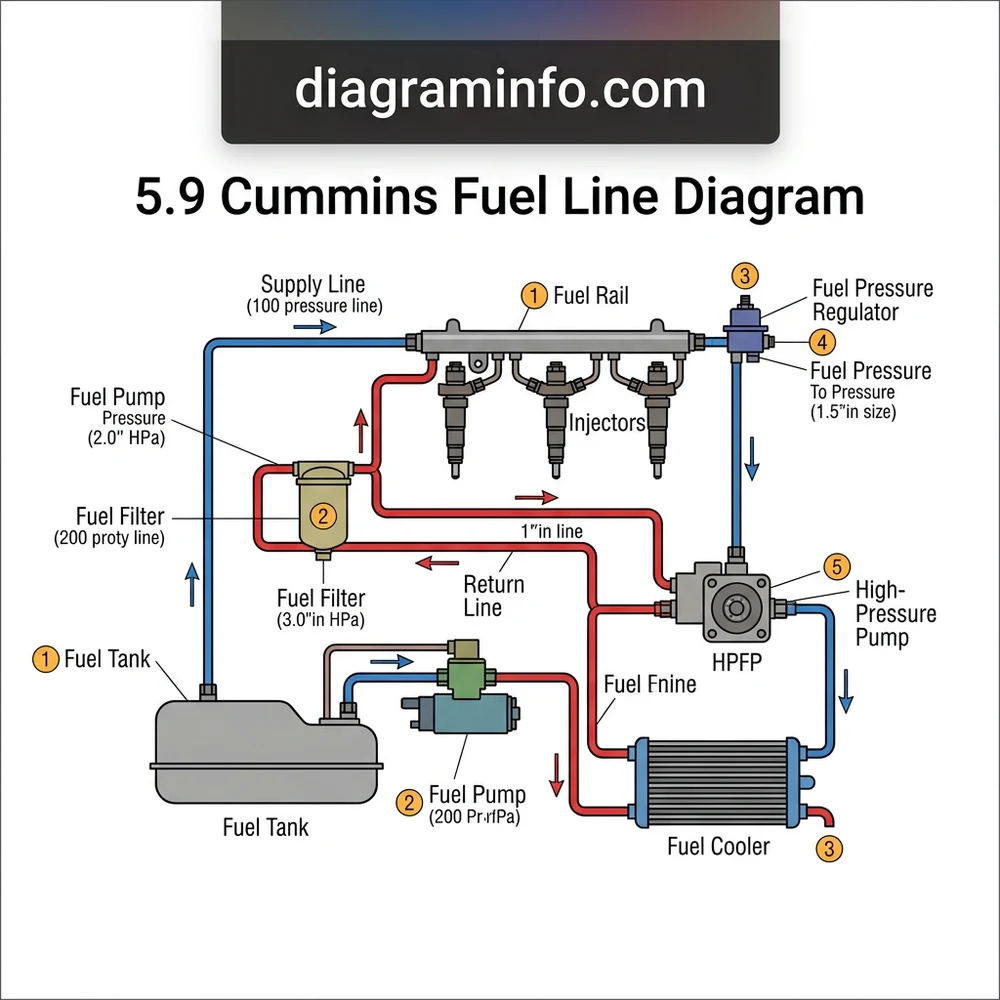

[DIAGRAM_PLACEHOLDER – Insert detailed 5.9 Cummins Common Rail fuel line diagram here, clearly labeling all components discussed in the article.]
FUEL SYSTEM COMPONENTS BREAKDOWN
The 5.9L Cummins fuel system is engineered to deliver precise fuel quantities at extreme pressures, ensuring optimal combustion and power output. Each component plays a vital role in this complex process, as detailed below and visually represented in the 5.9 Cummins fuel line diagram above.
- Fuel Tank: The primary reservoir for diesel fuel. Equipped with a sending unit to monitor fuel levels and often a pickup tube designed to draw fuel without air ingress.
- Lift Pump (Low-Pressure Fuel Pump): Responsible for drawing fuel from the tank and supplying it under low pressure to the fuel filter housing and subsequently to the high-pressure fuel pump. Early 24-valve models (VP44) used a block-mounted pump, which was notoriously prone to failure, often leading to VP44 pump damage. Later Common Rail models (2003-2007) typically use an in-tank lift pump.
- Fuel Heater & Fuel Bowl Assembly: Integrated into the fuel filter housing on many models. The fuel heater prevents diesel gelling in cold weather by warming the fuel before filtration. The fuel bowl acts as a reservoir for the fuel filter and often houses a water-in-fuel (WIF) sensor.
- Fuel Filter: A critical component that removes contaminants (dirt, rust, water) from the diesel fuel before it reaches the high-pressure components. Regular replacement is paramount for system longevity.
- Fuel Pressure Sensor (Low Pressure): Monitors the pressure between the lift pump and the high-pressure fuel pump. A low reading here often indicates a failing lift pump or clogged filter.
- High Pressure Fuel Pump (HPFP) / CP3 Pump (Common Rail): For Common Rail 5.9 Cummins engines, this is the CP3 pump. It receives low-pressure fuel from the lift pump and increases its pressure dramatically, sometimes exceeding 26,000 PSI, before sending it to the fuel rail. It’s a precisely engineered unit crucial for injection timing and quantity. Earlier 24-valve engines used the VP44 injection pump, which served both as a high-pressure pump and electronic controller.
- Fuel Rail (Common Rail): A common accumulator that stores high-pressure fuel, ensuring a consistent supply to all injectors. It dampens pressure pulsations from the HPFP.
- Fuel Pressure Sensor (High Pressure): Located on the fuel rail, this sensor monitors the actual pressure in the rail, providing feedback to the Engine Control Module (ECM) to regulate HPFP output via the Fuel Pressure Regulator.
- Injection Pressure Regulator (FPR) / Quantity Control Valve (QCV) / Fuel Control Actuator (FCA): Mounted on the HPFP (CP3) or fuel rail, this solenoid-operated valve controls the amount of fuel entering the high-pressure pumping elements, thereby regulating rail pressure. On VP44 systems, this functionality was integrated within the pump itself.
- Fuel Injectors: Electronically controlled solenoids (Common Rail) or mechanically controlled units (P7100) that spray atomized fuel directly into the combustion chambers. Common Rail injectors are extremely precise, opening and closing multiple times per combustion cycle to optimize power and emissions.
- Fuel Return Line: Excess fuel from the HPFP and fuel injectors (used for cooling and lubrication) is routed back to the fuel tank through this line. On Common Rail systems, this return fuel is often cooled by a Fuel Cooler before returning to the tank to prevent overheating.
- Primer Pump (Manual): Often found on or near the fuel filter housing, this hand pump is used to prime the fuel system after maintenance, such as filter replacement, ensuring no air is trapped.
The precise operation of the 5.9 Cummins fuel system is heavily dependent on the Engine Control Module (ECM) for Common Rail engines. The ECM uses inputs from various sensors, including crankshaft position, camshaft position, accelerator pedal position, and fuel pressure sensors, to precisely command the Fuel Control Actuator (FCA) on the CP3 pump and the individual fuel injectors, optimizing fuel delivery for current operating conditions. For more on ECM diagnostics, refer to our Cummins ECM Troubleshooting Guide.
COMMON FAILURE POINTS & SYMPTOMS
The reliability of the 5.9 Cummins is renowned, but its fuel system is not immune to wear and tear. Proactive identification of common failure points can prevent catastrophic damage and costly repairs. Utilize the Cummins fuel pressure specifications to aid in diagnosis.
- Lift Pump Failure:
- Symptom: Hard starting, lack of power, engine stalling, surging, or a sustained drop in fuel pressure measured before the HPFP.
- Diagnosis: Connect a low-pressure fuel gauge to the test port (typically on the fuel filter housing or an aftermarket gauge port). A reading below 5 PSI (for Common Rail) or inconsistent pressure indicates a failing pump. The original block-mounted pumps on 24V VP44 models were particularly prone to failure.
- Clogged Fuel Filter / Water in Fuel (WIF):
- Symptom: Reduced engine power, rough idle, black smoke, increased fuel consumption, or engine stumbling under load. The “Water In Fuel” light may illuminate on the dash.
- Diagnosis: Check the WIF sensor (if equipped) for fault codes. Replace the fuel filter immediately. Inspect drained fuel for water or significant contamination. Restricted flow through the filter can starve the HPFP.
- High Pressure Fuel Pump (HPFP / CP3) Malfunction:
- Symptom: No start condition, extended crank times, P0087 (Fuel Rail/System Pressure Too Low) or P0088 (Fuel Rail/System Pressure Too High) DTCs, sudden loss of power, or engine dying while driving.
- Diagnosis: Monitor actual vs. desired fuel rail pressure using a diagnostic scanner. If actual pressure cannot meet desired pressure, especially at higher RPMs, the CP3 pump or its Fuel Control Actuator (FCA) may be failing. A failed CP3 can also contaminate the entire fuel system with metal shavings.
- Fuel Injector Issues:
- Symptom: Rough idle, excessive smoke (white, black, or blue), misfires, knocking sounds, increased fuel consumption, or fuel dilution in the engine oil.
- Diagnosis: Perform an injector return rate test to identify leaking injectors. Use a diagnostic scanner to check for injector contribution codes. A cylinder cutout test can isolate a faulty injector. Inspect fuel for debris if multiple injectors are failing, as this can indicate HPFP wear.
- Fuel Pressure Regulator (FPR) / Fuel Control Actuator (FCA) Failure:
- Symptom: Engine stalling, surging, erratic idle, hard starting, or P0087/P0088 codes. Symptoms often mimic a failing HPFP.
- Diagnosis: Observe fuel rail pressure with a scanner during various engine loads. An FCA sticking open or closed will result in incorrect rail pressure. It is often a simpler and cheaper replacement than the entire HPFP.
- Fuel Line Leaks / Air in Fuel:
- Symptom: Hard starting, air bubbles visible in clear fuel lines (if installed), engine surging, or loss of prime after sitting. Visible fuel leaks under the vehicle.
- Diagnosis: Visually inspect all fuel lines, fittings, and banjo bolts for signs of weeping fuel or loose connections. Pay close attention to the fuel return line and its connections. A clear hose temporarily installed in the supply line can confirm air ingress.
| Component | Typical OEM Fuel Pressure (PSI) | Common DTCs |
|---|---|---|
| Lift Pump Output (CR) | 10-20 PSI (idle to WOT) | P0148, P0230, P0231, P0232 |
| Fuel Rail Pressure (CR) | 5,000-26,000 PSI (variable) | P0087, P0088, P0191, P0193 |
| VP44 (Low Pressure side) | 5-7 PSI (idle, 24V) | P0216, P1688 |
REPAIR & REPLACEMENT STEPS: 2003-2007 5.9L Cummins Lift Pump Replacement
Replacing the in-tank lift pump on a 2003-2007 Common Rail 5.9L Cummins is a common maintenance item that significantly impacts overall fuel system health. This procedure can be performed by an experienced DIYer or professional mechanic.
Always ensure the vehicle is on a level surface with the parking brake engaged and wheels chocked. Disconnect the negative battery terminals before beginning any electrical work. Diesel fuel is highly flammable; take extreme precautions and work in a well-ventilated area away from ignition sources. Wear appropriate personal protective equipment (PPE), including eye protection and fuel-resistant gloves.
- Depressurize Fuel System: Disconnect the electrical connector to the lift pump module (typically under the driver’s side of the bed, near the fuel tank). Attempt to start the engine and let it run until it stalls, which will relieve fuel pressure. Alternatively, locate the fuse for the fuel pump in the fuse box and remove it, then crank the engine.
- Safely Drain Fuel Tank (Optional but Recommended): For easier access and reduced spillage, it’s advisable to have the fuel tank as empty as possible. If not draining, prepare for significant fuel spillage by having appropriate containers ready.
- Support & Lower Fuel Tank: Use a transmission jack or floor jack with a wood block to support the fuel tank. Remove the fuel tank straps (typically two) that hold the tank in place. Carefully lower the tank approximately 6-12 inches to gain access to the top of the fuel module.
- Disconnect Fuel Lines and Electrical:
- Carefully disconnect the supply and return fuel lines from the top of the fuel module. Use specialized fuel line disconnect tools if necessary. Be prepared for some fuel spillage.
- Disconnect the electrical connector from the top of the fuel pump module. Note the routing of the lines and wiring for reassembly.
- Remove Fuel Pump Module Locking Ring: Use a specialized fuel pump locking ring tool (or a brass punch and hammer, carefully) to loosen and remove the large plastic locking ring that secures the fuel pump module into the tank. Rotate it counter-clockwise.
- Extract Fuel Pump Module: Carefully lift the entire fuel pump module out of the fuel tank. Be cautious not to bend the fuel level sender float arm. Allow any remaining fuel to drain back into the tank. Inspect the fuel tank interior for debris.
- Prepare New Lift Pump Module: If replacing the entire module, ensure the new unit has a new O-ring seal. If only replacing the pump itself within the module, carefully disassemble the old module and install the new pump, filter sock, and internal O-rings according to manufacturer instructions.
- Install New Fuel Pump Module: Carefully insert the new fuel pump module into the tank, ensuring the alignment tabs on the module align with the tank openings. Install the new O-ring seal and then tighten the locking ring clockwise until secure. Ensure the O-ring is seated correctly to prevent leaks.
- Reconnect Fuel Lines and Electrical: Reattach the supply and return fuel lines, ensuring they “click” into place if they are quick-disconnect types. Reconnect the electrical connector. Double-check all connections.
- Raise and Secure Fuel Tank: Carefully raise the fuel tank back into position, ensuring no lines are pinched. Reinstall and tighten the fuel tank straps to OEM torque specifications.
Fuel Tank Strap Torque: Refer to your specific vehicle’s service manual, but generally 18-25 ft-lbs (24-34 Nm). Ensure even tension on both straps.
Electrical Connections: Ensure clean, corrosion-free contacts. Dielectric grease can be applied to weatherproof connections.
Replacement Lift Pump Part Numbers: Mopar 5093006AA (for 2005-2007 in-tank module) or various aftermarket equivalents from Bosch, AirDog, FASS. Always verify compatibility with your specific year and model.
- Prime the Fuel System: Reconnect the negative battery terminals. Cycle the ignition key to the “ON” position (without starting the engine) several times for 30 seconds each. This allows the new lift pump to run and push air out of the system. Listen for the pump running. Some models might require manual priming at the fuel filter housing if equipped with a primer pump.
- Inspect for Leaks and Test Drive: Start the engine and immediately check for any fuel leaks around the tank connections and fuel lines. Let the engine idle for a few minutes, then take it for a test drive, ensuring proper operation and no loss of power. Monitor for any dashboard warning lights.
FAQ
What are the common fuel pressure specifications for a 5.9 Cummins across different generations?
Fuel pressure specifications vary significantly between the different 5.9 Cummins engine generations. For the 12-valve (P7100), the lift pump generally provides 20-30 PSI. Early 24-valve engines with the VP44 injection pump require 5-7 PSI from the lift pump to prevent damage to the VP44. For the Common Rail (CR) 5.9L (2003-2007), the lift pump should maintain 10-20 PSI at idle and under load. The high-pressure fuel rail on CR engines operates dynamically, ranging from approximately 5,000 PSI at idle to over 26,000 PSI at wide-open throttle (WOT). Manufacturer specs indicate these pressures are critical for optimal performance and injector longevity.
How often should I replace my 5.9 Cummins fuel filter?
Manufacturer specifications recommend replacing the fuel filter on a 5.9 Cummins every 15,000 miles or 12 months, whichever comes first. However, driving conditions, fuel quality, and aftermarket modifications (like performance lift pumps) can necessitate more frequent changes. If you observe reduced engine performance, hard starting, or the “Water In Fuel” light illuminates, replace the filter immediately regardless of mileage. Proactive maintenance is cheaper than repairing high-pressure fuel system components damaged by contaminated fuel.
What causes the “air in fuel” issue in a 5.9 Cummins and how is it diagnosed?
Air in the fuel system of a 5.9 Cummins is typically caused by loose fuel line connections, deteriorated O-rings on the fuel filter housing, a failing fuel heater assembly, a faulty fuel cap seal, or a crack in a fuel line or pickup tube within the tank. Symptoms include hard starting (especially after sitting), engine surging, and a general loss of power. Diagnosis often involves installing a clear section of fuel line (often before the lift pump or filter housing) to visually inspect for air bubbles. Pressure testing the low-pressure side of the system can also reveal leaks, or the use of a vacuum gauge if working on the suction side of the lift pump. Pay close attention to the air in fuel diagnosis procedures for specific models.
Can I upgrade my 5.9 Cummins fuel system for better performance or reliability?
Absolutely. Many 5.9 Cummins owners upgrade their fuel systems for enhanced performance, improved filtration, or increased reliability. Common upgrades include installing higher-volume, aftermarket lift pumps (e.g., FASS, AirDog) that offer superior filtration and positive fuel pressure throughout the system, often preventing the common issues associated with OEM lift pump failures. Upgraded fuel lines with larger diameters can reduce restriction. For high-horsepower applications, modified or dual CP3 high-pressure fuel pumps are available to support larger injectors and increased power output. These upgrades must be matched to the engine’s power goals and tuned appropriately by a knowledgeable professional to avoid damaging components.
Step-by-Step Guide to Understanding the 5.9 Cummins Fuel Line Diagram: Routing & Repair 2026
Identify – Locate the specific 5.9 Cummins engine model and year on the diagram to ensure correct component identification.
Locate – Pinpoint the main fuel supply line, high pressure fuel pump (HPFP), fuel return line, and fuel bowl on the diagram.
Reference – Compare the diagram’s routing and component positions with your actual engine bay to understand the layout.
Connect/Route – Follow the diagram for proper fuel line connections, paying attention to inlet/outlet ports on filters and pumps.
Verify – After any repair, use the diagram to double-check all connections are secure and routed correctly before starting the engine.
Troubleshoot – Use the diagram to trace fuel flow paths when diagnosing issues like fuel starvation or leaks, referencing the injection pressure regulator.
Frequently Asked Questions
What are the main components of the 5.9 Cummins fuel system?
The 5.9 Cummins fuel line diagram outlines essential components like the lift pump, fuel filter housing (fuel bowl), high pressure fuel pump (HPFP), fuel rail, and injectors. It also clearly shows the fuel return line, which directs unused fuel back to the tank, and the injection pressure regulator managing rail pressure.
What are symptoms of a failing 5.9 Cummins fuel pump?
Symptoms of a failing 5.9 Cummins fuel pump, especially the lift pump or high pressure fuel pump (HPFP), include hard starts, loss of power, surging, rough idle, and misfires. You might also notice engine codes related to low fuel pressure or an increase in fuel smoke, indicating inefficient combustion.
How do I diagnose a fuel leak in a 5.9 Cummins fuel system?
To diagnose a fuel leak in your 5.9 Cummins fuel system, visually inspect all fuel lines, fittings, and the fuel bowl for wet spots or drips, especially after the engine has run. Check for a strong fuel odor. A pressure test can isolate leaks in the low-pressure side, while dye detection may be needed for subtle high-pressure fuel pump leaks.
What is the fuel pressure spec for a 5.9 Cummins fuel system?
The 5.9 Cummins fuel system requires specific pressures. The lift pump typically maintains 10-20 PSI at the inlet to the fuel filter/HPFP. Common rail pressure can range from idle (around 5,000 PSI) to wide-open throttle (up to 23,000-26,000 PSI), regulated by the injection pressure regulator and HPFP.
How long does a 5.9 Cummins fuel pump last?
The lifespan of a 5.9 Cummins fuel pump varies significantly. A lift pump typically lasts 100,000-150,000 miles, while the high pressure fuel pump (HPFP) can often exceed 200,000 miles with proper maintenance, including regular fuel filter changes and avoiding running the tank low. Fuel quality greatly impacts longevity.
Can I replace the 5.9 Cummins fuel filter myself?
Yes, replacing the 5.9 Cummins fuel filter (located in the fuel bowl) is a common DIY task. Ensure you relieve fuel pressure, use a quality replacement filter, lubricate the new O-ring, and properly bleed the system after installation to prevent air intrusion. Consult your service manual for specific torque specs and priming procedures.
