7.3 Powerstroke Fuel Bowl Diagram: Troubleshooting Guide 2026

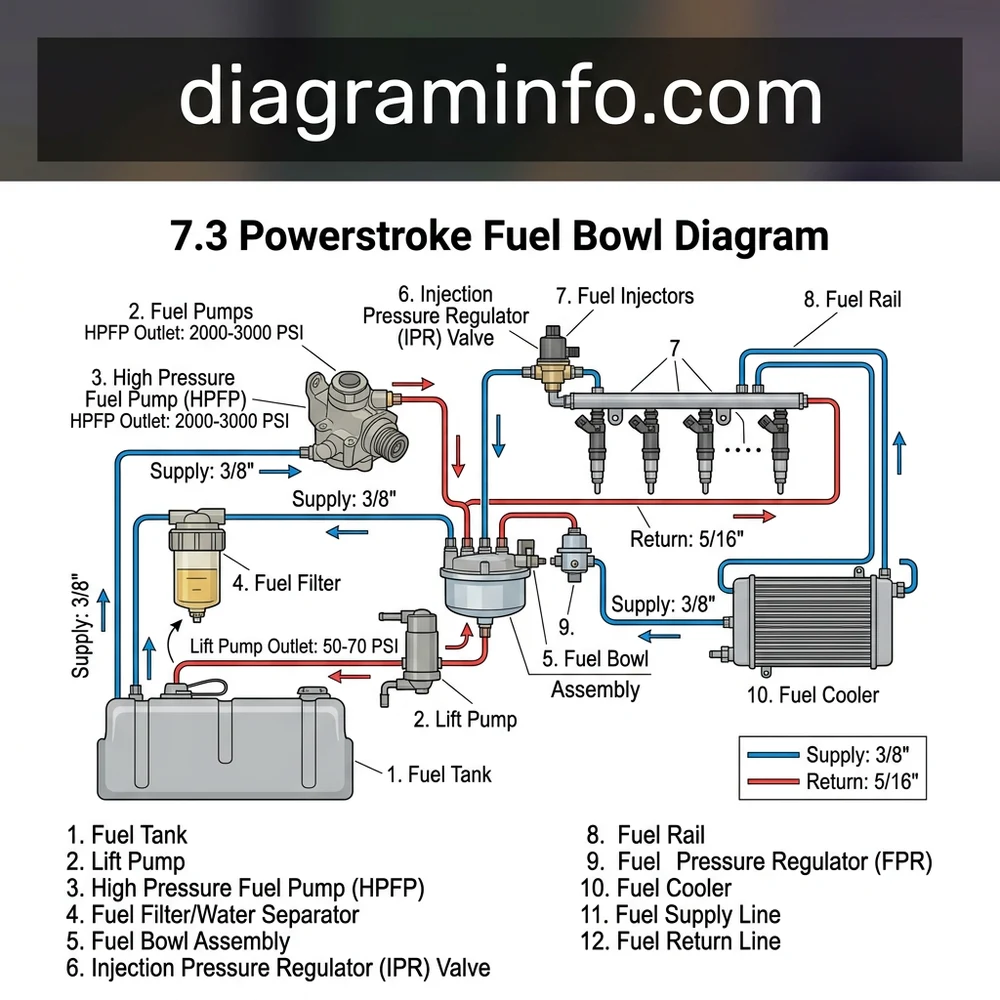

The 7.3 Powerstroke fuel bowl diagram illustrates the central filtering and heating unit located on top of the engine valley. It houses the primary fuel filter, a heating element to prevent gelling, and a drain valve for water separation. It also serves as a junction for fuel supply, return, and pressure sensor connections to the high pressure fuel pump (HPFP).
📌 Key Takeaways
- The 7.3L fuel bowl typically holds 1.5-2 quarts of fuel, ensuring constant supply to the high pressure fuel pump.
- Identify the drain valve on the bottom of the fuel bowl for water separation and critical maintenance.
- Always relieve fuel pressure before servicing the fuel bowl; torque the fuel filter cap to 15 ft-lbs for proper sealing.
- Fuel leaks at the bowl’s O-rings (especially the filter cap) or the fuel heater element are extremely common failure points.
- Consult a diesel specialist if diagnosing complex fuel pressure issues involving the injection pressure regulator or HPFP operation.
The 7.3L Powerstroke engine, a robust V8 turbodiesel powerplant found in Ford F-Series trucks and E-Series vans from 1994.5 to 2003, relies on a meticulously designed fuel system for consistent performance. This comprehensive guide focuses specifically on the 7.3 Powerstroke fuel bowl diagram, dissecting its critical components and their functions. Understanding this central component is paramount for diagnostics, maintenance, and ensuring optimal fuel delivery to the injectors, maintaining the integrity of your engine’s sophisticated HEUI (Hydraulically Actuated Electronically Controlled Unit Injector) system.
FUEL SYSTEM COMPONENTS BREAKDOWN
The fuel bowl assembly serves as a crucial hub within the 7.3L Powerstroke’s fuel delivery network, housing several key components essential for fuel filtration, pressure regulation, and cold-weather operation. As depicted in the diagram, fuel is drawn from the tank by the fuel supply pump (mechanical on early models, electric on 1999-2003 models) and sent directly to the fuel bowl.
| Component | Function | Location/Relation |
|---|---|---|
| 1. Fuel Bowl Housing | Central reservoir on the engine, holding the primary fuel filter, fuel pressure regulator, and fuel heater. Acts as a manifold for fuel distribution and return. | Top of the engine valley, typically near the front passenger side. |
| 2. Fuel Filter (within bowl) | Screens out contaminants, water, and particulates from the fuel before it reaches the injectors. Crucial for injector longevity. | Housed vertically inside the fuel bowl. |
| 3. Fuel Pressure Regulator (FPR) | Maintains a consistent fuel pressure (typically 60-70 psi) for delivery to the cylinder heads and injectors. Located on the side of the fuel bowl. | Integrated into the fuel bowl assembly. |
| 4. Fuel Return Line (fitting) | Routes excess fuel, regulated by the FPR, back to the fuel tank. This prevents fuel system over-pressurization and helps cool the fuel. | Connects to the fuel bowl from the FPR, then runs back to the tank. |
| 5. Primer Pump (Manual) | Used to manually prime the fuel system after filter changes or if the tank runs dry. A spring-loaded plunger on top of the fuel bowl. | Located on top of the fuel bowl cover. |
| Supplies fuel to the fuel bowl at moderate pressure (e.g., 50-70 psi). Note: The 7.3L does not use a conventional “High Pressure Fuel Pump” (HPFP) for injection like common rail systems. Instead, engine oil (pressurized by the HPOP) actuates the injectors to create high injection pressure. For more on this, refer to our guide on 7.3 Powerstroke HPOP System. | Mechanical (early) or electric (late) pump, typically frame-mounted or in the valley (early mechanical). | |
| 7. Fuel Heater | An electric heating element within the fuel bowl designed to warm the fuel in cold conditions, preventing fuel gelling and ensuring flow. | Submerged within the fuel bowl, typically at the bottom. |
| 8. Water-in-Fuel (WIF) Sensor | Detects the presence of water in the fuel, triggering a warning light on the dashboard. Critical for preventing water damage to injectors and pump components. | Threaded into the bottom of the fuel bowl. |
| 9. Injection Pressure Regulator (IPR) Valve | Controls the high-pressure oil output from the HPOP, which in turn actuates the fuel injectors. While not on the fuel bowl, it’s integral to the HEUI injection process that the fuel bowl supports. For more detailed information, consult our 7.3 Powerstroke IPR Valve Diagnostics resource. | Mounted on the High Pressure Oil Pump (HPOP). |
| 10. Fuel Cooler | (Optional/Vehicle Dependent) Reduces the temperature of returned fuel before it re-enters the tank. Excessive heat can degrade fuel quality and pump longevity. | Typically frame-mounted, in line with the fuel return line. |
While the LSI keyword “high pressure fuel pump (HPFP)” is often associated with modern common-rail diesel systems, the 7.3L Powerstroke’s HEUI design utilizes a fuel supply pump for moderate pressure delivery to the fuel bowl, and a High Pressure Oil Pump (HPOP) and Injection Pressure Regulator (IPR) to create the high pressure necessary for injector actuation. The fuel itself is pressurized by the injector internally via oil actuation, not by a conventional HPFP. Maintaining correct fuel pressure to the bowl and heads is crucial for the HPOP and IPR to function optimally.
COMMON FAILURE POINTS & SYMPTOMS
Understanding typical failure points within the 7.3L Powerstroke fuel bowl system is critical for accurate diagnosis and efficient repair. Failures here often manifest as drivability issues or no-start conditions.
-
Fuel Pressure Regulator (FPR)
- Symptom: Low fuel pressure (below 60 psi), rough idle, poor acceleration, lack of power, extended cranking, hard starting (especially when hot). The engine may also experience a “lope” or surge.
- Diagnosis: Connect a fuel pressure gauge to the Schrader valve on the fuel bowl. Monitor pressure at idle and under load. A leaking or stuck-open FPR will result in consistently low pressure. A visual inspection may reveal fuel weeping from the regulator body.
-
Fuel Heater Element
- Symptom: Blown fuse (F2.11 for 99-03 models, F8 for 94-97), no heat in cold weather (leading to fuel gelling), or sometimes a short circuit causing electrical issues. Often, a failed heater element will not directly impact engine operation but can prevent cold-weather starts or cause the fuel filter to gel prematurely.
- Diagnosis: Disconnect the electrical connector to the fuel heater. Using a multimeter, check for continuity across the heater element terminals. An open circuit indicates failure. Also, check for short to ground. Manufacturer specifications indicate a resistance range of 0.5 to 1.5 Ohms for a healthy element.
-
Primer Pump (Manual)
- Symptom: Difficulty priming the system after a fuel filter change or running out of fuel. The plunger may feel “spongy” or not build pressure, leading to extended cranking and no start. External fuel leaks from around the plunger shaft are also common.
- Diagnosis: Attempt to prime the system; if no resistance is felt or fuel does not flow from the air bleeder screw, the pump is likely faulty. Visual inspection for leaks around the cap or plunger.
-
Fuel Bowl Gaskets and O-rings
- Symptom: External fuel leaks from around the fuel filter cap, FPR, WIF sensor, or the bowl housing itself. Strong diesel smell, visible fuel puddles in the engine valley or dripping from the underside of the vehicle.
- Diagnosis: Thorough visual inspection of all external seals and connections on the fuel bowl. Clean the area, then monitor for new fuel weeping after running the engine. Pressure testing the fuel system can help pinpoint leak sources.
-
Water-in-Fuel (WIF) Sensor
- Symptom: Illumination of the “Water in Fuel” warning lamp on the dashboard, even after draining the fuel bowl. This often indicates a faulty sensor or contaminated fuel.
- Diagnosis: Drain the fuel bowl completely. If the light persists, inspect the sensor and its wiring. The sensor resistance can be checked, but replacement is often simpler for a confirmed fault. Ensure the WIF drain valve is not stuck open or leaking.
REPAIR & REPLACEMENT STEPS: Fuel Bowl Replacement
Replacing the entire 7.3L Powerstroke fuel bowl assembly is a common repair when multiple internal components fail, or the housing itself is compromised. This procedure requires careful attention to detail and adherence to specifications to prevent leaks and ensure proper system function.
Working with diesel fuel presents fire hazards. Ensure the engine is cool, disconnect the negative battery terminals, and work in a well-ventilated area away from ignition sources. Wear appropriate PPE, including fuel-resistant gloves and eye protection.
-
Preparation and Depressurization:
- Disconnect both negative battery cables.
- Locate the fuel pump fuse (often F8 for pre-99, or F2.11 for 99-03 models in the fuse panel under the hood) and remove it.
- Crank the engine for approximately 10-15 seconds to relieve residual fuel pressure.
- Place a suitable drain pan beneath the fuel bowl. Open the WIF drain valve at the bottom of the fuel bowl and allow fuel to drain completely.
-
Disconnect Electrical Connectors:
- Carefully disconnect the electrical connectors for the fuel heater, fuel pressure regulator, and Water-in-Fuel (WIF) sensor. Note their positions for reassembly. The fuel heater wiring typically consists of a Red/Yellow (power) and Black/Yellow (ground) wire.
-
Disconnect Fuel Lines:
- Using appropriate line wrenches, carefully disconnect the fuel supply line, fuel return line, and the lines leading to the cylinder heads from the fuel bowl. Be prepared for residual fuel spills. Cap or plug open lines to prevent contamination.
-
💡 Technical Note
On 1999.5-2003 models, the fuel lines are typically quick-disconnect fittings. Use a specialized fuel line tool for proper disconnection to avoid damage. Earlier models may use threaded fittings.
-
Remove Fuel Bowl Mounting Bolts:
- Locate and remove the mounting bolts that secure the fuel bowl assembly to the engine valley pedestal. Typically, there are two or three bolts.
-
Remove Old Fuel Bowl:
- Carefully lift the old fuel bowl assembly out of the engine valley. Inspect the pedestal and surrounding area for debris or corrosion, cleaning as necessary.
-
Install New Fuel Bowl:
- Transfer any necessary components (e.g., fuel pressure regulator, WIF sensor if not included) from the old fuel bowl to the new one, ensuring new O-rings and gaskets are used. Refer to OEM part numbers (e.g., F81Z-9229-AA for the fuel filter/O-ring kit) for replacements.
- Position the new fuel bowl assembly onto the pedestal. Install the mounting bolts and torque them to manufacturer specifications.
-
Reconnect Fuel Lines and Electrical:
- Reconnect all fuel lines, ensuring they are properly seated and tightened to their respective torque specifications.
- Reconnect all electrical connectors (fuel heater, FPR, WIF sensor).
-
Priming and Testing:
- Close the WIF drain valve.
- Install the fuel pump fuse.
- Connect the negative battery cables.
- Using the manual primer pump on top of the fuel bowl, pump until firm resistance is felt, indicating the system is pressurized and bled of air. This may take numerous pumps.
- Start the engine. It may crank for an extended period as air is purged. Once running, check for any fuel leaks around the bowl and connections. Monitor fuel pressure with a gauge to ensure it is within the 60-70 psi range. A dedicated resource for 7.3 Powerstroke Fuel Pressure Testing can provide further detail.
Fuel Bowl Mounting Bolts: 18 ft-lbs (24 Nm)
Fuel Line Fittings: Typically 15-20 ft-lbs (20-27 Nm) for threaded fittings. Quick-disconnect fittings do not have a torque spec; ensure they are fully seated and locked.
Fuel Filter Cap: Hand tight plus 1/4 to 1/2 turn (usually indicated on the cap itself, OEM specifies 15 ft-lbs or 20 Nm for the plastic cap).
WIF Sensor: 8-10 ft-lbs (11-14 Nm).
FAQ
What is the correct fuel pressure for a 7.3L Powerstroke?
The manufacturer specifications for the 7.3L Powerstroke typically require fuel pressure between 60-70 PSI at idle and under load. Pressures below 50 PSI can lead to inefficient injector operation, causing drivability issues such as hard starting, lack of power, and potential damage to the injectors due to insufficient fuel volume. It’s crucial to verify this with a reliable fuel pressure gauge, especially when diagnosing performance problems.
How do I test the fuel heater element in the fuel bowl?
To test the fuel heater element, first, disconnect the electrical connector to the heater. Using a multimeter set to measure resistance (Ohms), place the probes across the two terminals of the heater element. A healthy fuel heater element typically measures between 0.5 and 1.5 Ohms. An “OL” (open loop) reading or an extremely high resistance indicates an open circuit, meaning the element has failed. A very low reading (near 0 Ohms) or a short to ground indicates a short circuit.
What are the signs of a failing manual primer pump on the fuel bowl?
A failing manual primer pump on the 7.3L Powerstroke fuel bowl often presents as extreme difficulty in priming the fuel system after maintenance (like a filter change) or running the tank dry. You might experience the pump plunger feeling “spongy” with little to no resistance when pressed, or it may not rise back up on its own. Visible fuel leaks from around the primer pump shaft or cap are also common indicators of worn seals or a compromised diaphragm within the pump.
Can I bypass the 7.3L Powerstroke fuel bowl?
While some aftermarket solutions exist to “bypass” or eliminate the factory fuel bowl in favor of external fuel filtration and pressure regulation systems, this is generally not recommended without careful consideration. The fuel bowl integrates the primary fuel filter, fuel heater, and fuel pressure regulator – all critical components. Bypassing it requires relocating or replacing these functions with equivalent or superior aftermarket parts. Improperly bypassing the fuel bowl can lead to inadequate fuel filtration, lack of cold-weather fuel heating, uncontrolled fuel pressure, and potential damage to the fuel pump and injectors, often voiding warranties. For robust performance upgrades, consider comprehensive aftermarket 7.3 Powerstroke Performance Fuel System Upgrades rather than simple bypasses.
Step-by-Step Guide to Understanding the 7.3 Powerstroke Fuel Bowl Diagram: Troubleshooting Guide 2026
Identify – Locate the 7.3 Powerstroke fuel bowl assembly situated within the engine valley.
Locate – Pinpoint the fuel supply and fuel return line connections entering and exiting the fuel bowl.
Reference – Use the diagram to identify the primary fuel filter, drain valve, and fuel pressure regulator (if present) components within the bowl.
Connect/Route – Trace the fuel flow path from the lift pump, through the fuel bowl filter, to the high pressure fuel pump (HPFP) and the return path.
Verify – Check for proper routing of electrical connections for the fuel heater and water-in-fuel (WIF) sensor on the fuel bowl.
Troubleshoot – Utilize the diagram to isolate potential leak points, restrictions in fuel flow, or incorrect sensor placements during diagnosis.
Frequently Asked Questions
What are the main components of the 7.3 powerstroke fuel bowl diagram?
The main components shown in a 7.3 Powerstroke fuel bowl diagram include the fuel filter housing, primary fuel filter, fuel heater element, fuel pressure regulator (FPR), fuel temperature sensor, water-in-fuel (WIF) sensor, and the fuel drain valve. It manages fuel flow to the high pressure fuel pump (HPFP) and returns excess fuel via the fuel return line.
What are symptoms of a failing 7.3 powerstroke fuel bowl diagram pump?
The 7.3 Powerstroke fuel bowl itself doesn’t contain a pump; fuel is supplied by the frame-mounted lift pump. Symptoms of a failing fuel system component related to the bowl often include hard starting, loss of power under load, stalling, or a check engine light due to low fuel pressure. Visible fuel leaks around the bowl, particularly at the drain or heater, are also common signs.
How do I diagnose a fuel leak in 7.3 powerstroke fuel bowl diagram?
To diagnose a fuel leak in the 7.3 Powerstroke fuel bowl, first visually inspect the entire bowl and surrounding lines for wet spots, especially after the engine has been running. Pay close attention to the fuel filter cap, drain valve, and the fuel heater wiring harness grommet. A white paper towel can help identify precise leak points. Check the fuel return line connections for security and signs of seepage.
What is the fuel pressure spec for 7.3 powerstroke fuel bowl diagram?
The typical fuel pressure specification for a 7.3 Powerstroke, measured at the fuel bowl, should be between 45-70 PSI (pounds per square inch) at idle. This pressure is crucial for the high pressure fuel pump (HPFP) to generate sufficient injection pressure regulator (IPR) control. Pressures below 40 PSI indicate a potential problem with the fuel delivery system, such as a weak lift pump or clogged filter.
How long does 7.3 powerstroke fuel bowl diagram fuel pump last?
The 7.3 Powerstroke uses a frame-mounted electric lift pump, not one integrated into the fuel bowl. These lift pumps generally last between 100,000 to 200,000 miles, but lifespan can vary significantly based on fuel quality, filter maintenance, and operating conditions. Regular fuel filter changes, located within the fuel bowl, are vital to extend the life of the entire fuel system, including the HPFP and the lift pump.
Can I replace the 7.3 powerstroke fuel bowl diagram fuel filter myself?
Yes, replacing the 7.3 Powerstroke fuel filter in the fuel bowl is a common and straightforward DIY maintenance task. You will need a new filter, a filter wrench, and a drain pan. Ensure the engine is cool, relieve fuel pressure by cycling the key, drain the bowl using the valve, remove the old filter, and install the new one, ensuring proper sealing of the O-ring on the cap. Bleeding air is crucial afterwards.
