Chevy TBI Fuel Line Diagram: Proper Routing 2026
The Chevy TBI fuel system typically uses a 9-13 PSI fuel pressure, delivered from an in-tank electric fuel pump (HPFP) via a single high-pressure fuel line to the throttle body, with a separate fuel return line back to the tank. The TBI unit’s internal injection pressure regulator maintains this pressure.
📌 Key Takeaways
- Chevy TBI systems operate at low fuel pressure (9-13 PSI), significantly lower than modern multi-port injection systems.
- The fuel return line is crucial for regulating pressure, preventing vapor lock, and ensuring consistent fuel flow to the TBI unit.
- Always relieve fuel pressure using the specified procedure before disconnecting any fuel lines to prevent fuel spray and fire hazards.
- Clogged fuel filters, failing high-pressure fuel pumps (HPFP), and faulty injection pressure regulators are common causes of TBI fuel delivery issues.
- Seek professional diagnosis for intermittent issues, complex electrical problems, or if multiple fuel system components appear to fail simultaneously.
This article provides a comprehensive overview of the Chevy TBI fuel line diagram for mechanics and seasoned DIYers working with these venerable General Motors systems. Focusing on engines such as the L03 and L05 V8s, and the LB4 V6, typically found in vehicles from the late 1980s through the mid-1990s, this guide will demystify the fuel delivery architecture. You will gain a thorough understanding of component identification, operational principles, and crucial diagnostic insights to maintain and repair these classic fuel injection setups. The diagram presented here illustrates the complete low-pressure fuel path from the tank to the throttle body and back.

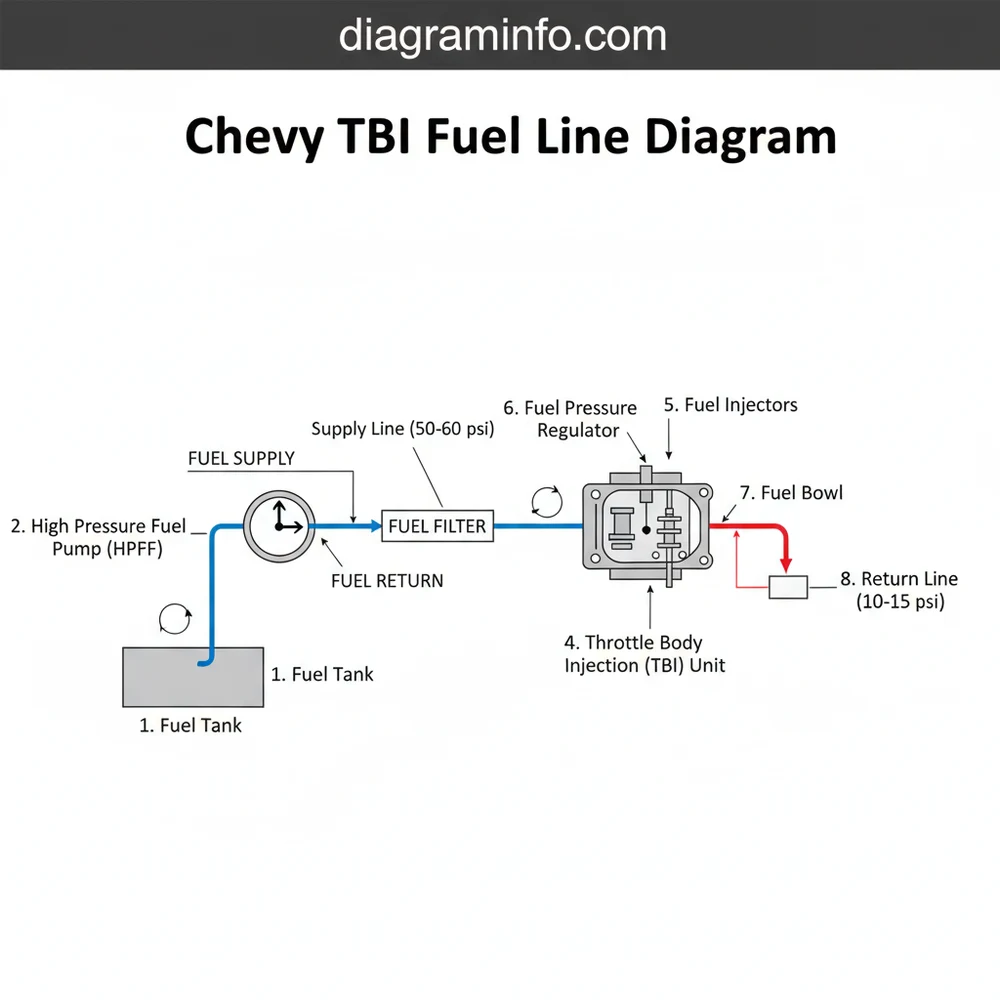

FUEL SYSTEM COMPONENTS BREAKDOWN
Understanding each component within the Chevy TBI fuel system is crucial for accurate diagnosis and repair. The diagram above visually represents the following key elements, facilitating your work on these systems.
| Component Number | Component Name | Function |
|---|---|---|
| 1 | Fuel Tank | Stores gasoline for the engine. Includes a fuel sender unit for gauge readings. |
| 2 | In-Tank Electric Fuel Pump | Draws fuel from the tank and pushes it through the fuel feed line. This is a low-pressure pump (typically 9-13 PSI for TBI), contrasting sharply with the high pressure fuel pump (HPFP) found in direct injection systems. Many feature an integrated pre-filter or ‘sock’. |
| 3 | Fuel Filter | A disposable inline filter located between the fuel pump and the TBI unit, removing contaminants from the fuel before it reaches the injectors. Typically mounted on the frame rail. |
| 4 | Fuel Feed Line | Transports pressurized fuel from the fuel filter to the TBI unit. This line is typically steel with rubber sections, designed to withstand fuel pressure. |
| 5 | TBI (Throttle Body Injection) Unit | Houses the fuel injectors and an integrated injection pressure regulator. The fuel enters the TBI unit, filling a small internal fuel bowl or reservoir around the injectors. This unit replaces the carburetor, precisely metering fuel. |
| 6 | Fuel Injectors (2) | Solenoid-operated valves that spray a fine mist of fuel into the throttle body bore, directly above the throttle plates. Controlled by the ECM. |
| 7 | Injection Pressure Regulator | Maintains a consistent fuel pressure within the TBI unit by bleeding off excess fuel back to the return line. This is a crucial component for proper fuel delivery. |
| 8 | Fuel Return Line | Carries excess fuel from the TBI unit’s pressure regulator back to the fuel tank. This continuous circulation helps cool the fuel and prevents vapor lock. |
| 9 | Fuel Pump Relay | An electrically controlled switch that provides power to the fuel pump. It’s typically controlled by the Engine Control Module (ECM). |
| 10 | Oil Pressure Switch | A safety interlock for the fuel pump. Once the engine cranks and builds oil pressure, this switch takes over from the fuel pump relay to provide continuous power to the pump. This prevents the pump from running in the event of an accident if the engine stalls. |
Unlike some modern diesel systems that incorporate a fuel heater to prevent gelling or elaborate fuel cooler assemblies for high-performance gasoline applications, the Chevy TBI fuel system is relatively simple. The continuous flow of fuel via the fuel return line is generally sufficient to manage fuel temperature for its intended operating conditions.
COMMON FAILURE POINTS & SYMPTOMS
Diagnosing issues within the Chevy TBI fuel system requires a systematic approach. Here are common failure points, their associated symptoms, and diagnostic strategies.
-
In-Tank Electric Fuel Pump (Component 2)
- Symptoms: No engine crank/no start, prolonged cranking, engine stalls under load or at high temperatures, low fuel pressure at the TBI unit, whining noise from the fuel tank.
- Diagnosis:
- Verify 12V power at the fuel pump connector for approximately 2 seconds when the key is first turned to “ON” (ECM primes the pump), and continuously during cranking or once the engine starts and builds oil pressure. The fuel pump relay (Component 9) and oil pressure switch (Component 10) are key here.
- Measure fuel pressure at the TBI unit’s test port (if equipped) or by installing a “T” fitting in the fuel feed line. Expect 9-13 PSI. Readings below 9 PSI or inconsistent pressure indicate a failing pump or obstruction.
- Check the pump’s current draw. Excessive current can indicate a worn motor, while no current points to an open circuit or failed pump.
-
Fuel Filter (Component 3)
- Symptoms: Reduced engine performance, hesitation, stalling under acceleration, hard starting, decreased fuel economy, potentially erratic fuel pressure readings despite a functioning pump.
- Diagnosis:
- If fuel pressure is low (e.g., 5-7 PSI) with a known good pump, and the vehicle has mileage on the current filter, a clogged filter is highly probable.
- You can temporarily bypass the filter with a hose (for diagnostic purposes ONLY, with extreme caution) to see if pressure improves, confirming a restriction.
- Observe physical condition; rusty or dirty filters are evident indicators.
-
Fuel Injectors (Component 6)
- Symptoms: Rough idle, misfires, poor fuel economy, black smoke from exhaust (rich condition from leaking injector), lean codes (P0171/P0174) or rich codes (P0172/P0175), fuel smell.
- Diagnosis:
- Visually inspect the spray pattern inside the TBI unit while cranking or running (briefly). A strong, conical spray is normal; dribbling, dripping, or an uneven stream indicates a clogged or faulty injector.
- Check injector resistance (typically 0.9-1.5 ohms). Out-of-spec resistance points to an internal winding issue.
- Listen for injector “clicks” with a stethoscope or by feeling them; lack of clicking indicates no electrical pulse or a seized injector. Further TBI injector diagnosis often requires an oscilloscope to verify injector pulse from the ECM.
-
Injection Pressure Regulator (Component 7)
- Symptoms: Consistent low fuel pressure (below 9 PSI, even with a strong pump), excessively high fuel pressure (above 13 PSI), rich running condition (if leaking internally), poor idle quality, reduced performance.
- Diagnosis:
- Measure fuel pressure with a gauge. If pressure is consistently low but the pump is good, the regulator may be stuck open or its spring weak. If pressure is too high, it’s stuck closed.
- Perform a fuel pressure leak-down test: prime the system, then observe how quickly pressure drops after the pump shuts off. A rapid drop might indicate a faulty regulator or leaking injector.
- An audible hiss from the TBI unit when the engine is off but fuel pressure is present can indicate an internal leak in the diaphragm.
REPAIR & REPLACEMENT STEPS: IN-TANK ELECTRIC FUEL PUMP
The fuel pump is one of the most common failure items in a Chevy TBI fuel system. Replacing it requires adherence to safety protocols and specific procedures. This guide assumes the pump is located within the fuel tank, typically accessed by dropping the tank.
Working with fuel systems is inherently dangerous due to the flammability of gasoline. Ensure you are in a well-ventilated area, have a fire extinguisher readily available, disconnect the battery ground cable, and wear appropriate personal protective equipment, including eye protection and fuel-resistant gloves.
-
Depressurize the Fuel System:
- Locate the fuel pump relay (Component 9), often under the hood or in the fender well. Disconnect its electrical connector.
- Start the engine and allow it to run until it stalls from fuel starvation. This clears the fuel lines.
- Turn the ignition off. Reconnect the fuel pump relay, or bypass it if instructed to by the OEM service manual for specific checks.
-
Prepare for Fuel Tank Removal:
- Safely lift and support the vehicle on jack stands or a lift.
- Disconnect the negative battery terminal.
- If the tank is full or near full, siphon as much fuel as possible into an approved container. Less fuel makes the tank lighter and safer to handle.
-
Disconnect Fuel Lines and Electrical Connectors:
- Locate the fuel feed line and fuel return line connections at the fuel tank sending unit. Use appropriate fuel line disconnect tools to release the quick-connect fittings, or flare nut wrenches for threaded fittings.
- Have rags ready to catch residual fuel. Cap the lines to prevent debris entry.
- Disconnect the electrical connector from the fuel pump/sending unit assembly. Typically, there are wires for pump power (often a thick Grey wire) and sender signal (often a Tan or Purple wire), along with ground (Black).
-
Remove Fuel Tank Straps and Lower Tank:
- Support the fuel tank with a transmission jack or floor jack with a wooden block.
- Remove the bolts securing the fuel tank straps.
- Carefully lower the tank, watching for any remaining hoses (e.g., vent hoses, filler neck) that need to be disconnected. Disconnect the filler neck hose and vent lines as the tank is lowered.
-
Remove Fuel Pump/Sending Unit Assembly:
- Once the tank is out, clean the area around the fuel pump module’s retaining ring to prevent debris from entering the tank.
- Use a brass punch and hammer or a specialized fuel tank sending unit wrench to rotate and unlock the retaining ring.
- Carefully extract the old fuel pump/sending unit assembly. Note its orientation and ensure the primer pump sock or pre-filter doesn’t get damaged or left behind.
-
Install New Fuel Pump:
- If replacing only the pump and not the entire sending unit, transfer the new pump, new fuel strainer (sock), and new rubber isolator to the old sending unit assembly. Ensure all connections are secure. OEM part numbers like AC Delco EP381 (for many small block TBI applications) are common.
- Replace the fuel tank O-ring or gasket with a new one. Lubricate it lightly with clean fuel to aid sealing.
- Carefully insert the new assembly into the tank, ensuring the fuel sock is not bent or pinched.
- Align and secure the retaining ring, tightening it evenly.
-
Reinstallation and Testing:
- Reverse the removal steps: lift tank, reconnect hoses and electrical, install straps, reconnect fuel lines, lower vehicle. Ensure all connections are tight.
- Reconnect the battery.
- Turn the key to “ON” several times (without cranking) to allow the pump to prime the system and build pressure. Listen for the pump humming.
- Inspect all fuel line connections for leaks.
- Start the engine. Monitor for leaks and check fuel pressure if a gauge is available. Verify proper operation and address any diagnostic trouble codes. For additional troubleshooting, refer to your vehicle’s specific fuel system schematic or ECM troubleshooting guide.
For threaded fuel line fittings, typical torque specifications range from 20-25 ft-lbs for 3/8″ lines. Always consult your vehicle’s specific service manual for precise torque values, as overtightening can strip threads and undertightening can cause leaks.
FAQ
What is the typical fuel pressure for a Chevy TBI system?
Chevy TBI systems operate at a relatively low fuel pressure compared to multi-port or direct injection systems. The nominal operating pressure is typically between 9-13 PSI (pounds per square inch). Maintaining this specific pressure is critical for proper fuel atomization and engine performance, as the injection pressure regulator is designed to manage fuel within this narrow range. Deviations can lead to lean or rich conditions and driveability issues.
How do I distinguish the fuel feed line from the fuel return line on a Chevy TBI unit?
On most Chevy TBI units, the fuel feed line is the larger diameter line, typically 3/8-inch, and connects to the fuel inlet port, often on the front or side of the TBI unit. The fuel return line is generally smaller, usually 5/16-inch, and connects to the outlet port of the integrated injection pressure regulator. It’s often routed to the rear or side of the TBI unit. The diagram clearly depicts these size and connection differences. Always verify with your vehicle’s specific service manual or by tracing the lines from the fuel filter (feed) and back to the tank (return).
Can a clogged fuel filter cause high fuel pressure in a Chevy TBI system?
No, a clogged fuel filter will almost universally cause low fuel pressure or intermittent pressure fluctuations in a Chevy TBI system. This is because the restriction prevents the fuel pump from delivering the required volume and pressure to the TBI unit. High fuel pressure is typically indicative of a fault with the injection pressure regulator, where it fails to open sufficiently to allow excess fuel to return via the fuel return line to the tank. A clogged filter is a common cause of poor engine performance and hard starting.
Why do some fuel pumps have a “primer pump” function, and is it separate from the main pump?
The term “primer pump” for a TBI system usually refers to the short, initial run cycle of the main electric fuel pump when the ignition is first turned to “ON” (without cranking). This 1-2 second run is controlled by the ECM to build initial fuel pressure before the engine starts. It’s not a separate pump, but a function of the main pump assembly. This ensures fuel is immediately available to the fuel bowl of the TBI unit for quick starts. If this prime cycle is absent, the engine will likely crank for an extended period before starting, or not start at all.
Step-by-Step Guide to Understanding the Chevy Tbi Fuel Line Diagram: Proper Routing 2026
Identify – Identify the main components of your Chevy TBI fuel system: fuel tank, electric fuel pump (HPFP), fuel filter, supply line, fuel return line, and TBI unit.
Locate – Locate your specific TBI fuel line diagram from a service manual or reputable source to understand factory routing and connection points.
Reference – Reference the diagram to trace the fuel supply line from the tank/HPFP to the TBI unit and the fuel return line back for proper diagnosis or repair.
Connect/Route – When replacing components, connect new fuel lines, ensuring proper routing away from heat sources and moving parts, and secure all connections firmly.
Verify – Verify proper fuel pressure at the TBI unit (9-13 PSI) after any repairs using a fuel pressure gauge and thoroughly check for any leaks.
Troubleshoot – Troubleshoot common issues by checking fuel pressure, inspecting for fuel leaks, and testing the fuel pump (HPFP) and the injection pressure regulator (within the TBI unit).
Frequently Asked Questions
What are the main components of the chevy tbi fuel line diagram?
The chevy tbi fuel line diagram typically includes the in-tank electric fuel pump (HPFP), a fuel filter, the fuel supply line to the throttle body, the throttle body injection unit (housing injectors and an internal injection pressure regulator), and a fuel return line back to the tank. The fuel bowl in the TBI unit holds a small fuel reserve for the injectors.
What are symptoms of a failing chevy tbi fuel line diagram pump?
Symptoms of a failing chevy tbi fuel line diagram fuel pump (HPFP) include hard starting, especially when hot, reduced engine power under load, sputtering or surging, and engine stalling. A distinct whining or buzzing noise from the fuel tank area can also indicate an expiring high-pressure fuel pump.
How do I diagnose a fuel leak in chevy tbi fuel line diagram?
To diagnose a fuel leak in a chevy tbi fuel line diagram, visually inspect all fuel lines, connections, and the throttle body for wet spots, drips, or strong fuel odors. Pay close attention to the fuel return line and connections near the tank and TBI. A fuel pressure gauge can also help identify drops from external leaks.
What is the fuel pressure spec for chevy tbi fuel line diagram?
The standard fuel pressure spec for a chevy tbi fuel line diagram is relatively low, typically ranging from 9 to 13 PSI (pounds per square inch). Maintaining this specific pressure is crucial for proper injector operation; significantly higher or lower pressure indicates a problem with the fuel pump, injection pressure regulator, or lines.
How long does chevy tbi fuel line diagram fuel pump last?
A chevy tbi fuel line diagram fuel pump, often an in-tank HPFP, can last anywhere from 100,000 to 150,000 miles, or about 5-10 years, depending on usage, fuel quality, and maintenance. Regular fuel filter replacement helps prolong its lifespan by preventing excessive strain from contaminants.
Can I replace the chevy tbi fuel line diagram fuel filter myself?
Yes, replacing the chevy tbi fuel line diagram fuel filter is a common DIY task. Ensure the system’s fuel pressure is relieved first. Locate the filter, typically along the frame rail, disconnect the lines carefully, replace the filter, and ensure new connections are secure to prevent leaks, especially where the fuel return line connects.
