Kitchen Aid Mixer Parts Diagram: 2026 Repair
The kitchen aid mixer parts diagram details the mechanical structure, housing motor brushes, a planetary gear assembly, sacrificial worm follower gear (part #WP9701517), and speed control plate. Located in the upper housing head, the worm gear failure protects the motor configuration during overload, transferring rotation via bevel gears to the planetary shaft.
📌 Key Takeaways
- Sacrificial worm follower gear (WP9701517) is engineered to shear under extreme overload to protect the motor.
- Carbon motor brushes must measure at least 5/16 inch in length to maintain adequate spring tension.
- Speed control governor plate contact air gap should be set precisely to 0.006 inches for accurate operation.
- Upper gear housing structure requires approximately 4 oz of food-grade NSF H1 grease during repacking.
- Always disconnect 120V AC electrical power before inspecting or replacing internal speed phase boards.

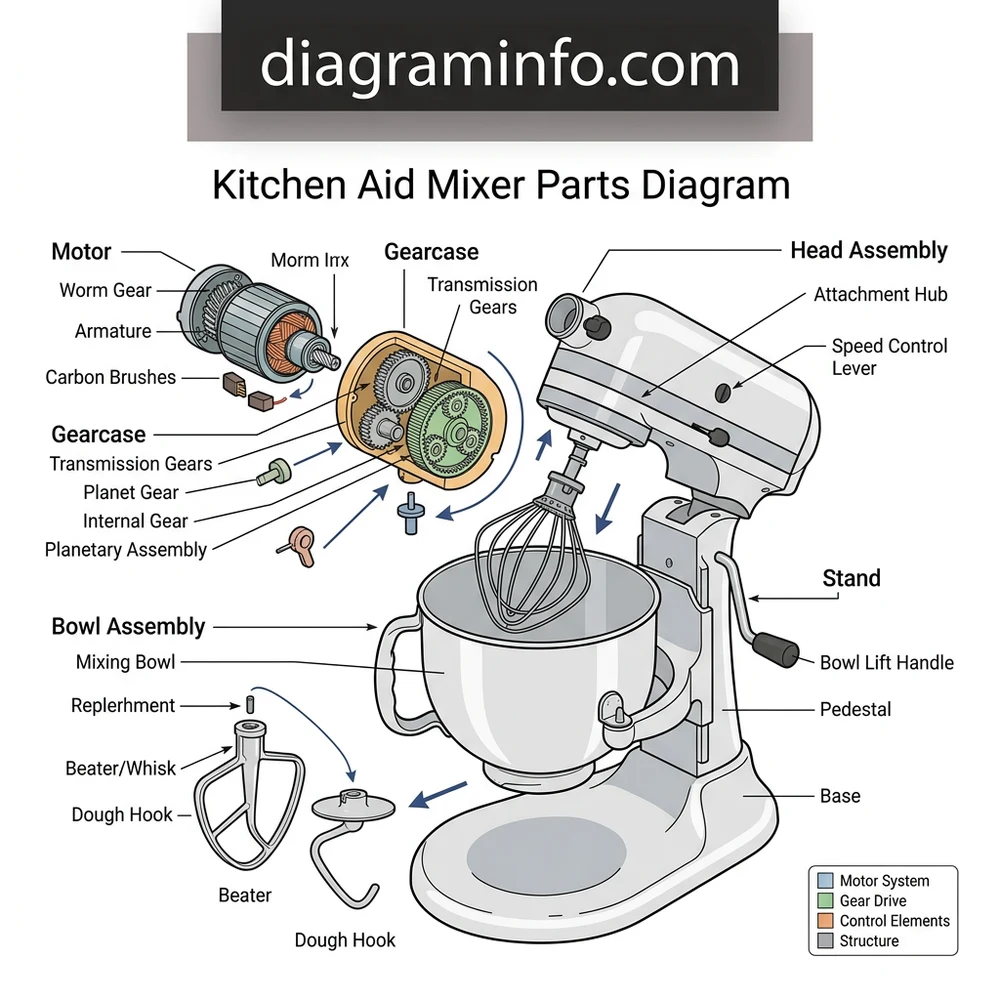

Analyzing a kitchen aid mixer parts diagram is essential when performing precision rebuilds, replacing worn gear trains, or diagnosing electrical control faults. Whether servicing standard tilt-head models (such as the K45SS or KSM150 series) or commercial-grade bowl-lift units (such as the Pro 600 or KSM6525), understanding the internal mechanical layout and electrical schematic ensures correct component alignment and prevents premature failure. KitchenAid stand mixers utilize a high-torque AC universal motor paired with a direct-drive gear reduction system. Referring to detailed exploded views allows technicians to locate sacrificial gears, trace speed control circuits, and apply exact OEM assembly torque specifications during overhaul.
Kitchen Aid Mixer Parts Diagram: Mechanical and Electrical System Breakdown
The primary structure of a KitchenAid stand mixer is divided into three functional subsystems: the drive motor assembly, the gear reduction tower, and the speed control system. The motor assembly consists of a wound field coil stator and a double-insulated armature supported by front and rear sleeve or ball bearings. Power from the armature shaft is transmitted through a spiral bevel gear directly into the main gear housing configuration.
Within the lower gear case, mechanical reduction is achieved through a multi-stage gear cluster. The primary sacrificial element is the worm follower gear (OEM Part #WP9701517), engineered from molded Kevlar-reinforced nylon or sintered bronze depending on the model tier. This gear is intentionally designed to shear its teeth under excessive mechanical strain—such as a jammed planetary drive—to preserve the high-cost motor armature shaft and field windings.
| Component Reference | OEM Part Number | Technical Specification / Function |
|---|---|---|
| Worm Gear Follower | WP9701517 / 9701517 | 23-tooth sacrificial gear; shears under >15 ft-lbs shock load |
| Motor Carbon Brushes (Pair) | WP9706416 | 6.3mm x 6.3mm spring-loaded carbon; 120V AC contact interface |
| Phase Control Board Assembly | WPW10515058 | Triac-based solid-state pulse modulation speed controller |
| Planetary Internal Ring Gear | WP9709284 | 64-tooth cast steel ring gear; ratio 2.4:1 epicyclic offset |
| Centrifugal Governor Assembly | WP9709252 | Flyweight mechanical switch plate for closed-loop speed feedback |
According to OEM service specifications, the gear housing requires exactly 3.5 to 4.0 ounces of non-channeling, food-grade NSF-H1 grease (such as Benalene 372-1 or total synthetic equivalent). Under-greasing causes rapid thermal wear on the planetary gear teeth, while over-greasing forces lubricant past the lower felt oil seal into the mixing bowl area.
How to Interpret the Kitchen Aid Mixer Parts Diagram Schematic and Layout
Reading a technical kitchen aid mixer parts diagram schematic requires understanding both the exploded mechanical drawing and the underlying electrical control path. When tracing the physical layout, identify the split line between the upper motor housing and lower pedestal assembly. The lower housing supports the main drive shaft, planetary head, and bowl-lift/tilt mechanisms, while the upper housing encloses the high-rpm electrical drive.
To map the system configuration, follow the mechanical power transmission path:
1. Primary Input: The 120V AC supply enters through the strain-relief power cord connected to the rear terminal bracket.
2. Control Loop: Current passes through the phase control board (or mechanical speed control plate) to the mechanical governor mounted on the rear armature shaft.
3. Motor Excitation: The phase-adjusted current feeds the field coil windings (wired in series with the dual carbon brushes) to rotate the armature assembly.
4. Reduction Drive: The pinion end of the armature engages the helical worm gear, which drives the central worm follower gear shaft.
5. Epicyclic Output: The center vertical shaft turns the planetary head assembly, causing the pinion gear to orbit within the stationary internal ring gear at a controlled 1.3:1 to 2.4:1 overall gear ratio.
When reassembling from a parts layout, note the critical location of fiber shims and spring washers along the center drive shaft. Omitting a shim washer alters shaft end-play tolerance beyond the required 0.005–0.015 inch spec, causing excessive gear backlash, increased operating noise, and premature tooth fracture.
Proper execution of teardown procedures can be cross-referenced with standard universal AC motor brush replacement procedures and general food-grade machinery lubrication specifications to ensure all safety parameters are met during bench testing.
Diagnosing Mechanical and Electrical Failures Using the Mixer System Blueprint
Isolating faults in a mixer drive system requires systematically matching operational symptoms against structural reference points on the schematic overview.
Always disconnect the unit from 120V AC mains power prior to removing the rear cover plate or gear housing bolts. High-voltage capacitors on solid-state phase control boards can retain line potential even when switched off.
– Symptom 1: Motor runs continuously at high speed regardless of switch position.
Mechanism: Triac short-circuit on the phase control board or stuck contact points on the centrifugal governor assembly.
Action: Check continuity across the governor contact points. If points remain closed mechanically, adjust the two rear control board adjustment screws. If contacts open correctly but speed remains uncontrolled, replace the phase control board (WPW10515058).
– Symptom 2: Motor hums under load, but planetary drive fails to turn.
Mechanism: Stripped sacrificial worm follower gear (WP9701517) or sheared planetary drive pin.
Action: Disassemble the upper housing bolts (torque spec: 18-22 in-lbs). Inspect the nylon center gear teeth. If tooth debris is found in the grease bed, completely flush the gear case, replace the follower gear, and repack with 4 oz of fresh NSF-H1 grease.
– Symptom 3: Intermittent operation or sparking visible near the rear housing.
Mechanism: Excessive carbon brush wear or commutating segment oxidation.
Action: Unscrew the left and right carbon brush caps. Measure brush length; if total carbon length is under 5/16 inch (8mm), replace both carbon brushes (WP9706416). Clean armature commutator bars using 600-grit non-conductive electrical contact film.
For complex drive head rebuilds, consult our step-by-step planetary gear assembly technical guide for precise alignment jigs and press-fit tolerances.
Kitchen Aid Mixer Parts Diagram Frequently Asked Questions
Where is the sacrificial gear located on the kitchen aid mixer parts diagram?
The sacrificial worm follower gear is positioned directly inside the main cast-aluminum gear case housing. It sits atop the central horizontal gear shaft, meshing directly with the helical cut gear machined onto the front of the motor armature shaft. On standard schematics, it is typically designated as item/part reference #9701517 or WP9701517.
How do brush inspection intervals correlate with motor armature schematics?
OEM manufacturer specifications recommend inspecting carbon brush assemblies every 100 operating hours or annually during major service overhauls. On the electrical layout diagram, carbon brushes sit 180 degrees apart in caps mounted on the motor housing. If the brushes wear down past the tension spring threshold, arc damage will occur across the armature commutator bars, necessitating a complete armature replacement.
What grease specification is required during a full gear tower rebuild?
KitchenAid requires an NSF-H1 rated, non-channeling, high-temperature food-grade grease, such as Benalene 372-1. Automotive lithium or standard chassis greases must never be used; they lack non-drip properties, degrade rapid-rotation synthetic gears, and pose toxicity risks if seals fail and lubricant enters the mixing bowl.
How does the speed governor interact with the phase control board configuration?
The governor relies on flyweights mounted on the tail end of the motor armature shaft. As motor RPM increases, centrifugal force pushes the governor spring plate outward against the speed control bracket switch points. This mechanically opens and closes the control circuit, sending real-time pulse signals to the phase control board’s triac to regulate current delivery and maintain stable RPM under varying batch loads.
Step-by-Step Guide to Understanding the Kitchen Aid Mixer Parts Diagram
Identify – Locate the specific model number on the mixer base plate to select the matching diagram layout.
Locate – Isolate the targeted component section, such as the upper gear housing or lower motor assembly.
Reference – Cross-reference schematic part numbers with replacement components like the worm gear or motor brush.
Connect/Route – Route electrical wiring along internal casing channels and align gear teeth per configuration specs.
Verify – Check planetary spin clearance and ensure governor contact points align precisely without binding.
Troubleshoot – Test motor response across speed settings, checking for excessive heat or unusual gear grinding noises.
