Minn Kota Trolling Motor Parts Diagram Component Guide (2026)
A Minn Kota trolling motor parts diagram illustrates the internal motor housing layout, upper control head, and pedal configuration. Key power leads use red (positive) and black (negative) 10-AWG wires connected to the control board, while internal brushes, armature shafts, and prop drive pins are positioned within the lower unit assembly.
📌 Key Takeaways
- Main power leads typically use 10-AWG wire rated for 12V, 24V, or 36V DC systems depending on thrust level.
- Lower unit motor housing utilizes prop drive pins, armature bearings, and dual shaft seals to prevent water intrusion.
- Always disconnect battery leads or trip the 50/60-amp circuit breaker before servicing control board components.
- The most common system failure point is burnt control board contacts or worn armature brushes causing intermittent power.
- Replace prop pins and seals as DIY maintenance; seek professional help for internal control board micro-soldering.
Understanding the internal engineering and electrical layout of your Minn Kota trolling motor is essential for accurate diagnostics, preventive maintenance, and component replacement. Whether servicing an Ulterra, Terrova, Fortrex, or Edge series motor, utilizing an official Minn Kota trolling motor parts diagram provides an exploded view of every mechanical assembly and electrical circuit. According to OEM technical specifications, these schematics detailing lower units, steering housing assemblies, and control board configurations ensure proper torque values and seal seatings are maintained during overhaul. This technical guide breaks down schematic layouts, component identification, and diagnostic procedures for marine technicians and equipment owners.

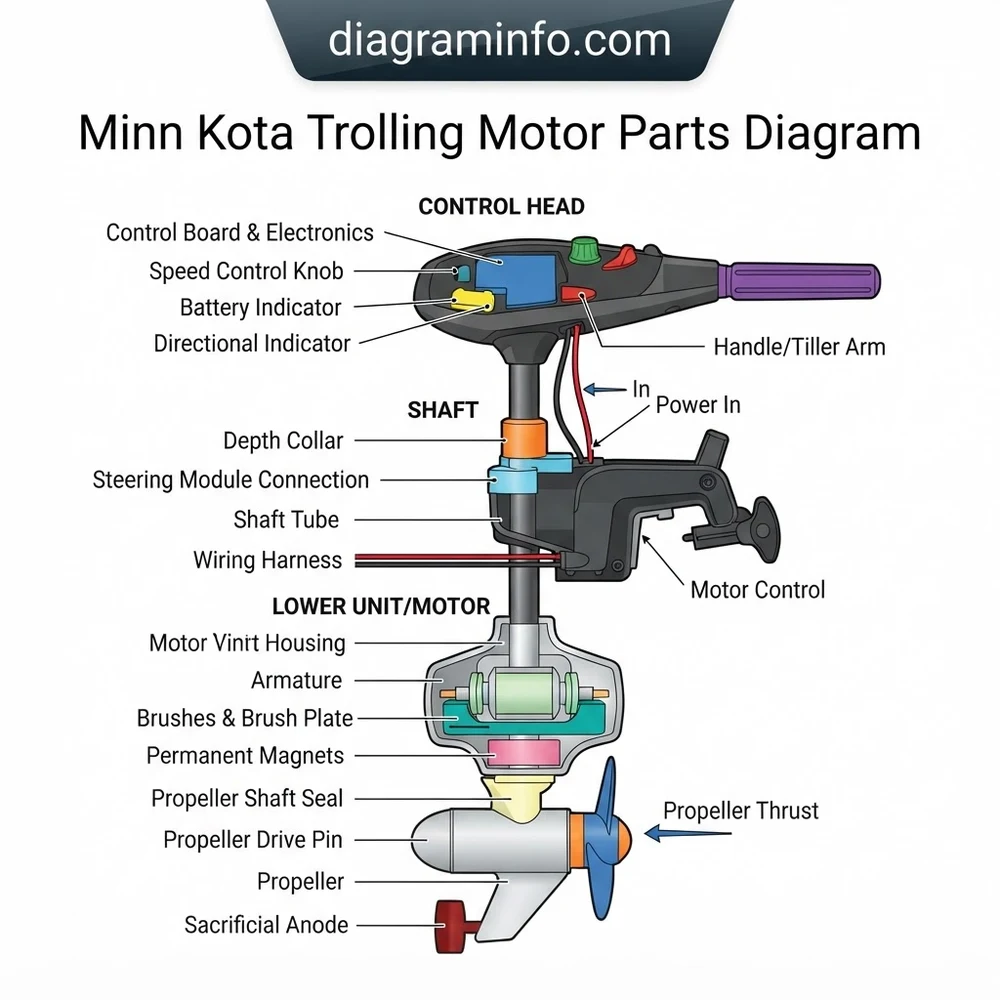

Anatomy of a Minn Kota Trolling Motor Parts Diagram
A comprehensive Minn Kota trolling motor parts diagram isolates the equipment into three distinct mechanical and electrical sub-assemblies: the lower motor unit, the composite shaft and mounting bracket system, and the upper control head assembly. Reviewing these individual component groups ensures that part numbers match exact production years, as internal configurations vary across 12V, 24V, and 36V systems.
The lower unit assembly operates under a hermetically sealed environment protected by dual Belleville washers, O-rings, and lip seals. The internal armature shaft rotates within dual sleeve or ball bearings, converting direct current into propulsive thrust via the propeller shaft assembly. Fastened to the lower housing are the brush card assembly and permanent magnets. According to manufacturer specs, maintaining seal integrity during reassembly is critical to prevent water intrusion into the commutator chamber.
Connecting the lower unit to the mounting structure is the flexible composite shaft, engineered to absorb impact loads without permanent bending. Electric-steer models incorporate an integrated steering housing assembly driven by a high-torque motor and planetary gear cluster, whereas cable-steer models utilize dual pull-pull stainless cables connected to a foot pedal mechanism.
The upper control housing contains the main control board, potentiometer, directional indicator drive, and wiring harness connections. On units equipped with advanced GPS navigation, an integrated module sits directly above the main pulse-width modulation (PWM) control board.
| Sub-System Component | Primary OEM Function | Technical Specification / Torque |
|---|---|---|
| Lower Unit Thru-Bolts | Clamps front/rear end bells to housing | 45–55 in-lbs torque spec |
| Armature & Commutator | Rotational electromagnetic core | 3.25″, 3.625″, or 4.5″ diameter options |
| Propeller Drive Nut | Secures prop to drive pin on prop shaft | 25–35 in-lbs torque spec |
| Control Board (Digital Maximizer) | Pulse-width modulation speed regulation | Solid-state potted electronics (12V/24V/36V) |
When replacing lower unit internal parts, always install fresh Belleville washers and O-rings (Part Grouping 2888460 or model equivalent). Never reuse compressed paper or rubber seals during a motor housing re-seal.
How to Read the Trolling Motor Blueprint and Schematic
Deciphering a Minn Kota trolling motor parts diagram requires understanding schematic callout conventions, line art indexing, and electrical flow paths shown on the blueprint layout. Technical schematics separate mechanical exploded views from electrical wiring diagrams to maintain clarity during tear-down and rebuilds.
In mechanical exploded views, numerical callout bubbles point directly to individual fasteners, washers, housings, and sub-assemblies. Dashed alignment lines project through components to indicate exact assembly order and structural orientation. For example, when replacing a prop shaft seal, the schematic illustrates the proper sequence: inner bearing, lip seal facing inward, outer retaining washer, and shear pin alignment slot. Cross-referencing these callout numbers against the manufacturer parts list reveals exact OEM part numbers, avoiding fitment errors caused by mid-year production modifications.
Electrical circuit schematics use standardized marine wiring color codes and terminal designations. Heavy-gauge red (positive) and black (negative) conductors map power from the battery terminals through the main circuit breaker to the control board input terminals. Speed control circuits utilize brown, yellow, and white signal wires running between the pedal potentiometer or digital remote receiver and the main board. When integrating modern marine accessory setups, technical knowledge of these circuits is as fundamental as understanding standard marine battery wiring layouts for multi-bank systems.
Wiring harnesses on i-Pilot models contain sensitive micro-connectors. Refer to the electrical layout blueprint before applying multimeter probes to avoid bending signal pins on the main controller board.
Diagnosing Issues Using the Minn Kota Trolling Motor Parts Diagram
When performing bench testing or field service, matching physical symptoms against the structural blueprint accelerates fault isolation. By systematic elimination, technicians can trace mechanical failures or electrical disruptions directly to individual components on the parts breakdown.
Water intrusion inside the lower housing is one of the most common service issues on high-hour motors. Symptoms include erratic speed behavior, tripping thermal breakers, or complete power loss. Using the lower unit breakdown on the diagram, remove the prop nut, drive pin, and rear end bell thru-bolts. Inspect the lip seals and Belleville washers for monofilament line ingestion. If water entry has damaged carbon brushes or corroded the armature commutator, the complete brush card assembly and seal kit must be serviced together.
Systematic power losses require voltage-drop testing across the wiring layout. If full battery voltage reaches the control head input terminals but output to the lower unit remains zero, consult the control board circuit schematic. Check for thermal discoloration on board-mounted MOSFETs or corrosion at the spade connectors. Diagnostic steps outlined in our comprehensive Minn Kota i-Pilot troubleshooting guide can assist in identifying whether the failure resides in the head module controller or foot pedal reed switches.
Steering housing failure on electric-steer models usually manifests as grinding noises or unresponsiveness under load. Tracing the steering module blueprint isolates the internal worm gear, planetary drive gears, and electric steering motor. Stripped gear teeth require steering box replacement, while stiff operation often indicates dried grease or contamination inside the drive collar mechanism, comparable to issues seen when interpreting outboard motor repair schematics.
Always disconnect the main 12V, 24V, or 36V power source or trip the manual circuit breaker prior to opening the lower unit motor housing or control board box to prevent short circuits and board damage.
Minn Kota System Configuration and Parts Diagram FAQ
Where is the serial number located to select the correct parts diagram?
The serial number is located on the main shaft housing under the tiller handle, on the inside frame of the mount bracket, or under the main control head lid depending on the model year. Minn Kota serial numbers use a two-letter prefix (e.g., “WWAF” or “Q”) indicating manufacture date, which is required to pull the exact parts breakdown schematic.
Are composite shafts replaceable individually according to the blueprint assembly?
Yes, composite shafts can be unthreaded or pressed out from the lower housing depending on the motor model generation. On threaded lower units, heat must be applied to release factory thread-locking compound before unscrewing the shaft from the center housing shell.
What torque standard applies to lower unit thru-bolts on Minn Kota motors?
OEM technical specifications mandate tightening lower unit thru-bolts to 45 to 55 inch-pounds in an alternating sequence. Over-tightening can crack the end bell castings or distort internal O-ring grooves, while under-tightening leads to water entry into the armature chamber.
How do 12V, 24V, and 36V motor layouts differ on the parts schematic?
While external physical dimensions may appear similar, 12V, 24V, and 36V configurations use distinct armatures, brush card assemblies, and control board circuits engineered for higher voltage and lower amperage draws. Part callout numbers for armatures and control boards are non-interchangeable across different system voltage classes.
Can I rebuild a water-damaged lower unit using individual schematic parts?
Yes. By utilizing the lower unit parts schematic, you can replace individual components such as the armature, brush card assembly, bearings, shaft seals, and O-ring kits without purchasing a complete lower motor housing assembly, provided the outer housing tube is free of scoring or corrosion.
Step-by-Step Guide to Understanding the Minn Kota Trolling Motor Parts Diagram
Identify – Determine your specific Minn Kota motor model and thrust rating to select the correct diagram variant.
Locate – Find the specific sub-assembly on the layout, such as the lower unit or upper control head.
Reference – Match numbered schematic callouts with the part list to verify exact part numbers and structural order.
Connect/Route – Install replacement components and route power leads according to the diagram’s wiring layout.
Verify – Check all seal seatings, torque prop nut to specification, and test circuit continuity with a multimeter.
Troubleshoot – If power fails, re-verify control board wire locations against the color-coded diagram schematic.
