2026 Chevy Truck Front End Assembly Suspension Diagram Guide
The front end assembly chevy truck front suspension diagram details upper/lower control arms, ball joints, tie rod ends, and steering knuckles. Crucial torque specs include lower control arm bolts at 107 ft-lbs and upper ball joints at 37 ft-lbs plus 90°. Severe alignment shifts or damaged sensor wires trigger ECU diagnostic codes and OBD-II check engine light alerts.
📌 Key Takeaways
- Upper and lower ball joints along with tie rod ends require precise torque specs ranging between 37 ft-lbs and 107 ft-lbs during assembly.
- The steering knuckle and wheel hub host ABS speed sensor harnesses connected directly to the truck ECU.
- Critical safety protocol: Always unload torsion bars or coil springs prior to unbolting suspension control arms.
- Uneven tire wear, clunking over road bumps, and steering wander indicate worn control arm bushings or ball joints.
- DIY repairs require specialized tools like ball joint presses and an immediate post-installation wheel alignment.
Understanding the structural architecture of a Chevrolet pickup front chassis requires analyzing a detailed front end assembly chevy truck front suspension diagram. Whether servicing a half-ton GMT800 (1999–2006), a GMT900 (2007–2013), or a modern K2XX platform (2014–2018), maintaining proper control arm geometry, steering knuckle alignment, and hub bearing preloads is essential for directional stability. This technical guide breaks down independent front suspension (IFS) component relationships, OEM mechanical tolerances, fastener torque specs, and diagnostic procedures necessary to rebuild or repair your Chevrolet front end to factory specifications.
Chevy Truck Front Suspension Diagram Component Breakdown

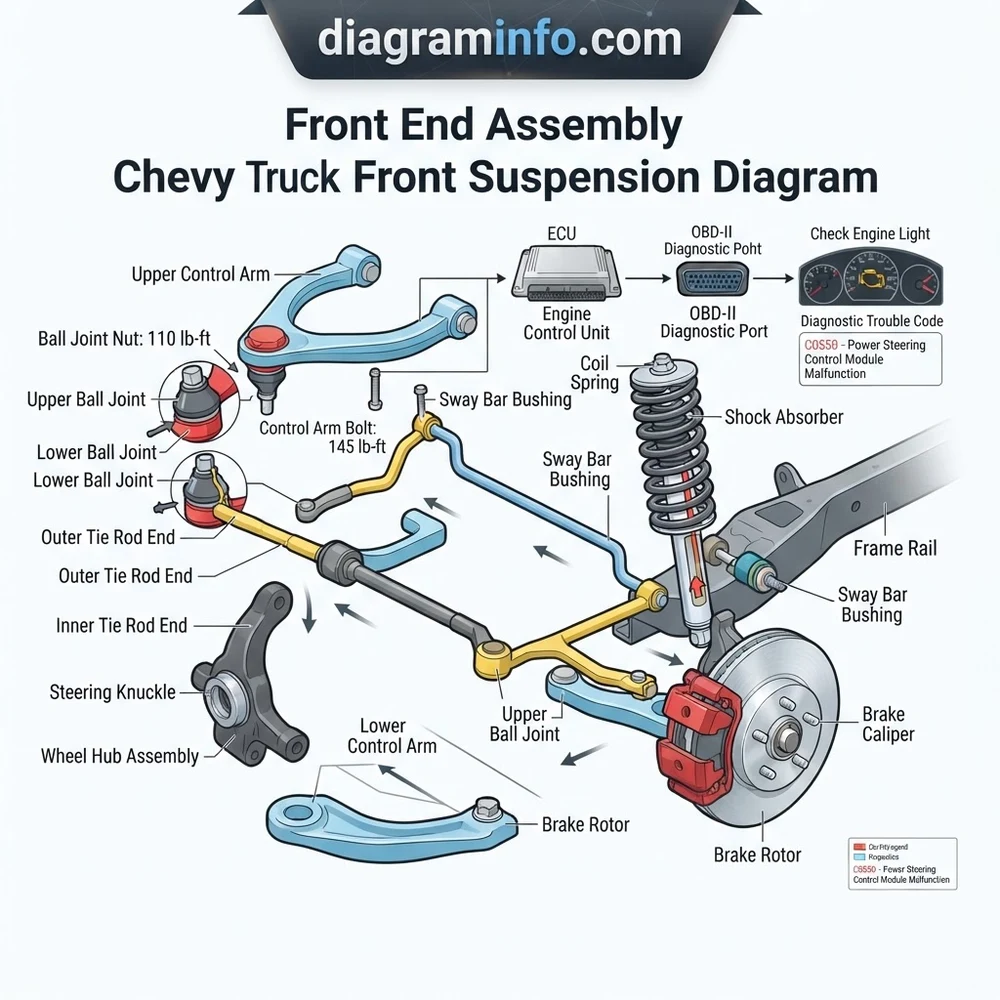

The modern Chevrolet light-truck independent front suspension (IFS) utilizes either a coil-over-shock (GMT900 and K2XX 1500 models) or a torsion bar spring configuration (GMT800 1500/2500HD and GMT900/K2XX 2500HD/3500HD models). As illustrated in the front end assembly chevy truck front suspension diagram, the major structural components are split between upper and lower load-bearing paths, connected via the steering knuckle.
The upper control arm (UCA) controls camber angle dynamic changes and mounts to the frame pockets via eccentric cam bolts used for alignment adjustment. The lower control arm (LCA) supports the primary vehicle weight through either the coil strut bottom mount or the hex-index socket for the torsion bar unloading arm. The wheel hub and bearing assembly bolts directly to the cast iron or forged aluminum steering knuckle using three M14x1.5 flange bolts. Double-wishbone configurations transfer dynamic road loads into the crossmember, which is bolted directly to the box-section frame rails.
Precision steering input relies on the rack-and-pinion assembly (or recirculating ball steering gear on heavy-duty models), connected to the knuckle via inner and outer tie rod ends. The sway bar (stabilizer bar) isolates body roll by connecting the left and right lower control arms through vertical end-links equipped with polyurethane or rubber isolation bushings. For detailed steering gear service, review our guide on Chevy steering rack gear replacement.
| Component Name | OEM Fastener / Thread Size | Factory Torque Spec | Primary Function |
|---|---|---|---|
| Upper Ball Joint Stud Nut | M12 x 1.75 | 37 ft-lbs + 90° turn | Secures UCA to steering knuckle assembly |
| Lower Ball Joint Stud Nut | M14 x 1.5 | 74 ft-lbs (Final Pass) | Primary pivot load pivot point for knuckle |
| Hub Assembly Mounting Bolts | M14 x 1.5 (Grade 10.9) | 133 ft-lbs | Attaches unitized bearing hub to knuckle |
| Outer Tie Rod End Jam Nut | M16 x 1.5 | 50 ft-lbs | Locks toe setting alignment on inner tie rod |
| CV Axle Shaft Spindle Nut | M24 x 2.0 / M33 x 2.0 | 177 ft-lbs | Clamps CV axle stub shaft to hub bearing inner race |
| Lower Control Arm Frame Bolts | M18 x 2.5 | 107 ft-lbs + 90° turn | Secures LCA to main chassis crossmembers |
Common Front End Assembly Chevy Truck Front Suspension Diagram Faults
High-mileage Chevy trucks encounter localized mechanical wear that degrades front suspension geometry, leading to unsafe handling and accelerated tire scuffing. Identifying these failure modes early prevents catastrophic joint separation and surrounding driveline damage.
Upper and lower ball joints experience high radial and axial stresses. On non-greasable OEM sealed ball joints, internal teflon liner degradation leads to metal-to-metal contact, severe squeaking, and wheel shimmy. Lower control arm bushings—specifically the rear fluid-filled hydro-bushings on 2014+ K2XX models—are prone to tearing, which manifests as a heavy clunk during hard braking or acceleration.
Exceeding maximum allowable axial ball joint play (0.020 in / 0.5 mm) risks stud shear or socket pulling out of the housing. Immediate replacement of the arm or joint is required if clearance exceeds OEM specs, as failure will cause the wheel hub to fold inward and lock up the front driveline.
Wheel bearing hub assemblies on 4WD models suffer from moisture intrusion past the main lip seal, contaminating the inner race bearing grease. This manifests as a low-frequency hum or growl that changes pitch when swerving left or right. If left unaddressed, excess hub play allows the brake rotor to contact the caliper anchor bracket, causing erratic pedal feel and triggering electronic chassis stability faults. If you observe secondary powertrain vibrations, consult our Chevy 4WD transfer case diagnostic chart.
When replacing front shocks or control arms, verify the magnetic wheel speed sensor wire harness is properly routed along the UCA brake hose bracket. Stressing this wiring causes signal dropouts, generating false ABS trigger events at low speeds.
System Diagnostics and OBD-II Suspension Code Tracing
Mechanical wear within the front end assembly chevy truck front suspension diagram directly impacts vehicle electronics. Modern Chevrolet trucks rely heavily on integrated steering angle sensors, yaw rate sensors, and wheel speed sensors communicating with the Electronic Control Unit (ECU) via the CAN-bus network to operate StabiliTrak and ABS safety systems.
When front suspension components loosen, alignment angles drift out of calibrated bounds. If the steering wheel must be turned more than 5 degrees off-center to maintain a straight course due to worn tie rods or LCA bushings, the steering angle sensor signal conflicts with the vehicle yaw rate. This mismatch causes the ECU to store a diagnostic code and illuminate warning indicators on the instrument cluster.
Perform physical and electronic diagnosis using the following systematic workflow:
- Unload the Suspension: Raise the front of the truck by positioning frame stands behind the front crossmember. Allow the suspension to droop fully (for coilover setups) or support the LCA near the ball joint with a floor jack (for torsion bar setups) to unload spring tension from the upper joint.
- Dial Indicator Play Measurement: Mount a magnetic-base dial indicator to the steering knuckle with the plunger resting against the lower ball joint housing. Use a 6-foot pry bar under the tire to leverage the knuckle upward. Measure vertical movement; replacement is required if movement exceeds 0.020 in (0.5 mm).
- Hub Bearing Runout Inspection: Grasp the front tire at the 12 o’clock and 6 o’clock positions. Push and pull firmly. Play exceeding 0.005 in indicates internal race failure within the unitized hub assembly.
- OBD-II Scanning and Sensor Live Data Analysis: Connect an OBD-II scan tool capable of reading chassis diagnostics (C-codes). Check for active or pending fault codes such as C0035 (Left Front Wheel Speed Sensor) or C0040 (Right Front Wheel Speed Sensor). If excessive hub play creates uneven air gaps between the ABS reluctor ring and encoder, signal dropouts trigger these codes and light up the traction control warning or check engine light.
- Engine Bay Clearance Check: When performing front crossmember dropping procedures (e.g., lift kit installations or front differential service), inspect components above the steering gear. Ensure lower radiator hose coolant flow paths and the main oil pressure sensor harness routing clear the steering shaft U-joints to prevent wiring or hose chafing under high chassis articulation.
• Camber: +0.10° ± 0.60° (Cross-camber limit: 0.50°)
• Caster: +2.80° ± 0.60° (Cross-caster limit: 0.50°)
• Total Toe: +0.10° ± 0.20° (Individual toe: +0.05° per side)
• Steering Angle Sensor Reset: Mandatory via OBD-II bidirectionally whenever toe or caster settings are modified.
Front End Assembly Chevy Truck Front Suspension Diagram FAQ
What are the primary factory torque specs for Chevy 1500 lower control arm bolts?
On GMT900 and K2XX 1500 Chevy trucks, the lower control arm-to-frame mounting bolts (M18 fasteners) require a initial torque spec of 107 ft-lbs (145 N·m) followed by a final pass of 90 degrees angle rotation. Always perform final torquing with the vehicle sitting at normal curb height on the ground to avoid pre-loading and tearing the rubber isolation bushings.
Can a worn front hub bearing illuminate a check engine light or chassis fault?
Yes. Excessive wheel bearing play causes axial misalignment between the integrated ABS reluctor ring and the stationary wheel speed sensor. This produces an erratic AC voltage signal sent to the brake control module and ECU. The system interprets this invalid data stream as a speed sensor failure, generating chassis codes C0035/C0040, disabling StabiliTrak, and illuminating the traction control warning light or a check engine light on specific ECU logic models.
What is the correct procedure for adjusting torsion bar key height on Chevy 4WD trucks?
Measure the Z-height distance between the bottom of the lower control arm pivot bolt centerline and the lower edge of the steering knuckle stop surface. Turn the torsion bar adjusting bolt clockwise to raise or counterclockwise to lower height. Do not exceed 2.5 inches of total lift over stock trim height; over-cranking the keys steepens CV axle shaft operating angles, drastically accelerating inner and outer CV boot tear rates and binding lower ball joints.
How do engine components like oil pressure senders and coolant flow lines affect suspension service?
When dropping the front differential assembly or upper suspension crossmembers on 4WD Chevy trucks, clearing the lower engine bay is required. The front differential housing passes close to the engine oil pan, lower radiator coolant flow hoses, and oil pressure sensor harness. Care must be taken not to pinch or strain electrical connectors or force the front axle assembly against lower coolant hoses, which can lead to rapid coolant loss or false low oil pressure gauge readings.
Why is a wheel alignment mandatory immediately following control arm or tie rod replacement?
Replacing suspension control arms or tie rods alters static camber, caster, and toe settings due to manufacturing tolerances in aftermarket parts. Even minor toe-in misalignment (as little as 1/16th of an inch off specification) will scrub the front tire tread down to the cord structure within a few hundred miles. Furthermore, out-of-spec dynamic alignment distorts true steering center, triggering ECU stability control faults. To address engine bay service near the front timing chain cover, check our LS engine timing chain housing guide.
Step-by-Step Guide to Understanding the Front End Assembly Chevy Truck Front Suspension Diagram
Identify – Locate the specific Chevy truck front suspension setup (torsion bar or coil spring) in the assembly diagram.
Locate – Position the vehicle safely on jack stands and locate all control arm, tie rod, and ball joint mounting points.
Reference – Match damaged or worn suspension parts to the diagram callout numbers to verify correct replacement part specs.
Connect/Route – Install replacement components, routing ABS sensor wiring safely away from pinch points along the control arms.
Verify – Torque all structural fasteners to exact factory torque specs using a calibrated torque wrench.
Troubleshoot – Perform a test drive, scanning for any stored OBD-II diagnostic code if the check engine light or ABS indicator illuminates.
