Gravely Mower Deck Parts Diagram: Component Breakdown 2026
A Gravely mower deck parts diagram details the mechanical structure, including triple blade spindle assemblies, spring-loaded idler arm pulleys, deck height adjustment link pins, and drive belt configuration. It illustrates exact mounting torque points, spindle bearing arrangements, and discharge chute hardware placement needed for accurate deck rebuilds and maintenance.
📌 Key Takeaways
- Spindle housing bolts require 35–45 ft-lbs of torque, while center blade bolts must be tightened to 75–90 ft-lbs.
- Crucial component structure includes outer spindle pulleys, stationary idler pulleys, adjustable tension springs, and deck shell baffles.
- Always disconnect spark plug wires and release belt spring tension prior to deck disassembly or blade removal.
- The most common system failure is uneven belt wear caused by misaligned idler arm bushings or stretched spring retainers.
- Basic spindle, blade, and belt swaps are DIY-accessible; bent deck shells or cracked weldments require professional repair.
Maintaining a Gravely commercial zero-turn mower demands a precise understanding of its mechanical cutting assembly. Whether servicing a heavy-duty 7-gauge X-Factor deck or an entry-level ZT unit, utilizing an accurate Gravely mower deck parts diagram is essential for diagnosing wear, sourcing exact OEM replacement components, and executing proper torque sequencing. OEM technical schematics reveal the spatial relationships between drive belt routings, spring-loaded tensioner pulleys, cast-iron spindle housings, and multi-point deck suspension linkages. This detailed technical guide breaks down the Gravely deck configuration, equipping commercial mechanics and equipment owners with the technical data required for complete rebuilds and routine maintenance.

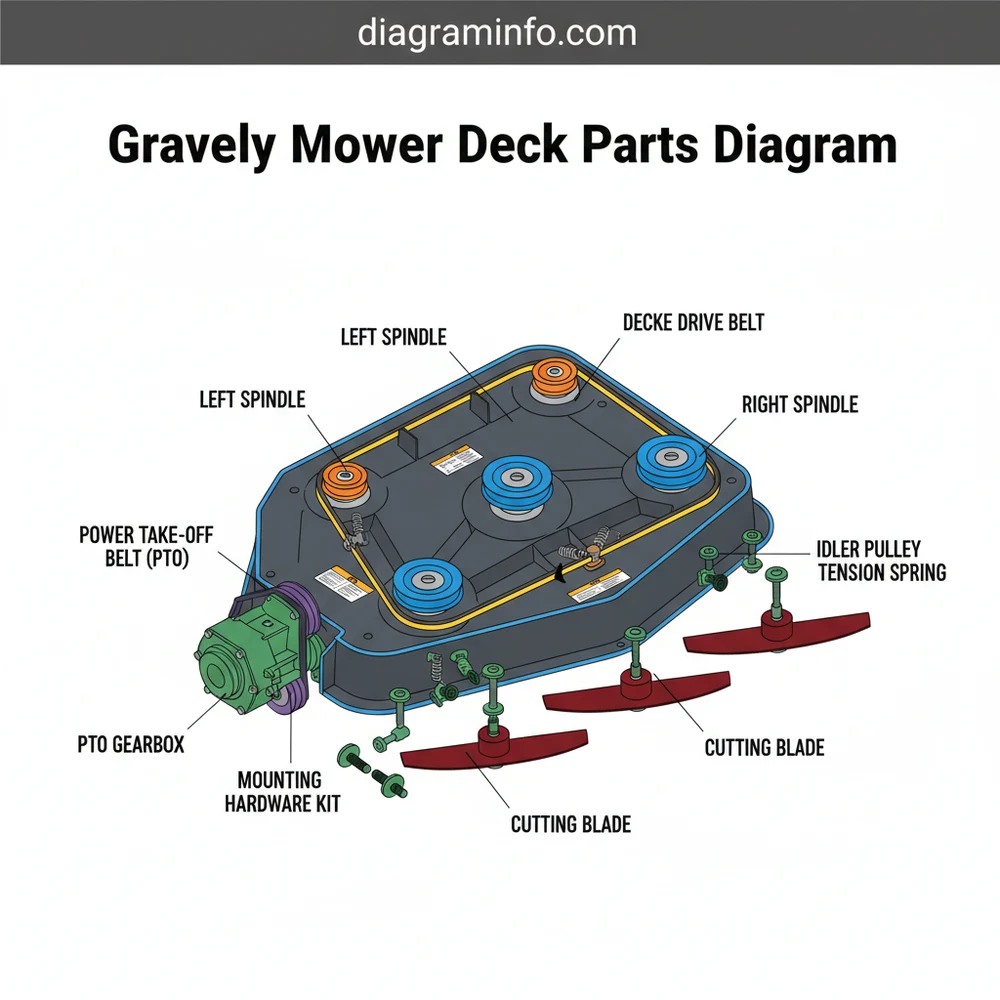

Gravely Mower Deck Parts Diagram: Structural Component Breakdown
A Gravely mower deck is an integrated mechanical system engineered to withstand high rotational inertia and harsh impact forces. Understanding how each sub-assembly functions within the overall structure enables technicians to quickly isolate mechanical failures during overhaul procedures.
Recommended Best Deal Products
Spindle Assemblies and Arbor Shaft Configuration
The spindle assembly represents the core rotational component of the cutting system. On commercial Gravely X-Factor II and III decks, the spindle structure features a heavy-duty ductile cast-iron housing enclosing a precision-machined steel arbor shaft. The shaft rotates on dual deep-groove ball bearings (typically series 6206-2RS or tapered roller bearings in high-load applications). The top of the shaft is splined or keyed to accept the deck drive pulley, secured by a locknut torqued to specific OEM foot-pound values. The bottom flange supports the cutting blade, held firmly by a hardened washer and a Grade 8 blade bolt. Proper internal spacing via a precision ground bearing spacer sleeve prevents axial preload binding when tightened.
Drive Belt System and Tensioning Assembly
The deck drive system relies on a high-tensile, aramid-corded (Kevlar) V-belt routed through a series of fixed and dynamic pulleys. Power originates from the engine-mounted electric PTO clutch and transfers to the central and outer deck pulleys. The belt tensioning mechanism utilizes a pivoted idler arm equipped with a heavy-duty extension spring or a torsion spring system. Smooth idler pulleys ride on the flat back of the belt, while deep-groove v-idlers engage the inner wedge. The layout requires exact belt finger guide clearances—typically 1/16-inch to 1/8-inch from the pulley flange—to prevent belt derailment during sudden PTO disengagement.
Deck Shell Construction and Anti-Scalp Hardware
The structural foundation consists of a fabricated steel shell ranging from 10-gauge on residential units to deep-drawn 7-gauge plate steel with reinforced 1/2-inch wear strips on commercial models. Welded internal baffles direct airflow generated by blade sail lift to equalize discharge velocity. Suspended along the perimeter are adjustable anti-scalp roller wheels. These rollers operate on hardened steel shoulder bolts and utilize greaseable steel sleeves to adjust ground clearance based on cutting height settings, keeping the deck shell from contacting turf crowns during undulating terrain passes.
When rebuilding Gravely spindle assemblies, always replace the internal rubber grease seals if packed manually. Over-greasing sealed bearings can blow out the dust caps, exposing the races to abrasive turf clippings and accelerating bearing race pitting.
How to Interpret the Gravely Mower Deck Schematic and Layout
Navigating an exploded technical schematic requires matching visual item callout numbers to the accompanying manufacturer parts ledger. Understanding graphic conventions prevents incorrect part ordering and structural misassembly.
Deciphering Item Callouts and Part Index Tables
On a standard Gravely OEM schematic, individual components are designated by circled callout numbers linked by leader lines to specific parts. The index table provides the corresponding OEM part number, component description, quantity per deck, and specific dimensional specs (such as bolt thread pitch and length). Pay close attention to serial number breaks listed in the index notes; Gravely frequently updates spindle shaft geometry, pulley diameters, and belt lengths mid-model year. Verifying your unit’s full model and serial tag located on the frame rail guarantees alignment with the correct blueprint revision.
Tracing Belt Pathing on the Deck Blueprint
Belt routing diagrams illustrate the path of the continuous drive belt across all pulleys. Dotted lines or shaded directional arrows indicate whether the belt wraps around a pulley inside the V-groove or rides flat against a smooth back-side idler. On multi-blade decks (48-inch, 52-inch, and 60-inch configurations), the belt follows a serpentine layout designed to maintain a minimum 120-degree arc of contact (wrap angle) on each spindle pulley. Failure to replicate the blueprint routing results in counter-rotating blades, severe belt twist, or total loss of drive friction.
Verifying Pitch Tolerances and Deck Suspension Linkages
The suspension schematic maps out the mechanical lift arms, trunnions, turnbuckles, and pitch adjustment hardware connecting the deck shell to the mower frame. Gravely decks rely on a four-point hanging setup designed for fine pitch adjustments. The blueprint shows the sequence of hardware installation, including flat washers, wave washers, locknuts, and clevis pins. Understanding this layout is essential when performing deck leveling, as the front edge of the cut path must maintain a pitch tolerance of 1/8-inch to 1/4-inch lower than the rear discharge edge to eliminate double-cutting and reduce engine load.
Disconnect the spark plug wires and remove the ignition key before performing any physical inspection or service based on the deck blueprint. Unexpected engagement of the PTO or manual blade movement can lead to severe personal injury.
Diagnosing Deck Failures with the Gravely Mower Deck Parts Diagram
When cutting performance degrades or mechanical noise occurs, referencing the parts diagram helps technicians isolate structural fatigue, bearing destruction, and alignment errors. Using systemic diagnostic protocols saves shop time and prevents premature component failure.
Spindle Bearing Failure and Excessive Deck Vibration
High-frequency vibration felt through the operator foot platform typically stems from worn spindle bearings, a bent arbor shaft, or unbalanced cutting blades. Refer to the spindle explosion on your diagram to isolate the source:
- Step 1: Disengage the deck belt and spin each pulley manually. Listen for grinding noises or resistance indicating race pitting in the 6206 ball bearings.
- Step 2: Grasp the top of the spindle pulley and push/pull laterally. Any detectable radial or axial play exceeds the maximum 0.002-inch endplay tolerance, indicating worn bearing races or internal spacer collapse.
- Step 3: Remove the cutting blade and mount a dial indicator against the lower arbor shaft flange. Rotate the shaft by hand; radial runout exceeding 0.005-inch requires arbor shaft replacement per OEM specifications.
If electrical issues prevent PTO engagement prior to mechanical testing, consult our detailed PTO clutch troubleshooting guide for diagnosis steps.
Premature Belt Wear and Pulley Misalignment
Belts that shred, roll over inside pulley sheaves, or snap prematurely signal dynamic misalignment or dynamic tension failure. Inspect the belt tensioner arm pivot bushing highlighted on the layout schematic. Over time, moisture and debris cause the idler pivot tube to seize or develop wear grooves, throwing the tensioner pulley out of parallel alignment with the plane of the deck. A tilt of just 2 degrees increases belt edge wear exponentially and generates severe heat buildup. Ensure all idler pulley mounting bolts are torqued properly and that the tension spring length matches OEM static length specs.
Uneven Cut Quality Caused by Deck Pitch Drift
Uneven cut patterns or streaking across the lawn point to suspension hardware wear or improper pitch setting. Reference the deck height linkage overview to check for worn trunnion bushings, stretched lift cables, or bent lift arms. Measure blade tip height by rotating the blades end-to-end parallel to the frame. If the front-to-rear rake strays outside the required 1/8-inch to 1/4-inch forward slope, adjust the threaded pitch trunnions according to the service manual sequence. For complete blade maintenance standards, cross-reference our commercial blade sharpening specifications.
Gravely Deck Drive System Torque and Belt Specifications
Proper assembly of a Gravely cutting deck requires strict adherence to manufacturer torque values and component tolerances. Exceeding torque thresholds can crack cast-iron housings or stretch Grade 8 fasteners, while under-torquing leads to loose hardware during operational vibration.
| Component Description | Fastener / Spec Size | OEM Torque / Specification |
|---|---|---|
| Blade Mounting Bolt | 5/8″-11 Grade 8 Bolt | 110 – 120 ft-lbs (149 – 162 Nm) |
| Spindle Pulley Locknut | 3/4″-16 Center Lock Nut | 70 – 80 ft-lbs (95 – 108 Nm) |
| Spindle Housing Mounting Bolts | 3/8″-16 Flange Bolts | 30 – 35 ft-lbs (40 – 47 Nm) |
| Idler Arm Pivot Bolt | 1/2″-13 Grade 5 Bolt | 50 – 55 ft-lbs (67 – 74 Nm) |
| Anti-Scalp Roller Axle Bolt | 3/8″-16 Shoulder Bolt | 25 – 30 ft-lbs (34 – 40 Nm) |
| Deck Pitch Slope (Front to Back) | Blade Tip Level Variance | 1/8″ to 1/4″ Lower at Front Tip |
For heavy commercial use, grease standard non-sealed spindle housings every 25 to 50 operational hours using a Lithium Complex NLGI Grade 2 synthetic grease. Apply grease slowly until minor resistance is felt; do not over-pressurize grease cavities.
If deck vibration issues persist after servicing structural components and verifying torque values, inspect drive alignment back to the hydraulic pumps and engine mounting system using our hydrostatic transmission service manual.
Gravely Mower Deck Parts Diagram Mechanics FAQ
What is the correct blade bolt torque on a Gravely X-Factor deck?
According to OEM manufacturer specifications, standard 5/8″-11 Grade 8 blade retaining bolts on Gravely X-Factor, X-Factor II, and X-Factor III decks require a torque value of 110 to 120 foot-pounds (149 to 162 Nm). Always inspect the hardened bevel washer during blade changes; if the Belleville washer has flattened or lost its tension, replace it immediately to prevent blade slippage and arbor shaft wear.
How do I determine if my Gravely spindle housing requires manual greasing?
Examine the top or side of the spindle housing callout on your mower deck parts diagram. Greaseable cast-iron spindles feature an installed Zerk fitting (1/4″-28 threads) near the top bearing cavity. Modern maintenance-free XL or maintenance-free commercial spindles feature factory-sealed deep groove ball bearings (6206-2RS) packed with high-temperature synthetic grease, eliminating grease fittings entirely. Never attempt to force grease into a sealed housing without an overflow relief valve.
Why does the deck drive belt slip despite installing a new tension spring?
Belt slippage under high load usually indicates worn idler arm pivot bushings, improper belt routing, or dynamic deck misalignment rather than spring fatigue. Refer to the belt tensioning layout schematic to verify that the tension arm moves freely across its full pivot arc. Corrosion or debris buildup inside the pivot sleeve binds the arm, preventing the spring from applying its full rating force to the belt back-side idler.
What deck pitch setting provides the cleanest discharge on Gravely ZT series mowers?
Gravely engineering specs require a forward pitch rake of 1/8-inch to 1/4-inch across all residential and commercial zero-turn decks. This orientation means the front blade tip cutting height must sit slightly lower than the rear blade tip height when measured from a hard, level concrete surface. Proper forward pitch ensures the cutting edge strikes grass blades only once, maximizing engine power usage and producing optimal air velocity for clipping discharge.
Where is the deck model tag located to identify the exact schematic revision?
The serial tag containing the exact deck model code and serial number sequence is located directly on the steel deck shell plate—typically stamped onto a silver decal on the rear left or right top surface near the discharge chute hinge or deck mounting bracket. Always reference this full serial string when ordering service parts, as running changes alter belt part numbers, pulley diameters, and mounting bracket geometry between production runs.
Step-by-Step Guide to Understanding the Gravely Mower Deck Parts Diagram
Identify – Match your Gravely deck model number (e.g., HD 60, ZT XL) to the exact parts diagram version.
Locate – Find the primary component assemblies on the diagram, such as spindles, idler arms, and belt guards.
Reference – Note the exact stacking order of washers, spacers, and pulley shims shown in the explosive view.
Connect/Route – Route the mower deck belt around spindle pulleys and tension idlers following the illustrated belt pathway.
Verify – Check spindle bolt torque (75-90 ft-lbs) and measure deck rake height according to diagram setup specs.
Troubleshoot – Inspect for belt vibration, pulley misalignment, or deck leveling errors if cut quality remains uneven.
