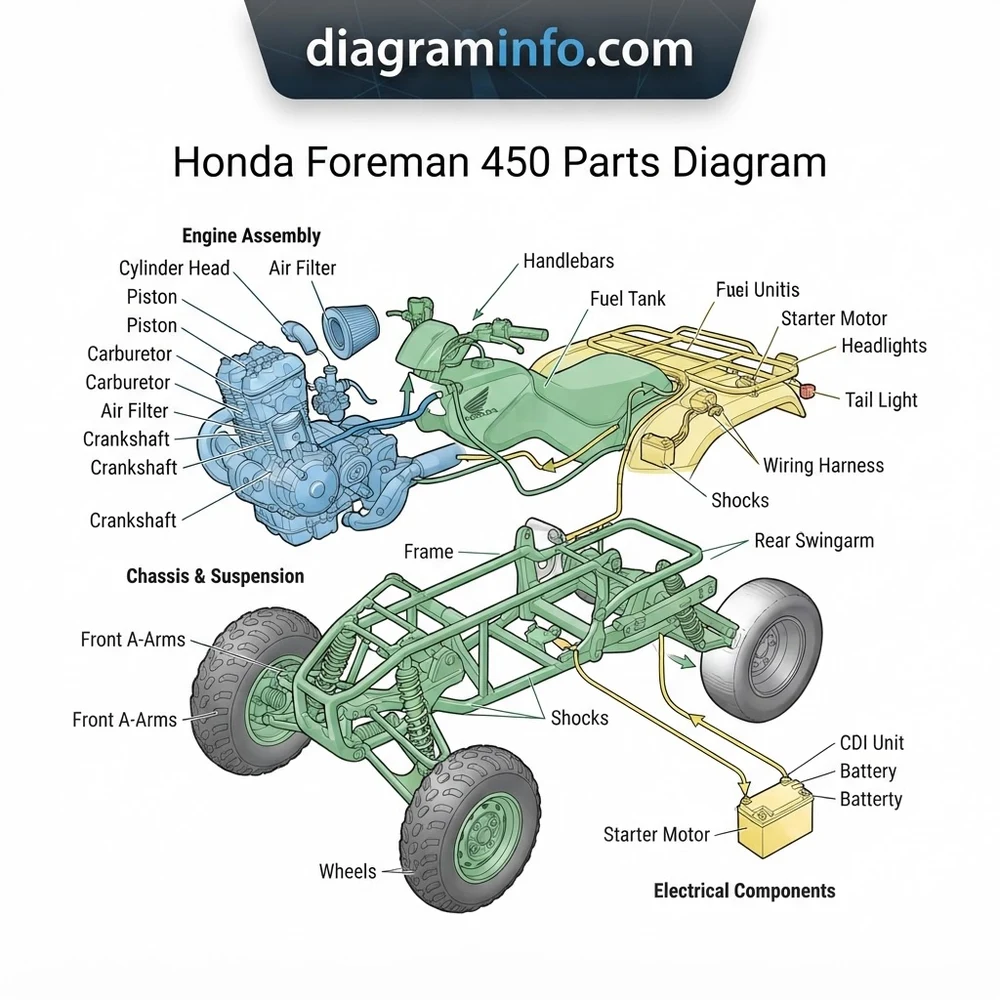

Honda Foreman 450 Parts Diagram: Component Breakdown (2026)
The Honda Foreman 450 parts diagram details the structural layout of the 432cc air-cooled engine, 5-speed transmission, front/rear differential gearboxes, and electric shift system (ES). It identifies OEM part reference numbers, fastener specifications, and hose/cable routing paths necessary for precise disassembly, maintenance, and accurate component replacement on TRX450FM/FE models.
📌 Key Takeaways
- Engine flywheel bolt requires 87 lb-ft (118 Nm) torque during reassembly.
- Diagram schematics group assemblies into engine, frame, steering, and electrical layout systems.
- Electric Shift Control (ES) motor angle sensors are frequent failure points during shifting faults.
- Match OEM reference numbers directly to Honda TRX450 model sub-variants (FM manual vs FE electric shift).
- Seek professional shop service if internal transmission gear stack replacement is required.
Navigating a complete overhaul, routine service, or complex electrical repair on a 1998–2004 Honda TRX450 Foreman requires an exact understanding of its mechanical blueprints. A factory-grade honda foreman 450 parts diagram provides the definitive visual map of every subsystem, detailing how individual fasteners, gaskets, gears, and structural frames interlock. Whether you are servicing a manual-shift TRX450FM or an Electric Shift Program (ESP) equipped TRX450FE, utilizing exploded schematics prevents improper reassembly, prevents incorrect torque applications, and ensures OEM structural integrity across all major assemblies.
Deconstructing the Honda Foreman 450 Parts Diagram and Core Assembly
The structural framework of the Honda TRX450 is segmented into distinct mechanical subsystems within official technical documentation. Understanding the relationship between these primary groups allows mechanics to isolate failing components quickly and source precise replacement hardware.
Recommended Best Deal Products
Engine Top End and Cylinder Head Layout
The 432cc longitudinally mounted, air-cooled, four-stroke engine features a overhead valve (OHV) configuration. The top-end schematic details the alignment between the rocker arm shafts, pushrods, valve springs, and the single camshaft located down in the crankcase. The exploded view illustrates critical oil passages, dowel pin locations for head alignment, and the multi-layer steel (MLS) head gasket orientation. When reviewing the cylinder block overview, pay strict attention to the oil metering jet positions; installing these backwards or omitting the rubber O-rings shown on the schematic will starve the rocker arms of essential lubrication.
Transmission and Clutch Subsystem Structure
Unlike standard transverse motorcycle engines, the Foreman 450 utilizes a longitudinal crankshaft that transfers rotational force directly to front and rear driveshafts. The clutch section of the diagram reveals a dual-clutch system: a centrifugal clutch mounted on the primary shaft and a multi-plate wet clutch operating on the change-shaft assembly. On TRX450FE models, the transmission blueprint incorporates an electric shift motor, reduction gear cluster, and gear position switch. The schematic highlights delicate thrust washers and wave springs that must maintain specific axial play during reassembly.
Factory service manual specifications for key fasteners identified on the engine and chassis diagrams:
- Cylinder Head Bolts (Flange 10mm): 47 N·m (35 lbf·ft)
- Centrifugal Clutch Lock Nut: 108 N·m (80 lbf·ft)
- Engine Oil Drain Bolt: 25 N·m (18 lbf·ft)
- Front/Rear Wheel Lug Nuts: 64 N·m (47 lbf·ft)
- Differential Ring Gear Bolts: 54 N·m (40 lbf·ft)
Front and Rear Final Drive Differential Configuration
The 4WD drivetrain blueprint details the front differential and rear swingarm axle housing. The front differential layout shows the pinion gear, ring gear, mechanical shift fork, and CV-axle retaining clip positions. Double-lip oil seals and sealed deep-groove ball bearings surround the differential case to prevent water intrusion during deep mud operation. The rear axle diagram highlights the solid axle shaft, ring and pinion backlash shims, and drum brake backing plate seals.
| Subsystem Group | Key Structural Components | OEM Part Reference Range |
|---|---|---|
| Cylinder Head Assembly | Valves, Rocker Arms, Pushrods, Head Gasket | 12200-HN0-A00 series |
| Carburetor Assembly | Keihin VE21/VE22, Throttle Valve, Float, Jets | 16100-HN0-671 series |
| Electric Shift Program (ESP) | Shift Motor, Reduction Gears, Angle Sensor | 31300-HN0-A12 series |
| Front Differential | Pinion Gear, Ring Gear, Differential Case, Seals | 41300-HN0-A00 series |
| Rear Swingarm & Axle | Axle Shaft, Brake Drum, Differential Bearings | 42310-HN0-A00 series |
How to Read and Navigate a Honda Foreman 450 Schematic for Maintenance
Mastering a high-detail technical blueprint requires understanding index callouts, line styles, hardware coding, and cross-referencing notes. Utilizing these diagrams effectively prevents part misidentification and reduces rebuild downtime.
Identifying Reference Callouts and Fastener Hardware
Each component on a factory Honda schematic is assigned an index number (callout). This number links directly to the parts inventory list, providing the official OEM part number, descriptive name, and required quantity per machine. Notice that fasteners like hex flange bolts (e.g., 6x28mm vs. 6x32mm) are called out separately. Installing a bolt that is merely 4mm too long into an engine case pocket can crack the internal casting or pierce an oil gallery.
On official diagrams, a fastener labeled “BOLT, FLANGE (6X25)” indicates a standard metric bolt with a 6mm thread diameter and a 25mm shaft length (excluding the head). Always verify thread pitch and length using a thread pitch gauge during full frame reassembly.
Tracing Cable Routes and Wire Harness Schematics
The electrical system blueprint uses unified wire color abbreviations to map the main harness across the frame backbone. Primary leads are represented by single solid lines, while sub-harnesses branch off using directional arrows. Key wiring color coding standard for the TRX450 chassis includes:
- Green (G): Main Ground System
- Red (R): Unswitched Main Battery Voltage (+12V DC)
- Black (Bl): Switched Ignition Voltage (+12V DC with key ON)
- Black/White (Bl/W): Ignition Coil Power and Engine Stop Circuit
- Blue/Yellow (Bu/Y) & Yellow/Blue (Y/Bu): ESP Angle Sensor Signal & Reference Voltage
Cross-Referencing Sub-Assemblies with OEM Technical Manuals
When working on complex repairs—such as rebuilding the Keihin VE-type carburetor—a main frame schematic must be paired with specific exploded sub-diagrams. The primary frame blueprint shows carburetor mounting points, airbox boot clamps, and throttle cable routings. However, the dedicated carburetor system blueprint isolates internal metering components: the pilot jet, main jet, jet needle, needle valve seat, and diaphragm assembly. Before disassembling complex systems, refer to specialized guides like our carburetor cleaning guide to ensure proper jet identification and float height setup.
Troubleshooting Common Failures Using the Honda Foreman 450 Blueprint
Exploded diagrams are invaluable diagnostic visualizers. By mapping mechanical energy and electrical paths, technicians can quickly trace symptoms to broken internal components.
Electric Shift Program (ESP) Angle Sensor and Shift Motor Faults
A frequent failure on the TRX450FE model is an blinking gear indicator code (e.g., 8 blinks for angle sensor circuit fault). Consulting the gearshift control blueprint reveals the sequence: control ECU -> shift motor relay -> electric shift motor -> reduction gear set -> shift drum angle sensor. Diagnostics should follow this structural hierarchy:
- Locate the angle sensor on the front crankcase cover using the electrical diagram.
- Inspect the 3-pin connector harness for corrosion or bent terminals.
- Check input reference voltage (5.0V DC across Yellow/Blue and Green/Black wires).
- If voltage is present but gear changes fail, consult our electric shift system diagnosis procedure to test shift motor armature resistance (1.0 to 3.0 Ohms standard).
When installing a new angle sensor (indicated on the front engine cover diagram), you must pre-load the sensor tab against the shift drum counter-shaft before tightening the mounting screws. Failure to pre-load will result in code 8 errors and premature sensor wiper damage.
Carburetor Fuel Metering and Air Intake Circuit Leaks
Unstable idling or lean misfires often trace back to air leaks around the intake manifold insulator or cracked vacuum lines. The fuel system schematic details two critical O-rings: one between the intake manifold and cylinder head, and another inside the carburetor insulator joint. Inspect these items whenever lean conditions occur. Ensure the vacuum slide diaphragm (shown under the top plastic cap in the schematic) has no pinhole tears or seating distortion.
Final Drive Axle Seal Leaks and Differential Bearing Play
Water intrusion into the front or rear final drive leads to rapid bearing degradation. The rear axle schematic shows an inner seal, outer seal, and deep groove ball bearings inside the differential casing. Excessive wheel wobble or differential fluid leaking onto the rear brake shoes indicates failure of seal callout #18 or bearing callout #22. When performing service, consult our front differential seal replacement guide for step-by-step seal press and shim alignment methods.
Frequently Asked Questions About Honda Foreman 450 Parts Diagrams
What are the primary differences between the TRX450FE and TRX450FM component diagrams?
The core chassis, cylinder head, and final drive schematics are identical between the two models. However, the TRX450FE (Electric Shift) diagrams feature additional electrical pages, a handlebar-mounted shift switch assembly, a reduction gear cover on the front engine casing, and an electric shift motor. The TRX450FM (Manual Shift) replaces these components with a mechanical foot-shift lever linkage and shift shaft arm mechanism.
How do I read torque specifications directly from the OEM Honda Foreman schematic assembly key?
Standard OEM exploded views use coded symbols or footnotes next to specific index numbers to denote torque requirements and thread-locking compound applications. A small oil-can icon indicates oil lubrication on threads prior to installation, while a “L” symbol designates medium-strength liquid thread lock. Fasteners without explicit torque notes default to standard ISO metric torque values based on bolt flange diameter (e.g., 6mm flange bolt = 10 N·m / 7 lbf·ft; 8mm flange bolt = 22 N·m / 16 lbf·ft).
Where can I locate the frame and engine serial numbers on the chassis structure?
According to OEM documentation, the Vehicle Identification Number (VIN) is stamped directly into the front frame cross-member, visible directly behind the front bumper cover. The engine serial number is stamped on the left side of the lower crankcase, near the bottom of the dipstick hole. Cross-referencing these numbers against parts microfiche is essential, as mid-year manufacturing changes (such as updates between 1998–2001 and 2002–2004 production runs) alter specific brake line fittings and ECU pinouts.
Why do certain fasteners appear multiple times across different layout diagrams?
Honda parts diagrams are split into major service groups (e.g., Frame, Engine, Electrical, Drive Line). A shared mounting bolt—such as a rear differential flange bolt—may appear on both the Rear Brake/Axle diagram and the Rear Suspension/Swingarm diagram to demonstrate complete assembly relationships. Always cross-check part numbers in the indexing chart to confirm if two visual representations refer to the same physical hardware.
How does the angle sensor circuit display within the electrical wiring blueprint?
On the TRX450FE electrical wiring schematic, the angle sensor is depicted as a three-terminal variable potentiometer linked directly to the Engine Control Module (ECM). The schematic traces three color-coded conductors: Yellow/Blue (5V reference feed from ECM pin 8), Green/Black (sensor ground to ECM pin 16), and Blue/Yellow (variable signal voltage output returning to ECM pin 4). Tracing these wire paths on the diagram allows technicians to quickly identify break points or high-resistance shorts across harness pinouts.
Step-by-Step Guide to Understanding the Honda Foreman 450 Parts Diagram
Identify – Determine your Honda Foreman 450 year and sub-model (TRX450FE Electric Shift or TRX450FM Manual).
Locate – Find the specific component system diagram, such as engine crankcase, carburetor layout, or rear axle assembly.
Reference – Match callout item numbers on the exploded schematic to the official Honda OEM part numbers.
Connect/Route – Follow diagram alignment markers to correctly orient internal gears, seals, gaskets, and wiring paths.
Verify – Check torque specifications and confirm seal seating against diagram layout notes before final assembly.
Troubleshoot – Consult the schematic alignment details if components bind, leak, or fail functional testing.
