Nissan Altima Fuse Box Diagram: Troubleshooting Electrical

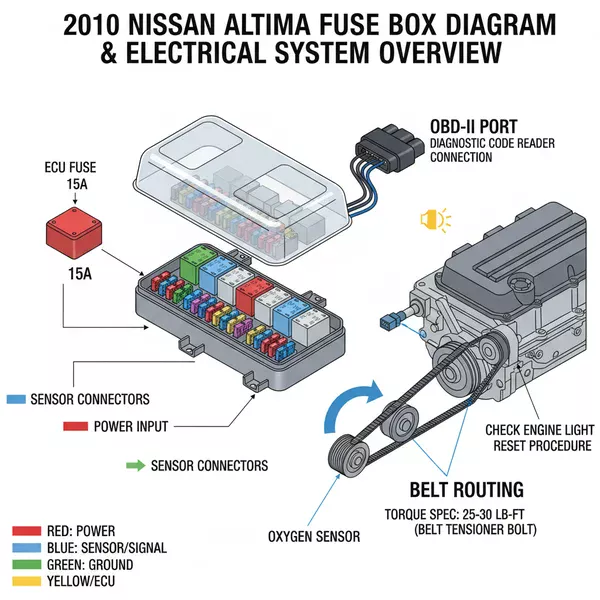

Navigating electrical issues in your vehicle often begins with a single, crucial resource: the 2010 Nissan Altima fuse box diagram. Whether you are dealing with a radio that suddenly went silent, headlights that refuse to ignite, or more complex issues involving the ECU or the check engine light, understanding the layout of your electrical protection system is vital. This comprehensive guide provides a detailed breakdown of the various fuse box locations, the specific functions of individual fuses, and the diagnostic steps required to restore your vehicle’s functionality. By the end of this article, you will be equipped with the knowledge to identify, test, and replace fuses safely, saving time and preventing costly trips to the mechanic for simple circuit interruptions.

The electrical system of this specific model year is distributed across three primary locations, each serving a distinct purpose. The first is the Passenger Compartment Fuse Panel, typically located to the left of the steering wheel, tucked behind a removable plastic cover. This panel houses fuses for interior components such as the audio system, power windows, and interior lighting. The second, and perhaps most critical for engine performance, is the Intelligent Power Distribution Module Engine Room (IPDM E/R), situated in the engine bay near the battery. This module controls high-draw components like the cooling fans that maintain proper coolant flow and the AC compressor clutch. Finally, a Fusible Link Block is attached directly to the positive battery terminal, protecting the high-amperage lines that feed the starter motor and the alternator.

In the engine bay diagram, you will notice the IPDM E/R is not just a box of fuses but a sophisticated control unit. It interacts directly with the ECU to manage power distribution based on sensor feedback. For instance, if the ECU detects rising engine temperatures, it sends a signal to the IPDM to engage the cooling fan relays. Understanding this relationship is essential when troubleshooting a check engine light that may be caused by a lack of power to a specific sensor or actuator rather than a mechanical failure.

Interpreting the 2010 Nissan Altima fuse box diagram and performing a replacement is a straightforward process if you follow a logical sequence. Before starting, ensure the ignition is completely off and the key is removed to prevent accidental short circuits or data loss in the vehicle’s memory modules.

• ✓ Step 1: Locate the Target Fuse Box – Determine if the problem is interior-related (cabin fuse box) or engine-related (IPDM E/R in the engine bay).
• ✓ Step 2: Remove the Cover – For the cabin box, pull the finger notch on the lower dash panel. For the engine bay box, unlatch the plastic clips holding the weather-sealed lid in place.
• ✓ Step 3: Consult the Legend – Look at the underside of the removed cover. You will find a printed map correlating fuse numbers to components like “Wiper,” “Fuel Pump,” or “Audio.”
• ✓ Step 4: Use the Fuse Puller – Locate the small white plastic tool inside the cabin fuse box. Use this to grip the suspect fuse and pull it straight out.
• ✓ Step 5: Visual and Physical Inspection – Look through the translucent side of the fuse. If the metal bridge inside is broken or there are black scorch marks, the fuse is blown.
• ✓ Step 6: Test with a Multimeter – For a more accurate reading, set a multimeter to the Continuity or Ohms setting. Touch the probes to the two small metal tabs on the top of the fuse. A “beep” or a zero-ohm reading indicates the fuse is good.
• ✓ Step 7: Insert a New Fuse – Replace the blown fuse with a new one of the exact same amperage. Never use a fuse with a higher rating, as this can lead to wiring fires.
• ✓ Step 8: Re-test the Component – Turn the ignition to the “ON” position and check if the electrical component is now operational.

Common electrical issues in the Altima often manifest as a failure to communicate with the vehicle via the OBD-II port. If you plug in a scanner and it fails to power up, the diagnostic port fuse in the cabin panel is likely blown. This prevents you from retrieving a diagnostic code that could explain why the check engine light is illuminated. Another frequent point of failure involves the cooling fans. If the fans fail to spin, the engine cannot maintain proper coolant flow, leading to overheating. Before assuming the fan motor or the accessory belt-driven water pump is at fault, check the high-amperage fuses in the IPDM E/R.

Troubleshooting should also extend to the fusible links. If the entire car has no power—no dash lights, no cranking, no interior lights—the main fusible link on the battery terminal has likely popped. This usually happens during a jump-start where the cables were reversed or if there is a massive short in the alternator circuit. If you find yourself frequently replacing the same fuse, do not simply keep swapping them. A recurring blown fuse is a sign of a “short to ground” or a failing component drawing too much current, such as a seizing AC compressor clutch or a frayed wire rubbing against the engine block.

Maintenance of your electrical system also goes hand-in-hand with mechanical upkeep. While you are under the hood checking the IPDM E/R, take a moment to inspect the accessory belt for cracks or glazing. The accessory belt drives the alternator, which provides the “juice” that travels through these fuses. Similarly, while electrical issues can cause erratic engine behavior, ensure your timing chain is not the culprit if you experience synchronization errors between the camshaft and crankshaft; these issues often trigger a diagnostic code that might lead you to check the ECU fuses first.

When replacing parts, always prioritize high-quality components. Using cheap, non-branded fuses can be dangerous, as they may not blow at the rated current, potentially melting the fuse box itself. If you are performing more advanced repairs, such as replacing the alternator, always adhere to the manufacturer’s torque spec for the mounting bolts and electrical connections to ensure a solid ground and prevent arcing.

In conclusion, the 2010 Nissan Altima fuse box diagram is the roadmap to your vehicle’s electrical health. By understanding the locations of the cabin panel, the engine bay IPDM E/R, and the battery fusible links, you can systematically diagnose issues ranging from a simple dead radio to complex ECU power failures. Remember to always use the correct amperage, utilize a multimeter for definitive testing, and keep an eye out for underlying mechanical issues like accessory belt wear that could impact electrical performance. With this knowledge, you can confidently maintain your Altima’s electrical integrity and ensure all systems, from coolant flow to cabin electronics, operate at peak efficiency.
