A bathroom sink faucet parts diagram details key assemblies including the handle, cartridge or stem valve, aerator, spout, mounting hardware, and under-sink drain assembly (tailpiece, P-trap, and pop-up rod). Understanding these components simplifies cartridge replacement for stopping drips and sealing tailpiece-to-P-trap connections against hazardous sewer gas leaks.
📌 Key Takeaways
- Identify the internal valve cartridge (e.g., 25mm or 35mm ceramic disc) as the primary cause of handle drips.
- The tailpiece connects the upper drain assembly directly to the standard 1-1/4 inch P-trap beneath the basin.
- Hand-tighten PVC slip-joint nuts, then add a 1/4 turn with pliers; do not over-torque brass fittings.
- Worn rubber O-rings and mineral-clogged aerators account for over 80% of reduced flow and leakage issues.
- Replace cartridge seals and P-trap gaskets as DIY projects, but consult a plumber if wall vent pipes fail.
Analyzing a bathroom sink faucet parts diagram requires a precise understanding of both fluid supply mechanics and gravity-fed drain architecture. Standard residential and commercial lavatory setups operate under working water pressures between 40 and 80 PSI, relying on engineered seals, mechanical cartridges, and precise pipe tolerances to prevent structural water damage. Modern plumbing schematics detail the mechanical connection between supply lines, internal valve bodies, drain assemblies, and waste routing fittings. Mastering this assembly layout allows technicians and experienced installers to diagnose flow restrictions, service failing seal cartridges, and execute proper pitch and venting protocols during sink retrofits.
Bathroom Sink Faucet Parts Diagram: Critical System Component Breakdown
Every standard lavatory system documented in a bathroom sink faucet parts diagram separates into two distinct functional zones: the pressurized water delivery section and the gravity-drained waste disposal section. The pressurized supply assembly terminates at the faucet body, which houses ceramic disc cartridges or compression valve stems rated for operating temperatures up to 180°F (82°C). Fluid velocity and spray distribution are governed by the aerator attached to the spout tip, usually specified at 1.2 to 1.5 GPM (gallons per minute) flow rates per EPA WaterSense compliance standards.
Below the deck plate, flexible stainless steel braided lines connect the 1/2-inch NPSM faucet shanks to 3/8-inch OD compression angle stops. The waste management side begins directly beneath the basin standard 1-1/2 inch opening. The drain assembly features a threaded strainer flange, a rubber friction gasket, a mounting locknut, and a vertical tailpiece. Tailpieces are constructed from either 20-gauge chrome-plated brass or thin-wall schedule 40 polypropylene, measuring 1-1/4 inches in outside diameter for standard bathroom installations.
Standard lavatory drain tailpieces utilize a 1-1/4″ outer diameter (OD), whereas kitchen waste outlets utilize 1-1/2″ OD. Transitioning between a 1-1/4″ tailpiece and a 1-1/2″ P-trap requires a dedicated step-down beveled washer inside the upper slip joint nut.
The tailpiece discharges directly into the P-trap, a critical U-shaped plumbing component designed to hold a liquid seal between 2 and 4 inches deep. This water barrier prevents hazardous sewer gases from entering the occupied space. The P-trap connects to the wall rough-in stub via an arm and a series of threaded compression fittings known as slip joint couplings.
| Component Name | Material / Dimensional Spec | Primary Function & Torque Specs |
|---|---|---|
| Faucet Valve Cartridge | Ceramic Disc / Brass Housing | Controls fluid volume and mixing; Retaining nut torque: 15–20 ft-lbs |
| Drain Assembly Flange | Chrome-Plated Brass or Stainless | Seals basin outlet; Mounting nut torque: 25–30 ft-lbs (use silicone or putty) |
| Tailpiece Pipe | 1-1/4″ OD Brass or Polypropylene | Conveys wastewater from sink basin down to the trap assembly |
| Slip Joint Nut & Washer | ABS / PVC / Molded EPDM Rubber | Creates water-tight seal between trap sections; Hand-tight + 1/4 turn |
| P-Trap Dip & Crown Weir | 1-1/2″ or 1-1/4″ PVC / ABS Pipe | Maintains 2″-4″ standing water column to block trap siphonage and gas |
| Air Admittance Valve (AAV) | ABS Body with Silicone Membrane | One-way pressure equalization valve; Rated for 6–24 DFU (Drain Fixture Units) |
Reading the Bathroom Sink Faucet Parts Diagram for Service and Assembly
Proper interpretation of an exploded mechanical schematic requires working systematically from the pressurized input lines through the control valves and out through the gravity drain discharge pathway.
Tracing High-Pressure Water Lines to the Faucet Valve Cartridge

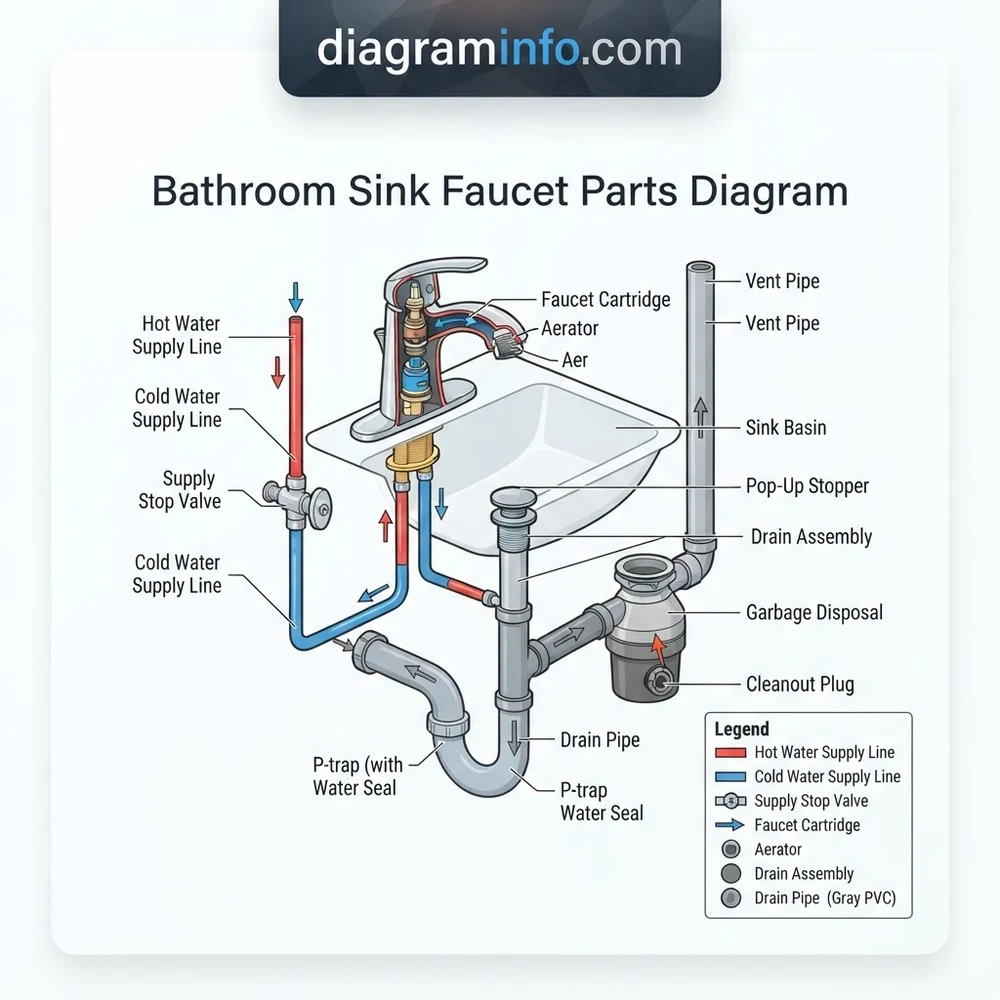

As illustrated in the primary supply pathway of the diagram, cold and hot water enter through wall-mounted angle stops. Flexible 3/8-inch female compression lines route upward to the brass supply shanks. The schematic depicts the internal valve body where dual-handle or single-lever cartridges regulate flow. When replacing worn components, technicians should reference our comprehensive commercial valve repair guide for detailed dynamic pressure testing protocols. Retaining nuts securing these ceramic cartridges require exact torque seating to avoid crushing the lower EPDM port seals.
Mapping the Drain Assembly and Tailpiece Connections
Moving to the waste handling phase on the diagram, the upper sink basin seals via the drain body flange. A rubber mack washer sits directly underneath the sink deck, clamped by a heavy brass locknut. Threaded onto the bottom of the drain body is the 1-1/4 inch vertical tailpiece. The diagram shows the slip joint union where the tailpiece penetrates the upper inlet of the P-trap bend. A slip nut and beveled washer (with the tapered edge facing downward into the female fitting) create the seal when hand-tightened and snugged with smooth-jaw pliers.
When reviewing an AAV valve placement on a plumbing schematic, ensure the valve unit is located at least 4 inches above the horizontal drain arm intersection and a minimum of 3 inches above the insulation level for attic/wall installations, in strict accordance with IPC Section 918.4.
Analyzing the P-Trap Geometry and Air Admittance Valve (AAV) Mechanics
The lower section of the schematic illustrates the waste disposal routing. The standard P-trap transitions horizontal flow from the tailpiece into the wall drain pipe, maintaining a constant slope of 1/4-inch per linear foot toward the main stack. In island configurations or installations lacking direct wall vent stacks, an Air Admittance Valve (AAV valve) is integrated into the drain branch downline of the trap crown weir. The schematic demonstrates how negative pressure generated by draining water pulls the internal AAV seal open, admitting room air to equalize pressure without releasing sewer gases.
Troubleshooting P-Trap Leaks, Venting Failures, and Flow Restrictions
Diagnosing modern lavatory failures requires correlating visible leak points or drainage symptoms back to specific component callouts on the system schematic.
Diagnosing Low Flow and Cartridge Wear vs. Aerator Clogging
When system water pressure drops suddenly at the spout, the issue typically stems from particulate accumulation inside the aerator mesh screen or mineral scale across the ceramic cartridge discs. Technicians should isolate the aerator assembly using smooth key tools to flush trapped pipe debris. If pressure loss persists across both hot and cold lines after cleaning, disassemble the upper valve housing as shown in the bathroom sink faucet parts diagram and replace the internal cartridge seals.
Resolving Joint Leakage at the Tailpiece and Slip Joint Connections
Leaking beneath the sink cabinet commonly occurs at the threaded tailpiece junction or along the PVC slip joint nuts. Over-tightening plastic slip nuts can distort the internal beveled washer, creating a continuous weep path. Inspect the bevel orientation: the narrow edge must point toward the joint receiving socket. If retrofitting specialized equipment under the cabinet, consult our technical instructions on under-sink garbage disposal plumbing schematics to maintain proper branch pipe elevation and flow clearance.
Never apply thread sealant paste (pipe dope) or PTFE tape to plastic slip joint bevel washers or compression threads. Slip joints rely on rubber/plastic deformation for sealing; chemical dopes degrade rubber elastomers and crack polypropylene nuts under stress.
Clearing Sewer Gas Odors and Siphonage in P-Trap Assemblies
A foul odor emanating from the basin indicates a compromised liquid seal inside the P-trap bend. Siphonage occurs when a clogged standard vent pipe or a failed mechanical AAV creates negative pressure in the waste line, sucking water out of the trap dip. Test mechanical air admittance valves by checking internal spring tension and rubber membrane flexibility. If the internal diaphragm sticks open, replace the AAV unit immediately.
Bathroom Sink Faucet Parts Diagram Technical FAQs
What is the standard pipe size shown in a bathroom sink faucet parts diagram?
Standard residential bathroom sink waste systems utilize 1-1/4 inch outer diameter (OD) tailpieces connected to 1-1/2 inch or 1-1/4 inch P-trap assemblies using rigid schedule 40 PVC, ABS, or tubular polypropylene fittings. Water supply lines utilize 1/2 inch NPSM threaded male shanks connected to 3/8 inch OD compression angle stop valves.
When should an Air Admittance Valve (AAV) be used instead of a true vent pipe?
An AAV valve is used as a mechanical venting alternative when connecting to a traditional open-air roof vent pipe is structurally impractical, such as in kitchen islands or renovated basement bathrooms. Mechanical AAVs permit air entry during drain cycles while remaining sealed tight against positive pressure stack spikes.
How do I identify whether my system uses thin-wall PVC or Schedule 40 fittings?
Thin-wall tubular PVC fittings feature smooth walls measuring approximately 1/16-inch thick and utilize slip joint nuts with separate rubber beveled washers for sealing. Solvent-welded Schedule 40 PVC pipe features heavy walls (0.133-inch thickness for 1.5-inch pipe), socket-weld hubs, and requires purple primer and PVC medium body cement for permanent structural joining.
Can a garbage disposal unit be integrated into a standard bathroom sink drain assembly?
While mechanically possible with 1-1/2 inch drain conversions, installing a high-torque residential garbage disposal beneath a lavatory sink violates standard building codes due to sanitary fixture classification and basin depth limits. For technical layout requirements regarding waste grinding equipment in designated service areas, review our residential plumbing code compliance specs.
What torque specifications should be applied to under-sink brass and plastic slip joint nuts?
Plastic polypropylene slip joint nuts should be tightened firmly by hand, followed by a maximum of 1/4 to 1/2 turn using smooth-jaw slip-joint pliers (approximately 5 to 8 ft-lbs of torque). Cast brass slip nuts with rubber friction rings require 10 to 15 ft-lbs of torque. Excess force will crack plastic nuts and tear internal synthetic washers.
Step-by-Step Guide to Understanding the Bathroom Sink Faucet Parts Diagram
Identify – Turn off water supply shut-off valves under the sink and isolate the specific faucet model.
Locate – Find the handle retention screw, internal cartridge housing, and lower drain assembly components.
Reference – Use the bathroom sink faucet parts diagram to map internal seals, O-rings, and tailpiece alignment.
Connect/Route – Install the replacement cartridge and secure the threaded tailpiece into the P-trap using fresh slip-joint washers.
Verify – Turn on the water supply gradually, checking for leaks around the spout stem, handle base, and lower P-trap joints.
Troubleshoot – Unscrew and clean the spout aerator or re-seat rubber drain gaskets if low pressure or persistent weeping occurs.
