Husqvarna Weed Eater Parts Diagram: Component Guide (2026)
A Husqvarna weed eater parts diagram illustrates the 2-stroke engine configuration, drive shaft layout, and cutting head assembly. Fuel lines connect from the tank filter to the carburetor intake nozzle, while the return line routes from the primer bulb. Main fasteners typically require T27 Torx drivers, with clutch housings torqued to 15–18 ft-lbs.
📌 Key Takeaways
- Engine fasteners standardly utilize T27 Torx hardware with torque values ranging from 12 to 18 ft-lbs.
- Fuel line configuration features a clear suction hose with fuel filter and a yellow return line attached to the primer bulb upper fitting.
- Always disconnect the spark plug boot before servicing the clutch assembly or cutting attachment.
- Deteriorated rubber fuel lines and clogged carburetor jet orifices account for over 70% of starting failures.
- Minor fuel line replacement and carburetor rebuilds are straightforward DIY tasks, but crankshaft internal repairs require specialized tools.
Analyzing a husqvarna weed eater parts diagram requires an understanding of small 2-stroke and 4-stroke engine architecture, power transfer assemblies, and metering fuel delivery circuits. Husqvarna string trimmers—such as the popular 128LD, 223L, 324L, and commercial 525L series—utilize modular engineering layouts designed for rapid field serviceability. This technical guide breaks down the complete structural configuration, mechanical exploded views, part numbering systems, and diagnostic workflows. By referencing official manufacturer blueprints and technical service schematics, technicians and experienced mechanics can accurately identify failing components, maintain factory tolerances, and execute precise repairs without structural guesswork.

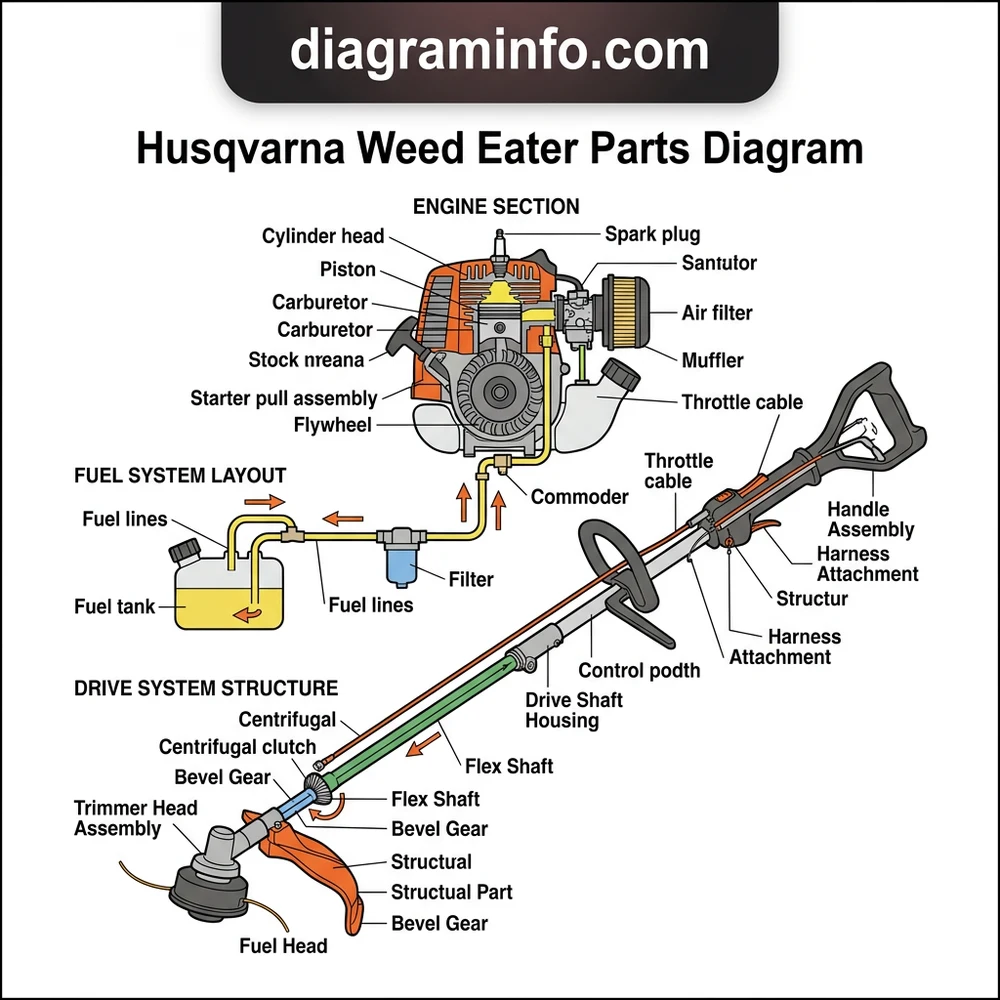

Husqvarna Weed Eater Parts Diagram: Mechanical Layout and System Blueprint
The structural framework of a Husqvarna string trimmer is segregated into four primary mechanical systems: the powerhead assembly, the fuel/intake network, the drive transfer configuration, and the lower gear housing. Understanding how these systems interface across a husqvarna weed eater parts diagram is critical for accurate fault isolation and component replacement.
Recommended Best Deal Products
• Cylinder Base Bolts: 4.5 – 5.5 Nm (40 – 48 in-lbs)
• Magneto Flywheel Nut: 13.0 – 15.0 Nm (115 – 132 in-lbs)
• Crankcase Screws: 3.5 – 4.5 Nm (31 – 40 in-lbs)
• Spark Plug Gap: 0.5 mm (0.020 in); Torque: 14.0 – 18.0 Nm (120 – 160 in-lbs)
• Centrifugal Clutch Shoe Engagement Speed: 3,800 – 4,200 RPM (Idle Speed: 2,800 – 3,000 RPM)
1. Powerhead Engine Subassembly
The powerhead serves as the primary thermal and kinetic energy source. On standard 28cc to 25.4cc models (such as the 128LD and 525L), the short-block blueprint contains a chrome-plated cylinder bore, a dual-ring or single-ring piston assembly, a two-piece drop-forged connecting rod, and a split crankcase sealed with liquid gasket compound. The flywheel is mounted on a tapered crankshaft keyway with an integrated magneto system that generates primary ignition voltage. When inspecting the engine schematic, pay close attention to the positioning of the crankshaft radial oil seals (typically 12x22x7 mm); compromised seal lips allow unmetered air ingress, causing lean lean-out conditions and thermal seizure.
2. Fuel System & Air Induction Layout
The fuel delivery circuit relies on a dual-line system routed through a molded rubber tank grommet. A Walbro WT-series or Zama C1Q diaphragm carburetor controls air-fuel mixture delivery. According to manufacturer specs, fuel line routing must adhere to strict directionality:
- Primary Suction Line (Inlet): Runs from the weighted fuel tank filter (clunk) directly to the barbed intake nipple on the carburetor body. Uses 3/32″ ID x 3/16″ OD (2.5mm x 5mm) clear/yellow Tygon tubing.
- Purge Return Line (Outlet): Connects the top outlet fitting of the purge bulb base back to the tank return port. Air and excess fuel vent into the tank when priming.
- Impulse Circuit: Internal impulse passages drilled through the cylinder insulator block transfer crankcase pressure pulses directly to the carburetor’s internal fuel pump diaphragm.
3. Drive Shaft & Centrifugal Clutch Assembly
Torque is transferred from the crankshaft to the cutting head via an automatic two-shoe centrifugal clutch assembly. The clutch shoes feature bonded friction linings that expand outward under centrifugal force, engaging the inner wall of the clutch drum at approximately 3,900 RPM. The output drum connects to either a flexible inner drive cable (found on split-shaft models like the 128LD) or a solid steel drive shaft supported by internal rubber vibration bushings (found on commercial straight-shaft units like the 525L). Reviewing a trimmer line head replacement schematic highlights how shaft inner splines interface directly with the upper pinion gear of the lower housing.
4. Lower Gearbox & Cutting Head Configuration
The lower angle drive converts high-speed rotational energy through a spiral bevel gear set at a typical 1:1.4 reduction ratio. The housing features a greasable bevel gear chamber containing double-shielded ball bearings, an arbor locking hole for maintenance, and a counter-threaded (left-hand metric, typically M10 x 1.25 LHM) output shaft. Incorrect shimming of the bevel drive gears on the exploded diagram leads to premature backlash wear and gear tooth stripping under high inertia load.
Recommended Best Deal Products
| Component Reference | OEM Part Identifier Range | Functional Specification / Clearance | Critical Maintenance Action |
|---|---|---|---|
| Piston Ring Set | 530 02 98-05 / 577 25 92-01 | End gap: 0.15 – 0.30 mm | Inspect for blow-by and carbon fouling |
| Carburetor Assembly | Zama C1Q-W40 / Walbro WT-834 | Metering lever height: 1.65 mm flush | Replace stiff diaphragm / clean internal screen |
| Centrifugal Clutch Assembly | 584 22 87-01 / 503 84 29-02 | Spring tension force: ~3,800 RPM engagement | Check shoe lining thickness (>1.0 mm minimum) |
| Bevel Gear Housing | 537 33 38-02 / 590 88 15-01 | Bevel gear backlash: 0.08 – 0.12 mm | Repack with high-temp lithium soap grease every 50h |
| Ignition Module (Armor Coil) | 545 04 67-01 / 588 14 15-01 | Air gap: 0.30 – 0.40 mm (0.012 – 0.016 in) | Set gap using feeder gauge at flywheel magnet |
Navigating a Husqvarna Weed Eater Parts Diagram Schematic
Interpreting a technical exploded view schematic requires a systematic approach to avoid ordering mismatched internal components. Husqvarna parts manuals utilize callout indexing numbers linked to structured spare part lists (IPLs). Here is how to navigate these technical documents with precision.
Husqvarna part numbers follow a structured 9-digit layout, typically formatted as three blocks: XXX XX XX-XX (e.g., 530 07 18-11). When reading a diagram, numbers enclosed in dotted bounding boxes represent factory-assembled service kits (e.g., complete short blocks, gear assemblies, or carburetor overhaul kits) that include all sub-components shown inside the box.
Step 1: Locate the Model Serial and Production Year Tag
Before matching parts on a blueprint, locate the aluminum or silver adhesive data plate situated on the lower crankcase or shaft housing. Husqvarna units undergo minor mechanical iterations over production runs. Note the precise model designation (e.g., 128LD vs. 128L) and the serial number prefix. The first two digits of the serial number often denote the production year (e.g., “11” denotes 2011). OEM specifications indicate that crankcase mating gaskets and drive shaft splines changed dimensions between pre-2011 and post-2011 production series.
Step 2: Trace the Component Callout Hierarchy
Exploded schematics display assemblies exploded along primary axes. Lines with directional arrowheads show insertion vectors. When referencing an item:
- Identify the main structural group (e.g., Frame & Covers, Engine, Carburetor, Shaft & Gear Housing).
- Locate the numerical key (e.g., Index #14) on the visual schematic.
- Cross-reference Index #14 in the adjacent parts table to confirm the exact part number, description, and required quantity per machine.
- Check for superseding part markers. A bracketed notation like “(Incl. 15-18)” indicates that ordering that single callout auto-supplies the surrounding hardware subset.
Step 3: Distinguish Between Model Variations and Emission Tiers
Modern Husqvarna trimmers incorporate E-TECH or X-Torq stratified scavenging engine designs. When reading an engine blueprint, check for dual intake duct configurations versus single intake paths. X-Torq engines utilize a dual-channel insulator block and specific split-throat carburetors. Ordering parts from a non-X-Torq blueprint for an X-Torq powerhead will result in incorrect port alignment and non-functional fuel induction.
Diagnosing Mechanical Failures Using Trimmer System Schematics
When executing field repairs, the exploded schematic acts as a diagnostic map. Mechanics can isolate system failures by cross-referencing mechanical symptoms against physical component locations on the blueprint.
Do not disassemble the crankcase or cylinder without performing a crankcase leak-down test. Seal failures must be verified under 0.5 bar (7.25 PSI) pressure and vacuum. Performing structural tear-down prior to isolation testing can ruin diagnostic evidence of crankcase air leaks.
1. Engine Fails to Hold Idle or Runs Lean (Air Leak Diagnostics)
If the engine exhibits erratic high idling, poor return to idle, or hesitation under load, refer to our 2-stroke engine compression testing guide and systematically trace the primary air sealing points marked on the engine diagram:
- Crankshaft Radial Seals: Check for oil slinging behind the flywheel or drive clutch drum. Worn seals allow unmetered air into the crankcase.
- Carburetor Insulator Gasket: Verify that the heat barrier block gasket is intact and torqued evenly to 3.5 Nm. Thermal warping of plastic insulator blocks creates invisible air gaps behind the carburetor mounting flange.
- Crankcase Sealing Surface: On split-crankcase units, examine the seal line between upper and lower engine pans. Reapply ThreeBond 1211 or Loctite 518 flange sealant according to schematic rebuild specs.
2. Line Trimmer Cutting Head Rotates Continuously at Idle
If the cutting head spins while the engine operates at standard idle RPM (2,800 – 3,000 RPM), inspect the centrifugal clutch group on the drive transfer section of the husqvarna weed eater parts diagram:
- Broken Clutch Spring: Index callout for the clutch extension spring. If the spring stretches or snaps, the clutch shoes expand outward prematurely due to gravity and low centrifugal force.
- Worn Clutch Hub Bearings / Sticking Shoes: Clutch shoes accumulate baked-on clutch dust or debris, binding them in an expanded state against the inner clutch drum.
- Idle RPM Set Too High: Check carburetor idle speed screw (LA screw setting) before replacing structural clutch components.
3. High Engine RPM with No Cutting Head Movement
When the powerhead revs normally under throttle input but the cutting line head remains stationary, the drive system line has suffered a mechanical disconnect. Refer to the shaft and gearbox layout:
- Stripped Flexible Inner Cable: On curved or split-shaft models, square drive ends on the inner flexible cable can round off due to insufficient grease or severe overload.
- Sheared Bevel Pinion Gear Teeth: Remove the gear housing side plug and inspect gear mesh. Stripped teeth on the drive shaft pinion or output gear require replacing the entire lower gear head module.
- Stripped Drive Clutch Drum Adapter: Inspect the female square or splined drive socket welded inside the clutch drum center. Corrosion or shock loads can strip this interface completely.
Husqvarna Weed Eater Parts Diagram Technical FAQ
How Do You Trace Fuel Line Connections on a Husqvarna Trimmer Blueprint?
On a Husqvarna trimmer fuel system schematic, trace the flow beginning inside the fuel tank. The fuel pickup filter connects to the suction line, which passes through the multi-hole tank grommet directly to the straight brass intake nipple on the carburetor. The return line attaches to the curved nipple on the carburetor’s primer bulb base and passes through the second grommet hole back into the tank without an attached filter. For fine-tuning details post-hose replacement, refer to our detailed Husqvarna carburetor tuning manual.
Why Do OEM Husqvarna Diagrams Show Multiple Part Numbers for One Assembly?
Husqvarna continually updates component engineering over a product line’s lifespan to address wear patterns or emissions rules. Multiple part numbers listed under a single schematic callout usually signify revision levels, superseding numbers, or regional variations (e.g., EPA Phase 2 vs. California CARB compliant components). Always filter parts selection by matching your unit’s specific serial number range and build year recorded on the crankcase tag.
What Torque Specifications Apply to Husqvarna Cylinder and Crankcase Fasteners?
Manufacturer specifications mandate strict torque thresholds to prevent warping thin-walled aluminum castings. Cylinder base bolts must be torqued in a cross-pattern to 4.5 – 5.5 Nm (40 – 48 in-lbs). Crankcase body screws require 3.5 – 4.5 Nm (31 – 40 in-lbs). The flywheel retaining nut requires 13.0 – 15.0 Nm (115 – 132 in-lbs) to properly lock the tapered crankshaft mating shaft onto its woodruff keyway without shearing.
How Do Flexible Shaft Configurations Differ from Solid Drive Shaft Diagrams?
Flexible drive shaft diagrams (common on residential curved-shaft trimmers like the 128C) feature a single braided steel cable suspended inside an un-lined outer tube without radial support bearings. Solid shaft diagrams (found on commercial straight-shaft units like the 525L) show a solid induction-hardened steel rod held centered inside the outer aluminum tube by multiple spaced rubber guide bushings. Flexible shafts require high-tack lithium cable grease applied along their entire length, while solid shafts require grease only at their splined connection ends.
How Do You Identify the Correct Carburetor Rebuild Kit from the Parts Diagram?
To select the exact rebuild kit, locate the cast metal identification stamp directly on the carburetor body shown in the diagram. Walbro carburetors stamp model numbers (e.g., WT-834) on the side flange, whereas Zama stamps letters/numbers (e.g., C1Q-W40) near the purge bulb housing. Match this code to the exploded carburetor breakdown table. Gasket/diaphragm-only repair kits use a “G” or “GND” prefix, whereas full internal overhaul kits containing the metering needle, lever, screen, and spring use a “K” or “RB” kit identifier.
Step-by-Step Guide to Understanding the Husqvarna Weed Eater Parts Diagram
Identify – Locate your specific Husqvarna model number on the powerhead tag to match the corresponding parts diagram layout.
Locate – Find the target system on the schematic, such as the carburetor fuel lines, drive shaft, or cutting head structure.
Reference – Match callout numbers on the diagram with part descriptions to verify hardware sizes and seal placements.
Connect/Route – Route fuel lines and throttle cables exactly as configured in the diagram to prevent kinks or pinch points.
Verify – Check torque specs on critical fasteners like clutch screws or cylinder bolts against diagram specifications.
Troubleshoot – Trace missing or damaged components against the diagram layout if engine starting or head rotation fails.
