A standard NBA basketball court diagram with labels features a 94 by 50-foot outer boundary structure. Key layout elements include the 15-foot free-throw line, a 16-foot wide key (paint), a 23.75-foot three-point arc (22 feet in corners), and a 10-foot rim height attached to a 6-foot backboard system.
📌 Key Takeaways
- Standard NBA court layout dimensions measure 94 feet in length by 50 feet in width.
- The free-throw line is positioned exactly 15 feet from the front plane of the backboard surface.
- The three-point arc radius measures 23 feet 9 inches from the center of the hoop (22 feet in corners).
- Misinterpreting standard 2-inch line width boundaries is the primary court layout mistake.
- Professional installation is recommended for high-grade flooring system stenciling and anchor points.
Navigating a professional athletic surfacing schematic requires precise geometric understanding and compliance with governing body regulations (NBA, NCAA, FIBA, and NFHS). A standardized basketball court diagram with labels serves as the definitive engineering blueprint for facility managers, layout contractors, and surfacing technicians. Interpreting key boundary dimensions, key area radiuses, and line tolerances ensures structural alignment during initial layout, repainting, or surface restoration. This technical guide breaks down each court component, detailing baseline dimensions, perimeter configurations, hardware placements, and systematic verification steps required to execute flawless regulation surface installations on commercial hardwood or outdoor acrylic surfaces.
Basketball Court Diagram With Labels: System Structural Breakdown
Every athletic court blueprint relies on precise dimensional relationships mapped from a central control point. Interpreting a basketball court diagram with labels requires breaking down the playing surface into core functional zones, each governed by strict regulatory specifications.
Recommended Best Deal Products
The primary perimeter consists of two sidelines and two baselines (end lines). In professional and collegiate configurations, the overall layout boundary measures 94 feet (28.65 m) in length by 50 feet (15.24 m) in width. High school (NFHS) configurations maintain the same 50-foot width but shorten the length to 84 feet (25.60 m). Line thickness across all major standards is uniform at 2 inches (5.08 cm), and all court measurements are taken from the inside edge of the boundary lines, except for the center line, which splits the midpoint evenly.
All regulation boundary lines, key markings, and arcs must be applied at exactly 2 inches (5.08 cm) in width. Out-of-bounds clearance mandates a minimum 3-foot (0.91 m) unobstructed perimeter around the court boundary, with 10 feet (3.05 m) recommended for commercial and collegiate facilities.
The core elements shown on an athletic schematic include:
- Center Circle: Positioned at the exact geometric midpoint of the court layout, featuring a 6-foot (1.83 m) radius (12-foot diameter) measured to the outside edge of the boundary line.
- The Key (Restricted Area/Free-Throw Lane): A rectangular box extending from the baseline to the free-throw line. In NBA and FIBA systems, this width measures 16 feet (4.88 m); in NCAA and high school layouts, the key width is 12 feet (3.66 m).
- Free-Throw Line & Circle: Positioned 15 feet (4.57 m) from the front face of the backboard (18 feet 10 inches from the baseline). The attached semicircle has a 6-foot radius.
- Three-Point Line: Consists of two parallel straight lines extending perpendicular from the baseline, transitioning into a continuous arc struck from the center point directly beneath the basket rim.
- Restricted Area Arc: A 4-foot (1.22 m) radius arc struck beneath the basket structure in NBA and NCAA layouts to delineate non-charge zones.
| League Standard | Court Dimensions (L x W) | Key Width | 3-Point Arc Distance | Backboard Overhang |
|---|---|---|---|---|
| NBA | 94′ x 50′ (28.65m x 15.24m) | 16 ft (4.88 m) | 23′ 9″ arc / 22′ corners | 4 ft (1.22 m) |
| NCAA | 94′ x 50′ (28.65m x 15.24m) | 12 ft (3.66 m) | 22′ 1.75″ uniform | 4 ft (1.22 m) |
| FIBA | 28m x 15m (91.9′ x 49.2′) | 4.9 m (16.08 ft) | 6.75m arc / 6.6m corners | 1.2 m (3.94 ft) |
| NFHS (High School) | 84′ x 50′ (25.60m x 15.24m) | 12 ft (3.66 m) | 19′ 9″ radius | 4 ft (1.22 m) |
For complete installation standards, reference our detailed gymnasium flooring specs to ensure substrate compatibility before laying out perimeter lines.
How to Read the Basketball Court Diagram With Labels for Layout Installation
Translating a blueprint schematic onto a physical floor requires a systematic chalk-line layout procedure. Technicians must strictly follow mathematical verification techniques to prevent diagonal skew and dimensional variance across the playing surface structure.
Step 1: Establish Primary Baseline and Midpoint Control Lines
Begin by establishing the main longitudinal centerline (long axis) of the building. Snap a permanent chalk line down the exact middle of the space. Locate the center point of the court along this axis. From the center point, measure outward half the total length (47 feet for NBA/NCAA; 42 feet for NFHS) along the centerline to mark each baseline midpoint. Strike cross-lines at these points to form your baseline reference axes.
Step 2: Squaring the Outer Perimeter (3-4-5 Triangulation Method)
To ensure absolute perpendicularity between baselines and sidelines, utilize the Pythagorean theorem (3-4-5 rule) or diagonal verification. For a standard 94′ x 50′ court, calculate the corner-to-corner diagonal distance using:
Diagonal = √(94² + 50²) = √(8836 + 2500) = √11336 ≈ 106.47 feet (106 feet, 5.6 inches)
Adjust baseline and sideline chalk lines until opposite diagonal measurements match precisely within a ±1/16 inch tolerance.
Never strike the three-point arc from the baseline or backboard face line. According to manufacturer specs and league schematics, the true focal point for the three-point arc radius is the point on the floor directly beneath the exact center of the basket rim—located precisely 5 feet 3 inches (63 inches) in from the baseline (4 ft backboard overhang + 15 inches to rim center).
Step 3: Laying Out the Key and Three-Point Geometry

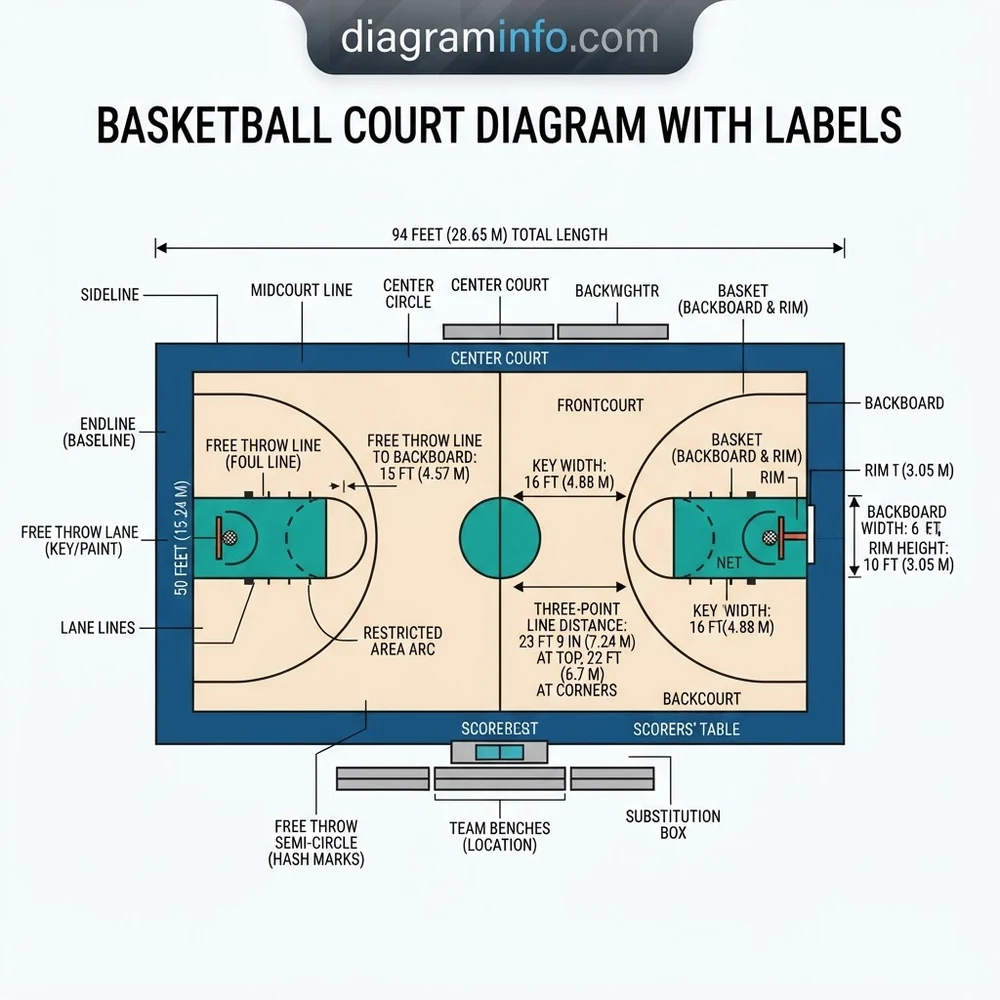

As shown in the court diagram above, measure from the baseline midpoint outward to locate the key boundary corners (e.g., 6 feet on either side for a 12-foot key, or 8 feet for a 16-foot key). Snap lines perpendicular to the baseline extending 19 feet inward (18′ 10″ to the outer edge of the free-throw line). Next, locate the focal pivot point 5 feet 3 inches from the baseline along the center axis. Anchor a non-stretching steel measuring tape at this point to strike the three-point arc radius according to governing league standards (e.g., 23′ 9″ for NBA, 22′ 1.75″ for NCAA).
Step 4: Precision Masking and Striping
Apply specialized low-tack 2-inch striping tape along the chalked layout edges. Utilize heavy-duty roller applicators to seal tape edges prior to paint application, preventing bleed. For proper material compatibility, consult our acrylic line paint application specs before selecting traffic paints or 2-component polyurethane court enamels.
Diagnosing Surface Layout Discrepancies and Boundary Misalignments
When verifying an existing court or troubleshooting alignment errors during layout, technicians frequently encounter layout drift, out-of-square keys, or distorted radius arcs. Systematically identifying and correcting these configuration errors prevents costly paint stripping or surface re-topping.
Flexible cloth tape measures can stretch up to 1/2 inch over a 50-foot span when pulled under tension. Always use calibrated certified steel measuring tapes or laser distance sensors to verify anchor dimensions on athletic blueprint layouts.
Common field errors and corrective protocols include:
- Key Splay (Out-of-Square Lane Lines): Caused by measuring key length along sidelines rather than relative to the central longitudinal axis. Correction: Re-verify key squareness by measuring cross diagonals from opposite key corners ( baseline corner to opposite free-throw corner); diagonals must be perfectly equal.
- Flat-Sided Three-Point Arc: Occurs when using a cloth tape that sags or stretches during swing radius marking. Correction: Clamp a continuous steel tape to a heavy-duty center pin fixed at the plumb point under the hoop. Maintain constant 10-lb pull tension while marking the arc arc line.
- Backboard Overhang Variance: Structural wall-mount or portable stanchion offset positioning errors alter the basket center point relative to the baseline. Correction: Plumb drop a laser level from the center of the rim to the floor surface. Re-measure all key and arc layouts using this true floor projection point rather than assuming nominal hardware dimensions.
- Line Paint Bleeding under Tape: Caused by inadequate tape burnishing or high surface porosity on synthetic floors. Review specialized athletic court resurfacing guidelines to properly prime porous wood or concrete surfaces prior to line striping.
Basketball Court Diagram With Labels Frequently Asked Questions
What is the standard regulation overall court dimension on official court blueprints?
Official NBA and NCAA basketball court blueprints specify an overall dimension of 94 feet in length by 50 feet in width (4,700 square feet). High school courts (NFHS) measure 84 feet long by 50 feet wide (4,200 square feet), while international FIBA courts measure 28 meters long by 15 meters wide (approximately 91.86 ft x 49.21 ft).
Where is the exact center point for striking the 3-point line radius located?
The 3-point line radius center point is located on the floor directly beneath the center of the basket rim. This point lies along the central longitudinal axis, exactly 5 feet 3 inches (63 inches) in from the inner edge of the baseline (accounting for a 4-foot backboard overhang plus 15 inches to the rim center).
What are the primary key width differences across various basketball court schematics?
Key widths vary according to governing bodies: NBA and FIBA schematics specify a 16-foot (4.88 m) wide key. In contrast, NCAA (college) and NFHS (high school) schematics utilize a narrower 12-foot (3.66 m) key width. All standard free-throw lines are positioned 15 feet from the face of the backboard.
How thick should boundary lines be marked according to official schematics?
All official basketball court markings—including sidelines, baselines, key lines, center circle, and three-point arcs—must be applied at a uniform width of 2 inches (5.08 cm). Line color must contrast sharply with the playing surface finish.
How far does the backboard extend onto the playing court from the baseline?
On standard regulation court diagrams, the front face of the backboard extends exactly 4 feet (1.22 m) past the baseline into the playing area. This overhang provides player safety margins beneath the basket during rim-level plays.
Step-by-Step Guide to Understanding the Basketball Court Diagram With Labels
Identify – Determine court standard (NBA, NCAA, FIBA) and verify total boundary measurements on the diagram.
Locate – Position the center point of the basketball rim and drop a plumb line to baseline reference.
Reference – Use diagram dimensions to mark the key width, free-throw line, and center circle layout.
Connect/Route – Snap chalk lines and route painter’s tape along all marked perimeter and interior arc lines.
Verify – Measure diagonal corner-to-corner distances and verify three-point arc radii with a tape measure.
Troubleshoot – Adjust skewed line tape or correct boundary offset before applying permanent court paint.
